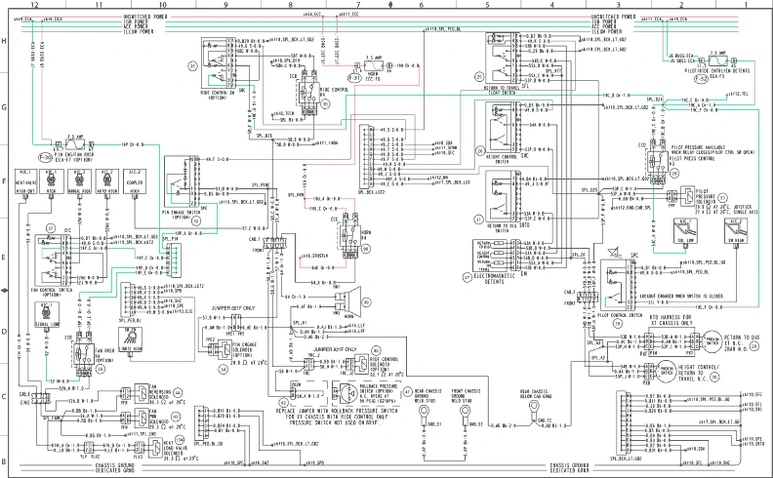

Электросхема фронтального погрузчика NEW HOLLAND (сери 6)


— Instrument cluster
#    Location     Component
  • 63 5F Warning buzzer
  • 64 3F Parking brake relay
  • 65 11E Fuel level sender
  • 66 11C Air filter restriction switch
  • 67 2D Parking brake solenoid
  • 68 10E Radiator coolant temperature sender
  • 69 2D Brake pressure warning switch
  • 72 9E Hydraulic filter restriction switch
  • 73 7D Hydraulic oil temperature sender
  • 74 6E Park brake switch
  • 75 8D Redundant brake pressure switch 1
  • 76 8D Redundant brake pressure switch 2
  • F-27 10F Fuse ECC-F8 : AIC power
  • F-28 7F Fuse ECA-F3 : AIC power
  • F-29 3G Fuse ECA-F6 : Park brake


— Engine control
#     Location      Component
  • 22 6H Water in fuel sensor
  • 23 10E Throttle potentiometer
  • 24 10G Engine controller
  • 161 12G NOX sensor relay
  • 162 5G Humidity and ambient temperature sensor
  • 163 6E NOX sensor (NOXS)
  • 164 7E Tank heater control valve
  • 165 5C DEF level and tank temperature
  • 166 6C Upstream temperature sensor
  • 167 8C Downstream temperature sensor
  • 168 8D Doser metering valve
  • 169 10D DNOX controller
  • F-11 12G Fuse ECA-F10 : DNOX controller
  • F-11A 4E Fuse EVGT_3 :Turbo


— Machine controls
#     Location     Component
  • 25 5H Return to travel float switch
  • 26 5G Height control switch
  • 27 5E Electromagnetic detents
  • 28 2D Return to dig proximity switch
  • 29 2F Pilot Pressure control relay ECD-K3
  • 30 2C Height control and return to travel proximity switch
  • 31 5F Return to dig switch
  • 32 10F Pin engage switch (option)
  • 33 2F Pilot pressure solenoid
  • 34 9D Pin engage solenoid
  • 35 9H Ride control switch (option)
  • 36 8G Ride control relay (option)
  • 37 12E Fan control switch (option)
  • 38 11D Fan reverse relay (option)
  • 39 3E Pilot control switch
  • 40 7C Ride control solenoid (option)
  • 41 7C Rollback pressure switch (XT with ride control only)
  • 42 8C Rollback jumper
  • 43 10C Fan PWM solenoid
  • 44 10C Fan reverse solenoid (option)
  • 98 7E Horn relay
  • 99 7D Horn
  • 134 10B Heat load valve solenoid
  • F-30 12F Fuse ECA-F7 : Pin engage \ fan reverse (option)
  • F-31 7H Fuse ECC-F6 : Horn
  • F-32 2H Fuse ECA-F5 : Pilot \ ride control \ EM detents
