Электросхемы и коды неисправностей 210K EP Tractor Loader
(PIN: 1T8210EK_ _G891000— ) John Deere

  • SE1—Starting and Charging Circuit
  • SE2—Fuse and Power Distribution Circuit
  • SE3—Fuse and Power Distribution Circuit
  • SE4—Modular Telematics Gateway (MTG) Control Unit Circuit
  • SE5—Satellite (SAT) Module Control Unit Circuit
  • SE6—Engine Control Unit (ECU) Circuit
  • SE7—Engine Control Unit (ECU) Circuit
  • SE8—Engine Control Unit (ECU) Circuit
  • SE9—Engine Control Unit (ECU) Circuit
  • SE10—Not used on this machine
  • SE11—Not used on this machine
  • SE12—Not used on this machine
  • SE13—CAN Circuit
  • SE14—Engagement and Monitor Unit (EMU) Circuit
  • SE15—Engagement and Monitor Unit (EMU) Circuit
  • SE16—Engagement and Monitor Unit (EMU) Circuit
  • SE17—Engagement and Monitor Unit (EMU) Circuit
  • SE18—Engagement and Monitor Unit (EMU) Circuit
  • SE19—Loader Auxiliary Control Unit Circuit
  • SE20—Ride Control Circuit
  • SE21—Loader Coupler Circuit
  • SE22—Horn/Brake Light Circuit
  • SE23—Brake/Drive/Work Light Circuit
  • SE24—Brake/Drive/Work Light Circuit
  • SE25—Turn Signal Circuit
  • SE26—Hazard Light Circuit
  • SE27—Beacon Light Circuit
  • SE28—Air Conditioner/Blower Motor Circuit
  • SE29—Air Conditioner/Blower Motor Circuit
  • SE30—Wiper/Washer Circuit
  • SE31—Power-Takeoff (PTO) Circuit
  • SE32—Return-to-Dig/Power Port/Dome Light Circuit
  • SE33—Radio Circuit

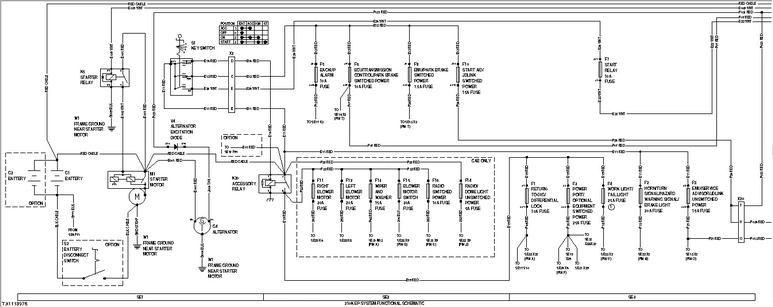

System Functional Schematic (SE1—SE3)

  • F1 - Return-to-Dig/Differential Lock 10 A Fuse
  • F2 - Horn/Turn Signal/Hazard Warning Signal/Brake Light 20 A Fuse
  • F3 - Power Port/Optional Equipment Switched Power 25 A Fuse
  • F4 - Work Light/Tail Light 25 A Fuse
  • F5 - Backup Alarm 10 A Fuse
  • F6 - ECU/Transmission Control/Park Brake Switched Power 10 A Fuse
  • F7 - Start Relay 10 A Fuse
  • F8 - EMU/ Service ADVISOR ™ / JDLink ™ Unswitched Power 15 A Fuse
  • F9 - EMU/Park Brake Switched Power 7.5 A Fuse
  • F10 - Start Aid/ JDLink ™ Switched Power 15 A Fuse
  • F11 - Right Blower Motor 30 A Fuse
  • F12 - Left Blower Motor 20 A Fuse
  • F13 - Wiper and Washer 15 A Fuse
  • F14 - Radio/Dome Light Unswitched Power 5 A Fuse
  • F15 - Blower Motor Switch/Air Conditioning 30 A Fuse
  • F16 - Radio Switched Power 10 A Fuse
  • G1 - Battery 1
  • G2 - Battery 2
  • G4 - Alternator
  • K5 - Starter Relay
  • K20 - Accessory Relay
  • M1 - Starter Motor
  • S1 - Key Switch
  • S2 - Battery Disconnect Switch
  • V4 - Alternator Excitation Diode
  • W1 - Frame Ground Near Starter Motor
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X20 - Engine Harness-to-Load Center Harness Connector

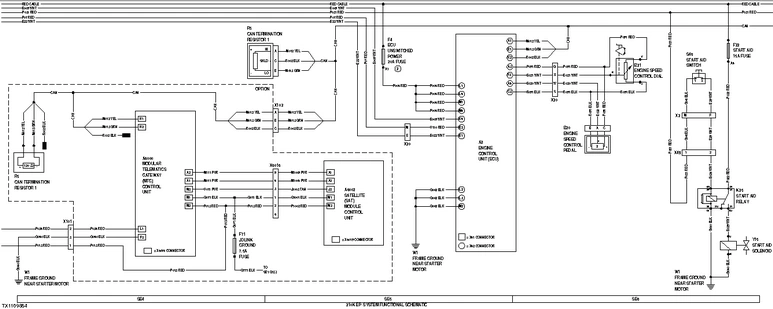

System Functional Schematic (SE4—SE6)

  • A2 - Engine Control Unit (ECU)
  • A6000 - Modular Telematics Gateway (MTG) Control Unit
  • A6002 - Satellite (SAT) Module Control Unit
  • B20 - Engine Speed Control Pedal
  • B21 - Engine Speed Control Dial
  • F4 - ECU Unswitched Power 20 A Fuse
  • F22 - Start Aid 15 A Fuse
  • F71 - JDLink ™ Ground 7.5 A Fuse
  • K25 - Start Aid Relay
  • R5 - CAN Termination Resistor 1
  • S46 - Start Aid Switch
  • W1 - Frame Ground Near Starter Motor
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X20 - Engine Harness-to-Load Center Harness Connector
  • X41 - ECU 32-Pin Connector
  • X42 - ECU 48-Pin Connector
  • X49 - Start Aid Switch Harness Connector
  • X101 - Modular Telematics Gateway (MTG) 3-Pin Connector
  • X102 - Modular Telematics Gateway (MTG) CAN 1 Connector
  • X6014 - Modular Telematics Gateway (MTG) Control Unit 48-Pin Connector
  • X6015 - Satellite (SAT) Module Control Unit 48-Pin Connector
  • X6016 - Modular Telematics Gateway (MTG) Harness-to-Satellite (SAT) Harness 6-Pin Connector
  • Y15 - Start Aid Solenoid

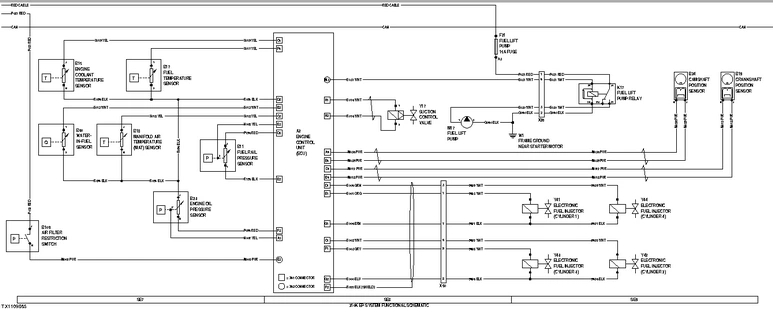

System Functional Schematic (SE7—SE9)

  • A2 - Engine Control Unit (ECU)
  • B11 - Fuel Rail Pressure Sensor
  • B15 - Engine Coolant Temperature Sensor
  • B17 - Fuel Temperature Sensor
  • B18 - Manifold Air Temperature Sensor
  • B19 - Crankshaft Position Sensor
  • B23 - Engine Oil Pressure Sensor
  • B24 - Camshaft Position Sensor
  • B60 - Water-in-Fuel Sensor
  • B109 - Air Filter Restriction Switch
  • F21 - Fuel Lift Pump 15 A Fuse
  • K17 - Fuel Lift Pump Relay
  • M17 - Fuel Lift Pump
  • W1 - Frame Ground Near Starter Motor
  • X41 - ECU 32-Pin Connector
  • X42 - ECU 48-Pin Connector
  • X50 - Engine Harness-to-Electronic Injector Harness Connector
  • X86 - Fuel Lift Pump Relay Harness Connector
  • Y17 - Suction Control Valve
  • Y41 - Electronic Fuel Injector (cylinder 1)
  • Y42 - Electronic Fuel Injector (cylinder 2)
  • Y43 - Electronic Fuel Injector (cylinder 3)
  • Y44 - Electronic Fuel Injector (cylinder 4)

System Functional Schematic (SE13—SE15)

  • A3 - Engagement and Monitor Unit (EMU)
  • B8 - Fuel Level Sensor
  • B12 - Hydraulic Oil Filter Restriction Switch
  • H1 - Monitor Alarm
  • R6 - CAN Termination Resistor 2
  • W1 - Frame Ground Near Starter Motor
  • X1 - Service ADVISOR ™ Diagnostic Connector
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X20 - Engine Harness-to-Cab/Canopy Harness Connector
  • X21 - Transmission Harness-to-Cab/Canopy Console Harness Connector
  • X43 - EMU 16-Pin Connector
  • X44 - EMU 14-Pin Connector
  • X45 - EMU 12-Pin Connector

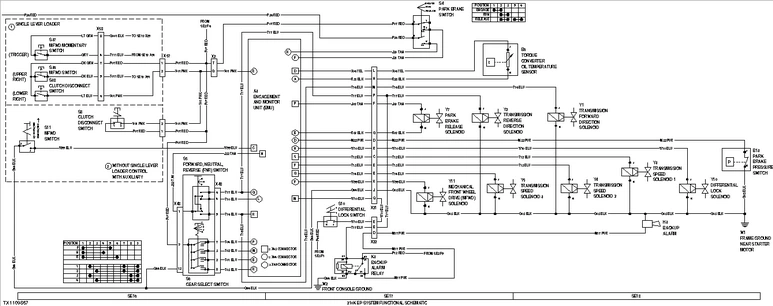

System Functional Schematic (SE16—SE18)

  • 1 - Single Lever Loader
  • 2 - Without Single Lever Loader Control With Auxiliary
  • A3 - Engagement and Monitor Unit (EMU)
  • B6 - Torque Converter Oil Temperature Sensor
  • B13 - Park Brake Pressure Switch
  • H3 - Backup Alarm
  • K3 - Backup Alarm Relay
  • S4 - Park Brake Switch
  • S5 - Forward, Neutral, Reverse (FNR) Switch
  • S6 - Gear Select Switch
  • S8 - Clutch Disconnect Switch
  • S10 - Differential Lock Switch
  • S11 - Mechanical Front Wheel Drive (MFWD) Switch
  • S36 - Mechanical Front Wheel Drive (MFWD) Switch
  • S37 - Mechanical Front Wheel Drive (MFWD) Momentary Switch
  • S38 - Clutch Disconnect Switch
  • W1 - Frame Ground Near Starter Motor
  • W2 - Front Console Ground
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X21 - Transmission Harness-to-Cab/Canopy Console Harness Connector
  • X22 - Load Center Harness-to-Transmission Harness Connector
  • X43 - EMU 16-Pin Connector
  • X44 - EMU 14-Pin Connector
  • X45 - EMU 12-Pin Connector
  • X48 - Transmission Control Lever (TCL) Connector
  • X57 - Loader Auxiliary Control Harness 2-Pin Connector
  • X58 - Loader Control Lever Connector
  • Y1 - Transmission Forward Direction Solenoid
  • Y2 - Transmission Reverse Direction Solenoid
  • Y3 - Transmission Speed Solenoid 1
  • Y4 - Transmission Speed Solenoid 2
  • Y5 - Transmission Speed Solenoid 3
  • Y7 - Park Brake Release Solenoid
  • Y10 - Differential Lock Solenoid
  • Y11 - Mechanical Front Wheel Drive (MFWD) Solenoid

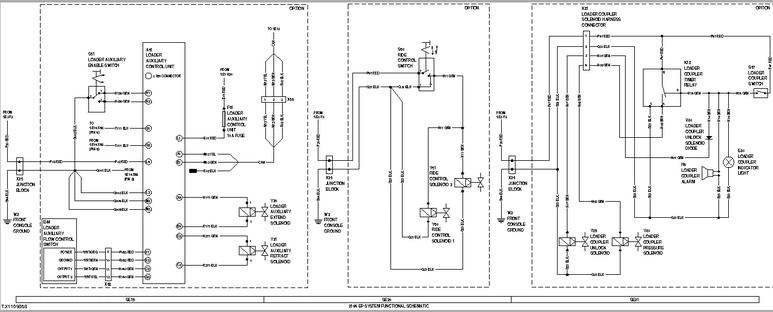

System Functional Schematic (SE19—SE21)

  • A51 - Loader Auxiliary Control Unit
  • B44 - Loader Auxiliary Flow Control Switch
  • E30 - Loader Coupler Indicator Light
  • F51 - Loader Auxiliary Control Unit 10 A Fuse
  • H6 - Loader Coupler Alarm
  • K18 - Loader Coupler Time Relay
  • S50 - Ride Control Switch
  • S51 - Loader Auxiliary Enable Switch
  • S57 - Loader Coupler Switch
  • V30 - Loader Coupler Unlock Solenoid Diode
  • W2 - Front Console Ground
  • X25 - Junction Block
  • X51 - Loader Auxiliary Control Unit Connector
  • X56 - Loader Auxiliary Control Harness CAN Connector
  • X58 - Loader Control Lever Connector
  • X81 - Loader Coupler Solenoid Harness Connector
  • Y20 - Loader Auxiliary Extend Solenoid
  • Y21 - Loader Auxiliary Retract Solenoid
  • Y29 - Loader Coupler Unlock Solenoid
  • Y30 - Loader Coupler Pressure Solenoid
  • Y50 - Ride Control Solenoid 1
  • Y51 - Ride Control Solenoid 2

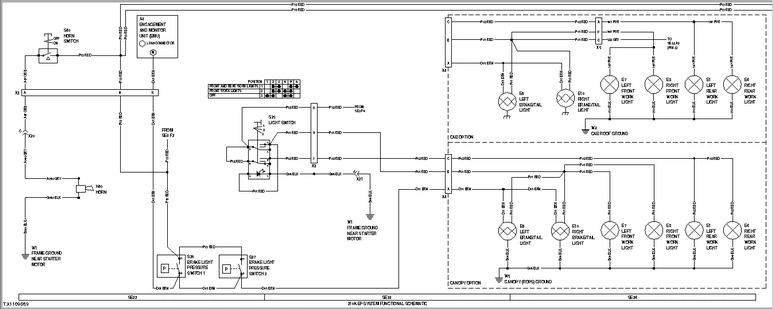

System Functional Schematic (SE22—SE24)

  • A3 - Engagement and Monitor Unit (EMU)
  • E1 - Left Rear Work Light
  • E4 - Right Rear Work Light
  • E7 - Left Front Work Light
  • E8 - Right Front Work Light
  • E9 - Left Brake/Tail Light
  • E10 - Right Brake/Tail Light
  • H40 - Horn
  • S25 - Light Switch
  • S26 - Brake Light Pressure Switch 1
  • S27 - Brake Light Pressure Switch 2
  • S40 - Horn Switch
  • W1 - Frame Ground Near Starter Motor
  • W5 - Canopy (ROPS) Harness Ground
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X4 - Load Center Harness-to-Cab/Canopy Harness Connector
  • X5 - Cab Harness-to-Cab Roof Harness Connector
  • X20 - Engine Harness-to-Load Center Harness Connector
  • X21 - Transmission Harness-to-Cab/Canopy Console Harness Connector
  • X45 - EMU 12-Pin Connector

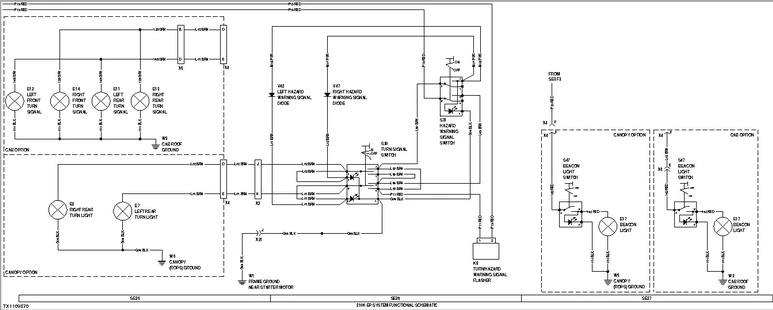

System Functional Schematic (SE25—SE27)

  • E7 - Left Front Work Light
  • E8 - Right Front Work Light
  • E11 - Left Rear Turn Signal
  • E12 - Left Front Turn Signal
  • E13 - Right Rear Turn Signal
  • E14 - Right Front Turn Signal
  • E17 - Beacon Light
  • K9 - Turn/Hazard Warning Signal Flasher
  • S30 - Turn Signal Switch
  • S31 - Hazard Warning Signal Switch
  • S47 - Beacon Switch
  • V47 - Right Hazard Warning Signal Diode
  • V48 - Left Hazard Warning Signal Diode
  • W1 - Frame Ground Near Starter Motor
  • W3 - Cab Roof Ground
  • W5 - Canopy (ROPS) Ground
  • X2 - Load Center Harness-to-Cab/Canopy Console Harness Connector
  • X4 - Load Center Harness-to-Cab/Canopy Harness Connector
  • X5 - Cab Harness-to-Cab Roof Harness Connector
  • X21 - Transmission Harness-to-Cab/Canopy Console Harness Connector

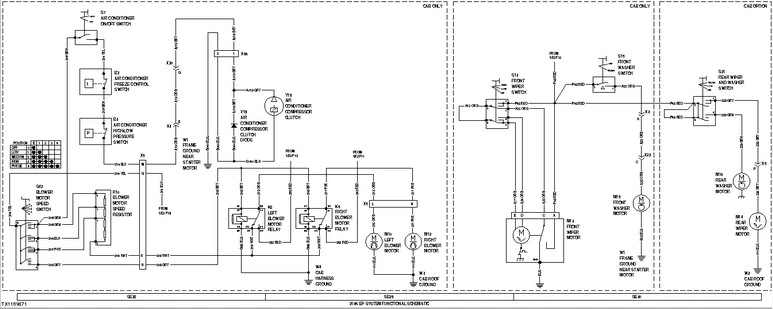

System Functional Schematic (SE28—SE30)

  • B2 - Air Conditioner Freeze Control Switch
  • B3 - Air Conditioner High/Low Pressure Switch
  • K6 - Right Blower Motor Relay
  • K8 - Left Blower Motor Relay
  • M10 - Left Blower Motor
  • M12 - Right Blower Motor
  • M13 - Front Wiper Motor
  • M14 - Rear Wiper Motor
  • M15 - Front Washer Motor
  • M16 - Rear Washer Motor
  • R10 - Blower Motor Speed Resistor
  • S7 - Air Conditioner On/Off Switch
  • S13 - Front Wiper Switch
  • S15 - Front Washer Switch
  • S21 - Rear Wiper and Washer Switch
  • S42 - Blower Motor Speed Switch
  • V19 - Air Conditioner Compressor Clutch Diode
  • W1 - Frame Ground Near Starter Motor
  • W3 - Cab Roof Ground
  • W4 - Cab Harness Ground
  • X3 - Load Center Harness-to-Cab Harness 2-Pin Connector
  • X5 - Cab Harness-to-Cab Roof Harness Connector
  • X20 - Engine Harness-to-Cab/Canopy Harness Connector
  • X22 - Load Center Harness-to-Transmission Harness Connector
  • X66 - Air Conditioner Compressor Clutch Harness Connector
  • Y19 - Air Conditioner Compressor Clutch Solenoid

System Functional Schematic (SE31—SE33)

  • A9 - Radio
  • B30 - Right Speaker
  • B31 - Left Speaker
  • B32 - Power-Takeoff (PTO) Temperature Switch
  • E18 - Side Console Light
  • E20 - Dome Light
  • E25 - Power-Takeoff (PTO) Light
  • K13 - Power-Takeoff (PTO) Relay
  • S12 - Return-to-Dig Switch
  • S16 - Power-Takeoff (PTO) Switch
  • S17 - Dome Light Door Switch
  • W1 - Frame Ground Near Starter Motor
  • W2 - Front Console Ground
  • W3 - Cab Roof Ground
  • W4 - Cab Harness Ground
  • X5 - Cab Harness-to-Cab Roof Harness Connector
  • X22 - Load Center Harness-to-Transmission Harness Connector
  • X25 - Junction Block
  • X38 - Power Port 1
  • X39 - Power Port 2
  • X67 - Return-to-Dig Harness Connector
  • Y12 - Return-to-Dig Solenoid
  • Y13 - Power-Takeoff (PTO) Solenoid

Все коды диагностики неисправностей

AVC
  • 000168.03 Battery Voltage
  • 000168.04 Battery Voltage
  • 000234.02 Software Incorrect
  • 000237.02 VIN Mismatch
  • 000237.13 VIN Mismatch
  • 000237.31 VIN Missing
  • 000629.12 Controller Fault
  • 002664.03 Ldr Aux Roller
  • 002664.04 Ldr Aux Roller
  • 002664.07 Ldr Aux Roller
  • 002664.12 Ldr Aux Roller
  • 002724.07 Left Joystick
  • 003509.03 Sensor Supply 1
  • 003509.04 Sensor Supply 1
  • 520425.07 CAN Bus
  • 520426.07 CAN Bus
  • 520542.03 CAN Bus
  • 520543.04 CAN Bus
  • 523571.04 Valve Power 2
  • 523769.03 MFWD Switch
  • 523769.04 MFWD Switch
  • 523938.03 Loader Aux Sol A
  • 523938.04 Loader Aux Sol A
  • 523938.05 Loader Aux Sol A
  • 523938.06 Loader Aux Sol A
  • 523939.03 Loader Aux Sol B
  • 523939.04 Loader Aux Sol B
  • 523939.05 Loader Aux Sol B
  • 523939.06 Loader Aux Sol B
  • 524204.03 Loader Aux Switch
  • 524204.05 Loader Aux Switch

ECU (Level 16)
  • 000028.03 Digital Throttle Signal Out of Range High
  • 000028.04 Digital Throttle Signal Out of Range Low
  • 000028.14 Digital Throttle Inhibited
  • 000029.03 Secondary Analog Throttle Signal Out of Range High
  • 000029.04 Secondary Analog Throttle Signal Out of Range Low
  • 000029.14 Secondary Analog Throttle Inhibited
  • 000084.31 ECU Calculated Vehicle Speed and CAN Vehicle Speed Mismatch
  • 000091.03 Primary Analog Throttle Signal Out of Range High
  • 000091.04 Primary Analog Throttle Signal Out of Range Low
  • 000091.09 Primary Analog Throttle Signal Erratic
  • 000091.14 Primary Analog Throttle Inhibited
  • 000094.03 Low Pressure Fuel Signal Out of Range High
  • 000094.04 Low Pressure Fuel Signal Out of Range Low
  • 000094.17 Low Pressure Fuel Signal Slightly Low
  • 000097.03 Water In Fuel Signal Out of Range High
  • 000097.04 Water In Fuel Signal Out of Range Low
  • 000097.16 Water In Fuel Detected
  • 000100.01 Engine Oil Pressure Signal Extremely Low
  • 000100.04 Engine Oil Pressure Signal Out of Range Low
  • 000100.18 Engine Oil Pressure Signal Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000105.00 Manifold Air Temperature Signal Extremely High
  • 000105.03 Manifold Air Temperature Signal Out of Range High
  • 000105.04 Manifold Air Temperature Signal Out of Range Low
  • 000105.15 Manifold Air Temperature Signal Slightly High
  • 000105.16 Manifold Air Temperature Signal Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000108.02 Barometric Air Pressure Signal Invalid
  • 000110.00 Coolant Temperature Signal Extremely High
  • 000110.03 Coolant Temperature Signal Out of Range High
  • 000110.04 Coolant Temperature Signal Out of Range Low
  • 000110.15 Coolant Temperature Signal Slightly High
  • 000110.16 Coolant Temperature Signal Moderately High
  • 000111.01 Coolant Level Extremely Low
  • 000157.03 Fuel Rail Pressure Signal Out of Range High
  • 000157.04 Fuel Rail Pressure Signal Out of Range Low
  • 000157.10 Fuel Rail Pressure Loss Detected
  • 000157.17 Fuel Rail Pressure Not Developed
  • 000158.17 ECU Power Down Error
  • 000160.02 Vehicle Speed Signal Invalid
  • 000171.03 Ambient Air Temperature Out of Range High
  • 000171.04 Ambient Air Temperature Out of Range Low
  • 000174.00 Fuel Temperature Signal Extremely High
  • 000174.03 Fuel Temperature Signal Out of Range High
  • 000174.04 Fuel Temperature Signal Out of Range Low
  • 000174.16 Fuel Temperature Signal Moderately High
  • 000189.00 Engine Speed Derate Condition Exists
  • 000190.00 Engine Speed Extremely High
  • 000190.16 Engine Speed Moderately High
  • 000237.02 VIN Security Data Invalid
  • 000237.13 VIN Option Code Security Data Conflict
  • 000237.31 VIN Security Data Missing
  • 000569.03 Rear Axle Differential Lock Signal Out of Range High
  • 000569.04 Rear Axle Differential Lock Signal Out of Range Low
  • 000611.03 Injector Shorted to Voltage Source
  • 000611.04 Injector Shorted to Ground
  • 000627.01 All Injector Circuits Have High Resistance
  • 000627.18 Injector Power Supply Voltage Out of Range Low
  • 000629.12 ECU EEPROM Error
  • 000629.13 ECU Boot Block Error
  • 000636.02 Camshaft Position Signal Invalid
  • 000636.05 Camshaft Position Circuit Has High Resistance
  • 000636.06 Camshaft Position Circuit Has Low Resistance
  • 000636.08 Camshaft Position Signal Missing
  • 000636.10 Camshaft Position Signal Rate of Change Abnormal
  • 000637.02 Crankshaft Position Signal Invalid
  • 000637.05 Crankshaft Position Circuit Has High Resistance
  • 000637.06 Crankshaft Position Circuit Has Low Resistance
  • 000637.07 Crankshaft and Camshaft Position Signals Out of Sync
  • 000637.08 Crankshaft Position Signal Missing
  • 000637.10 Crankshaft Position Signal Rate of Change Abnormal
  • 000640.31 External Derate Commanded
  • 000647.05 Engine Fan Drive Circuit Has High Resistance
  • 000647.31 Engine Fan Drive Manual Purge Switch Active Too Long
  • 000651.02 Injector #1 Part Number Invalid
  • 000651.05 Injector #1 Circuit Has High Resistance
  • 000651.06 Injector #1 Circuit Has Low Resistance
  • 000651.07 Injector #1 Not Responding
  • 000651.13 Injector #1 Calibration Fault
  • 000652.02 Injector #2 Part Number Invalid
  • 000652.05 Injector #2 Circuit Has High Resistance
  • 000652.06 Injector #2 Circuit Has Low Resistance
  • 000652.07 Injector #2 Not Responding
  • 000652.13 Injector #2 Calibration Fault
  • 000653.02 Injector #3 Part Number Invalid
  • 000653.05 Injector #3 Circuit Has High Resistance
  • 000653.06 Injector #3 Circuit Has Low Resistance
  • 000653.07 Injector #3 Not Responding
  • 000653.13 Injector #3 Calibration Fault
  • 000654.02 Injector #4 Part Number Invalid
  • 000654.05 Injector #4 Circuit Has High Resistance
  • 000654.06 Injector #4 Circuit Has Low Resistance
  • 000654.07 Injector #4 Not Responding
  • 000654.13 Injector #4 Calibration Fault
  • 000655.02 Injector #5 Part Number Invalid
  • 000655.05 Injector #5 Circuit Has High Resistance
  • 000655.06 Injector #5 Circuit Has Low Resistance
  • 000655.07 Injector #5 Not Responding
  • 000655.13 Injector #5 Calibration Fault
  • 000656.02 Injector #6 Part # Data Invalid
  • 000656.05 Injector #6 Circuit Has High Resistance
  • 000656.06 Injector #6 Circuit Has Low Resistance
  • 000656.07 Injector #6 Not Responding
  • 000656.13 Injector #6 Calibration Fault
  • 000676.03 Cold Start Aid Signal Received When Not Expected
  • 000676.05 Cold Start Aid Circuit Has High Resistance
  • 000898.09 Engine Speed CAN Message Invalid
  • 000970.31 External Shutdown Switch Activated
  • 000970.31 External Shutdown Switch Activated
  • 000971.31 External Derate Switch Activated
  • 001069.31 Tire Size Invalid
  • 001075.05 Low Pressure Fuel Pump Circuit Has High Resistance
  • 001075.06 Low Pressure Fuel Pump Circuit Has Low Resistance
  • 001109.31 Approaching Engine Protection Shutdown
  • 001110.31 Engine Protection Shutdown Active
  • 001136.00 ECU Temperature Signal Extremely High
  • 001136.16 ECU Temperature Signal Moderately High
  • 001321.05 Starter Solenoid Lockout Relay Drive Circuit Has High Resistance
  • 001321.06 Starter Solenoid Lockout Relay Drive Circuit Has Low Resistance
  • 001321.30 Starter Solenoid Lockout Relay Drive Circuit Fault
  • 001347.03 Suction Control Valve Signal Out of Range High
  • 001347.05 Suction Control Valve Circuit Has High Resistance
  • 001347.07 Fuel Rail Pressure Actual to Desired Mismatch
  • 001569.31 Engine in Power Derate Condition
  • 001638.09 Hydraulic Oil Temperature Erratic
  • 001639.01 Fan Speed Signal Extremely Low
  • 001639.16 Fan Speed Signal Moderately High
  • 002000.13 Incorrect ECU for Application
  • 002003.09 No CAN Message Received From Source Address 3
  • 002004.09 No CAN Message Received From Source Address 4
  • 002023.09 No CAN Message From Source Address 23
  • 002033.09 No CAN Message Received From Source Address 33
  • 002033.14 Incorrect CAN Message Received From Source Address 33
  • 002033.19 Synchronizing Problem with Source Address 33
  • 002057.09 No CAN Message Received From Source Address 57
  • 002071.09 No CAN Message From Source Address 71
  • 003509.03 Sensor Supply #1 Voltage Out of Range High
  • 003509.04 Sensor Supply #1 Voltage Out of Range Low
  • 003510.03 Sensor Supply #2 Voltage Out of Range High
  • 003510.04 Sensor Supply #2 Voltage Out of Range Low
  • 003511.03 Sensor Supply #3 Voltage Out of Range High
  • 003511.04 Sensor Supply #3 Voltage Out of Range Low
  • 523792.04 EPGDS LTC Pump Signal Out of Range Low
  • 524037.02 MFWD Switch Circuit Fault
  • 524099.11 EPGDS LTC Pump Blockage
  • 524223.03 Rear Axle Differential Lock Circuit Fault
  • 524225.31 Engine Start Protection Bypass Detected
  • 524235.03 MFWD Solenoid Signal Out of Range High
  • 524235.04 MFWD Solenoid Signal Out of Range Low

ECU
  • 000029.03 Hand Throttle
  • 000029.04 Hand Throttle
  • 000029.14 Hand Throttle
  • 000091.03 Foot Throttle
  • 000091.04 Foot Throttle
  • 000091.14 Foot Throttle
  • 000190.00 Engine Speed
  • 000190.16 Engine Speed
  • 000237.31 Vehicle ID Number
  • 000628.12 Memory Error
  • 000628.12 Memory Error
  • 000628.12 Memory Error
  • 001075.05 Fuel Pump Control
  • 001075.06 Fuel Pump Control
  • 001321.05 Starter Relay
  • 001321.06 Starter Relay
  • 001321.16 Starter Relay
  • 002003.09 No CAN From TCU
  • 002071.09 No CAN From VCU

JDL Primary Controller (Modular Telematics Gateway)
  • JDL - 000237.11 JDL Not Registered
  • JDL - 000639.09 JDL Not Detecting CAN Bus Messages
  • JDL - 000841.05 GPS Antenna Error - Open Circuit
  • JDL - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JDL - 000964.13 Real Time Clock Failure
  • JDL - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JDL - 002850.05 Cellular Antenna Error - Open Circuit
  • JDL - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JDL - 002852.11 Unable to Detect SIM Card
  • JDL - 516672.14 Network Authorization Failed
  • JDL - 522976.11 Unable to Load Custom Alerts
  • JDL - 522976.13 Unable to Load Configuration
  • JDL - 523310.00 Low Disk Space
  • JDL - 600006.31 Vehicle Controls Not Operating Correctly

JL2 Secondary Controller (Modular Telematics Gateway)
  • JL2 - 000237.11 JL2 Not Registered
  • JL2 - 000639.09 JL2 Not Detecting CAN Bus Messages
  • JL2 - 000841.05 GPS Antenna Error - Open Circuit
  • JL2 - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JL2 - 000964.12 Real Time Clock Failure
  • JL2 - 000964.13 Real Time Clock Failure
  • JL2 - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JL2 - 002850.05 Cellular Antenna Error - Open Circuit
  • JL2 - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JL2 - 002852.11 Unable to Detect SIM Card
  • JL2 - 522976.11 Unable to Load Custom Alerts
  • JL2 - 522976.13 Unable to Load Configuration
  • JL2 - 523310.00 Low Disk Space

PDU
  • 000096.03 Fuel Level Sensor
  • 000096.04 Fuel Level Sensor
  • 000168.03 Battery Voltage
  • 000168.04 Battery Voltage
  • 000234.02 Software Incorrect
  • 000237.02 VIN Mismatch
  • 000237.13 VIN Mismatch
  • 000237.31 VIN Missing
  • 000629.12 Controller Fault
  • 000920.06 Alarm Output
  • 000920.12 Alarm Output
  • 001196.11 Antitheft
  • 002000.09 No CAN from ECU
  • 002003.09 No CAN from TCU
  • 002071.09 No CAN from VCU
  • 002251.09 No CAN from MTG
  • 524082.07 Display Buttons

TCU
  • 000070.04 Park Brake
  • 000070.07 Park Brake
  • 000070.14 Park Brake
  • 000177.00 Trans Oil Temp
  • 000177.04 Trans Oil Temp
  • 000525.02 Requested Gear
  • 000525.03 Requested Gear
  • 000525.04 Requested Gear
  • 000525.05 Requested Gear
  • 000604.04 TCL Neutral SW
  • 000617.07 Park Brake Circuit
  • 000618.07 Park Brake Circuit
  • 000629.12 Controller Fault
  • 000736.03 Y3 Solenoid
  • 000736.05 Y3 Solenoid
  • 000736.06 Y3 Solenoid
  • 000737.03 Y4 Solenoid
  • 000737.05 Y4 Solenoid
  • 000737.06 Y4 Solenoid
  • 000738.03 Y5 Solenoid
  • 000738.05 Y5 Solenoid
  • 000738.06 Y5 Solenoid
  • 000739.03 Y6 Solenoid
  • 000739.05 Y6 Solenoid
  • 000739.06 Y6 Solenoid
  • 000746.03 Differential Lock
  • 000746.05 Differential Lock
  • 000746.06 Differential Lock
  • 000746.31 Differential Lock
  • 000767.05 TCL Reverse SW
  • 000880.06 Brake Lights
  • 000903.05 TCL Forward SW
  • 002000.09 No CAN from ECU
  • 002023.09 No CAN from PDU
  • 002034.09 No CAN from AVC
  • 002071.09 No CAN from VCU
  • 002612.05 MFWD Solenoid
  • 002612.06 MFWD Solenoid
  • 004312.02 TCL Selector
  • 004312.03 TCL Selector
  • 004312.05 TCL Selector
  • 004312.06 TCL Direction Driver
  • 522379.03 Park Brake
  • 522379.04 Park Brake
  • 522379.05 Park Brake
  • 522379.06 Park Brake
  • 522405.03 PB Pressure Switch
  • 523689.04 Diff Lock Switch
  • 523689.07 Diff Lock Switch
  • 523702.07 Flexpower
  • 523702.08 Flexpower
  • 523702.09 Flexpower
  • 523702.10 Flexpower
  • 524172.03 Clutch Disconnect
  • 524172.04 Clutch Disconnect
  • 524172.09 Clutch Disconnect

VCU
  • 000237.02 VIN Mismatch
  • 000237.13 VIN Mismatch
  • 000237.31 VIN Missing
  • 001713.00 Hyd Oil Restriction


Назад к содержимому | Назад к главному меню
