< manuals > > Спецтехника > John Deere > Landscape Loader
Электросхемы и коды неисправностей
Landscape Loader 210LE John Deere

(S.N. —880053)

Power Charging and Start Circuit

Start Aid and Fuel Shut-Off Circuit

Park Brake/Neutral Disconnect Circuit

Horn, Beacon, Return to Dig Circuit

Drive Light, Turn Signal & Flasher Circuit

Display Monitor & Indicator Circuit
  • B1—Reverse Warning Alarm (SE5, W4)
  • B2—Horn (SE7, W4)
  • B3—Fuel Sender (SE8, W4)
  • B4—Brake Light Switches (SE10, W8)
  • B5—Hydraulic Filter Restriction Switch (SE12, W4)
  • B6—Converter Oil Temperature Switch (SE12, W4)
  • B7—Air Filter Restriction Switch (SE12, W4)
  • B8—Engine Oil Pressure Switch (SE12, W4)
  • B9—Engine Coolant Temperature Switch (SE12, W4)
  • B10—Park Brake Pressure Switch (SE12, W4)
  • E1—Beacon Light (SE7)
  • E2—Fuel Gauge Light (SE8, W8)
  • E3—Left Rear Work Light (SE9, W7)
  • E4—Right Rear Work Light (SE9, W7)
  • E5—Left Front Drive Light (SE9, W7)
  • E6—Right Front Drive Light (SE9, W7)
  • E7—Left Brake/Tail Light (SE10, W7)
  • E8—Right Brake/Tail Light (SE10, W7)
  • F1—Start Protect Fuse (SE1, W8)
  • F2—Accessory Fuse (SE1, W8)
  • F3—Alternator Protect Fuse (SE1, W8)
  • F4—Differential Lock Fuse (SE2, W8)
  • F5—MFWD Fuse (SE3, W8)
  • F6—Start Aid Fuse (SE4, W8)
  • F7—Fuel Shut-Off Fuse (SE4, W8)
  • F8—Reverse Alarm Fuse (SE5, W8)
  • F9—Park Brake/FNR Fuse (SE6, W8)
  • F10—Horn Fuse (SE7, W8)
  • F11—Beacon Fuse (SE7, W8)
  • F12—Return-To-Dig Fuse (SE7, W8)
  • F13—Fuel Gauge Fuse (SE8, W8)
  • F14—Monitor Fuse (SE 11, W8)
  • F15—Fuse Block (W8)
  • G1—Batteries (SE1, W4)
  • G2—Alternator (SE1, W4)
  • H1—Left Turn Light (SE10, W7 [see E7])
  • H2—Right Turn Light (SE10, W7 [see E8])
  • H3—Monitor Alarm (SE11, W8)
  • H4—Display Monitor (SE11, W8)
  • K1—Ignition Relay (SE1, W8)
  • K2—Neutral Start Relay (SE1, W8)
  • K3—Start Relay (SE1, W8)
  • K4—Accessory Relay (SE1, W8)
  • K5—Reverse Alarm Relay (SE5, W8)
  • K6—Park Brake Protect Relay (SE6, W8)
  • K7—Park Brake Latching Relay (SE6, W8)
  • M1—Starter Motor (SE1, W4)
  • P1—Fuel Gauge (SE8, W8)
  • P2—Hour Meter (SE8, W8)
  • S1—Key Switch (SE1, W8)
  • S2—Differential Lock Switch (SE2, W4)
  • S3—MFWD Switch (SE3, W8)
  • S4—Start Aid Switch (SE4, W8)
  • S5—Park Brake Switch (SE6, W8)
  • S6—FNR Switch (SE6, W8)
  • S7—Load Lever Switch (SE6, W4)
  • S8—Gear Lever Switch (SE6, W4)
  • S9—Horn Switch (SE7, W4)
  • S10—Beacon Switch (SE7, W8)
  • S11—Return-To-Dig Switch (SE7, W4)
  • S12—Light Switch (SE9, W8)
  • S13—Turn Signal Switch (SE10, W8)
  • S14—Flasher Switch (SE10, W8)
  • S15—Four-Way Flasher Switch (SE10, W8)
  • V1—Start Relay Diode (SE1, W8)
  • V2—Start Solenoid Diode (SE1, W8)
  • V3—Alternator Diode (SE1, W8)
  • V4—Differential Lock Diode (SE2, W6)
  • V5—MFWD Diode (SE3, W6)
  • V6—Park Brake Solenoid Diode (SE6, W6)
  • V7—Reverse Diode (SE6, W8)
  • V8—Forward Diode (SE6, W8)
  • V9—Park Brake Reset Diode (SE6, W8)
  • V10—Reverse Solenoid Diode (SE6, W5)
  • V11—Neutral Solenoid Diode (SE6, W5)
  • V12—Forward Solenoid Diode (SE6, W5)
  • V13—Four-Way Flasher Diode (SE10, W8)
  • V14—Four-Way Flasher Diode (SE10, W8)
  • W1—Machine Frame Ground, Left Side Above Axle (SE1, W4)
  • W2—Engine Ground Strap (SE1, W4)
  • W3—ROPS/Roof Harness Ground (SE10, W7)
  • W4—Main Harness
  • W5—Transmission Diode Harness
  • W6—Differential Lock, Park Brake And MFWD Solenoid Diode Harness
  • W7—ROPS Harness
  • W8—Dash Harness
  • X1—Hour Meter Connector (W8)
  • X2—Main Harness-To-Transmission Diode Harness Connector (W4, W5)
  • X3—Top Main Harness-To-Dash Harness Connector
  • X4—Main Harness-To-Dash Harness Connector (W4, W8)
  • X5—Main Harness-To-Differential Lock Solenoid Diode Harness Connector (W4, W6)
  • X6—Main Harness-To-Park Brake Solenoid Diode Harness (W4, W6)
  • X7—Main Harness-To-MFWD Solenoid Diode Harness (W4, W6)
  • X8—Main Harness-To-ROPS Harness Connector (W4, W3)
  • X9—Transmission Diode Harness-To-FNR Solenoids Connector (W5)
  • Y1—Differential Lock Solenoid (SE2, W6)
  • Y2—MFWD Solenoid (SE3, W6)
  • Y3—Start Aid Solenoid (SE4, W4)
  • Y4—Fuel Shut-Off Solenoid (SE4, W4)
  • Y5—Park Brake Release Solenoid (SE6, W6)
  • Y6—Reverse Solenoid (SE6, W5)
  • Y7—Neutral Disconnect Solenoid (SE6, W5)
  • Y8—Forward Solenoid (SE6, W5)
  • Y9—Return-To-Dig Solenoid (SE7, W4)

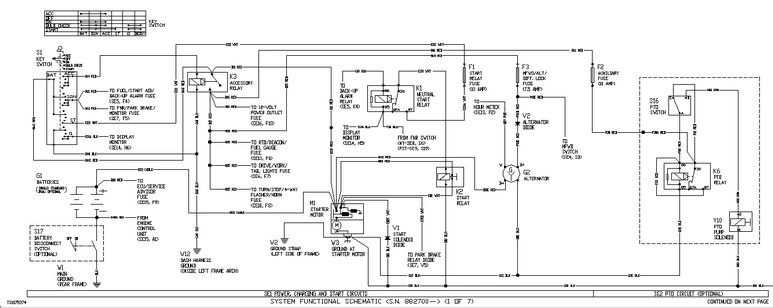

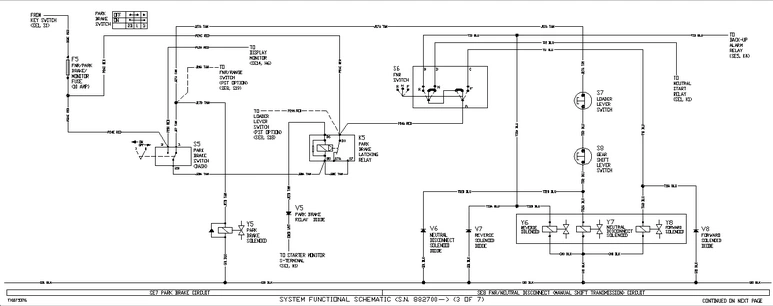

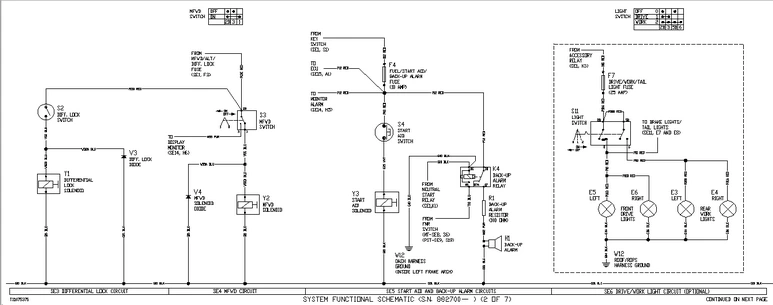

(S.N. 880054—882699)










(S.N. 882700— )














Коды неисправностей
ECU (Level 12)
  • 000028.03 Throttle Voltage High
  • 000028.04 Throttle Voltage Low
  • 000029.03 Throttle Voltage High
  • 000029.04 Throttle Voltage Low
  • 000029.14 Throttle Voltage Out of Range
  • 000084.31 Vehicle Speed Mismatch
  • 000091.03 Throttle Voltage High
  • 000091.04 Throttle Voltage Low
  • 000091.07 Throttle Calibration Invalid
  • 000091.09 Throttle CAN message Missing
  • 000091.10 Throttle Voltage Low
  • 000091.13 Throttle Calibration Aborted
  • 000091.14 Throttle Voltage Out of Range
  • 000094.01 Fuel Pressure Extremely Low
  • 000094.03 Fuel Pressure Input Voltage High
  • 000094.04 Fuel Pressure Input Voltage Low
  • 000094.18 Fuel Pressure Moderately Low
  • 000097.00 Water in Fuel Continuously Detected Diagnostic Procedure
  • 000097.03 Water in Fuel Signal Voltage High
  • 000097.04 Water in Fuel Signal Voltage Low
  • 000097.16 Water in Fuel Detected
  • 000097.31 Water in Fuel Detected (750J Crawler Only)
  • 000100.01 Engine Oil Pressure Extremely Low
  • 000100.03 Engine Oil Pressure Input Voltage High
  • 000100.04 Engine Oil Pressure Input Voltage Low
  • 000100.16 Engine Oil Pressure High, Moderately Severe Level Incorrect Reading Diagnostic
  • Procedure
  • 000100.18 Engine Oil Pressure Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000105.00 Manifold Air Temperature Extremely High
  • 000105.03 Manifold Air Temperature Input Voltage High
  • 000105.04 Manifold Air Temperature Input Voltage Low
  • 000105.16 Manifold Air Temperature Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000110.00 Engine Coolant Temperature Extremely High
  • 000110.03 Engine Coolant Temperature Input Voltage High
  • 000110.04 Engine Coolant Temperature Input Voltage Low
  • 000110.15 Engine Coolant Temperature High Least Severe
  • 000110.16 Engine Coolant Temperature Moderately High
  • 000111.00 Loss of Coolant Temperature Extremely High
  • 000111.03 Loss of Coolant Temperature Input Voltage High
  • 000111.04 Loss of Coolant Temperature Input Voltage Low
  • 000158.17 ECU Power Down Error
  • 000160.02 Wheel Speed Input Noise
  • 000171.03 Ambient Air Temperature Input Voltage Out Of Range High (750J Crawlers only)
  • 000171.04 Ambient Air Temperature Input Voltage Out Of Range Low (750J Crawlers Only)
  • 000174.00 Fuel Temperature Extremely High
  • 000174.03 Fuel Temperature Input Voltage High
  • 000174.04 Fuel Temperature Input Voltage Low
  • 000174.16 Fuel Temperature High Moderately Severe
  • 000189.00 Engine Speed Derate
  • 000190.00 Engine Overspeed Extreme
  • 000190.01 Engine Overload Moderate
  • 000190.01 Engine Speed Below Normal Operational Range, Most Severe Level
  • 000190.16 Engine Overspeed Moderate
  • 000190.18 Engine Overload Severe
  • 000523.09 Current Gear Selection Invalid or Not Received (J-series Loaders Only)
  • 000620.03 Sensor Supply Voltage High
  • 000620.04 Sensor Supply Voltage Low
  • 000629.13 ECU Error
  • 000637.02 Crank Position Input Noise
  • 000637.08 Crank Position Input Missing
  • 000637.10 Crank Position Input Pattern Error
  • 000639.13 CAN Bus Error
  • 000644.02 External Speed Command Input (OEM, Marine Only)
  • 000729.03 Inlet Air Heater Signal High
  • 000729.05 Inlet Air Heater Signal Low
  • 000898.09 Vehicle Speed or Torque Message Invalid
  • 000970.31 Auxiliary Engine Shutdown Switch Active
  • 000971.31 External Engine Derate Switch Active
  • 001069.09 Tire Size Invalid
  • 001069.31 Tire Size Error
  • 001076.00 Pump Control Valve Closure Too Long
  • 001076.01 Pump Control Valve Closure Too Short
  • 001076.03 Pump Solenoid Current High
  • 001076.05 Pump Solenoid Circuit Open
  • 001076.06 Pump Solenoid Circuit Severely Shorted
  • 001076.07 Pump Control Valve Closure Not Detected
  • 001076.10 Pump Solenoid Circuit Moderately Shorted
  • 001076.13 Pump Current Decay Time Invalid
  • 001079.03 Sensor Supply Voltage High
  • 001079.04 Sensor Supply Voltage Low
  • 001109.31 Engine Protection Shutdown Warning
  • 001110.31 Engine Protection Shutdown
  • 001569.31 Fuel Derate
  • 002000.06 Internal ECU Failure
  • 002000.13 Security Violation
  • 002006.06 Internal ECU Failure
