318E and 320E Skid Steer Loader John Deere


  • 1 - Key Start
  • 2 - Keyless Start
  • A1 - Sealed Switch Module (SSM)
  • F1 - Unswitched Power 7.5 A Fuse
  • F15 - Switched Power 15 A Fuse
  • F31 - Air Heater 80 A Fuse
  • G1 - Battery
  • G2 - Alternator
  • K1 - Starter Relay
  • K2 - Air Heater Relay
  • K8 - Switched Power Relay
  • M1 - Starter Motor
  • R11 - Engine Air Heater 1
  • R12 - Engine Air Heater 2
  • S1 - Key Switch
  • V1 - Remote Start Diode
  • V2 - Polarity Sensing Diode
  • V4 - Start Signal Diode
  • V5 - Alternator Diode
  • W30 - Battery-to-Frame Ground
  • W31 - Starter Motor Ground
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X10 - Remote Start Box Connector
  • X11 - Sealed Switch Module (SSM) 6-Pin Connector
  • X20 - Main Harness-to-Battery 1-Pin Connector

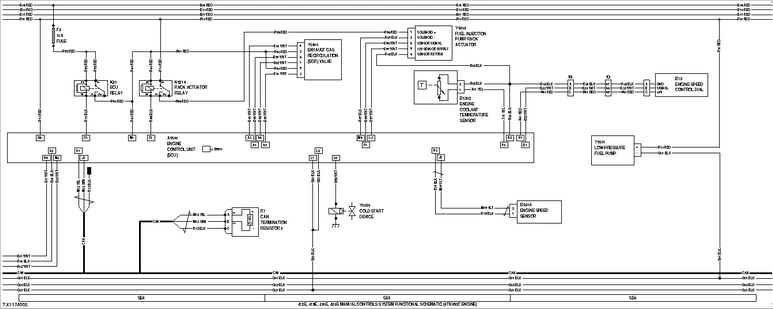

  • A5500 - Engine Control Unit (ECU)
  • B18 - Engine Speed Control Dial
  • B5208 - Engine Coolant Temperature Sensor
  • B5304 - Engine Speed Sensor
  • F3 - ECU Unswitched Power 10 A Fuse
  • K20 - Engine Control Unit (ECU) Relay
  • K5814 - Rack Actuator Relay
  • R7 - CAN Termination Resistor 2
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X9 - Service Engine Speed Control Connector
  • X5501 - Engine Control Unit (ECU) 48-Pin Connector
  • Y5026 - Cold Start Device
  • Y5400 - Exhaust Gas Recirculation (EGR) Valve
  • Y5403 - Fuel Injection Pump Rack Actuator
  • Y5501 - Low-Pressure Fuel Pump

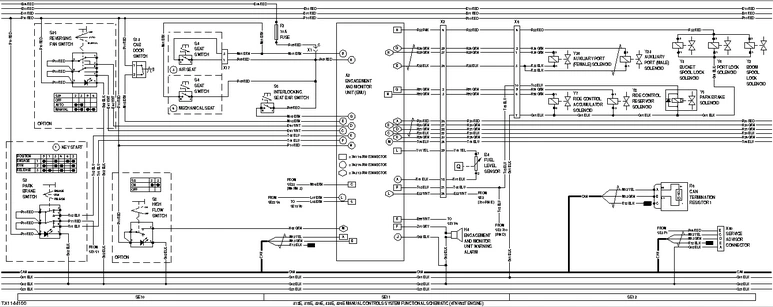

  • 1 - Key Start
  • 3 - Air Seat
  • 4 - Mechanical Seat
  • A2 - Engagement and Monitor Unit (EMU)
  • B4 - Fuel Level Sensor
  • F2 - Monitor Unswitched Power 10 A Fuse
  • H4 - Engagement and Monitor Unit Warning Alarm
  • R6 - CAN Termination Resistor 1
  • S2 - Park Brake Switch
  • S4 - Seat Switch
  • S5 - Interlocking Seat Bar Switch
  • S8 - High Flow Switch
  • S13 - Cab Door Switch
  • S35 - Reversing Fan Switch
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X6 - Main Harness-to-Hydraulic Valve Harness Connector
  • X17 - Cab Harness-to-Air Seat 6-Pin Connector
  • X40 - Service ADVISOR ™ Connector
  • X41 - Engagement and Monitor Unit (EMU) 16-Pin Connector 1
  • X42 - Engagement and Monitor Unit (EMU) 14-Pin Connector 2
  • X43 - Engagement and Monitor Unit (EMU) 12-Pin Connector 3
  • Y2 - Boom Spool Lock Solenoid
  • Y3 - Bucket Spool Lock Solenoid
  • Y4 - Port Lock Solenoid
  • Y5 - Park Brake Solenoid
  • Y7 - Ride Control Accumulator Solenoid
  • Y8 - Ride Control Reservoir Solenoid
  • Y23 - Auxiliary Port (male) Solenoid
  • Y24 - Auxiliary Port (female) Solenoid

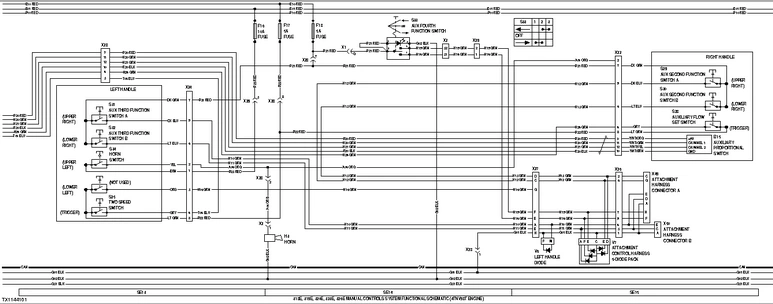

  • B15 - Auxiliary Proportional Switch
  • F16 - Horn 10 A Fuse
  • F17 - Handle Switches 5 A Fuse
  • F18 - Handle Switches 5 A Fuse
  • H3 - Horn
  • S25 - Two Speed Switch
  • S28 - Auxiliary Flow Set Switch
  • S29 - Auxiliary Second Function Switch A
  • S30 - Auxiliary Second Function Switch B
  • S31 - Auxiliary Third Function Switch A
  • S32 - Auxiliary Third Function Switch B
  • S33 - Auxiliary Fourth Function Switch
  • S34 - Horn Switch
  • V6 - Left Handle Diode
  • V7 - Attachment Control Harness 5-Diode Pack
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X22 - Right Control Lever 12-Pin Connector
  • X24 - Left Control Lever 8-Pin Connector
  • X26 - Attachment Control Frame Harness-to-Attachment Control Boom Harness 8-Pin Connector
  • X27 - Attachment Control Harness 8-Pin Connector
  • X28 - Main Harness-to-Control Lever Harness 12-Pin Connector
  • X29 - Main Harness-to-Control Lever Harness 4-Pin Connector
  • X49 - Attachment Harness Connector A
  • X50 - Attachment Harness Connector B


  • A8 - Vehicle Control Unit (VCU)
  • B2 - Hydraulic Oil Temperature Sensor
  • B3 - Hydraulic Oil Filter Restriction Switch
  • B19 - Engine Speed Control Pedal (if equipped)
  • B20 - Hydrostatic Oil Temperature Sensor
  • B5111 - Air Filter Restriction Switch
  • B5115 - Engine Oil Pressure Switch
  • H1 - Backup Alarm
  • S10 - Left Reverse Switch
  • S11 - Right Reverse Switch
  • X6 - Main Harness-to-Hydraulic Valve Harness Connector
  • X18 - Main Harness-to-Reverse Switch Harness Connector
  • X31 - Hydrostatic Control Valve Harness Connector
  • X34 - Main Harness-to-Rear Engine Harness 12-Pin Connector
  • X47 - Vehicle Control Unit (VCU) Connector
  • Y6 - Two Speed Solenoid
  • Y9 - Pump Pressure Bypass Solenoid
  • Y10 - High Flow Solenoid
  • Y30 - Hydraulic Fan Speed Solenoid
  • Y31 - Hydraulic Reversing Fan Solenoid A (S.N. —269401)
  • Y32 - Hydraulic Reversing Fan Solenoid B (S.N. —269401)
  • Y33 - Hydraulic Reversing Fan Solenoid (S.N. 269402— )

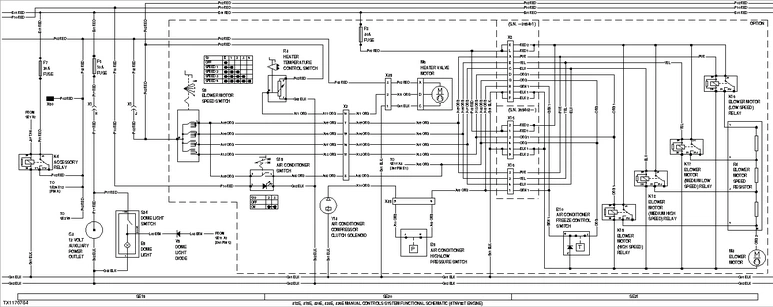

  • B9 - Air Conditioner High/Low Pressure Switch
  • B10 - Air Conditioner Freeze Control Switch
  • E9 - Dome Light
  • F5 - Dome Light and Accessory Power Outlet 10 A Fuse
  • F7 - Accessory 20 A Fuse
  • F8 - Air Conditioner and Heater 30 A Fuse
  • G3 - 12 Volt Auxiliary Power Outlet
  • K4 - Accessory Relay
  • K16 - Blower Motor (low speed) Relay
  • K17 - Blower Motor (medium low speed) Relay
  • K18 - Blower Motor (medium high speed) Relay
  • K19 - Blower Motor (high speed) Relay
  • M3 - Blower Motor
  • M6 - Heater Valve Motor
  • R3 - Heater Temperature Control Switch
  • R4 - Blower Motor Speed Resistor
  • S9 - Blower Motor Speed Switch
  • S19 - Air Conditioner Switch
  • S24 - Dome Light Switch
  • V9 - Dome Light Diode
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X8 - Main Harness-to-Air Conditioner and Heater Harness 14-Pin Connector (S.N. —269401)
  • X15 - Main Harness-to-Air Conditioner and Heater Harness 6-Pin Connector (S.N. 269402— )
  • X16 - Main Harness-to-Air Conditioner and Heater Harness 4-Pin Connector (S.N. 269402— )
  • X39 - High/Low Pressure Switch and Heater Valve Motor Harness Connector
  • X60 - Accessory Power Switch 1-Pin Connector
  • Y13 - Air Conditioner Compressor Clutch Solenoid

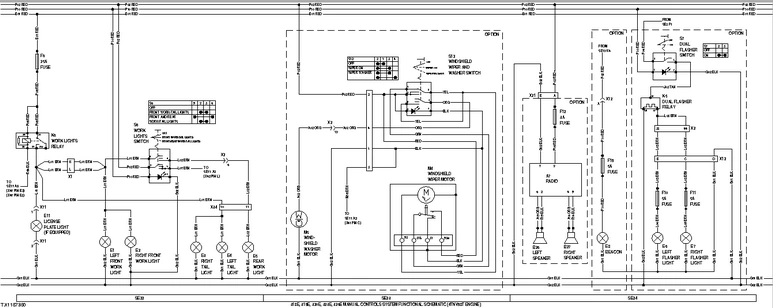

  • A7 - Radio
  • B26 - Left Speaker
  • B27 - Right Speaker
  • E1 - Left Front Work Light
  • E2 - Right Front Work Light
  • E3 - Right Tail Light
  • E4 - Left Tail Light
  • E5 - Rear Work Light
  • E6 - Left Flasher Light
  • E7 - Right Flasher Light
  • E8 - Beacon
  • E11 - License Plate Light (if equipped)
  • F6 - Lights 25 A Fuse
  • F10 - Left Flasher Light In-Line 5 A Fuse
  • F11 - Right Flasher Light In-Line 5 A Fuse
  • F12 - Radio In-Line 3 A Fuse
  • F19 - Beacon In-Line 5 A Fuse
  • K5 - Dual Flasher Relay
  • K6 - Work Lights Relay
  • M4 - Windshield Wiper Motor
  • M5 - Windshield Washer Motor
  • S6 - Work Lights Switch
  • S7 - Dual Flasher Switch
  • S12 - Windshield Wiper and Washer Switch
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X12 - Main Harness-to-Dual Flasher Harness 6-Pin Connector
  • X21 - Cab Harness-to-Radio Harness 4-Pin Connector
  • X34 - Main Harness-to-Rear Engine Harness 12-Pin Connector
  • X71 - License Plate Light Harness Connector

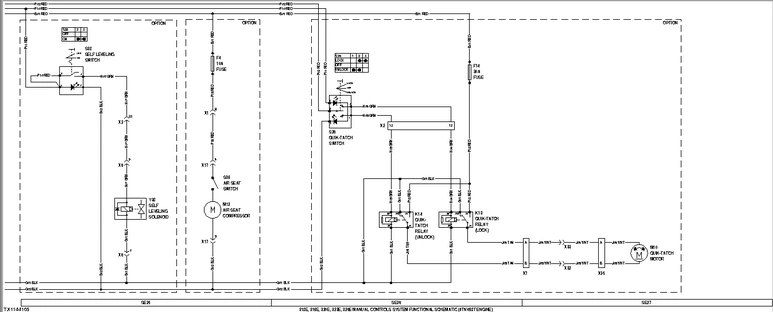

  • F4 - Air Seat 10 A Fuse
  • F14 - Quik-Tatch ™ 30 A Fuse
  • K13 - Quik-Tatch ™ Relay (LOCK)
  • K14 - Quik-Tatch ™ Relay (UNLOCK)
  • M10 - Quik-Tatch ™ Motor
  • M12 - Air Seat Compressor
  • S26 - Quik-Tatch ™ Switch
  • S38 - Self Leveling Switch
  • S39 - Air Seat Switch
  • X1 - Cab Harness-to-Main Harness 14-Pin Connector
  • X2 - Cab Harness-to-Main Harness 47-Pin Connector
  • X6 - Main Harness-to-Hydraulic Valve Harness Connector
  • X7 - Main Harness-to- Quik-Tatch ™ Frame Harness 2-Pin Connector
  • X17 - Cab Harness-to-Air Seat 6-Pin Connector
  • X32 - Quik-Tatch ™ 1-Pin Connector 1
  • X33 - Quik-Tatch ™ 1-Pin Connector 2
  • X35 - Quik-Tatch ™ Boom Harness-to- Quik-Tatch ™ Actuator Harness Connector
  • Y38 - Self Leveling Solenoid

Все коды диагностики неисправностей
ЕСМ
  • 000029.00 Secondary Throttle Signal Extremely High
  • 000029.01 Secondary Throttle Signal Extremely Low
  • 000029.02 Secondary Throttle Signal Invalid
  • 000029.03 Secondary Throttle Signal Out of Range High
  • 000029.04 Secondary Throttle Signal Out of Range Low
  • 000029.08 Secondary Throttle Signal Abnormal
  • 000029.15 Secondary Throttle Signal Slightly High
  • 000091.00 Primary Throttle Signal Extremely High
  • 000091.01 Primary Throttle Signal Extremely Low
  • 000091.02 Primary Throttle Signal Invalid
  • 000091.03 Primary Throttle Signal Out of Range High
  • 000091.03 Acceleration / Sensor 1
  • 000091.03 Acceleration / Sensor 1
  • 000091.04 Primary Throttle Signal Out of Range Low
  • 000091.04 Acceleration / Sensor 1
  • 000091.04 Acceleration / Sensor 1
  • 000091.15 Primary Throttle Signal Slightly High
  • 000100.01 Engine Oil Pressure Signal Extremely Low
  • 000100.04 Engine Oil Pressure Signal Out of Range Low
  • 000108.02 Barometric Pressure Signal Invalid
  • 000108.03 Barometric Pressure Signal Out of Range High
  • 000108.04 Barometric Pressure Signal Out of Range Low
  • 000110.00 Engine Coolant Temperature Signal Extremely High
  • 000110.02 Engine Coolant Temperature Signal Invalid
  • 000110.03 Engine Coolant Temperature Signal Out of Range High
  • 000110.04 Engine Coolant Temperature Signal Out of Range Low
  • 000158.00 Switched Battery Voltage Extremely High
  • 000158.01 Switched Battery Voltage Extremely Low
  • 000167.01 Charging System Voltage Extremely Low
  • 000167.04 Charging System Circuit Out of Range Low
  • 000190.00 Engine Speed Extremely High
  • 000628.02 ECM Internal Fault 1
  • 000628.12 ECM Internal Fault 2
  • 000630.02 ECM Internal Fault 3
  • 000630.12 ECM Internal Fault 4
  • 000638.02 Fuel Injection Pump Rack Actuator Invalid
  • 000638.03 Fuel Injection Pump Rack Actuator Circuit Out of Range High
  • 000638.04 Fuel Injection Pump Rack Actuator Circuit Out of Range Low
  • 000638.07 Fuel Injection Pump Rack Actuator Not Responding
  • 000639.12 CAN Communication Error
  • 001078.04 Engine Speed Sensor Signal Out of Range Low
  • 001079.02 Sensor Supply #1 Voltage Invalid
  • 001079.03 Sensor Supply #1 Voltage Out of Range High
  • 001079.04 Sensor Supply #1 Voltage Out of Range Low
  • 001136.00 Engine Control Module (ECM) Internal Temperature Extremely High
  • 001136.02 Engine Control Module (ECM) Internal Temperature Sensor Intermittent Error
  • 001136.03 Engine Control Module (ECM) Internal Temperature Signal Out of Range High
  • 001136.04 Engine Control Module (ECM) Internal Temperature Signal Out of Range Low
  • 001202.02 Vehicle Immobilizer System Invalid
  • 001210.03 Fuel Injection Pump Rack Position Sensor Signal Out of Range High
  • 001210.04 Fuel Injection Pump Rack Position Sensor Signal Out of Range Low
  • 001485.04 Engine Control Module (ECM) Main Relay Out of Range Low
  • 001485.07 Main Relay / ECU
  • 001485.07 Main Relay / ECU
  • 522241.02 Fuel Injection Pump Rack Actuator Relay Invalid
  • 522241.03 Fuel Injection Pump Rack Actuator Relay Out of Range High
  • 522241.04 Fuel Injection Pump Rack Actuator Relay Out of Range Low
  • 522242.02 Cold Start Relay Driver Circuit Invalid
  • 522242.03 Cold Start Aid Relay Driver Circuit Out of Range High
  • 522242.03 Cold Start Aid Solenoid
  • 522242.03 Cold Start Aid Solenoid
  • 522242.04 Cold Start Aid Relay Driver Circuit Out of Range Low
  • 522242.04 Cold Start Aid Solenoid
  • 522242.04 Cold Start Aid Solenoid
  • 522243.02 Air Heater Relay Driver Circuit Invalid
  • 522243.03 Air Heater Relay Driver Circuit Out of Range High
  • 522243.04 Air Heater Relay Driver Circuit Out of Range Low
  • 522243.05 Start Assist / Relay
  • 522243.05 Start Assist / Relay
  • 522243.06 Start Assist / Relay
  • 522243.06 Start Assist / Relay
  • 522251.03 EGR Valve Actuator Drive 1 Circuit Out of Range High
  • 522251.04 EGR Valve Actuator Drive 1 Circuit Out of Range Low
  • 522252.03 EGR Valve Actuator Drive 2 Circuit Out of Range High
  • 522252.04 EGR Valve Actuator Drive 2 Circuit Out of Range Low
  • 522253.03 EGR Valve Actuator Drive 3 Circuit Out of Range High
  • 522253.04 EGR Valve Actuator Drive 3 Circuit Out of Range Low
  • 522254.03 EGR Valve Actuator Drive 4 Circuit Out of Range High
  • 522254.04 EGR Valve Actuator Drive 4 Circuit Out of Range Low
  • 522314.00 Engine Coolant Temperature Extremely High
  • 522323.00 Air Filter Pressure Differential Extremely High
  • 522329.00 Water-In-Fuel Level Extremely High
  • 522402.04 Auxiliary Speed Sensor Out of Range Low
  • 522727.12 ECM Internal Fault 5
  • 522728.12 ECM Internal Fault 6
  • 522730.08 Vehicle Immobilizer System CAN Communication Error
  • 522730.12 Vehicle Immobilizer System Pulse Communication Error

EMU
  • 000070.02 Park Brake / Release Input
  • 000070.02 Park Brake / Release Input
  • 000070.04 Park Brake / Release Input
  • 000070.04 Park Brake / Release Input
  • 000096.03 Fuel Level / Sensor
  • 000096.03 Fuel Level / Sensor
  • 000096.04 Fuel Level / Sensor
  • 000096.04 Fuel Level / Sensor
  • 000158.00 System Voltage
  • 000158.00 System Voltage
  • 000158.01 System Voltage
  • 000158.01 System Voltage
  • 000162.04 2-Speed / Switch Input
  • 000162.04 2-Speed / Switch Input
  • 000234.14 Software Mismatch
  • 000234.14 Software Mismatch
  • 000920.05 Alarm Output
  • 000920.05 Alarm Output
  • 000920.06 Alarm Output
  • 000920.06 Alarm Output
  • 001196.11 Anti Theft
  • 001196.11 Anti Theft
  • 001504.04 Seat Switch / Input
  • 001504.04 Seat Switch / Input
  • 002000.09 No ECU Data / On CAN Bus
  • 002000.09 No ECU Data / On CAN Bus
  • 002228.09 No HCU Data / On CAN Bus
  • 002228.09 No HCU Data / On CAN Bus
  • 003413.04 Door Switch / Input
  • 003413.04 Door Switch / Input
  • 003597.03 5 Volt Sensor / Supply 1
  • 003597.03 5 Volt Sensor / Supply 1
  • 003597.04 5 Volt Sensor / Supply 1
  • 003597.04 5 Volt Sensor / Supply 1
  • 521050.04 Aux Flow On-Off / Switch Input
  • 521050.04 Aux Flow On-Off / Switch Input
  • 521197.04 Courtesy Light / Switch Input
  • 521197.04 Courtesy Light / Switch Input
  • 522379.05 Park Brake / Release Output
  • 522379.05 Park Brake / Release Output
  • 522379.06 Park Brake / Release Output

HCU (Hydraulic Control Unit)
  • 000630.13 Cal Missing / Or Incomplete
  • 001594.00 Left Speed / Sensor Input
  • 001594.01 Left Speed / Sensor Input
  • 001594.02 Left Speed / Sensor Input
  • 001594.14 Left Speed / Sensor Input
  • 001595.00 Right Speed / Sensor Input
  • 001595.01 Right Speed / Sensor Input
  • 001595.02 Right Speed / Sensor Input
  • 001595.14 Right Speed / Sensor Input
  • 002201.09 Right Joystick / CAN Data
  • 002213.09 Left Joystick / CAN Data
  • 002660.07 Right Joystick / X-Axis
  • 002661.07 Right Joystick / Y-Axis
  • 002697.07 Left Joystick / X-Axis
  • 002698.07 Left Joystick / Y-Axis
  • 516193.03 Left Foot Pedal / Signal 1
  • 516193.04 Left Foot Pedal / Signal 1
  • 516193.07 Left Foot Pedal / Signal 1
  • 516193.16 Left Foot Pedal / Signal 1
  • 516193.18 Left Foot Pedal / Signal 1
  • 516194.03 Left Foot Pedal / Signal 2
  • 516194.04 Left Foot Pedal / Signal 2
  • 516195.03 Right Foot Pedal / Signal 2
  • 516195.04 Right Foot Pedal / Signal 2
  • 516196.03 Right Foot Pedal / Signal 1
  • 516196.04 Right Foot Pedal / Signal 1
  • 516196.07 Right Foot Pedal / Signal 1
  • 516196.16 Right Foot Pedal / Signal 1
  • 516196.18 Right Foot Pedal / Signal 1
  • 520652.05 Bucket Curl / Solenoid Current
  • 520652.06 Bucket Curl / Solenoid Current
  • 520652.16 Bucket Curl / Solenoid Current
  • 520653.05 Bucket Dump / Solenoid Current
  • 520653.06 Bucket Dump / Solenoid Current
  • 520653.16 Bucket Dump / Solenoid Current
  • 522377.03 Boom Sensor / Signal 1
  • 522377.04 Boom Sensor / Signal 1
  • 522377.12 Boom Sensor / Signal 1
  • 522377.13 Boom Sensor / Signal 1
  • 522436.03 Bucket Sensor / Signal 1
  • 522436.04 Bucket Sensor / Signal 1
  • 522436.12 Bucket Sensor / Signal 1
  • 522436.13 Bucket Sensor / Signal 1
  • 522437.03 Bucket Sensor / Signal 2
  • 522437.04 Bucket Sensor / Signal 2
  • 522447.05 Right Pump / Fwd Sol Current
  • 522447.06 Right Pump / Fwd Sol Current
  • 522447.16 Right Pump / Fwd Sol Current
  • 522448.05 Right Pump / Rev Sol Current
  • 522448.06 Right Pump / Rev Sol Current
  • 522448.16 Right Pump / Rev Sol Current
  • 522449.05 Left Pump / Rev Sol Current
  • 522449.06 Left Pump / Rev Sol Current
  • 522449.16 Left Pump / Rev Sol Current
  • 522450.05 Left Pump / Fwd Sol Current
  • 522450.06 Left Pump / Fwd Sol Current
  • 522450.16 Left Pump / Fwd Sol Current
  • 523217.03 Hydraulic Valve / Power 3 to HCU
  • 523217.04 Hydraulic Valve / Power 3 to HCU
  • 523218.03 Propel Valve / Power 2 to HCU
  • 523218.04 Propel Valve / Power 2 to HCU
  • 523219.03 Hydraulic Valve / Power 1 to HCU
  • 523219.04 Hydraulic Valve / Power 1 to HCU
  • 523378.03 Boom Sensor / Signal 2
  • 523378.04 Boom Sensor / Signal 2
  • 523411.05 Boom Down / Solenoid Current
  • 523411.06 Boom Down / Solenoid Current
  • 523411.16 Boom Down / Solenoid Current
  • 523414.05 Boom Up / Solenoid Current
  • 523414.06 Boom Up / Solenoid Current
  • 523414.16 Boom Up / Solenoid Current

JSL
  • 002697.03 Left Joystick / X-Axis
  • 002697.04 Left Joystick / X-Axis
  • 002697.13 Left Joystick / X-Axis
  • 002697.14 Left Joystick / X-Axis
  • 002698.03 Left Joystick / Y-Axis
  • 002698.04 Left Joystick / Y-Axis
  • 002698.13 Left Joystick / Y-Axis
  • 002698.14 Left Joystick / Y-Axis

JSR
  • 002660.03 Right Joystick / X-Axis
  • 002660.04 Right Joystick / X-Axis
  • 002660.13 Right Joystick / X-Axis
  • 002660.14 Right Joystick / X-Axis
  • 002661.03 Right Joystick / Y-Axis
  • 002661.04 Right Joystick / Y-Axis
  • 002661.13 Right Joystick / Y-Axis
  • 002661.14 Right Joystick / Y-Axis

OC4
  • 0000629.12 Controller Fault
  • 0000629.12 Controller Fault
  • 002033.09 VCU CAN Comm
  • 002033.09 VCU CAN Comm
  • 002634.04 Ignition Relay
  • 002634.04 Ignition Relay
  • 002634.05 Ignition Relay
  • 002634.05 Ignition Relay
  • 523850.04 SSM Button 15
  • 523850.04 SSM Button 15
  • 523850.09 SSM Button 15
  • 523850.09 SSM Button 15
  • 523852.04 SSM Button 14
  • 523852.04 SSM Button 14
  • 523852.09 SSM Button 14
  • 523852.09 SSM Button 14
  • 523854.04 SSM Button 13
  • 523854.04 SSM Button 13
  • 523854.09 SSM Button 13
  • 523854.09 SSM Button 13
  • 523855.04 SSM Button 12
  • 523855.04 SSM Button 12
  • 523855.09 SSM Button 12
  • 523855.09 SSM Button 12
  • 523856.04 SSM Button 11
  • 523856.04 SSM Button 11
  • 523856.09 SSM Button 11
  • 523856.09 SSM Button 11
  • 523857.04 SSM Button 10
  • 523857.04 SSM Button 10
  • 523857.09 SSM Button 10
  • 523857.09 SSM Button 10
  • 523858.04 SSM Button 9
  • 523858.04 SSM Button 9
  • 523858.09 SSM Button 9
  • 523858.09 SSM Button 9
  • 523860.04 SSM Button 8
  • 523860.04 SSM Button 8
  • 523860.09 SSM Button 8
  • 523860.09 SSM Button 8
  • 523861.04 SSM Button 7
  • 523861.04 SSM Button 7
  • 523861.09 SSM Button 7
  • 523861.09 SSM Button 7
  • 523862.04 SSM Button 6
  • 523862.04 SSM Button 6
  • 523862.09 SSM Button 6
  • 523862.09 SSM Button 6
  • 523863.04 SSM Button 5
  • 523863.04 SSM Button 5
  • 523863.09 SSM Button 5
  • 523863.09 SSM Button 5
  • 523864.04 SSM Button 4
  • 523864.04 SSM Button 4
  • 523864.09 SSM Button 4
  • 523864.09 SSM Button 4
  • 523865.04 SSM Button 3
  • 523865.04 SSM Button 3
  • 523865.09 SSM Button 3
  • 523865.09 SSM Button 3
  • 523867.04 SSM Button 2
  • 523867.04 SSM Button 2
  • 523867.09 SSM Button 2
  • 523867.09 SSM Button 2
  • 523868.04 SSM Button 1
  • 523868.04 SSM Button 1
  • 523868.09 SSM Button 1
  • 523868.09 SSM Button 1

VCU
  • 000091.03 Accelerator 2 - Pedal Voltage Above Normal
  • 000091.03 Accelerator 2 - Pedal Voltage Above Normal
  • 000091.04 Accelerator 2 - Pedal Voltage Below Normal
  • 000091.04 Accelerator 2 - Pedal Voltage Below Normal
  • 000100.01 Oil Pressure Switch
  • 000100.01 Oil Pressure Switch
  • 000158.03 Battery Voltage Switched Power
  • 000158.03 Battery Voltage Switched Power
  • 000158.04 Battery Voltage Switched Power
  • 000158.04 Battery Voltage Switched Power
  • 000168.03 Unswitched Power / Input
  • 000168.03 Unswitched Power / Input
  • 000168.04 Unswitched Power / Input
  • 000168.04 Unswitched Power / Input
  • 000977.05 Fan Direction / Mode
  • 000977.05 Fan Direction / Mode
  • 000977.06 Fan Direction / Mode
  • 000977.06 Fan Direction / Mode
  • 001071.05 Fan Speed / Solenoid
  • 001071.05 Fan Speed / Solenoid
  • 001071.06 Fan Speed / Solenoid
  • 001071.06 Fan Speed / Solenoid
  • 001508.00 Hydraulic Oil / Temperature
  • 001508.00 Hydraulic Oil / Temperature
  • 001508.03 Hydraulic Oil / Temperature
  • 001508.03 Hydraulic Oil / Temperature
  • 001508.04 Hydraulic Oil / Temperature
  • 001508.04 Hydraulic Oil / Temperature
  • 001713.00 Hydraulic Filter / Restr Switch
  • 001713.00 Hydraulic Filter / Restr Switch
  • 001713.03 Hydraulic Filter / Restr Switch
  • 001713.03 Hydraulic Filter / Restr Switch
  • 003512.03 5 Volt Sensor / Supply 4
  • 003512.04 5 Volt Sensor / Supply 4
  • 003597.03 5 Volt Sensor / Supply 1
  • 003597.04 5 Volt Sensor / Supply 1
  • 003598.03 5 Volt Sensor / Supply 2
  • 003598.04 5 Volt Sensor / Supply 2
  • 003599.03 5 Volt Sensor - Supply 3
  • 003599.03 5 Volt Sensor - Supply 3
  • 003599.04 5 Volt Sensor - Supply 3
  • 003599.04 5 Volt Sensor - Supply 3
  • 004056.05 2-Speed Output
  • 004056.05 2-Speed Output
  • 004056.06 2-Speed Output
  • 004056.06 2-Speed Output
  • 516249.04 Controller Power Supply
  • 520194.13 Machine Model ID / Wrong or Missing
  • 520194.13 Machine Model ID / Wrong or Missing
  • 520194.14 Machine Model ID / Wrong or Missing
  • 520194.14 Machine Model ID / Wrong or Missing
  • 520849.03 Right Joystick / Trigger Input
  • 520849.04 Right Joystick / Trigger Input
  • 521466.05 Fan Direction / Relief
  • 521466.05 Fan Direction / Relief
  • 521466.06 Fan Direction / Relief
  • 521466.06 Fan Direction / Relief
  • 521806.05 HST Bypass Solenoid
  • 521806.05 HST Bypass Solenoid
  • 521806.06 HST Bypass Solenoid
  • 521806.06 HST Bypass Solenoid
  • 522820.05 High Flow / Driver
  • 522820.05 High Flow / Driver
  • 522820.06 High Flow / Driver
  • 522820.06 High Flow / Driver
  • 524084.00 Hydrostat Oil / Temperature
  • 524084.00 Hydrostat Oil / Temperature
  • 524084.03 Hydrostat Oil / Temperature
  • 524084.03 Hydrostat Oil / Temperature
  • 524084.04 Hydrostat Oil / Temperature
  • 524084.04 Hydrostat Oil / Temperature
  • 524264.11 Checksum Error
  • 524264.11 Checksum Error
Назад к содержимому
