Электросхемы 335C Knuckleboom Log Loader John Deere

(S.N. —165691)

  • F1 - Fuse, Radio Memory 5 amp
  • F2 - Fuse, Key Switch 15 amp
  • F3 - Fuse, Fuel Hold-in 10 amp
  • F4 - Fuse, Gauge 15 amp
  • F5 - Fuse, Radio Ground Inline 5 amp
  • G1 - Alternator
  • G2 - Battery
  • G3 - Battery
  • K1 - Relay, Start
  • K2 - Relay, Fuel Shutoff Solenoid Pull-in
  • K3 - Relay, Ignition
  • K4 - Relay, Accessory
  • K5 - Relay, Air Conditioner
  • M1 - Motor, Starter
  • S1 - Switch, Key
  • S2 - Switch, Battery Disconnect
  • V1 - Diode, Alternator
  • V10 - Diode, Fuel Shutoff
  • Y1 - Solenoid, Fuel Shutoff


  • B1 - Horn, Trouble Alarm
  • B2 - Horn
  • F6 - Fuse, Joystick 15 amp
  • F7 - Fuse, Horn 10 amp
  • H1 - Indicator Light, Air Intake Restriction
  • H2 - Indicator Light, Engine Oil Pressure
  • H3 - Indicator Light, Hydraulic Filter Restriction
  • H4 - Indicator Light, Engine Coolant Temperature
  • K6 - Relay, Alarm Circuit
  • K7 - Relay, Horn
  • S3 - Switch, Air Intake Restriction
  • S4 - Switch, Engine Oil Pressure
  • S5 - Switch, Hydraulic Filter Restriction
  • S6 - Switch, Engine Coolant Temperature
  • S7 - Switch, Alarm Cancel
  • V2 - Diode, Air Intake Restriction
  • V3 - Diode, Engine Oil Pressure
  • V4 - Diode, Hydraulic Filter Restriction
  • V5 - Diode, Engine Coolant Temperature


  • B3 - Joystick Switch Left
  • B4 - Joystick Switch Right
  • K8 - Relay, Delimber Knives Shutoff
  • K9 - Relay, Delimber Knives Close Solenoid Pull-in
  • K10 - Relay, Delimber Knives Close Solenoid Hold-in
  • V7 - Diode, Delimber Knives Close Solenoid Pull-in Relay
  • Y2 - Solenoid, Knives—Delimber Valve
  • Y3 - Solenoid, Knives Close—Main Valve
  • Y4 - Solenoid, Knives Open—Main Valve
  • Y5 - Solenoid, Saw Up—Main Valve
  • Y6 - Solenoid, Saw Down—Main Valve

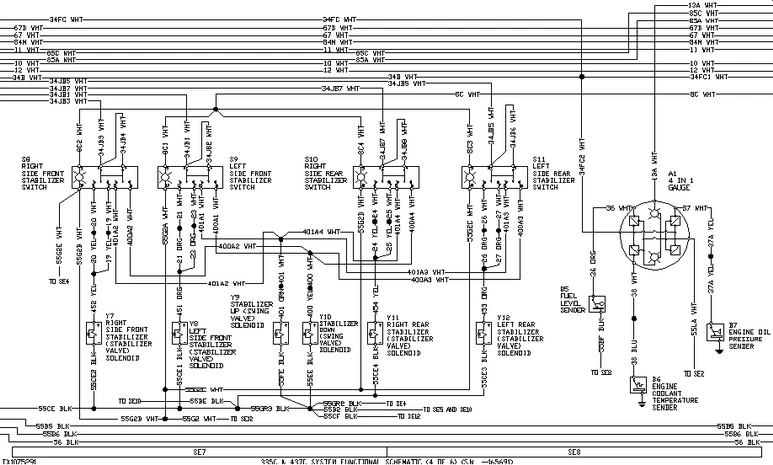

  • A1 - Gauge, 4 in 1
  • B5 - Sender, Fuel Level
  • B6 - Sender, Engine Coolant Temperature
  • B7 - Sender, Engine Oil Pressure
  • S8 - Switch, Right Front Stabilizer
  • S9 - Switch, Left Front Stabilizer
  • S10 - Switch, Right Rear Stabilizer
  • S11 - Switch, Left Rear Stabilizer
  • Y7 - Solenoid, Right Front Stabilizer—Stabilizer Valve
  • Y8 - Solenoid, Left Front Stabilizer—Stabilizer Valve
  • Y9 - Solenoid, Stabilizer Up—Swing Valve
  • Y10 - Solenoid, Stabilizer Down—Swing Valve
  • Y11 - Solenoid, Right Rear Stabilizer—Stabilizer Valve
  • Y12 - Solenoid, Left Rear Stabilizer—Stabilizer Valve

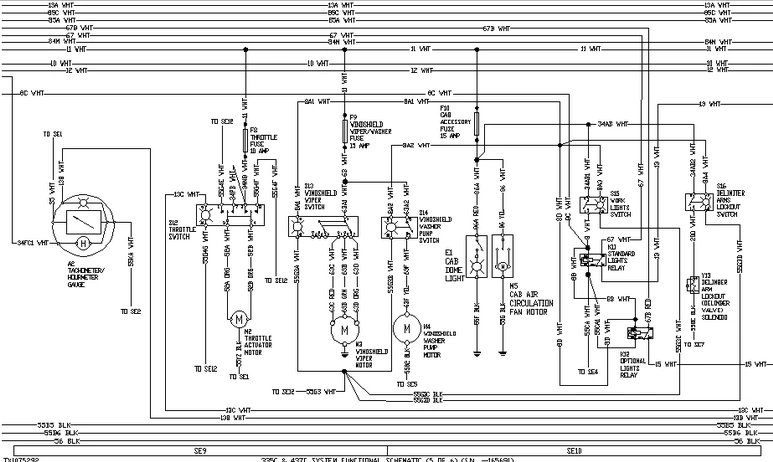

  • A2 - Gauge, Tachometer / Hourmeter
  • E1 - Light, Cab Dome
  • F8 - Fuse, Throttle 10 amp
  • F9 - Fuse, Windshield Wiper / Washer 15 amp
  • F10 - Fuse, Cab Accessory 15 amp
  • K11 - Relay, Standard Lights
  • K12 - Relay, Optional Lights
  • M2 - Motor, Throttle Actuator
  • M3 - Motor, Windshield Wiper
  • M4 - Motor, Windshield Washer Pump
  • M5 - Motor, Cab Air Circulation Fan
  • S12 - Switch, Throttle
  • S13 - Switch, Windshield Wiper
  • S14 - Switch, Windshield Washer Pump
  • S15 - Switch, Work Lights
  • S16 - Switch, Delimber Arms Lockout
  • Y13 - Solenoid, Delimber Arms Lockout—Delimber Valve


  • A3 - Radio
  • B8 - Thermostat, Air Conditioner
  • B9 - Speaker, Radio Right
  • B10 - Speaker, Radio Left
  • C1 - Lighter
  • C2 - Power Outlet
  • E2 - Light, Work Left
  • E3 - Light, Work Left Rear
  • E4 - Light, Work Right
  • E5 - Light, Work Right Rear
  • E6 - Light, Work Left Front
  • E7 - Light, Work Right Front
  • E8 - Light, Work Optional
  • E9 - Light, Work Optional
  • F11 - Fuse, Auxiliary Power 15 amp
  • F12 - Fuse, Air Conditioner 25 amp
  • F13 - Fuse, CB Radio Option 10 amp
  • F14 - Fuse, Radio 15 amp
  • M6 - Motor, Air Conditioner Blower
  • Q1 - Circuit Breaker, Work Lights
  • Q2 - Circuit Breaker, Work Lights
  • Q3 - Circuit Breaker, Optional Lights
  • S17 - Switch, Pilot Shutoff
  • S18 - Switch, Seat Armrest Limit (Pilot Shutoff)
  • S19 - Switch, Air Conditioner Fan
  • S20 - Switch, Air Conditioner On/Off
  • S21 - Switch, Air Conditioner High/Low (Binary) Pressure
  • Y14 - Solenoid, Pilot Shutoff Valve
  • Y15 - Solenoid, Air Conditioner Compressor Clutch

(S.N. 167282— )

  • F1 - Fuse, Radio Memory 5 amp
  • F2 - Fuse, Key Switch 15 amp
  • F3 - Fuse, Fuel Hold-in 10 amp
  • F4 - Fuse, Gauge 15 amp
  • F5 - Fuse, Radio Ground Inline 5 amp
  • G1 - Alternator
  • G2 - Battery
  • G3 - Battery
  • K1 - Relay, Start
  • K2 - Relay, Fuel Shutoff Solenoid Pull-in
  • K3 - Relay, Ignition
  • K4 - Relay, Accessory
  • K5 - Relay, Heater and Air Conditioner
  • M1 - Motor, Starter
  • S1 - Switch, Key
  • S2 - Switch, Battery Disconnect
  • V1 - Diode, Alternator
  • V10 - Diode, Fuel Shutoff
  • Y1 - Solenoid, Fuel Shutoff


  • B1 - Horn, Trouble Alarm
  • B2 - Horn
  • F6 - Fuse, Joystick 15 amp
  • F7 - Fuse, Horn 10 amp
  • H1 - Indicator Light, Air Intake Restriction
  • H2 - Indicator Light, Engine Oil Pressure
  • H3 - Indicator Light, Hydraulic Filter Restriction
  • H4 - Indicator Light, Engine Coolant Temperature
  • K6 - Relay, Alarm Circuit
  • K7 - Relay, Horn
  • S3 - Switch, Air Intake Restriction
  • S4 - Switch, Engine Oil Pressure
  • S5 - Switch, Hydraulic Filter Restriction
  • S6 - Switch, Engine Coolant Temperature
  • S7 - Switch, Alarm Cancel
  • V2 - Diode, Air Intake Restriction
  • V3 - Diode, Engine Oil Pressure
  • V4 - Diode, Hydraulic Filter Restriction
  • V5 - Diode, Engine Coolant Temperature


  • B3 - Joystick Left (Multi-Function Control Lever)
  • B4 - Joystick Right (Multi-Function Control Lever)
  • K8 - Relay, Delimber Knives Shutoff
  • K9 - Relay, Delimber Knives Close Solenoid Pull-in
  • K10 - Relay, Delimber Knives Close Solenoid Hold-in
  • V7 - Diode, Delimber Knives Close Solenoid Pull-in Relay
  • Y2 - Solenoid, Knives (Delimber Valve)
  • Y3 - Solenoid, Knives Close (Main Valve)
  • Y4 - Solenoid, Knives Open (Main Valve)
  • Y5 - Solenoid, Saw Up (Main Valve)
  • Y6 - Solenoid, Saw Down (Main Valve)


  • A1 - Gauge, 4-in-1
  • B5 - Sender, Fuel Level
  • B6 - Sender, Engine Coolant Temperature
  • B7 - Sender, Engine Oil Pressure
  • S8 - Switch, Right Front Stabilizer
  • S9 - Switch, Left Front Stabilizer
  • S10 - Switch, Right Rear Stabilizer
  • S11 - Switch, Left Rear Stabilizer
  • Y7 - Solenoid, Right Front Stabilizer (Stabilizer Valve)
  • Y8 - Solenoid, Left Front Stabilizer (Stabilizer Valve)
  • Y9 - Solenoid, Stabilizer Up (Swing Valve)
  • Y10 - Solenoid, Stabilizer Down (Swing Valve)
  • Y11 - Solenoid, Right Rear Stabilizer (Stabilizer Valve)
  • Y12 - Solenoid, Left Rear Stabilizer (Stabilizer Valve)

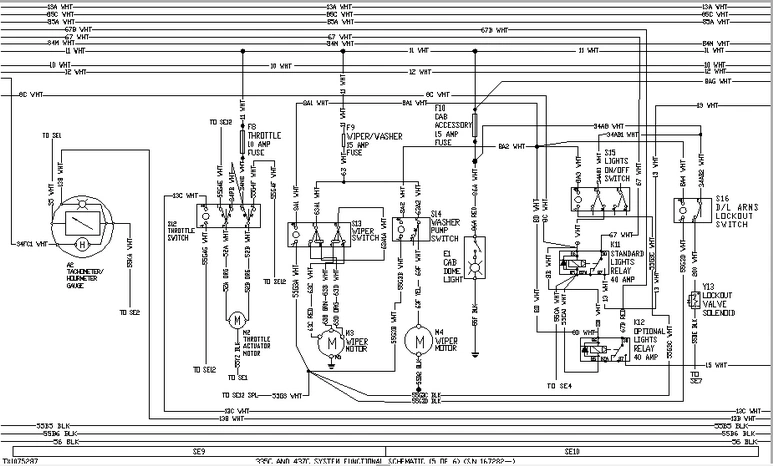

  • A2 - Gauge, Tachometer and Hourmeter
  • E1 - Light, Cab Dome
  • F8 - Fuse, Throttle 10 amp
  • F9 - Fuse, Windshield Wiper / Washer 15 amp
  • F10 - Fuse, Cab Accessory 15 amp
  • K11 - Relay, Standard Lights
  • K12 - Relay, Optional Lights
  • M2 - Motor, Throttle Actuator
  • M3 - Motor, Windshield Wiper
  • M4 - Motor, Windshield Washer Pump
  • S12 - Switch, Throttle
  • S13 - Switch, Windshield Wiper
  • S14 - Switch, Windshield Washer Pump
  • S15 - Switch, Work Lights
  • S16 - Switch, Delimber Arms Lockout
  • Y13 - Solenoid, Delimber Arms Lockout (Delimber Valve)


  • A3 - Radio
  • A6 - Seat, Air
  • B9 - Speaker, Radio Right
  • B10 - Speaker, Radio Left
  • E2 - Light, Work Left
  • E3 - Light, Work Left Rear
  • E4 - Light, Work Right
  • E5 - Light, Work Right Rear
  • E6 - Light, Work Left Front
  • E7 - Light, Work Right Front
  • E8 - Light, Work (Optional)
  • E9 - Light, Work (Optional)
  • F11 - Fuse, Auxiliary Power 15 amp
  • F12 - Fuse, Blower Motor 25 amp
  • F13 - Fuse, CB Radio Option 10 amp
  • F14 - Fuse, Radio 15 amp
  • F18 - Fuse, Air Seat 20 amp
  • F30 - Circuit Breaker, Work Lights
  • F31 - Circuit Breaker, Work Lights
  • F32 - Circuit Breaker, Optional Lights
  • K22 - Relay, Pilot Latching
  • S18 - Switch, Seat Armrest Limit (Pilot Shutoff)
  • S21 - Switch, Air Conditioner High/Low (Binary) Pressure
  • S25 - Switch, Blower Motor
  • S26 - Switch, Heater and Air Conditioner On or Off
  • S27 - Switch, Air Conditioner Freeze Control
  • S28 - Switch, Pilot Enable
  • V9 - Diode, Pilot Latching
  • V15 - Diode, Pilot Press
  • X215 - Outlet, Power
  • X216 - Outlet, Power
  • Y14 - Solenoid, Pilot Shutoff Valve
  • Y15 - Solenoid, Air Conditioner Compressor Clutch
