540H and 548H Skidder John Deere

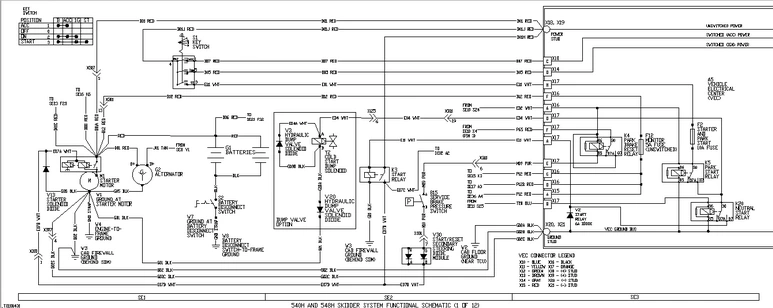

  • SE1—Power and Charge Circuits
  • SE2—Start and Cold Start Circuits
  • SE3—Vehicle Electrical Center (VEC)—Fuses F2 and F12; Relays K4, K5, and K20; Diode V2

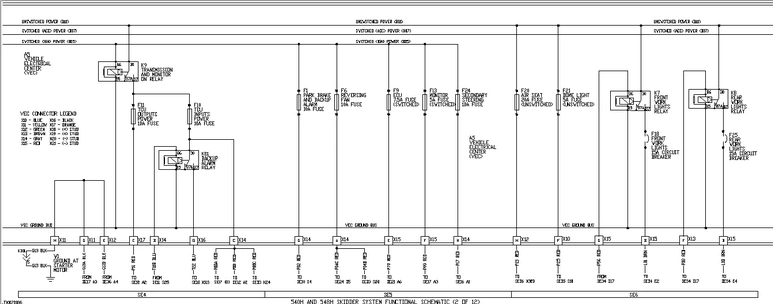

  • SE4—Vehicle Electrical Center (VEC)—Fuses F10 and F11; Relays K9 and K21
  • SE5—Vehicle Electrical Center (VEC)—Fuses F1, F6, F9, F13, and F24
  • SE6—Vehicle Electrical Center (VEC)—Fuses F20 and F21; Circuit Breakers F18 and F25; Relays K7 and K8

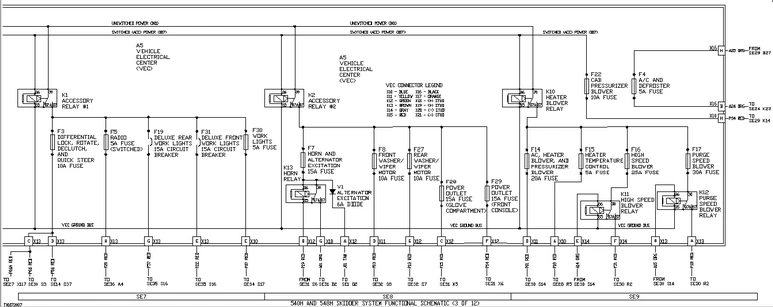

  • SE7—Vehicle Electrical Center (VEC)—Fuses F3, F5, F19, F30, and F31; Relay K1
  • SE8—Vehicle Electrical Center (VEC)—Fuses F7, F8, F27, F28, and F29; Relays K2 and K13; Diode V1
  • SE9—Vehicle Electrical Center (VEC)—Fuses F4, F14, F15, F16, F17, and F22; Relays K10, K11, and K12

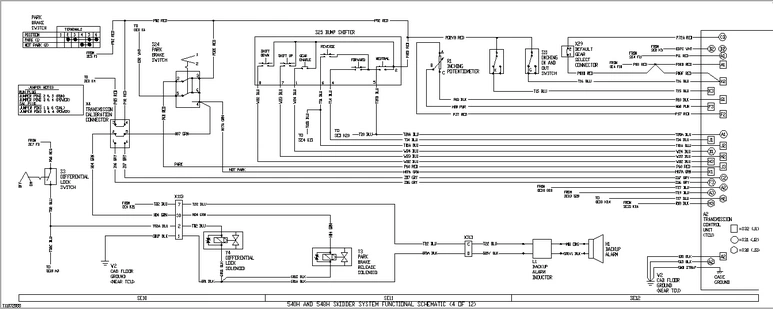

  • SE10—Differential Lock, Bump Shifter, and Park Brake Circuits
  • SE11—Park Brake and Transmission Control Unit (TCU) Circuits
  • SE12—Transmission Control Unit (TCU) Circuits Continued

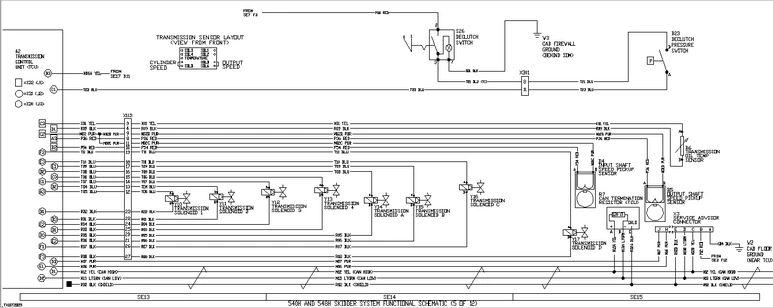

  • SE13—Transmission Control Unit (TCU) Circuits Continued
  • SE14—Transmission Control Unit (TCU) Circuits Continued
  • SE15—Transmission Control Unit (TCU) Circuits Continued

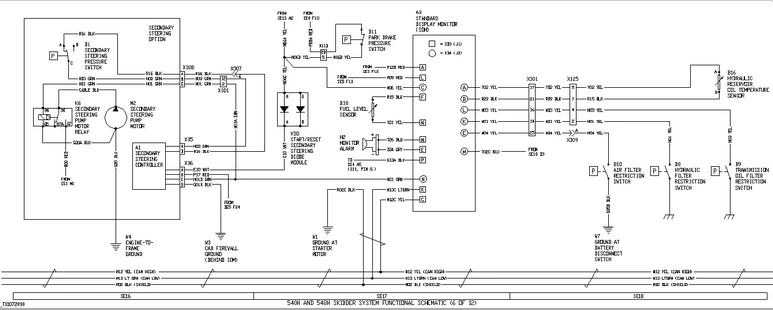

  • SE16—Secondary Steering Control Circuit
  • SE17—Standard Display Monitor (SDM) Circuits
  • SE18—Standard Display Monitor (SDM) Circuits Continued

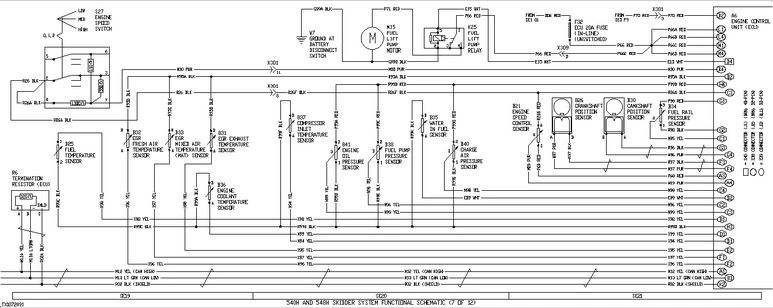

  • SE19—Engine Control Unit (ECU) Circuits
  • SE20—Engine Control Unit (ECU) Circuits Continued
  • SE21—Engine Control Unit (ECU) Circuits Continued

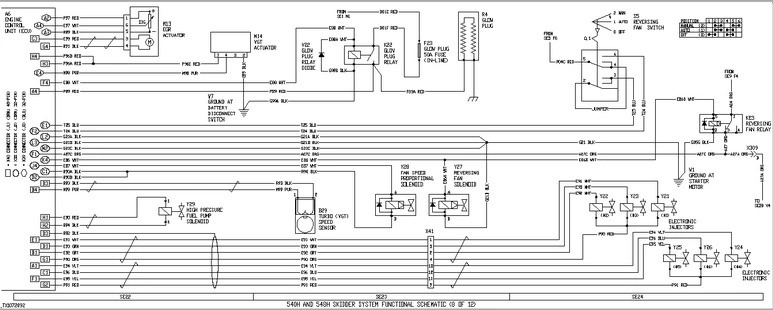

  • SE22—Engine Control Unit (ECU) Circuits Continued
  • SE23—Engine Control Unit (ECU) Circuits Continued
  • SE24—Engine Control Unit (ECU) Circuits Continued

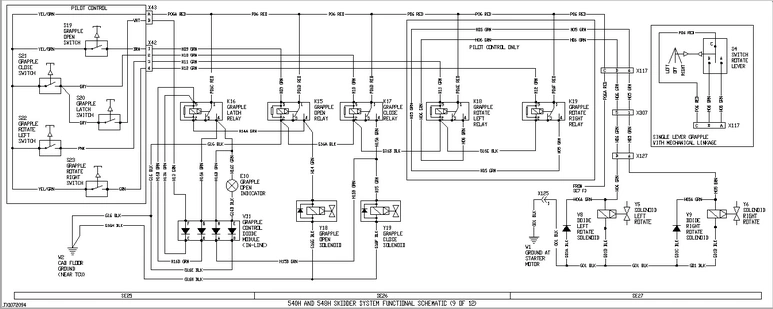

  • SE25—Pilot Control Grapple Rotate and Open/Close Circuits
  • SE26—Pilot Control Grapple Rotate and Open/Close Circuits Continued
  • SE27—Grapple Rotate Circuits Continued

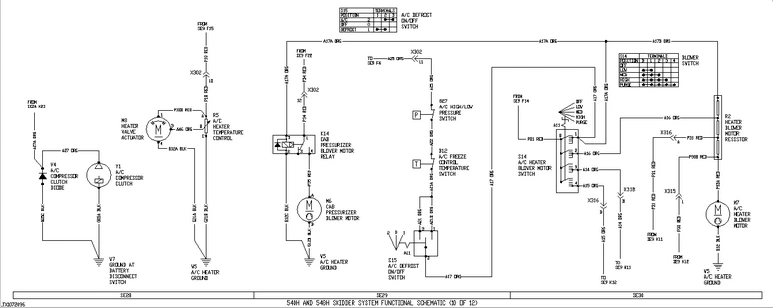

  • SE28—Air Conditioner and Heater Temperature Circuits
  • SE29—Air Conditioner and Pressurizer Blower Circuits
  • SE30—Air Conditioner and Heater Blower Circuits
  • SE31—Power Outlets and Horn Circuits

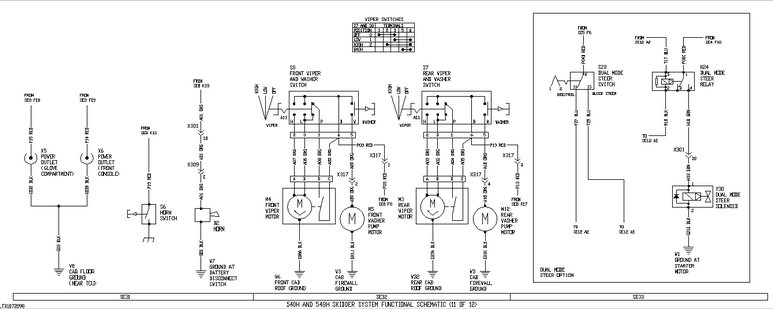

  • SE32—Windshield Wiper and Washer Circuits
  • SE33—Dual Mode Steer Circuit
  • SE34—Work Light Circuits

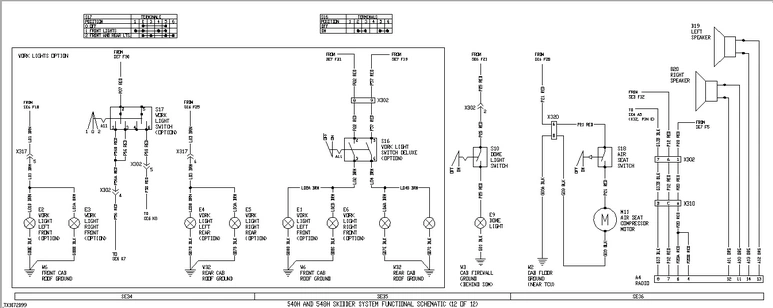

  • SE35—Deluxe Work Light and Dome Light Circuits
  • SE36—Air Seat and Radio Circuits

SE1, SE2, SE3

  • A5 - Vehicle Electrical Center (VEC)
  • B15 - Service Brake Pressure Switch
  • F2 - Starter and Park Start 10-Amp Fuse
  • F12 - Monitor, Radio, Service ADVISOR™ 5-Amp Fuse (unswitched)
  • G1 - Battery (2 used; connected in parallel)
  • G2 - Alternator (95-amp or optional 120-amp)
  • K3 - Starter Relay
  • K4 - Park Brake Reset Relay
  • K5 - Park Start Relay
  • K20 - Neutral Start Relay
  • M1 - Starter Motor
  • S1 - Key Switch
  • S2 - Battery Disconnect Switch
  • V2 - Start Relay 6-Amp Diode
  • V3 - Hydraulic Dump Valve Solenoid Diode
  • V13 - Starter Solenoid Diode
  • V20 - Cold Start Dump Valve Blocking Diode
  • V30 - Start Reset/Secondary Steering Diode Module
  • W1 - Ground at Starter Motor
  • W2 - Cab Floor Ground (near TCU)
  • W3 - Cab Firewall Ground (behind SDM)
  • W4 - Engine-to-Frame Ground
  • W7 - Ground at Battery Disconnect Switch
  • W8 - Battery Disconnect Switch-to-Frame Ground
  • X10 - Vehicle Electrical Center (VEC) (BLU) Connector
  • X14 - Vehicle Electrical Center (VEC) (GRY) Connector
  • X15 - Vehicle Electrical Center (VEC) (RED) Connector
  • X16 - Vehicle Electrical Center (VEC) (ORG) Connector
  • X17 - Vehicle Electrical Center (VEC) (BLK) Connector
  • X18 - Vehicle Electrical Center (VEC) Unswitched Power Connector
  • X19 - Vehicle Electrical Center (VEC) Unswitched Power Connector
  • X20 - Vehicle Electrical Center (VEC) Ground Connector
  • X21 - Vehicle Electrical Center (VEC) Ground Connector
  • X125 - Hydraulic Reservoir Harness-to-Engine Interface Harness Connector
  • X301 - Load Center Harness-to-Engine Harness Connector
  • X307 - Load Center Harness-to-Engine Harness Connector
  • Y2 - Cold Start Dump Solenoid

SE4, SE5, SE6

  • A5 - Vehicle Electrical Center (VEC)
  • F1 - Park Brake and Backup Alarm 10-Amp Fuse
  • F6 - Reversing Fan 10-Amp Fuse
  • F9 - Engine Control Unit (ECU) 7.5-Amp Fuse (switched)
  • F10 - Transmission Control Unit (TCU) Inputs Power 10-Amp Fuse
  • F11 - Transmission Control Unit (TCU) Outputs Power 10-Amp Fuse
  • F13 - Monitor 5-Amp Fuse (switched)
  • F18 - Front Work Lights 15-Amp Circuit Breaker (option)
  • F20 - Air Seat 20-Amp Fuse
  • F21 - Dome Light 5-Amp Fuse (unswitched)
  • F24 - Secondary Steering 10-Amp Fuse (option)
  • F25 - Rear Work Lights 15-Amp Circuit Breaker (optional)
  • K7 - Front Work Lights Relay (option)
  • K8 - Rear Work Lights Relay (option)
  • K9 - Transmission Control Relay
  • K21 - Backup Alarm Relay
  • W1 - Ground at Starter Motor
  • X10 - Vehicle Electrical Center (VEC) (BLU) Connector
  • X11 - Vehicle Electrical Center (VEC) (YEL) Connector
  • X12 - Vehicle Electrical Center (VEC) (GRN) Connector
  • X13 - Vehicle Electrical Center (VEC) (BRN) Connector
  • X14 - Vehicle Electrical Center (VEC) (GRY) Connector
  • X15 - Vehicle Electrical Center (VEC) (RED) Connector
  • X16 - Vehicle Electrical Center (VEC) (ORG) Connector
  • X17 - Vehicle Electrical Center (VEC) (BLK) Connector
  • X301 - Load Center Harness-to-Engine Harness Connector

SE7, SE8, SE9

  • A5 - Vehicle Electrical Center (VEC)
  • F3 - Differential Lock, Rotate, De-clutch, and Quick Steer 10-Amp Fuse (S.N. —622374)
  • F4 - A/C and Defroster 5-Amp Fuse
  • F5 - Radio 5-Amp Fuse (switched)
  • F7 - Horn and Alternator Excitation 15-Amp Fuse
  • F8 - Front Washer and Wiper Motor 10-Amp Fuse
  • F14 - A/C, Heater Blower, and Pressurizer Blower 20-Amp Fuse
  • F15 - Heater Temperature Control 5-Amp Fuse
  • F16 - High Speed Blower 25-Amp Fuse
  • F17 - Purge Speed Blower 30-Amp Fuse
  • F19 - Rear Deluxe Work Lights 15-Amp Circuit Breaker (option)
  • F22 - Cab Pressurizer Blower 10-Amp Fuse
  • F27 - Rear Washer and Wiper Motor 10-Amp Fuse
  • F28 - Power Outlet 15-Amp Fuse (glove compartment)
  • F29 - Power Outlet 15-Amp Fuse (front console)
  • F30 - Work Lights 5-Amp Fuse (option)
  • F31 - Front Deluxe Work Lights 15-Amp Circuit Breaker (option)
  • K1 - Accessory 1 Relay
  • K2 - Accessory 2 Relay (power outlets, horn, and wipers)
  • K10 - A/C and Heater Blower Motor Relay
  • K11 - High Speed Blower Relay
  • K12 - Purge Speed Blower Relay
  • K13 - Horn Relay
  • V1 - Alternator Excitation 6-Amp Diode
  • X10 - Vehicle Electrical Center (VEC) (BLU) Connector
  • X11 - Vehicle Electrical Center (VEC) (YEL) Connector
  • X12 - Vehicle Electrical Center (VEC) (GRN) Connector
  • X13 - Vehicle Electrical Center (VEC) (BRN) Connector
  • X14 - Vehicle Electrical Center (VEC) (GRY) Connector
  • X16 - Vehicle Electrical Center (VEC) (ORG) Connector

SE10, SE11, SE12

  • A2 - Transmission Control Unit (TCU)
  • H1 - Backup Alarm
  • L1 - Backup Alarm Module
  • R1 - Inching Potentiometer
  • S3 - Differential Lock Switch
  • S11 - Inching In and Out Switch
  • S24 - Park Brake Switch
  • S25 - Bump Shifter
  • W2 - Cab Floor Ground (near TCU)
  • X4 - Transmission Calibration Connector
  • X29 - Default Gear Select Connector
  • X113 - Load Center Harness-to-Transmission Harness Connector
  • X313 - Fuel Level Sensor and Reverse Alarm Harness-to-Transmission Harness Connector
  • Y3 - Park Brake Release Solenoid
  • Y4 - Differential Lock Solenoid

SE13, SE14, SE15

  • A2 - Transmission Control Unit (TCU)
  • B4 - Input Shaft Speed Pickup
  • B5 - Output Shaft Speed Pickup
  • B6 - Transmission Oil Temperature Sensor
  • B23 - De-clutch Pressure Switch (models with de-clutch)
  • R7 - CAN Termination Resistor (TCU)
  • S26 - De-clutch Switch (models with de-clutch)
  • W2 - Cab Floor Ground (near TCU)
  • W3 - Cab Firewall Ground (behind SDM)
  • X3 - Service Advisor™ Connector
  • X113 - Load Center Harness-to-Transmission Harness Connector
  • Y10 - Transmission Solenoid 1
  • Y11 - Transmission Solenoid 2
  • Y12 - Transmission Solenoid 3
  • Y13 - Transmission Solenoid 4
  • Y14 - Transmission Solenoid A
  • Y15 - Transmission Solenoid B
  • Y16 - Transmission Solenoid C
  • Y17 - Transmission Solenoid D

SE16, SE17, SE18

  • A1 - Secondary Steering Controller
  • A3 - Standard Display Monitor (SDM)
  • B1 - Secondary Steering Pressure Switch
  • B8 - Hydraulic Filter Restriction Switch
  • B9 - Transmission Oil Filter Restriction Switch
  • B10 - Air Filter Restriction Switch
  • B11 - Park Brake Pressure Switch
  • B16 - Hydraulic Reservoir Oil Temperature Sensor
  • B18 - Fuel Level Sensor
  • H2 - Monitor Alarm
  • K6 - Secondary Steering Pump Motor Relay
  • M2 - Secondary Steering Pump Motor
  • V30 - Start Reset/Secondary Steering Diode Module
  • W1 - Ground at Starter Motor
  • W3 - Cab Firewall Ground (behind SDM)
  • W4 - Engine-to-Frame Ground
  • W7 - Ground at Battery Disconnect Switch
  • X35 - Secondary Steering Controller 2-Pin Connector
  • X36 - Secondary Steering Controller 4-Pin Connector
  • X113 - Load Center Harness-to-Transmission Harness Connector
  • X125 - Hydraulic Reservoir Harness-to-Engine Interface Harness Connector
  • X301 - Load Center Harness-to-Engine Harness Connector
  • X307 - Load Center Harness-to-Engine Harness Connector
  • X308 - Engine Interface Harness-to-Secondary Steering Harness Connector
  • X309 - Engine Harness-to-Engine Interface Harness Connector

SE19, SE20, SE21

  • A6 - Engine Control Unit (ECU)
  • B21 - Engine Speed Control (accelerator position) Sensor
  • B25 - Fuel Temperature Sensor
  • B26 - Crankshaft Position Sensor
  • B30 - Camshaft Position Sensor
  • B31 - Exhaust Gas Recirculation (EGR) Exhaust Temperature Sensor
  • B32 - Exhaust Gas Recirculation (EGR) Fresh Air Temperature Sensor
  • B33 - Exhaust Gas Recirculation (EGR) Mixed Air Temperature Sensor
  • B34 - Fuel Rail Pressure Sensor
  • B35 - Water in Fuel Sensor
  • B36 - Coolant Temperature Sensor
  • B37 - Compressor Inlet Temperature Sensor
  • B38 - Fuel Pump Pressure Sensor
  • B40 - Charge Air Pressure Sensor
  • B41 - Engine Oil Pressure Sensor
  • F32 - Engine Control Unit (ECU) 20-Amp Fuse (in-line; unswitched)
  • K25 - Fuel Lift Pump Relay
  • M15 - Fuel Lift Pump Motor
  • R6 - CAN Termination Resistor (ECU)
  • S27 - Engine Speed Switch
  • W7 - Ground at Battery Disconnect Switch
  • X38 - Engine Control Unit (ECU) Connector
  • X39 - Engine Control Unit (ECU) J3 Connector (BLU)
  • X40 - Engine Control Unit (ECU) J1 Connector (BLK)
  • X301 - Load Center Harness-to-Engine Harness Connector
  • X309 - Engine Harness-to-Engine Interface Harness Connector

SE22, SE23, SE24

  • A6 - Engine Control Unit (ECU)
  • B29 - Variable Geometry Turbocharger (VGT) Speed Sensor
  • F23 - Glow Plug 50-Amp Fuse (in-line)
  • K22 - Glow Plug Relay
  • K23 - Reversing Fan Relay
  • M13 - Exhaust Gas Recirculation (EGR) Actuator
  • M14 - Variable Geometry Turbocharger (VGT) Actuator
  • R4 - Glow Plugs
  • S5 - Reversing Fan Switch
  • V22 - Glow Plug Relay Diode
  • W1 - Ground at Starter Motor
  • W7 - Ground at Battery Disconnect Switch
  • X38 - Engine Control Unit (ECU) Connector
  • X39 - Engine Control Unit (ECU) J3 Connector (BLU)
  • X40 - Engine Control Unit (ECU) J1 Connector (BLK)
  • X41 - Engine Harness-to-Injector Harness Connector
  • X309 - Engine Harness-to-Engine Interface Harness Connector
  • Y21 - Electronic Injector Cylinder #1
  • Y22 - Electronic Injector Cylinder #2
  • Y23 - Electronic Injector Cylinder #3
  • Y24 - Electronic Injector Cylinder #4
  • Y25 - Electronic Injector Cylinder #5
  • Y26 - Electronic Injector Cylinder #6
  • Y27 - Reversing Fan Solenoid
  • Y28 - Fan Speed Proportional Solenoid
  • Y29 - Fuel Pump Control Valve

SE25, SE26, SE27

  • E10 - Grapple Latch Indicator (pilot control)
  • K15 - Grapple Open Relay (pilot control only)
  • K16 - Grapple Latch Relay (pilot control only)
  • K17 - Grapple Close Relay (pilot control only)
  • K18 - Grapple Rotate Left Relay (pilot control only)
  • K19 - Grapple Rotate Right Relay (pilot control only)
  • S4 - Grapple Rotate Switch (mechanical control)
  • S19 - Grapple Open Switch (pilot control)
  • S20 - Grapple Latch Switch (pilot control)
  • S21 - Grapple Close Switch (pilot control)
  • S22 - Grapple Rotate Left Switch (pilot control)
  • S23 - Grapple Rotate Right Switch (pilot control)
  • V8 - Grapple Rotate Left Solenoid Diode
  • V9 - Grapple Rotate Solenoid Right Diode
  • V31 - Grapple Control Diode Module (pilot control only)
  • W1 - Ground at Starter Motor
  • W2 - Cab Floor Ground (near TCU)
  • X42 - Single Lever Pilot Control 4-Pin Connector
  • X43 - Single Lever Pilot Control 3-Pin (S20) Connector
  • X117 - Load Center Harness-to-Grapple Control Harness Connector
  • X125 - Hydraulic Reservoir Harness-to-Engine Interface Harness Connector
  • X127 - Hydraulic Reservoir Harness-to-Engine Interface Harness Connector
  • X307 - Load Center Harness-to-Engine Harness Connector
  • Y5 - Grapple Rotate Left Solenoid
  • Y6 - Grapple Rotate Right Solenoid
  • Y18 - Grapple Open Solenoid (pilot control only)
  • Y19 - Grapple Close Solenoid (pilot control only)

SE28, SE29, SE30

  • B12 - A/C Freeze Control Temperature Switch
  • B27 - A/C High/Low Pressure Switch
  • K14 - Cab Pressurizer Blower Motor Relay
  • M6 - Cab Pressurizer Blower Motor
  • M7 - A/C and Heater Blower Motor
  • M8 - Heater Valve Actuator
  • R2 - Heater Blower Motor Resister
  • R5 - A/C Heater Temperature Control
  • S14 - A/C Heater Blower Motor Switch
  • S15 - A/C Defrost On/Off Switch
  • V4 - A/C Compressor Solenoid Diode
  • W5 - A/C and Heater Ground
  • W7 - Ground at Battery Disconnect Switch
  • X302 - Load Center Harness-to-Cab Roof Harness Connector
  • X315 - Load Center Harness-to-Cab Roof Harness Connector
  • X316 - Load Center Harness-to-Cab Roof Harness Connector
  • X318 - Load Center Harness-to-Cab Roof Harness Connector
  • Y1 - A/C Compressor Clutch

SE31, SE32, SE33

  • B2 - Horn
  • K24 - Dual Mode Steer Relay
  • M3 - Wiper Motor Rear
  • M4 - Wiper Motor Front
  • M5 - Washer Pump Motor Front
  • M12 - Washer Pump Motor Rear
  • S6 - Horn Switch SE31 ),
  • S7 - Rear Wiper and Washer Switch
  • S8 - Front Wiper and Washer Switch
  • S28 - Dual Mode Steer Switch
  • W1 - Ground at Starter Motor
  • W2 - Cab Floor Ground (near TCU)
  • W3 - Cab Firewall Ground (behind SDM)
  • W6 - Front Cab Roof Ground
  • W7 - Ground at Battery Disconnect Switch
  • W32 - Rear Cab Roof Ground
  • X5 - Power Outlet (glove compartment)
  • X6 - Power Outlet (front console)
  • X301 - Load Center Harness-to-Engine Harness Connector
  • X309 - Engine Harness-to-Engine Interface Harness Connector
  • X317 - Load Center Harness-to-Cab Roof Harness Connector
  • Y30 - Dual Mode Steer Solenoid

SE34, SE35, SE36

  • A4 - Radio
  • B19 - Left Speaker
  • B20 - Right Speaker
  • E1 - Work Light Left Front (option)
  • E2 - Work Light Left Front (option)
  • E3 - Work Light Right Front (option)
  • E4 - Work Light Left Rear (option)
  • E5 - Work Light Right Rear (option)
  • E6 - Work Light Right Front (option)
  • E9 - Dome Light
  • M11 - Air Seat Compressor Motor
  • S10 - Dome Light Switch
  • S16 - Work Light Switch Deluxe (option)
  • S17 - Work Light Switch (option)
  • S18 - Air Seat Switch
  • W2 - Cab Floor Ground (near TCU)
  • W6 - Front Cab Roof Ground
  • W32 - Rear Cab Roof Ground
  • X302 - Load Center Harness-to-Cab Roof Harness Connector
  • X310 - Cab Roof Harness-to-Radio Harness Connector
  • X317 - Load Center Harness-to-Cab Roof Harness Connector
  • X320 - Air Seat Switch and Motor Connector

Все коды диагностики неисправностей
CHC
  • 003651.13 FNR Sensor Calibration Fault
  • 003654.13 FNR Sensor Calibration Fault

ECU (Level 12)
  • 000190.00 Engine Overspeed Extreme
  • 000190.16 Engine Overspeed Moderate

ECU (Level 14 4.5L/6.8L)
  • 000028.03 Digital Throttle Signal Out of Range High
  • 000028.04 Digital Throttle Signal Out of Range Low
  • 000029.03 Secondary Analog Throttle Signal Out of Range High
  • 000029.04 Secondary Analog Throttle Signal Out of Range Low
  • 000091.03 Primary Analog Throttle Signal Out of Range High
  • 000091.03 Throttle Voltage Out of Range High
  • 000091.04 Primary Analog Throttle Signal Out of Range Low
  • 000091.04 Throttle Voltage Out of Range Low
  • 000091.09 Throttle CAN message Missing
  • 000091.09 CAN Throttle Message Missing or Late
  • 000094.03 Low Pressure Fuel Signal Out of Range High
  • 000094.04 Low Pressure Fuel Signal Out of Range Low
  • 000094.17 Low Pressure Fuel Signal Slightly Low
  • 000097.00 Water in Fuel Detected Most Severe Level
  • 000097.03 Water In Fuel Signal Out of Range High
  • 000097.04 Water In Fuel Signal Out of Range Low
  • 000097.16 Water in Fuel Detected
  • 000100.01 Engine Oil Pressure Signal Extremely Low
  • 000100.04 Engine Oil Pressure Signal Out of Range Low
  • 000100.18 Engine Oil Pressure Signal Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000102.02 Manifold Air Pressure Signal Invalid
  • 000102.03 Manifold Air Pressure Signal Out of Range High
  • 000102.04 Manifold Air Pressure Signal Out of Range Low
  • 000103.00 Turbo Speed Signal Extremely High
  • 000103.05 Turbo Speed Signal Circuit has High Resistance
  • 000103.08 Turbo Speed Signal Invalid
  • 000103.31 Turbo Speed Signal Missing
  • 000105.00 Manifold Air Temperature Signal Extremely High
  • 000105.03 Manifold Air Temperature Signal Out of Range High
  • 000105.04 Manifold Air Temperature Signal Out of Range Low
  • 000105.15 Manifold Air Temperature Signal Slightly High
  • 000105.16 Manifold Air Temperature Signal Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000107.31 Air Filter Restriction Switch Activated
  • 000108.02 Barometric Air Pressure Signal Invalid
  • 000110.00 Coolant Temperature Signal Extremely High
  • 000110.03 Coolant Temperature Signal Out of Range High
  • 000110.04 Coolant Temperature Signal Out of Range Low
  • 000110.15 Coolant Temperature Signal Slightly High
  • 000110.16 Coolant Temperature Signal Moderately High
  • 000110.17 Coolant Temperature Signal Slightly Low
  • 000111.01 Engine Coolant Level Extremely Low
  • 000157.01 Fuel Rail Pressure Signal Extremely Low
  • 000157.03 Fuel Rail Pressure Signal Out of Range High
  • 000157.04 Fuel Rail Pressure Signal Out of Range Low
  • 000157.10 Fuel Rail Pressure Loss Detected
  • 000157.17 Fuel Rail Pressure Not Developed
  • 000157.18 Fuel Rail Pressure Signal Moderately Low
  • 000158.17 ECU Power Down Error
  • 000174.00 Fuel Temperature Signal Extremely High
  • 000174.03 Fuel Temperature Signal Out of Range High
  • 000174.04 Fuel Temperature Signal Out of Range Low
  • 000174.16 Fuel Temperature Signal Moderately High
  • 000189.00 Engine Speed Derate Condition Exists
  • 000190.00 Engine Speed Extremely High
  • 000190.01 Engine Overload Moderate
  • 000190.16 Engine Speed Moderately High
  • 000190.18 Engine Overload Severe
  • 000412.00 EGR Temperature Signal Extremely High
  • 000412.03 EGR Temperature Signal Out of Range High
  • 000412.04 EGR Temperature Signal Out of Range Low
  • 000412.15 EGR Temperature Signal Slightly High
  • 000412.16 EGR Temperature Signal Moderately High
  • 000611.03 Injector Shorted to Voltage Source
  • 000611.04 Injector Shorted to Ground
  • 000627.01 All Injectors Circuits Have High Resistance
  • 000627.18 Injector Power Supply Voltage Out of Range Low
  • 000629.12 ECU EEPROM Error
  • 000629.13 ECU Boot Block Error
  • 000636.02 Camshaft Position Signal Invalid
  • 000636.05 Camshaft Position Circuit Has High Resistance
  • 000636.06 Camshaft Position Circuit Has Low Resistance
  • 000636.08 Camshaft Position Sensor Signal Missing
  • 000636.10 Camshaft Position Signal Rate of Change Abnormal
  • 000637.02 Crankshaft Position Signal Invalid
  • 000637.05 Crankshaft Position Sensor Circuit Has High Resistance
  • 000637.06 Crankshaft Position Circuit Has Low Resistance
  • 000637.07 Crankshaft and Camshaft Position Signals Out of Sync
  • 000637.08 Crankshaft Position Signal Missing
  • 000637.10 Crankshaft Position Signal Rate of Change Abnormal
  • 000640.31 External Derate Commanded
  • 000641.04 VGT Actuator Supply Voltage Out of Range Low
  • 000641.12 VGT Actuator Communication Error
  • 000641.13 VGT Actuator Learn Error
  • 000641.16 Turbo Actuator Temperature Moderately High
  • 000644.02 External Speed Command Input Erratic
  • 000647.05 Engine Fan Drive Circuit Has High Resistance
  • 000647.05 Fan Proportional Solenoid Out of Range Low
  • 000647.30 Reversing Fan Switch Active Too Long
  • 000647.31 Engine Fan Drive Manual Purge Switch Active Too Long
  • 000651.02 Injector #1 Part # Data Invalid
  • 000651.05 Injector #1 Circuit Has High Resistance
  • 000651.06 Injector #1 Circuit Has Low Resistance
  • 000651.07 Injector #1 Not Responding
  • 000651.13 Injector #1 Calibration Fault
  • 000652.02 Injector #2 Part # Data Invalid
  • 000652.05 Injector #2 Circuit Has High Resistance
  • 000652.06 Injector #2 Circuit Has Low Resistance
  • 000652.07 Injector #2 Not Responding
  • 000652.13 Injector #2 Calibration Fault
  • 000653.02 Injector #3 Part # Data Invalid
  • 000653.05 Injector #3 Circuit Has High Resistance
  • 000653.06 Injector #3 Circuit Has Low Resistance
  • 000653.07 Injector #3 Not Responding
  • 000653.13 Injector #3 Calibration Fault
  • 000654.02 Injector #4 Part # Data Invalid
  • 000654.05 Injector #4 Circuit Has High Resistance
  • 000654.06 Injector #4 Circuit Has Low Resistance
  • 000654.07 Injector #4 Not Responding
  • 000654.13 Injector #4 Calibration Fault
  • 000655.02 Injector #5 Part # Data Invalid
  • 000655.05 Injector #5 Circuit Has High Resistance
  • 000655.06 Injector #5 Circuit Has Low Resistance
  • 000655.07 Injector #5 Not Responding
  • 000655.13 Injector #5 Calibration Fault
  • 000656.02 Injector #6 Part # Data Invalid
  • 000656.05 Injector #6 Circuit Has High Resistance
  • 000656.06 Injector #6 Circuit Has Low Resistance
  • 000656.07 Injector #6 Not Responding
  • 000656.13 Injector #6 Calibration Fault
  • 000676.03 Cold Start Aid Signal Received When Not Expected
  • 000676.03 Glow Plug Relay Out of Range High
  • 000676.03 Glow Plug Relay Out of Range High
  • 000676.05 Cold Start Aid Circuit Has High Resistance
  • 000676.05 Glow Plug Relay Out of Range Low
  • 000676.05 Glow Plug Relay Out of Range Low
  • 000898.09 Engine Speed CAN Message Invalid
  • 000970.31 External Shutdown Switch Activated
  • 000971.31 External Derate Switch Activated
  • 001075.05 Low Pressure Fuel Pump Circuit Has High Resistance
  • 001075.05 Low Pressure Fuel Pump Out of Range Low
  • 001075.05 Low Pressure Fuel Pump Out of Range Low
  • 001075.06 Low Pressure Fuel Pump Circuit Has Low Resistance
  • 001075.06 Low Pressure Fuel Pump Out of Range High
  • 001075.06 Low Pressure Fuel Pump Out of Range High
  • 001075.12 Low Pressure Fuel Pump Status Error
  • 001109.31 Approaching Engine Protection Shutdown
  • 001110.31 Engine Protection Shutdown Active
  • 001136.00 ECU Temperature Signal Extremely High
  • 001136.16 ECU Temperature Signal Moderately High
  • 001172.03 Compressor Inlet Temperature Signal Out of Range High
  • 001172.04 Compressor Inlet Temperature Signal Out of Range Low
  • 001180.00 Calculated Turbine Inlet Temperature Signal Extremely High
  • 001180.16 Calculated Turbine Inlet Temperature Signal Moderately High
  • 001347.03 Suction Control Valve Signal Out of Range High
  • 001347.05 Suction Control Valve Circuit Has High Resistance
  • 001347.07 Fuel Rail Pressure Actual to Desired Mismatch
  • 001569.31 Engine in Power Derate Condition
  • 001638.00 Hydraulic Oil Temperature Extremely High
  • 001638.03 Hydraulic Oil Temperature Signal Out of Range High
  • 001638.04 Hydraulic Oil Temperature Signal Out of Range Low
  • 001638.16 Hydraulic Oil Temperature Signal Moderately High
  • 001639.01 Fan Speed Signal Extremely Low
  • 001639.16 Fan Speed Signal Moderately High
  • 001639.18 Fan Speed Signal Moderately Low
  • 002000.13 Incorrect ECU for Application
  • 002003.09 No CAN Message From Source Address 3
  • 002003.09 TCU Communication Data Error
  • 002003.09 TCU Communication Data Error
  • 002003.13 TCU Communication Calibrate Error
  • 002003.13 TCU Communication Calibrate Error
  • 002004.09 No CAN Message From Source Address 4
  • 002005.09 No CAN Message From Source Address 5
  • 002005.14 Incorrect CAN Message Received From Source Address 5
  • 002017.09 SDM Communication Data Error
  • 002017.09 SDM Communication Data Error
  • 002017.13 SDM Communication Calibrate Error
  • 002017.13 SDM Communication Calibrate Error
  • 002030.09 No CAN Message From Source Address 23
  • 002033.09 No CAN Message From Source Address 33
  • 002033.14 Incorrect CAN Message Received From Source Address 33
  • 002033.19 Synchronizing Problem With Source Address 33
  • 002057.09 No CAN Message From Source Address 57
  • 002071.09 No CAN Message From Source Address 71
  • 002580.03 Brake Pressure Signal Out of Range High
  • 002580.04 Brake Pressure Signal Out of Range Low
  • 002630.00 Charge Air Cooler Outlet Temperature Signal Extremely High
  • 002630.03 Charge Air Cooler Outlet Temperature Signal Out of Range High
  • 002630.04 Charge Air Cooler Outlet Temperature Signal Out of Range Low
  • 002630.15 Charge Air Cooler Outlet Temperature Signal Slightly High
  • 002630.16 Charge Air Cooler Outlet Temperature Signal Moderately High
  • 002659.02 Calculated EGR Flow Rate Invalid
  • 002659.15 Calculated EGR Flow Rate Slightly High
  • 002659.17 Calculated EGR Flow Rate Slightly Low
  • 002790.16 Calculated Compressor Outlet Temperature Moderately High
  • 002791.02 EGR Valve Position Signal Invalid
  • 002791.03 EGR Valve Position Signal Out of Range High
  • 002791.04 EGR Valve Position Signal Out of Range Low
  • 002791.07 EGR Valve Not Reaching Expected Position
  • 002791.13 EGR Valve Calibration Change Over a Short Period of Time
  • 002791.31 EGR Valve Calibration Change over a Long Time
  • 002795.07 VGT Actuator Not Reaching Expected Position
  • 002883.03 Engine Speed Switch Out of Range High
  • 002883.04 Engine Speed Switch Out of Range Low
  • 003509.03 Sensor Supply #1 Voltage Out of Range High
  • 003509.04 Sensor Supply #1 Voltage Out of Range Low
  • 003510.03 Sensor Supply #2 Voltage Out of Range High
  • 003510.04 Sensor Supply #2 Voltage Out of Range Low
  • 003511.03 Sensor Supply #3 Voltage Out of Range High
  • 003511.04 Sensor Supply #3 Voltage Out of Range Low
  • 003512.03 Sensor Supply #4 Voltage Out of Range High
  • 003512.04 Sensor Supply #4 Voltage Out of Range Low
  • 003513.03 Sensor Supply #5 Voltage Out of Range High
  • 003513.04 Sensor Supply #5 Voltage Out of Range Low
  • 523792.04 EPGDS LTC Pump Signal Out of Range Low
  • 524099.11 EPGDS LTC Pump Blockage

EHC
  • 003651.03 FNR Sensor Circuit Fault
  • 003651.04 FNR Sensor Circuit Fault
  • 003654.03 FNR Sensor Circuit Fault
  • 003654.04 FNR Sensor Circuit Fault
  • 516205.02 FNR Signal Data Erratic or Intermittent

FLC
  • 000111.01 Engine Coolant Level Low
  • 000589.01 Alternator Speed Slow
  • 000746.05 Differential Lock Open Circuit
  • 000746.06 Differential Lock Short to Ground
  • 000977.05 Reversing Fan Open Circuit
  • 000977.06 Reversing Fan Short to Ground
  • 001071.03 Proportional Fan Solenoid Short to Power
  • 001071.05 Proportional Fan Solenoid Open Circuit or Short to Ground
  • 001550.05 Air Conditioner Clutch Open Circuit
  • 001550.06 Air Conditioner Clutch Short to Ground
  • 002000.09 CAN Communication Lost for ECU
  • 002017.09 CAN Communication Lost for SDM
  • 002141.09 CAN Communication Lost for SSM
  • 522170.04 Tong Squeeze Switch Short to Ground
  • 522171.04 Tong Close Switch Short to Ground
  • 522172.04 Tong Open Switch Short to Ground
  • 522174.04 Grapple Rotate CCW Switch Short to Ground
  • 522175.04 Grapple Rotate CW Switch Short to Ground
  • 522176.04 Secondary Steering Pressure Switch Short to Ground
  • 522177.05 Tong Close Solenoid Open Circuit
  • 522177.06 Tong Close Solenoid Short to Ground
  • 522178.05 Tong Open Solenoid Open Circuit
  • 522178.06 Tong Open Solenoid Short to Ground
  • 522179.05 Grapple Rotate CCW Solenoid Open Circuit
  • 522179.06 Grapple Rotate CCW Solenoid Short to Ground
  • 522180.05 Grapple Rotate CW Solenoid Open Circuit
  • 522180.06 Grapple Rotate CW Solenoid Short to Ground
  • 522311.05 Rear Washer Pump Open Circuit
  • 522311.06 Rear Washer Pump Short to Ground
  • 522312.05 Front Washer Pump Open Circuit
  • 522312.06 Front Washer Pump Short to Ground
  • 522426.04 Rear Wiper Park Short to Ground
  • 522427.04 Front Wiper Park Short to Ground
  • 522433.05 Rear Wiper Open Circuit
  • 522433.06 Rear Wiper Short to Ground
  • 522434.05 Front Wiper Low Speed Open Circuit
  • 522434.06 Front Wiper Low Speed Short to Ground
  • 522435.05 Front Wiper High Speed Open Circuit
  • 522435.06 Front Wiper High Speed Short to Ground
  • 523577.05 Secondary Steering Open Circuit
  • 523577.06 Secondary Steering Short to Ground
  • 523795.05 Dual Mode Steering Open Circuit
  • 523795.06 Dual Mode Steering Short to Ground
  • 524097.03 Accelerator Pedal Short to Power
  • 524097.04 Accelerator Pedal Open or Short to Ground

JDL Primary Controller (Modular Telematics Gateway)
  • JDL - 000237.11 JDL Not Registered
  • JDL - 000639.09 JDL Not Detecting CAN Bus Messages
  • JDL - 000841.05 GPS Antenna Error - Open Circuit
  • JDL - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JDL - 000964.13 Real Time Clock Failure
  • JDL - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JDL - 002850.05 Cellular Antenna Error - Open Circuit
  • JDL - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JDL - 002852.11 Unable to Detect SIM Card
  • JDL - 516672.14 Network Authorization Failed
  • JDL - 522976.11 Unable to Load Custom Alerts
  • JDL - 522976.13 Unable to Load Configuration
  • JDL - 523310.00 Low Disk Space
  • JDL - 600006.31 Vehicle Controls Not Operating Correctly

JL2 Secondary Controller (Modular Telematics Gateway)
  • JL2 - 000237.11 JL2 Not Registered
  • JL2 - 000639.09 JL2 Not Detecting CAN Bus Messages
  • JL2 - 000841.05 GPS Antenna Error - Open Circuit
  • JL2 - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JL2 - 000964.12 Real Time Clock Failure
  • JL2 - 000964.13 Real Time Clock Failure
  • JL2 - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JL2 - 002850.05 Cellular Antenna Error - Open Circuit
  • JL2 - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JL2 - 002852.11 Unable to Detect SIM Card
  • JL2 - 522976.11 Unable to Load Custom Alerts
  • JL2 - 522976.13 Unable to Load Configuration
  • JL2 - 523310.00 Low Disk Space

SDM
  • 000096.03 Fuel Level Sensor Out of Range High
  • 000096.03 Fuel Level Sensor Out of Range High
  • 000096.04 Fuel Level Sensor Out of Range Low
  • 000096.04 Fuel Level Sensor Out of Range Low
  • 000107.00 Engine Air Filter Restriction Data Above Normal
  • 000107.00 Engine Air Filter Restriction Data Above Normal
  • 000126.00 Transmission Oil Filter Restriction Data Above Normal
  • 000126.00 Transmission Oil Filter Restriction Data Above Normal
  • 000158.00 System Voltage Data Above Normal
  • 000158.00 System Voltage Data Above Normal
  • 000158.01 System Voltage Data Below Normal
  • 000158.01 System Voltage Data Below Normal
  • 001508.00 Hydraulic Reservoir Oil Temperature Sensor Data Above Normal
  • 001508.00 Hydraulic Reservoir Oil Temperature Sensor Data Above Normal
  • 001508.03 Hydraulic Reservoir Oil Temperature Sensor Out of Range High
  • 001508.03 Hydraulic Reservoir Oil Temperature Sensor Out of Range High
  • 001508.04 Hydraulic Reservoir Oil Temperature Sensor Out of Range Low
  • 001508.04 Hydraulic Reservoir Oil Temperature Sensor Out of Range Low
  • 001508.16 Hydraulic Oil Temp Sensor Moderately High Value
  • 001508.16 Hydraulic Oil Temp Sensor Moderately High Value
  • 001713.00 Hydraulic Oil Filter Restriction Data Above Normal
  • 001713.00 Hydraulic Oil Filter Restriction Data Above Normal
  • 002000.09 ECU Communication Data Error
  • 002000.09 ECU Communication Data Error
  • 002000.13 ECU Communication Calibrate Error
  • 002000.13 ECU Communication Calibrate Error
  • 002003.09 TCU Communication Data Error
  • 002003.09 TCU Communication Data Error

SSM
  • 002033.09 SSM Lost Communications
  • 520752.04 SSM Button 17 Stuck
  • 520752.09 SSM Button 17 No CAN Message
  • 520753.04 SSM Button 18 Stuck
  • 520753.09 SSM Button 18 No CAN Message
  • 520754.04 SSM Button 19 Stuck
  • 520754.09 SSM Button 19 No CAN Message
  • 520755.04 SSM Button 20 Stuck
  • 520755.09 SSM Button 20 No CAN Message
  • 523335.04 SSM Button 25 Stuck
  • 523335.09 SSM Button 25 No CAN Message
  • 523336.04 SSM Button 24 Stuck
  • 523336.09 SSM Button 24 No CAN Message
  • 523338.04 SSM Button 23 Stuck
  • 523338.09 SSM Button 23 No CAN Message
  • 523339.04 SSM Button 22 Stuck
  • 523339.09 SSM Button 22 No CAN Message
  • 523340.04 SSM Button 21 Stuck
  • 523340.09 SSM Button 21 No CAN Message
  • 523849.04 SSM Button 16 Stuck
  • 523849.09 SSM Button 16 No CAN Message
  • 523850.04 SSM Button 15 Stuck
  • 523850.09 SSM Button 15 No CAN Message
  • 523852.04 SSM Button 14 Stuck
  • 523852.09 SSM Button 14 No CAN Message
  • 523854.04 SSM Button 13 Stuck
  • 523854.09 SSM Button 13 No CAN Message
  • 523855.04 SSM Button 12 Stuck
  • 523855.09 SSM Button 12 No CAN Message
  • 523856.04 SSM Button 11 Stuck
  • 523856.09 SSM Button 11 No CAN Message
  • 523857.04 SSM Button 10 Stuck
  • 523857.09 SSM Button 10 No CAN Message
  • 523858.04 SSM Button 9 Stuck
  • 523858.09 SSM Button 9 No CAN Message
  • 523860.04 SSM Button 8 Stuck
  • 523860.09 SSM Button 8 No CAN Message
  • 523861.04 SSM Button 7 Stuck
  • 523861.09 SSM Button 7 No CAN Message
  • 523862.04 SSM Button 6 Stuck
  • 523862.09 SSM Button 6 No CAN Message
  • 523863.04 SSM Button 5 Stuck
  • 523863.09 SSM Button 5 No CAN Message
  • 523864.04 SSM Button 4 Stuck
  • 523864.09 SSM Button 4 No CAN Message
  • 523865.04 SSM Button 3 Stuck
  • 523865.09 SSM Button 3 No CAN Message
  • 523867.04 SSM Button 2 Stuck
  • 523867.09 SSM Button 2 No CAN Message
  • 523868.04 SSM Button 1 Stuck
  • 523868.09 SSM Button 1 No CAN Message

TCU
  • 000158.03 Switched Power Out of Range High
  • 000161.02 Transmission Input Speed Sensor Erratic or Bad Data
  • 000177.00 Transmission Oil Temperature High
  • 000177.03 Transmission Oil Temperature Sensor Out of Range High
  • 000177.04 Transmission Oil Temperature Sensor Out of Range Low
  • 000177.12 Oil Temp Sensor Out of Range
  • 000191.02 Transmission Output Speed Data Invalid
  • 000525.02 Shift Parameter Erratic or Bad Data
  • 000525.02 Shift Parameter Erratic or Bad Data
  • 000525.12 Request for an Unidentified Shift Being Made
  • 000774.04 Bump Up Shift Switch Short to Ground
  • 000775.04 Bump Down Shift Switch Short to Ground
  • 000777.03 Lockup Clutch Out of Range High
  • 000777.05 Lockup Clutch Out of Range Low
  • 002000.09 ECU Communication Data Error
  • 002000.13 ECU Communication Calibrate Error
  • 003509.04 Sensor Supply #1 Out of Range Low
  • 003510.04 Sensor Supply #2 Out of Range Low
  • 003511.04 Sensor Supply #3 Out of Range Low
  • 003512.04 Sensor Supply #4 Out of Range Low
  • 298626.03 Park and Not Park Active Out of Range High
  • 298626.04 Park and Not Park Active Out of Range Low
  • 298678.04 Clutch Valve Supply Voltage Out of Range Low
  • 298808.31 Output Speed Sensor Condition Exists
  • 298809.31 Starter Input Signal High
  • 298810.05 Solenoid C Out of Range Low
  • 298810.06 Solenoid C Out of Range High
  • 298811.05 Solenoid B Out of Range Low
  • 298811.06 Solenoid B Out of Range High
  • 298812.05 Solenoid A Out of Range Low
  • 298812.06 Solenoid A Out of Range High
  • 298813.05 Solenoid 4 Out of Range Low
  • 298813.06 Solenoid 4 Out of Range High
  • 298814.05 Solenoid 3 Out of Range Low
  • 298814.06 Solenoid 3 Out of Range High
  • 298815.05 Solenoid 2 Out of Range Low
  • 298815.06 Solenoid 2 Out of Range High
  • 298818.31 Directional Clutch Slip Condition Exists
  • 298819.31 Speed Clutch Slip Condition Exists
  • 298903.31 Inching Pedal Switch Input Invalid
  • 298904.03 Inching Pedal Potentiometer Out of Range High
  • 298904.04 Inching Pedal Potentiometer Out of Range Low
  • 298907.31 Not Park and Park Pressure Inputs Passive
  • 298919.31 Not Park and Park Pressure Inputs Active
  • 298925.31 Shifter Neutral and Reverse Inputs Active
  • 298926.31 Shifter Neutral and Forward Inputs Active
  • 298927.31 Neutral Forward Reverse Inputs Passive
  • 298928.31 Upshift and Downshift Inputs Active
  • 298929.31 Bottom of Clutch Input Passive
  • 298931.31 Output Speed Sensor Out of Range
  • 298932.31 Calibration Without Park Brake Applied
  • 298933.31 EEPROM Shift Parameter Condition
  • 298934.03 Solenoid Group 3 Out of Range High
  • 298934.04 Solenoid Group 3 Out of Range Low
  • 298935.03 Solenoid Group 2 Out of Range High
  • 298935.04 Solenoid Group 2 Out of Range Low
  • 298936.03 Solenoid Group 1 Out of Range High
  • 298936.04 Solenoid Group 1 Out of Range Low
  • 298937.31 Hold Clutch Pressure Condition
  • 298939.31 Calibrating Clutch Pressure Condition
  • 298940.31 Clutch D Fast Fill Time Condition
  • 298941.31 Clutch C Fast Fill Time Condition
  • 298942.31 Clutch B Fast Fill Time Condition
  • 298943.31 Clutch A Fast Fill Time Condition
  • 298944.31 Clutch 4 Fast Fill Time Condition
  • 298945.31 Clutch 3 Fast Fill Time Condition
  • 298946.31 Clutch 2 Fast Fill Time Condition
  • 298947.31 Clutch 1 Fast Fill Time Condition
  • 298948.31 Cylinder Speed With Reverse Clutch Condition
  • 298949.31 Cylinder Speed With Forward Clutch Condition
  • 298950.31 Cylinder Speed Condition
  • 298951.31 Engine Speed Too Low For Calibration
  • 298952.31 Engine Speed Too High For Calibration
  • 298953.31 Sump Temp Too Low For Calibration
  • 298954.05 Solenoid 1 Out of Range Low
  • 298954.06 Solenoid 1 Out of Range High
  • 298955.05 Solenoid D Out of Range Low
  • 298955.06 Solenoid D Out of Range High
  • 299359.31 Forward and Reverse Inputs Active
  • 522002.31 Upshift and Downshift Inputs Active
  • 522003.31 Neutral, Forward, and Reverse Inputs Passive
  • 522004.04 Park and Not Park Active Out of Range Low
  • 522005.03 Park and Not Park Active Out of Range High
  • 522151.31 Shifter Neutral and Forward Inputs Active
  • 522153.31 Shifter Neutral and Reverse Inputs Active
  • 522169.04 Gear Enable/Differential Lock Switch Out of Range
  • 522252.00 Clutch #1 Hold Value Out of Range High
  • 522252.01 Clutch #1 Hold Value Out of Range Low
  • 522253.00 Clutch #2 Hold Value Out of Range High
  • 522253.01 Clutch #2 Hold Value Out of Range Low
  • 522254.00 Clutch #3 Hold Value Out of Range High
  • 522254.01 Clutch #3 Hold Value Out of Range Low
  • 522255.00 Clutch #4 Hold Value Out of Range High
  • 522255.01 Clutch #4 Hold Value Out of Range Low
  • 522256.00 Clutch A Hold Value Out of Range High
  • 522256.01 Clutch A Hold Value Out of Range Low
  • 522257.00 Clutch B Hold Value Out of Range High
  • 522257.01 Clutch B Hold Value Out of Range Low
  • 522258.00 Clutch C Hold Value Out of Range High
  • 522258.01 Clutch C Hold Value Out of Range Low
  • 522259.00 Clutch D Hold Value Out of Range High
  • 522259.01 Clutch D Hold Value Out of Range Low
  • 522284.02 Transmission Cylinder Speed Data Invalid
  • 522398.12 Not Park and Park Pressure Inputs Active
  • 522414.03 Clutch D Out of Range High
  • 522414.05 Clutch D Out of Range Low
  • 522507.14 Calibrate While Inching
  • 523120.16 Clutch Temperature Moderately High Value
  • 523655.03 Forward and Reverse Inputs Active
  • 523656.05 Dual Mode Steer Output Out of Range Low
  • 523656.06 Dual Mode Steer Output Out of Range High
  • 523697.04 Inching Pedal Top of Clutch Switch Short to Ground
  • 523697.09 Top of Clutch Input Passive Abnormal Data Rate
  • 523699.31 Speed Clutch Slippage
  • 523700.16 Inching Pedal Limit Exceeded
  • 523700.31 Directional Clutch Slippage
  • 523708.02 Inching Pedal Switch Module Data Invalid
  • 523708.04 Inching Pedal Bottom of Clutch Switch Short to Ground
  • 523712.31 Park Brake Not Set During Calibration
  • 523717.31 Holding Clutch Unexpected Response
  • 523718.31 Cylinder Speed Invalid During Calibration
  • 523720.00 Clutch D Fill Out of Range High
  • 523720.01 Clutch D Fill Out of Range Low
  • 523721.00 Clutch C Fill Out of Range High
  • 523721.01 Clutch C Fill Out of Range Low
  • 523722.00 Clutch B Fill Out of Range High
  • 523722.01 Clutch B Fill Out of Range Low
  • 523723.00 Clutch A Fill Out of Range High
  • 523723.00 Clutch A Fill Out of Range Low
  • 523724.00 Clutch 4 Fill Out of Range High
  • 523724.01 Clutch 4 Fill Out of Range Low
  • 523725.00 Clutch 3 Fill Out of Range High
  • 523725.01 Clutch 3 Fill Out of Range Low
  • 523726.00 Clutch 2 Fill Out of Range High
  • 523726.01 Clutch 2 Fill Out of Range Low
  • 523727.00 Clutch 1 Fill Out of Range High
  • 523727.01 Clutch 1 Fill Out of Range Low
  • 523728.31 Unexpected Cylinder Speed REV Calibration
  • 523729.31 Unexpected Cylinder Speed FWD Calibration
  • 523730.31 No Cylinder Speed Calibration
  • 523731.31 Output Speed During Calibration
  • 523732.31 Engine Speed Too Low During Calibration
  • 523733.31 Engine Speed Too High During Calibration
  • 523747.14 Not Park and Park Pressure Inputs Passive
  • 523761.03 Clutch 4 Out of Range High
  • 523761.05 Clutch 4 Out of Range Low
  • 523762.03 Clutch 3 Out of Range High
  • 523762.05 Clutch 3 Out of Range Low
  • 523763.03 Clutch 2 Out of Range High
  • 523763.05 Clutch 2 Out of Range Low
  • 523764.03 Clutch 1 Out of Range High
  • 523764.05 Clutch 1 Out of Range Low
  • 523795.05 Dual Mode Steering Solenoid Out of Range Low
  • 523795.06 Dual Mode Steering Solenoid Out of Range High
  • 523925.03 Dual Mode Steer Switch Out of Range High
  • 523925.04 Dual Mode Steer Switch Out of Range Low
  • 523967.09 Top of Clutch Input Passive Abnormal Data Rate
  • 524029.00 Inching Pedal Sensor Short to Power
  • 524029.01 Inching Pedal Sensor Open or Short to Ground
  • 524127.04 Declutch Pressure Switch Out of Range Low
  • 524271.03 Clutch C Out of Range High
  • 524271.05 Clutch C Out of Range Low
  • 524272.03 Clutch B Out of Range High
  • 524272.05 Clutch B Out of Range Low
  • 524273.03 Clutch A Out of Range High
  • 524273.05 Clutch A Out of Range Low
Назад к содержимому
