Электросхемы и коды неисправносте 640, 648G-III and 460D
Skidder John Deere

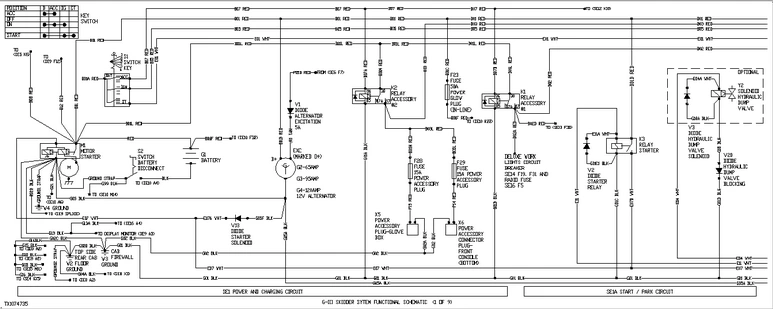

  • F23 - Fuse, Inline, Glow Plug Power (50A)
  • F28 - Fuse, Power Accessory Plug (15A)
  • F29 - Fuse, Power Accessory (15A)
  • G1 - Batteries
  • G2 - Alternator, 65 Amp (not used)
  • G3 - Alternator, 95 Amp (standard)
  • G4 - Alternator, 120 Amp (option)
  • K1 - Relay, Accessory #1
  • K2 - Relay, Accessory #2
  • K3 - Relay, Start
  • M1 - Motor, Starter
  • S1 - Switch, Ignition Key
  • S2 - Switch, Battery Disconnect
  • V2 - Diode, Start Relay
  • V3 - Diode, Hydraulic Dump Valve Solenoid
  • V13 - Diode, Starter Solenoid
  • V20 - Diode, Hydraulic Dump Valve Blocking
  • W2 - Ground, Cab Floor Under TCU and TCU Ground Strap
  • W3 - Ground, Cab Firewall
  • W4 - Ground, Engine-to-Frame Ground Strap
  • X5 - Power Accessory Plug in Glove Box
  • X6 - Power Accessory Connector on Console
  • Y2 - Solenoid, Hydraulic Dump Valve

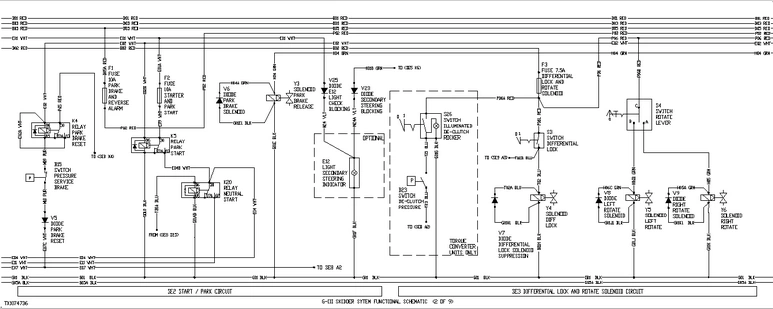

  • B15 - Pressure Switch, Service Brake
  • B23 - Pressure Switch, De-clutch (TC only)
  • E12 - Light, Secondary Steering Indicator (if installed)
  • F1 - Fuse, Park Brake and Reverse Alarm (10A)
  • F2 - Fuse, Starter and Park Brake (10A)
  • F3 - Fuse, Diff Lock, and Rotate Solenoid (7.5A)
  • K4 - Relay, Park Brake Reset
  • K5 - Relay, Park Start
  • K20 - Relay, Neutral Start
  • S3 - Switch, Diff Lock
  • S4 - Switch, Grapple Rotate Lever
  • S26 - Switch, De-clutch (TC only)
  • V5 - Diode, Park Brake Reset (SS diode module pins B-G)
  • V6 - Diode, Park Brake Solenoid
  • V7 - Diode, Diff Lock Solenoid Suppression
  • V8 - Diode, Rotate Grapple Left Solenoid (rotate lever)
  • V9 - Diode, Grapple Rotate Right Solenoid (rotate lever)
  • V23 - Diode, Secondary Steering Blocking (SS diode module pins C-F)
  • V25 - Diode, Secondary Steering Indicator Light Check Blocking (SS diode module pins D-E)
  • Y3 - Solenoid, Park Brake Release
  • Y4 - Solenoid, Diff Lock
  • Y5 - Solenoid, Grapple Rotate Left (rotate lever)
  • Y6 - Solenoid, Grapple Rotate Right (rotate lever)

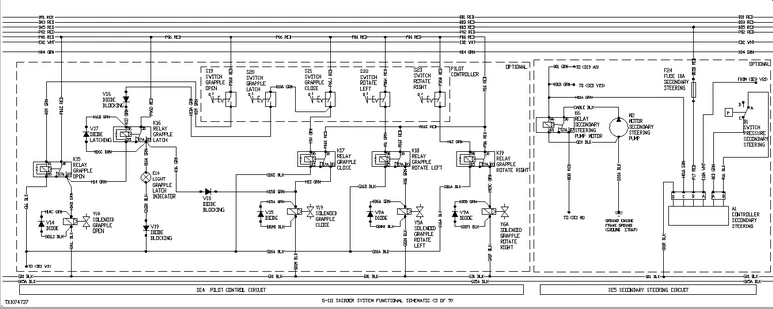

  • A1 - Controller, Secondary Steering
  • B1 - Pressure Switch, Secondary Steering
  • E10 - Light, Grapple Latch Indicator
  • F24 - Fuse, Secondary Steering (10A)
  • K6 - Relay, Secondary Steering Pump
  • K15 - Relay, Grapple Open
  • K16 - Relay, Grapple Latch
  • K17 - Relay, Grapple Close
  • K18 - Relay, Grapple Rotate Left
  • K19 - Relay, Grapple Rotate Right
  • M2 - Motor, Secondary Steering Pump Motor
  • S19 - Switch, Pilot Controller, Grapple Open
  • S20 - Switch, Pilot Controller, Grapple Latch
  • S21 - Switch, Pilot Controller, Grapple Close
  • S22 - Switch, Pilot Controller, Grapple Rotate Left
  • S23 - Switch, Pilot Controller, Grapple Rotate Right
  • V8A - Diode, Grapple Rotate Left Solenoid (pilot controller)
  • V9A - Diode, Grapple Rotate Right Solenoid (pilot controller)
  • V14 - Diode, Grapple Open Solenoid
  • V15 - Diode, Grapple Close Solenoid
  • V16 - Diode, Grapple Latch Relay Blocking (PC diode module pins C-F)
  • V17 - Diode, Grapple Latch Relay Latching (PC diode module pins B-G)
  • V18 - Diode, Grapple Latch Blocking Close Solenoid (PC diode module pins A-H)
  • V19 - Diode, Grapple Latch Indicator Light Blocking (PC diode module pins D-E)
  • Y5A - Solenoid, Grapple Rotate Left (pilot controller)
  • Y6A - Solenoid, Grapple Rotate Right (pilot controller)
  • Y18 - Solenoid, Grapple Open
  • Y19 - Solenoid, Grapple Close

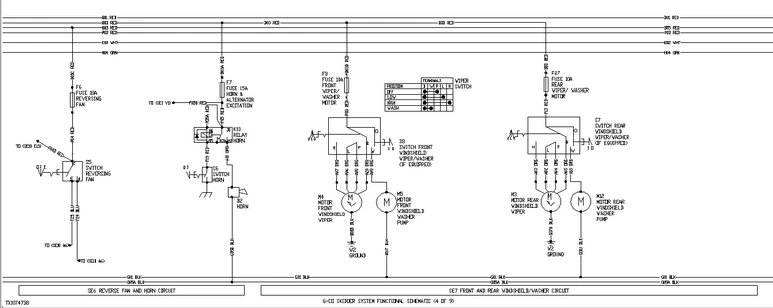

  • B2 - Horn
  • F27 - Fuse, Rear Wiper/Washer Motor (10A)
  • F6 - Fuse, Reversing Fan (10A)
  • F7 - Fuse, Horn, and Alternator Excitation (15A)
  • F8 - Fuse, Front Washer/Wiper Motor (10A)
  • K13 - Relay, Horn
  • M12 - Motor, Rear Windshield Washer Pump
  • M3 - Motor, Rear Wiper
  • M4 - Motor, Front Wiper
  • M5 - Motor, Front Windshield Washer Pump
  • S5 - Switch, Reversing Fan
  • S6 - Switch, Horn
  • S7 - Switch, Rear Washer/Wiper
  • S8 - Switch, Front Washer/Wiper
  • W2 - Ground, Cab Floor Under TCU and TCU Ground Strap

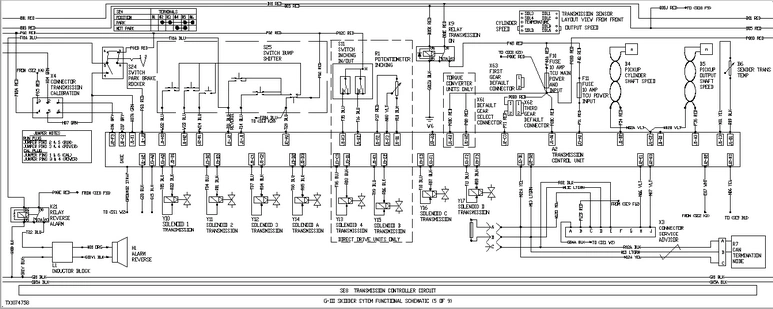

  • A2 - Transmission Control Unit (TCU)
  • B4 - Pickup, Cylinder Shaft Speed
  • B5 - Pickup, Output Shaft Speed
  • B6 - Sensor, Transmission Temperature (TC only)
  • F10 - Fuse, Transmission Controller Input Power (10A)
  • F11 - Fuse, Transmission Controller Output Power (10A)
  • H1 - Alarm, Reverse
  • K21 - Relay, Reverse Alarm
  • K9 - Relay, Transmission, and Monitor ON
  • L1 - Block Inductor Ferrite
  • R1 - Potentiometer, Inching (DD only)
  • R7 - CAN Termination Resistor, 120 Ohm, TCU
  • S11 - Switch, Inching In/Out (DD only)
  • S24 - Switch, Park Brake Rocker
  • S25 - Bump Shifter
  • X3 - Connector, Service Expert (9-pin)
  • X4 - Connector, Transmission Calibration
  • X61 - Default Gear Select Connector
  • X62 - Third Gear Default Connector
  • X63 - First Gear Default Connector
  • Y10 - Solenoid 1, Transmission
  • Y11 - Solenoid 2, Transmission
  • Y12 - Solenoid 3, Transmission
  • Y13 - Solenoid 4, Transmission (DD only)
  • Y14 - Solenoid A, Transmission
  • Y15 - Solenoid B, Transmission
  • Y16 - Solenoid C, Transmission (DD only)
  • Y17 - Solenoid D, Transmission

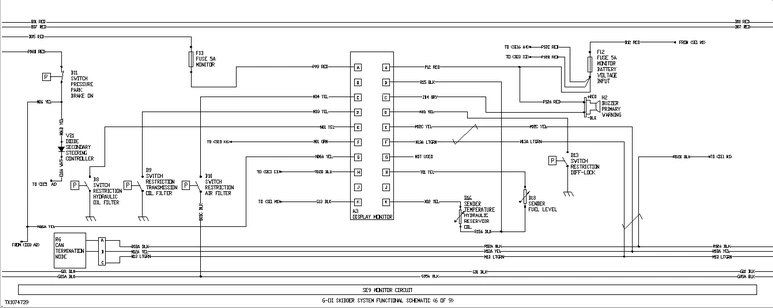

  • A3 - Monitor Display Unit
  • B8 - Pressure Switch, Hydraulic Filter Restriction
  • B9 - Pressure Switch, Transmission Filter Restriction
  • B10 - Pressure Switch, Air Filter Restriction
  • B11 - Pressure Switch, Park Brake On
  • B13 - Pressure Switch, Diff Lock Filter Restriction
  • B16 - Sensor, Hydraulic Reservoir Temperature
  • B18 - Sensor, Fuel Level
  • F12 - Fuse, Monitor Battery Voltage Input (5A)
  • F13 - Fuse, Monitor (5A)
  • H2 - Buzzer, Monitor Primary Warning
  • R6 - Resistor, CAN Termination, 120 Ohm, ECU
  • V21 - Diode, Secondary Steering Control (SS diode module pins A-H)

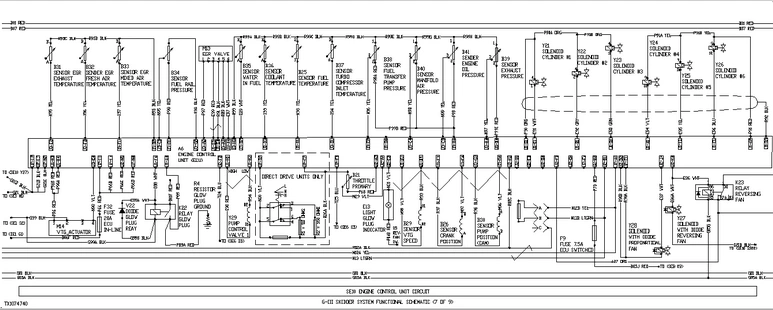

  • A6 - Engine Control Unit (ECU) Level 14
  • B21 - Throttle, Primary
  • B25 - Sensor, Fuel Temperature
  • B26 - Sensor, Crank Position
  • B29 - Sensor, VTG Speed
  • B30 - Sensor, Engine Cam
  • B31 - Sensor, EGR Exhaust Temperature
  • B32 - Sensor, EGR Fresh Air Temperature
  • B33 - Sensor, EGR Mixed Air Temperature
  • B34 - Sensor, Fuel Rail Pressure
  • B35 - Sensor, Water-in-Fuel
  • B36 - Sensor, Coolant Temperature
  • B37 - Sensor, Comp Inlet Temperature
  • B38 - Sensor, Fuel Pressure
  • B39 - Sensor, Exhaust Pressure
  • B40 - Sensor, Manifold Air Pressure
  • B41 - Sensor, Engine Oil Pressure
  • E13 - Light, Glow Plug Indicator
  • F9 - Fuse, ECU Switched Power (7.5A)
  • F32 - Fuse, Inline, ECU (20A)
  • K22 - Relay, Glow Plug
  • K23 - Relay, Reverse Fan
  • M13 - Valve, EGR
  • M14 - Actuator, VTG
  • R4 - Resistor, Glow Plug
  • V22 - Diode, Glow Plug Relay
  • Y21 - Solenoid, Cylinder #1 Fuel Injector
  • Y22 - Solenoid, Cylinder #2 Fuel Injector
  • Y23 - Solenoid, Cylinder #3 Fuel Injector
  • Y24 - Solenoid, Cylinder #4 Fuel Injector
  • Y25 - Solenoid, Cylinder #5 Fuel Injector
  • Y26 - Solenoid, Cylinder #6 Fuel Injector
  • Y27 - Solenoid, Reverse Fan
  • Y28 - Solenoid, Fan Proportional Control
  • Y29 - Pump PCV1

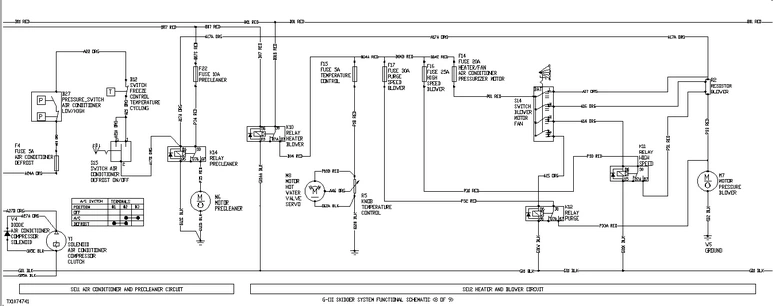

  • B12 - Temperature Switch, Freeze Control Temperature Cycling
  • B27 - Pressure Switch, AC Refrigerant Hi/Lo
  • F4 - Fuse, AC Defrost
  • F14 - Fuse, Blower Motor (20A)
  • F15 - Fuse, Temperature Control (5A)
  • F16 - Fuse, High Speed Blower (25A)
  • F17 - Fuse, Purge Speed Blower (30A)
  • F22 - Fuse, Precleaner (10A)
  • K10 - Relay, Blower
  • K11 - Relay, Blower High Speed
  • K12 - Relay, Blower Purge
  • K14 - Relay, Precleaner
  • M6 - Motor, Precleaner
  • M7 - Motor, Blower
  • M8 - Motor, Hot Water Valve Servo
  • R2 - Resistor, Blower
  • R5 - Temperature Control Knob
  • S14 - Switch, Blower Speed
  • S15 - Switch, AC Defrost On/Off
  • V4 - Diode, AC Compressor Clutch Solenoid
  • W5 - Ground, Pressure Blower Motor, and Precleaner at Battery Box Divider
  • Y1 - Solenoid, AC Compressor Clutch

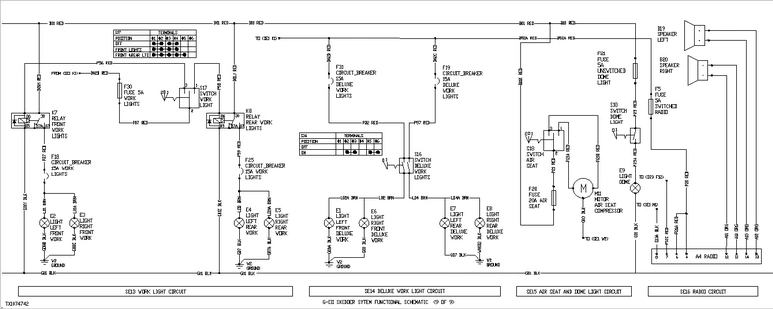

  • A4 - Radio, AM/FM
  • B19 - Speaker, Left
  • B20 - Speaker, Right
  • E1 - Light, Left Front Deluxe Work
  • E2 - Light, Left Front Work
  • E3 - Light, Right Front Work
  • E4 - Light, Left Rear Work
  • E5 - Light, Right Rear Work
  • E6 - Light, Right Front Deluxe Work
  • E7 - Light, Left Rear Deluxe Work
  • E8 - Light, Right Rear Deluxe Work
  • E9 - Light, Dome
  • F5 - Fuse, Radio (5A) Switched
  • F18 - Circuit Breaker, Front Work Lights (15A)
  • F19 - Circuit Breaker, Rear Deluxe Work Lights (15A)
  • F20 - Fuse, Air Seat (20A)
  • F21 - Fuse, Dome Light (5A) Unswitched
  • F25 - Circuit Breaker, Rear Work Lights (15A)
  • F30 - Fuse, Work Lights (5A)
  • F31 - Circuit Breaker, Front Deluxe Work Lights (15A)
  • K7 - Relay, Front Work Lights
  • K8 - Relay, Rear Work Lights
  • M1 - Motor, Starter
  • S10 - Switch, Dome Light
  • S16 - Switch, Deluxe Work Lights
  • S17 - Switch, Work Light
  • S18 - Switch, Air Seat
  • W2 - Ground, Cab Floor Under TCU and TCU Ground Strap

Все коды диагностики неисправностей
ECU (Level 12)
  • 000028.03 Throttle Voltage High
  • 000028.04 Throttle Voltage Low
  • 000029.03 Throttle Voltage High
  • 000029.04 Throttle Voltage Low
  • 000029.14 Throttle Voltage Out of Range
  • 000084.31 Vehicle Speed Mismatch
  • 000091.03 Throttle Voltage High
  • 000091.04 Throttle Voltage Low
  • 000091.07 Throttle Calibration Invalid
  • 000091.09 Throttle CAN message Missing
  • 000091.10 Throttle Voltage Low
  • 000091.13 Throttle Calibration Aborted
  • 000091.14 Throttle Voltage Out of Range
  • 000094.01 Fuel Pressure Extremely Low
  • 000094.03 Fuel Pressure Input Voltage High
  • 000094.04 Fuel Pressure Input Voltage Low
  • 000094.18 Fuel Pressure Moderately Low
  • 000097.00 Water in Fuel Continuously Detected Diagnostic Procedure
  • 000097.03 Water in Fuel Signal Voltage High
  • 000097.04 Water in Fuel Signal Voltage Low
  • 000097.16 Water in Fuel Detected
  • 000097.31 Water in Fuel Detected (750J Crawler Only)
  • 000100.01 Engine Oil Pressure Extremely Low
  • 000100.03 Engine Oil Pressure Input Voltage High
  • 000100.04 Engine Oil Pressure Input Voltage Low
  • 000100.16 Engine Oil Pressure High, Moderately Severe Level Incorrect Reading Diagnostic
  • Procedure
  • 000100.18 Engine Oil Pressure Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000105.00 Manifold Air Temperature Extremely High
  • 000105.03 Manifold Air Temperature Input Voltage High
  • 000105.04 Manifold Air Temperature Input Voltage Low
  • 000105.16 Manifold Air Temperature Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000110.00 Engine Coolant Temperature Extremely High
  • 000110.03 Engine Coolant Temperature Input Voltage High
  • 000110.04 Engine Coolant Temperature Input Voltage Low
  • 000110.15 Engine Coolant Temperature High Least Severe
  • 000110.16 Engine Coolant Temperature Moderately High
  • 000111.00 Loss of Coolant Temperature Extremely High
  • 000111.03 Loss of Coolant Temperature Input Voltage High
  • 000111.04 Loss of Coolant Temperature Input Voltage Low
  • 000158.17 ECU Power Down Error
  • 000160.02 Wheel Speed Input Noise
  • 000171.03 Ambient Air Temperature Input Voltage Out Of Range High (750J Crawlers only)
  • 000171.04 Ambient Air Temperature Input Voltage Out Of Range Low (750J Crawlers Only)
  • 000174.00 Fuel Temperature Extremely High
  • 000174.03 Fuel Temperature Input Voltage High
  • 000174.04 Fuel Temperature Input Voltage Low
  • 000174.16 Fuel Temperature High Moderately Severe
  • 000189.00 Engine Speed Derate
  • 000190.00 Engine Overspeed Extreme
  • 000190.01 Engine Overload Moderate
  • 000190.01 Engine Speed Below Normal Operational Range, Most Severe Level
  • 000190.16 Engine Overspeed Moderate
  • 000190.18 Engine Overload Severe
  • 000523.09 Current Gear Selection Invalid or Not Received (J-series Loaders Only)
  • 000620.03 Sensor Supply Voltage High
  • 000620.04 Sensor Supply Voltage Low
  • 000629.13 ECU Error
  • 000637.02 Crank Position Input Noise
  • 000637.08 Crank Position Input Missing
  • 000637.10 Crank Position Input Pattern Error
  • 000639.13 CAN Bus Error
  • 000644.02 External Speed Command Input (OEM, Marine Only)
  • 000729.03 Inlet Air Heater Signal High
  • 000729.05 Inlet Air Heater Signal Low
  • 000898.09 Vehicle Speed or Torque Message Invalid
  • 000970.31 Auxiliary Engine Shutdown Switch Active
  • 000971.31 External Engine Derate Switch Active
  • 001069.09 Tire Size Invalid
  • 001069.31 Tire Size Error
  • 001076.00 Pump Control Valve Closure Too Long
  • 001076.01 Pump Control Valve Closure Too Short
  • 001076.03 Pump Solenoid Current High
  • 001076.05 Pump Solenoid Circuit Open
  • 001076.06 Pump Solenoid Circuit Severely Shorted
  • 001076.07 Pump Control Valve Closure Not Detected
  • 001076.10 Pump Solenoid Circuit Moderately Shorted
  • 001076.13 Pump Current Decay Time Invalid
  • 001079.03 Sensor Supply Voltage High
  • 001079.04 Sensor Supply Voltage Low
  • 001109.31 Engine Protection Shutdown Warning
  • 001110.31 Engine Protection Shutdown
  • 001569.31 Fuel Derate
  • 002000.06 Internal ECU Failure
  • 002000.13 Security Violation
  • 002006.06 Internal ECU Failure

ECU (Level 14 4.5L/6.8L)
  • 000028.03 Digital Throttle Signal Out of Range High
  • 000028.04 Digital Throttle Signal Out of Range Low
  • 000029.03 Secondary Analog Throttle Signal Out of Range High
  • 000029.04 Secondary Analog Throttle Signal Out of Range Low
  • 000091.03 Primary Analog Throttle Signal Out of Range High
  • 000091.04 Primary Analog Throttle Signal Out of Range Low
  • 000091.09 Throttle CAN message Missing
  • 000094.03 Low Pressure Fuel Signal Out of Range High
  • 000094.04 Low Pressure Fuel Signal Out of Range Low
  • 000094.17 Low Pressure Fuel Signal Slightly Low
  • 000097.00 Water in Fuel Detected Most Severe Level
  • 000097.03 Water In Fuel Signal Out of Range High
  • 000097.04 Water In Fuel Signal Out of Range Low
  • 000097.16 Water in Fuel Detected
  • 000100.01 Engine Oil Pressure Signal Extremely Low
  • 000100.04 Engine Oil Pressure Signal Out of Range Low
  • 000100.18 Engine Oil Pressure Signal Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000102.02 Manifold Air Pressure Signal Invalid
  • 000102.03 Manifold Air Pressure Signal Out of Range High
  • 000102.04 Manifold Air Pressure Signal Out of Range Low
  • 000103.00 Turbo Speed Signal Extremely High
  • 000103.05 Turbo Speed Signal Circuit has High Resistance
  • 000103.08 Turbo Speed Signal Invalid
  • 000103.31 Turbo Speed Signal Missing
  • 000105.00 Manifold Air Temperature Signal Extremely High
  • 000105.03 Manifold Air Temperature Signal Out of Range High
  • 000105.04 Manifold Air Temperature Signal Out of Range Low
  • 000105.15 Manifold Air Temperature Signal Slightly High
  • 000105.16 Manifold Air Temperature Signal Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000107.31 Air Filter Restriction Switch Activated
  • 000108.02 Barometric Air Pressure Signal Invalid
  • 000110.00 Coolant Temperature Signal Extremely High
  • 000110.03 Coolant Temperature Signal Out of Range High
  • 000110.04 Coolant Temperature Signal Out of Range Low
  • 000110.15 Coolant Temperature Signal Slightly High
  • 000110.16 Coolant Temperature Signal Moderately High
  • 000110.17 Coolant Temperature Signal Slightly Low
  • 000111.01 Engine Coolant Level Extremely Low
  • 000157.01 Fuel Rail Pressure Signal Extremely Low
  • 000157.03 Fuel Rail Pressure Signal Out of Range High
  • 000157.04 Fuel Rail Pressure Signal Out of Range Low
  • 000157.10 Fuel Rail Pressure Loss Detected
  • 000157.17 Fuel Rail Pressure Not Developed
  • 000157.18 Fuel Rail Pressure Signal Moderately Low
  • 000158.17 ECU Power Down Error
  • 000174.00 Fuel Temperature Signal Extremely High
  • 000174.03 Fuel Temperature Signal Out of Range High
  • 000174.04 Fuel Temperature Signal Out of Range Low
  • 000174.16 Fuel Temperature Signal Moderately High
  • 000189.00 Engine Speed Derate Condition Exists
  • 000190.00 Engine Speed Extremely High
  • 000190.01 Engine Overload Moderate
  • 000190.16 Engine Speed Moderately High
  • 000190.18 Engine Overload Severe
  • 000412.00 EGR Temperature Signal Extremely High
  • 000412.03 EGR Temperature Signal Out of Range High
  • 000412.04 EGR Temperature Signal Out of Range Low
  • 000412.15 EGR Temperature Signal Slightly High
  • 000412.16 EGR Temperature Signal Moderately High
  • 000611.03 Injector Shorted to Voltage Source
  • 000611.04 Injector Shorted to Ground
  • 000627.01 All Injectors Circuits Have High Resistance
  • 000627.18 Injector Power Supply Voltage Out of Range Low
  • 000629.12 ECU EEPROM Error
  • 000629.13 ECU Boot Block Error
  • 000636.02 Camshaft Position Signal Invalid
  • 000636.05 Camshaft Position Circuit Has High Resistance
  • 000636.06 Camshaft Position Circuit Has Low Resistance
  • 000636.08 Camshaft Position Sensor Signal Missing
  • 000636.10 Camshaft Position Signal Rate of Change Abnormal
  • 000637.02 Crankshaft Position Signal Invalid
  • 000637.05 Crankshaft Position Sensor Circuit Has High Resistance
  • 000637.06 Crankshaft Position Circuit Has Low Resistance
  • 000637.07 Crankshaft and Camshaft Position Signals Out of Sync
  • 000637.08 Crankshaft Position Signal Missing
  • 000637.10 Crankshaft Position Signal Rate of Change Abnormal
  • 000640.31 External Derate Commanded
  • 000641.04 VGT Actuator Supply Voltage Out of Range Low
  • 000641.12 VGT Actuator Communication Error
  • 000641.13 VGT Actuator Learn Error
  • 000641.16 Turbo Actuator Temperature Moderately High
  • 000644.02 External Speed Command Input Erratic
  • 000647.05 Engine Fan Drive Circuit Has High Resistance
  • 000647.31 Engine Fan Drive Manual Purge Switch Active Too Long
  • 000651.02 Injector #1 Part # Data Invalid
  • 000651.05 Injector #1 Circuit Has High Resistance
  • 000651.06 Injector #1 Circuit Has Low Resistance
  • 000651.07 Injector #1 Not Responding
  • 000651.13 Injector #1 Calibration Fault
  • 000652.02 Injector #2 Part # Data Invalid
  • 000652.05 Injector #2 Circuit Has High Resistance
  • 000652.06 Injector #2 Circuit Has Low Resistance
  • 000652.07 Injector #2 Not Responding
  • 000652.13 Injector #2 Calibration Fault
  • 000653.02 Injector #3 Part # Data Invalid
  • 000653.05 Injector #3 Circuit Has High Resistance
  • 000653.06 Injector #3 Circuit Has Low Resistance
  • 000653.07 Injector #3 Not Responding
  • 000653.13 Injector #3 Calibration Fault
  • 000654.02 Injector #4 Part # Data Invalid
  • 000654.05 Injector #4 Circuit Has High Resistance
  • 000654.06 Injector #4 Circuit Has Low Resistance
  • 000654.07 Injector #4 Not Responding
  • 000654.13 Injector #4 Calibration Fault
  • 000655.02 Injector #5 Part # Data Invalid
  • 000655.05 Injector #5 Circuit Has High Resistance
  • 000655.06 Injector #5 Circuit Has Low Resistance
  • 000655.07 Injector #5 Not Responding
  • 000655.13 Injector #5 Calibration Fault
  • 000656.02 Injector #6 Part # Data Invalid
  • 000656.05 Injector #6 Circuit Has High Resistance
  • 000656.06 Injector #6 Circuit Has Low Resistance
  • 000656.07 Injector #6 Not Responding
  • 000656.13 Injector #6 Calibration Fault
  • 000676.03 Cold Start Aid Signal Received When Not Expected
  • 000676.05 Cold Start Aid Circuit Has High Resistance
  • 000898.09 Engine Speed CAN Message Invalid
  • 000970.31 External Shutdown Switch Activated
  • 000971.31 External Derate Switch Activated
  • 001075.05 Low Pressure Fuel Pump Circuit Has High Resistance
  • 001075.06 Low Pressure Fuel Pump Circuit Has Low Resistance
  • 001075.12 Low Pressure Fuel Pump Status Error
  • 001109.31 Approaching Engine Protection Shutdown
  • 001110.31 Engine Protection Shutdown Active
  • 001136.00 ECU Temperature Signal Extremely High
  • 001136.16 ECU Temperature Signal Moderately High
  • 001172.03 Compressor Inlet Temperature Signal Out of Range High
  • 001172.04 Compressor Inlet Temperature Signal Out of Range Low
  • 001180.00 Calculated Turbine Inlet Temperature Signal Extremely High
  • 001180.16 Calculated Turbine Inlet Temperature Signal Moderately High
  • 001347.03 Suction Control Valve Signal Out of Range High
  • 001347.05 Suction Control Valve Circuit Has High Resistance
  • 001347.07 Fuel Rail Pressure Actual to Desired Mismatch
  • 001569.31 Engine in Power Derate Condition
  • 001638.00 Hydraulic Oil Temperature Extremely High
  • 001638.03 Hydraulic Oil Temperature Signal Out of Range High
  • 001638.04 Hydraulic Oil Temperature Signal Out of Range Low
  • 001638.16 Hydraulic Oil Temperature Signal Moderately High
  • 001639.01 Fan Speed Signal Extremely Low
  • 001639.16 Fan Speed Signal Moderately High
  • 001639.18 Fan Speed Signal Moderately Low
  • 002000.13 Incorrect ECU for Application
  • 002003.09 No CAN Message From Source Address 3
  • 002004.09 No CAN Message From Source Address 4
  • 002005.09 No CAN Message From Source Address 5
  • 002005.14 Incorrect CAN Message Received From Source Address 5
  • 002030.09 No CAN Message From Source Address 23
  • 002033.09 No CAN Message From Source Address 33
  • 002033.14 Incorrect CAN Message Received From Source Address 33
  • 002033.19 Synchronizing Problem With Source Address 33
  • 002057.09 No CAN Message From Source Address 57
  • 002071.09 No CAN Message From Source Address 71
  • 002580.03 Brake Pressure Signal Out of Range High
  • 002580.04 Brake Pressure Signal Out of Range Low
  • 002630.00 Charge Air Cooler Outlet Temperature Signal Extremely High
  • 002630.03 Charge Air Cooler Outlet Temperature Signal Out of Range High
  • 002630.04 Charge Air Cooler Outlet Temperature Signal Out of Range Low
  • 002630.15 Charge Air Cooler Outlet Temperature Signal Slightly High
  • 002630.16 Charge Air Cooler Outlet Temperature Signal Moderately High
  • 002659.02 Calculated EGR Flow Rate Invalid
  • 002659.15 Calculated EGR Flow Rate Slightly High
  • 002659.17 Calculated EGR Flow Rate Slightly Low
  • 002790.16 Calculated Compressor Outlet Temperature Moderately High
  • 002791.02 EGR Valve Position Signal Invalid
  • 002791.03 EGR Valve Position Signal Out of Range High
  • 002791.04 EGR Valve Position Signal Out of Range Low
  • 002791.07 EGR Valve Not Reaching Expected Position
  • 002791.13 EGR Valve Calibration Change Over a Short Period of Time
  • 002791.31 EGR Valve Calibration Change over a Long Time
  • 002795.07 VGT Actuator Not Reaching Expected Position
  • 003509.03 Sensor Supply #1 Voltage Out of Range High
  • 003509.04 Sensor Supply #1 Voltage Out of Range Low
  • 003510.03 Sensor Supply #2 Voltage Out of Range High
  • 003510.04 Sensor Supply #2 Voltage Out of Range Low
  • 003511.03 Sensor Supply #3 Voltage Out of Range High
  • 003511.04 Sensor Supply #3 Voltage Out of Range Low
  • 003512.03 Sensor Supply #4 Voltage Out of Range High
  • 003512.04 Sensor Supply #4 Voltage Out of Range Low
  • 003513.03 Sensor Supply #5 Voltage Out of Range High
  • 003513.04 Sensor Supply #5 Voltage Out of Range Low
  • 523792.04 EPGDS LTC Pump Signal Out of Range Low
  • 524099.11 EPGDS LTC Pump Blockage

ECU (Level 3)
  • 000028.03 Throttle Voltage High
  • 000028.04 Throttle Voltage Low
  • 000029.03 Throttle Voltage High
  • 000029.04 Throttle Voltage Low
  • 000051.02 Throttle Invalid
  • 000091.03 Throttle Voltage High
  • 000091.04 Throttle Voltage Low
  • 000091.08 PWM Throttle Abnormal Pulse Width
  • 000091.09 Throttle Invalid
  • 000097.00 Water in Fuel Continuously Detected
  • 000097.16 Water in Fuel Detected
  • 000097.31 Water in Fuel Detected
  • 000100.01 Engine Oil Pressure Extremely Low
  • 000100.03 Engine Oil Pressure Input Voltage High
  • 000100.04 Engine Oil Pressure Input Voltage Low
  • 000100.18 Engine Oil Pressure Moderately Low
  • 000105.00 Derated Torque Curve Selected
  • 000105.03 Manifold Air Temperature Input Voltage High
  • 000105.04 Manifold Air Temperature Input Voltage Low
  • 000105.09 Manifold Air Temperature Invalid
  • 000105.16 Manifold Air Temperature Moderately High
  • 000107.00 Air Filter Restriction High
  • 000110.00 Engine Coolant Temperature Extremely High
  • 000110.03 Engine Coolant Temperature Input Voltage High
  • 000110.04 Engine Coolant Temperature Input Voltage Low
  • 000110.09 Engine Coolant Temperature Invalid
  • 000110.16 Engine Coolant Temperature Moderately High
  • 000111.01 Engine Coolant Level Low
  • 000158.02 Intermittent Loss of ECU Power Supply
  • 000160.02 Wheel Speed Input Noise
  • 000171.03 Ambient Air Temperature Input Voltage High
  • 000171.04 Ambient Air Temperature Input Voltage Low
  • 000174.00 Fuel Temperature Moderately High
  • 000174.03 Fuel Temperature Input Voltage High
  • 000174.04 Fuel Temperature Input Voltage Low
  • 000174.16 Fuel Temperature Moderately High
  • 000177.02 Transmission Oil Temperature Erratic
  • 000177.09 Transmission Oil Temperature Invalid
  • 000189.00 Engine Speed Derate
  • 000190.00 Engine Overspeed Extreme
  • 000190.02 Engine Speed Input Noise
  • 000190.03 Engine Speed Input Voltage High
  • 000190.04 Engine Speed Input Voltage Low
  • 000190.05 Engine Speed Sensor Circuit Open
  • 000190.14 Engine Speed/Pump Speed Out of Sync
  • 000190.16 Engine Overspeed Moderate
  • 000191.02 Pump Speed Input Noise
  • 000191.14 Engine Speed/Pump Speed Out of Sync
  • 000191.16 Engine Overspeed Extreme
  • 000620.03 Sensor Supply Voltage High
  • 000620.04 Sensor Supply Voltage Low
  • 000629.13 ECU Error
  • 000632.11 Fuel Shut-off Circuit Fault
  • 000638.02 Rack Instability
  • 000638.07 Rack Position Error
  • 000639.00 CAN Error
  • 000639.02 CAN Error
  • 000639.13 CAN Error
  • 000640.11 Engine Shutdown Signal Invalid
  • 000640.31 Auxiliary Engine Shutdown Switch Active
  • 000723.02 Engine Speed Input Noise
  • 000733.02 Rack Position Error with Engine Off
  • 000733.03 Rack Position Voltage High
  • 000733.04 Rack Position Voltage Low
  • 000833.00 Rack Position Calibration Error
  • 000833.01 Rack Position Calibration Error
  • 000833.02 Rack Position Error with Engine Off
  • 000833.03 Rack Position Voltage High
  • 000833.04 Rack Position Voltage Low
  • 000833.07 Rack Position Calibration Error
  • 000833.15 Rack Position Calibration Error
  • 000833.17 Rack Position Calibration Error
  • 000834.02 Rack Instability
  • 000834.03 Rack Actuator Control Circuit Short to Power
  • 000834.05 Rack Actuator Control Circuit Open
  • 000834.06 Rack Actuator Control Circuit Short To Ground
  • 000834.07 Rack Position Error
  • 000898.09 Vehicle Speed Invalid
  • 000970.00 Auxiliary Engine Shutdown Switch Active
  • 000970.11 Engine Shutdown Signal Invalid
  • 000970.31 Auxiliary Engine Shutdown Switch Active
  • 001041.02 Start Signal Missing
  • 001041.03 Start Signal Always Active
  • 001069.09 Tire Size Invalid
  • 001069.31 Tire Size Error
  • 001082.09 Engine Coolant Load Increase Invalid
  • 001109.14 Engine Shutdown
  • 001110.31 Engine Shutdown
  • 001568.02 Torque Curve Selection Invalid
  • 001568.09 Torque Curve Selection Invalid
  • 001569.31 Fuel Derate
  • 001639.01 Fan Speed Input Missing
  • 001639.02 Fan Speed Input Noise
  • 001639.16 Fan Speed Higher Than Expected
  • 001639.18 Fan Speed Lower Than Expected
  • 002000.09 Vehicle ID Missing
  • 002000.13 Security Violation

ECU (Level 9)
  • 000028.03 Throttle Voltage High
  • 000028.04 Throttle Voltage Low
  • 000029.03 Throttle Voltage High
  • 000029.04 Throttle Voltage Low
  • 000029.14 Throttle Voltage Out of Range
  • 000084.09 Vehicle Speed Invalid or Missing
  • 000091.03 Throttle Voltage High
  • 000091.04 Throttle Voltage Low
  • 000091.08 PWM Throttle Abnormal Pulse Width
  • 000091.09 Throttle Invalid
  • 000091.14 Throttle Voltage Out of Range
  • 000094.03 Fuel Rail Pressure Input Voltage High
  • 000094.04 Fuel Rail Pressure Input Voltage Low
  • 000094.10 Fuel Rail Pressure Loss Detected
  • 000094.17 Fuel Rail Pressure Not Developed
  • 000097.00 Water in Fuel Continuously Detected
  • 000097.03 Water in Fuel Input Voltage High
  • 000097.04 Water in Fuel Input Voltage Low
  • 000097.16 Water in Fuel Detected
  • 000097.31 Water in Fuel Detected
  • 000100.01 Engine Oil Pressure Extremely Low
  • 000100.03 Engine Oil Pressure Input Voltage High
  • 000100.04 Engine Oil Pressure Input Voltage Low
  • 000100.16 Engine Oil Pressure Above Normal
  • 000100.18 Engine Oil Pressure Moderately Low
  • 000102.03 Manifold Air Pressure Input Voltage High
  • 000102.04 Manifold Air Pressure Input Voltage Low
  • 000105.03 Manifold Air Temperature Input Voltage High
  • 000105.04 Manifold Air Temperature Input Voltage Low
  • 000105.16 Manifold Air Temperature Moderately High
  • 000107.00 Air Filter Restriction
  • 000110.00 Engine Coolant Temperature Extremely High
  • 000110.03 Engine Coolant Temperature Input Voltage High
  • 000110.04 Engine Coolant Temperature Input Voltage Low
  • 000110.15 Engine Coolant Temperature High Least Severe
  • 000110.16 Engine Coolant Temperature Moderately High
  • 000110.31 Engine Coolant Temperature High
  • 000111.01 Engine Coolant Level Low
  • 000158.17 ECU Power Down Error
  • 000160.02 Wheel Speed Input Noise
  • 000171.03 Ambient Air Temperature Input Voltage High
  • 000171.04 Ambient Air Temperature Input Voltage Low
  • 000174.00 Fuel Temperature High Most Severe
  • 000174.03 Fuel Temperature Input Voltage High
  • 000174.04 Fuel Temperature Input Voltage Low
  • 000174.16 Fuel Temperature High Moderately Severe
  • 000189.00 Engine Speed Derate
  • 000190.00 Engine Overspeed Extreme
  • 000190.01 Engine Overload Moderate
  • 000190.16 Engine Overspeed Moderate
  • 000190.18 Engine Overload Severe
  • 000237.02 Vehicle Identification Number Invalid
  • 000237.13 Vehicle Identification Option Code Invalid
  • 000237.31 Vehicle Model Number Invalid
  • 000523.09 Gear Selection Invalid
  • 000596.31 Cruise Control On/Off Inputs Shorted
  • 000611.03 Electronic Injector Wiring Shorted To Power Source
  • 000611.04 Electronic Injector Wiring Shorted To Ground
  • 000620.03 Sensor Supply 1 Voltage High
  • 000620.04 Sensor Supply 1 Voltage Low
  • 000627.01 Electronic Injector Supply Voltage Problem
  • 000629.13 ECU Error
  • 000636.02 Pump Position Sensor Input Noise
  • 000636.08 Pump Position Sensor Input Missing
  • 000636.10 Pump Position Sensor Input Pattern Error
  • 000637.02 Crankshaft Position Input Noise
  • 000637.07 Crankshaft Position/Pump Position Timing Moderately Out of Sync
  • 000637.08 Crankshaft Position Input Missing
  • 000637.10 Crankshaft Position Input Pattern Error
  • 000639.13 CAN Bus Error
  • 000640.31 Engine Shutdown - Vehicle Request
  • 000644.02 External Speed Command Input Erratic
  • 000651.05 Cylinder #1 EI Circuit Open
  • 000651.06 Cylinder #1 EI Circuit Shorted
  • 000651.07 Cylinder #1 EI Fuel Delivery Failure
  • 000652.05 Cylinder #2 EI Circuit Open
  • 000652.06 Cylinder #2 EI Circuit Shorted
  • 000652.07 Cylinder #2 EI Fuel Delivery Failure
  • 000653.05 Cylinder #3 EI Circuit Open
  • 000653.06 Cylinder #3 EI Circuit Shorted
  • 000653.07 Cylinder #3 EI Fuel Delivery Failure
  • 000654.05 Cylinder #4 EI Circuit Open
  • 000654.06 Cylinder #4 EI Circuit Shorted
  • 000654.07 Cylinder #4 EI Fuel Delivery Failure
  • 000655.05 Cylinder #5 EI Circuit Open
  • 000655.06 Cylinder #5 EI Circuit Shorted
  • 000655.07 Cylinder #5 EI Fuel Delivery Failure
  • 000656.05 Cylinder #6 EI Circuit Open
  • 000656.06 Cylinder #6 EI Circuit Shorted
  • 000656.07 Cylinder #6 EI Fuel Delivery Failure
  • 000898.09 Vehicle Speed or Torque Message Invalid
  • 000970.31 Engine Shutdown - Auxiliary Request
  • 000971.31 External Fuel Derate Switch Active
  • 001069.09 Tire Size Invalid
  • 001069.31 Tire Size Error
  • 001079.03 Sensor Supply 2 Voltage High
  • 001079.04 Sensor Supply 2 Voltage Low
  • 001080.03 Fuel Rail Pressure Sensor Supply Voltage High
  • 001080.04 Fuel Rail Pressure Sensor Supply Voltage Low
  • 001109.31 Engine Protection Shutdown Warning
  • 001110.31 Engine Protection Shutdown
  • 001347.05 Pump Control Valve #1 Error
  • 001347.07 Fuel Rail Pressure Incorrect
  • 001347.10 Pump Control Valve #1 Fuel Flow Not Detected
  • 001348.05 Pump Control Valve #2 Error
  • 001348.10 Pump Control Valve #2 Fuel Flow Not Detected
  • 001568.02 Torque Curve Selection Invalid
  • 001568.09 Torque Curve Selection Missing
  • 001569.31 Fuel Derate
  • 001638.00 Hydraulic Oil Temperature High Most Severe
  • 001638.03 Hydraulic Oil Temperature Sensor Above Normal
  • 001638.04 Hydraulic Oil Temperature Sensor Voltage Below Normal
  • 001638.16 Hydraulic Oil Temperature High
  • 001639.01 Fan Speed Input Missing
  • 001639.16 Fan Speed Higher Than Expected
  • 001639.18 Fan Speed Lower Than Expected
  • 002005.09 ACU Signal Missing
  • 002049.09 Cab Signal Missing
  • 002071.09 CCU Signal Missing
  • 002580.03 Brake Pressure Sensor Voltage Above Normal
  • 002580.04 Brake Pressure Sensor Voltage Below Normal

JDL Primary Controller (Modular Telematics Gateway)
  • JDL - 000237.11 JDL Not Registered
  • JDL - 000639.09 JDL Not Detecting CAN Bus Messages
  • JDL - 000841.05 GPS Antenna Error - Open Circuit
  • JDL - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JDL - 000964.13 Real Time Clock Failure
  • JDL - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JDL - 002850.05 Cellular Antenna Error - Open Circuit
  • JDL - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JDL - 002852.11 Unable to Detect SIM Card
  • JDL - 516672.14 Network Authorization Failed
  • JDL - 522976.11 Unable to Load Custom Alerts
  • JDL - 522976.13 Unable to Load Configuration
  • JDL - 523310.00 Low Disk Space
  • JDL - 600006.31 Vehicle Controls Not Operating Correctly

JL2 Secondary Controller (Modular Telematics Gateway)
  • JL2 - 000237.11 JL2 Not Registered
  • JL2 - 000639.09 JL2 Not Detecting CAN Bus Messages
  • JL2 - 000841.05 GPS Antenna Error - Open Circuit
  • JL2 - 000841.06 GPS Antenna Error - Grounded/Short Circuit
  • JL2 - 000964.12 Real Time Clock Failure
  • JL2 - 000964.13 Real Time Clock Failure
  • JL2 - 002850.02 Cellular Antenna Error - Abnormal Signal
  • JL2 - 002850.05 Cellular Antenna Error - Open Circuit
  • JL2 - 002850.06 Cellular Antenna Error - Grounded/Short Circuit
  • JL2 - 002852.11 Unable to Detect SIM Card
  • JL2 - 522976.11 Unable to Load Custom Alerts
  • JL2 - 522976.13 Unable to Load Configuration
  • JL2 - 523310.00 Low Disk Space
Назад к содержимому
