Электросхемы
 9120, 9220, 9320,9420, 9520 and 9620 Tractors John Deere

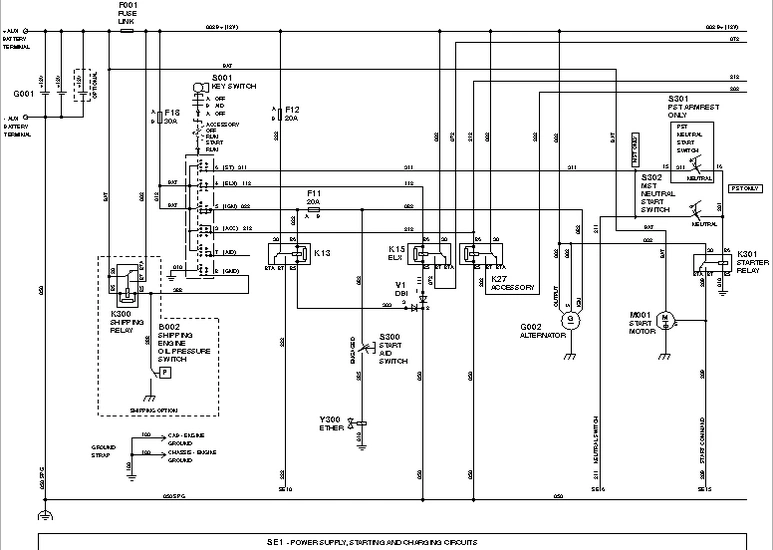

  • B002 - Shipping Engine Oil Pressure Sensor
  • F001 - Fusible Link
  • F11 - Alternator, Start Aid Solenoid Fuse
  • F12 - Engine Control Unit (ECU) Fuse
  • F18 - Ignition Switch Fuse
  • G001 - Batteries
  • G002 - Alternator
  • K13 - Engine Control Unit (ECU)
  • K15 - ELX (Electronics Relay)
  • K27 - Accessory Relay
  • K300 - Shipping Relay
  • K301 - Starter Relay
  • M001 - Starter Motor
  • S001 - Key Switch
  • S300 - Start Aid Switch
  • S301 - PST Neutral Start Switch
  • S302 - MST Neutral Start Switch
  • V1 - Diode Block 1 (DB1)
  • Y300 - Ether Solenoid


  • A942 - Heated Seat Control Unit
  • E946 - Seat Heating Element
  • E947 - Backrest Heating Element
  • F28 - Wiper Circuit Fuse
  • F38 - Operator Presence Switch/RZP Assembly Fuse
  • F45 - Seat Compressor Motor/Bleed Valve Fuse
  • K24 - Wiper Circuit Relay
  • K25 - Intermittent Wiper Pause Relay
  • K26 - Intermittent Wiper Enable Relay
  • M240 - Front Wiper Motor
  • M241 - Rear Wiper Motor
  • M242 - Rear Washer Pump
  • M243 - Front Washer Pump
  • M930 - Seat Compressor Motor
  • S241 - Front Wiper Switch
  • S242 - Rear Wiper Switch
  • S930 - Operator Presence Switch
  • S931 - Seat Raise/Lower Switch
  • V933 - Seat Raise Motor and Bleed Valve Diode
  • Y930 - Seat Bleed Valve Solenoid


  • A940 - ACTIVE SEAT™ Control Unit (ASU) (SE2c)
  • B940 - Feedback Accelerometer Sensor (SE2c)
  • B941 - Seat Position Sensor (SE2c)
  • F13 - ACTIVE SEAT™ Control Unit Fuse (SE2c)
  • F38 - Operator Presence Switch/RZP Assembly Fuse (SE2b,c W6)
  • F45 - Seat Compressor Motor/Bleed Valve Fuse (SE2b,c W6)
  • K940 - ACTIVE SEAT™ Relay (SE2c)
  • M940 - Seat Compressor Motor (SE2c)
  • S940 - Operator Presence Switch (SE2c)
  • S941 - Raise/Lower Rocker Switch (SE2c)
  • S942 - Firmness Adjustment Switch (SE2c)
  • X940 - ACTIVE SEAT™ Control Connector (30 Way) (SE2c)
  • Y940 - Seat Bleed Valve Solenoid (SE2c)
  • Y941 - Seat Position Solenoid (SE2c)
  • Y942 - Seat Pressure Solenoid


  • A940 - ACTIVE SEAT™ Control Unit (ASU) (SE2c)
  • B940 - Feedback Accelerometer Sensor (SE2c)
  • B941 - Seat Position Sensor (SE2c)
  • F13 - ACTIVE SEAT™ Control Unit Fuse (SE2c)
  • F38 - Operator Presence Switch/RZP Assembly Fuse (SE2b,c W6)
  • F45 - Seat Compressor Motor/Bleed Valve Fuse (SE2b,c W6)
  • K940 - ACTIVE SEAT™ Relay (SE2c)
  • M940 - Seat Compressor Motor (SE2c)
  • S940 - Operator Presence Switch (SE2c)
  • S941 - Raise/Lower Rocker Switch (SE2c)
  • S942 - Firmness Adjustment Switch (SE2c)
  • X940 - ACTIVE SEAT™ Control Connector (30 Way) (SE2c)
  • Y940 - Seat Bleed Valve Solenoid (SE2c)
  • Y941 - Seat Position Solenoid (SE2c)
  • Y942 - Seat Pressure Solenoid

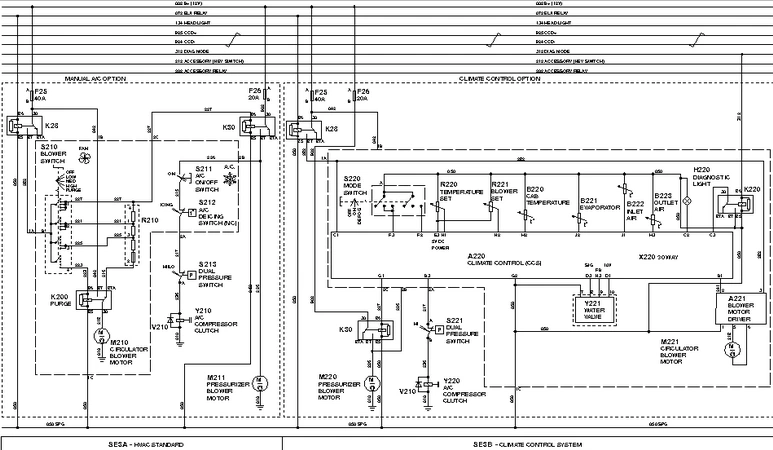

  • A220 - Climate Control System (CCS)
  • A221 - Blower Motor Driver
  • B220 - Cab Air Temperature Sensor
  • B221 - Evaporator Temperature Sensor
  • B222 - Inlet Temperature Sensor
  • B223 - Outlet Air Temperature Sensor
  • F25 - Heating, Ventilating and Air Conditioning (HVAC) Fuse
  • F26 - Pressurizer Blower Motor Fuse
  • H220 - CCS Diagnostic Light
  • K28 - Heating, Ventilating and Air Conditioning Relay
  • K30 - Pressurizer Blower Motor Relay
  • K200 - Circulator Blower Motor Purge Relay
  • K220 - Diagnostic Relay
  • M210 - Circulator Blower Motor
  • M211 - Pressurizer Blower Motor
  • M220 - Pressurizer Blower Motor
  • M221 - Circulator Blower Motor
  • R210 - Blower Motor Resistor
  • R220 - Temperature Set
  • R221 - Blower Set
  • S210 - Blower Motor Switch
  • S211 - A/C ON/OFF Switch
  • S212 - A/C De-icing Switch
  • S213 - A/C HI/LO Switch
  • S220 - Mode Switch
  • S221 - A/C HI/LO Switch
  • V210 - A/C Clutch Compressor Diode
  • X220 - CCS Connector (30-Way)
  • Y210 - A/C Compressor Clutch
  • Y220 - A/C Compressor Clutch
  • Y221 - Water Valve


  • A101 - Steering Column Module
  • A240 - Radio
  • A241 - Clock (Eur)
  • B240 - Right Front Speaker
  • B241 - Left Front Speaker
  • B242 - Right Rear Speaker
  • B243 - Left Rear Speaker
  • B920 - Horn
  • C240 - Antenna
  • E100 - Dome Lamp
  • E102 - Step Lamp
  • F19 - Radio, Clock, Dome Lamp, Horn, Turn Signal and High/Low Beam Switch Fuse
  • H100 - Right Turn Indicator
  • H101 - Left Turn Indicator
  • H102 - Warning Indicator (Eur)
  • H103 - Tractor Indicator (Eur)
  • H104 - Trailer 1 Indicator (Eur)
  • H105 - Trailer 2 Indicator (Eur)
  • H107 - High Beam Indicator
  • K23 - Horn Relay
  • S102 - Turn Signal Switch
  • S103 - HI/LOW Beam Switch
  • S104 - Dome Lamp Switch
  • S105 - Door Switch
  • S920 - Horn Switch

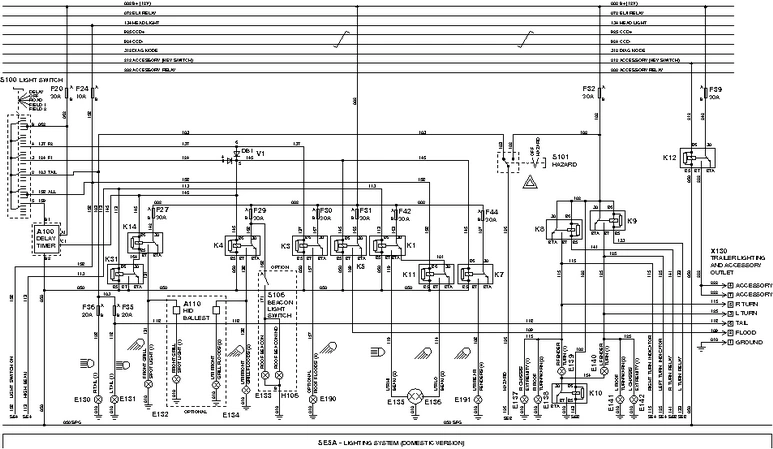

  • A100 - Delay Timer
  • A110 - HID Ballast
  • E130 - Right Tail Lamp
  • E131 - Left Tail Lamp
  • E132 - Front Grill Spot Light
  • E133 - Roof Beacon
  • E134 - Left/Right Front Grill Flood Lights (2)
  • E135 - Left HI/LO Beam Lamp
  • E136 - Right HI/LOW Beam Lamp
  • E137 - Right Chassis Extremity Light
  • E138 - Right Roof Turn/Warning Light (2)
  • E139 - Right Fender Turn Light
  • E140 - Left Fender Turn Light
  • E141 - Left Roof Turn/Warning Lights (2)
  • E142 - Left Chassis Extremity Light
  • E190 - Roof Flood Lights (4) (Optional)
  • E191 - Left/Right Rear Fender Floods (4)
  • F20 - Light Switch Fuse
  • F24 - Display Backlighting and Right Console Lamp Fuse
  • F27 - Front Grill Spot Light Fuse
  • F29 - Front Floods, Roof Beacon Fuse
  • F30 - Roof Flood Lights Fuse (Optional)
  • F31 - 7-way Accessory Outlet
  • F32 - Warning Light Switch, Left and Right Turn Signal Lights
  • F35 - Left Tail Lamp
  • F36 - Right Tail Lamp
  • F39 - 7-way Accessory Outlet Fuse
  • F42 - High/Low Beam Fuse
  • F44 - Left/Right Rear Fender Floods Fuse
  • H106 - Roof Beacon Indicator
  • K1 - High Beam Relay
  • K3 - Roof Flood Lights Relay (Optional)
  • K4 - Front Grill Floods Relay
  • K5 - 7-way Accessory Pin 2 Flood Lights
  • K7 - Left/Right Rear Fender Floods Relay
  • K8 - Right Turn Signal Relay
  • K9 - Left Turn Signal Relay
  • K10 - Fender Turn Lamps Relay
  • K11 - Low Beam Relay
  • K12 - 7-way Accessory Outlet Relay
  • K14 - Front Grill Spot Light Relay
  • K31 - K14 Grounding Relay
  • S100 - Light Switch
  • S101 - Warning Light Switch
  • S106 - Beacon Light Switch
  • X130 - 7-way Accessory Outlet (Trailer Lighting)
  • V1 - Diode Block 1

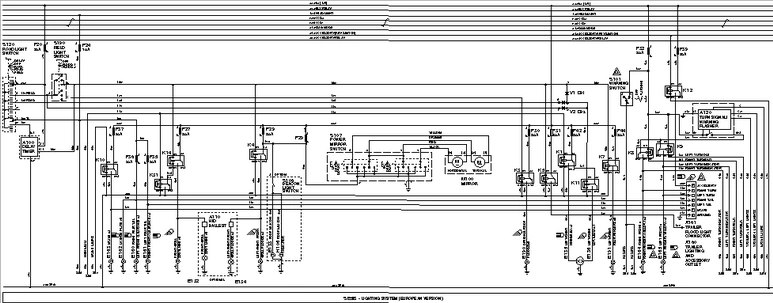

  • A100 - Delay Timer
  • A110 - HID Ballast
  • A120 - Turn Signal/Warning Flasher
  • E132 - Front Grill Spot Light
  • E133 - Beacon Light
  • E134 - Left/Right Front Grill Flood Lights (2)
  • E135 - Left HI/LO Beam Lamp
  • E136 - Right HI/LO Beam Lamp
  • E160 - Right Rear Taillight/Left Front Clearance Light (2)
  • E161 - Left Rear Taillight/Right Front Clearance (2)
  • E162 - License Plate Light
  • E163 - Brake Lights (2), 7 Pin Accessory Outlet terminal 6
  • E164 - Right Front and Fender Turn Signal (Yellow) (2)
  • E165 - Left Front and Fender Turn Signal (Yellow) (2)
  • E190 - Roof Flood Lights (4) (Optional)
  • E191 - Left/Right Fender Flood Lamps (4)
  • F20 - Light Switch Fuse
  • F24 - Display Backlighting and Right Console Lamp Fuse
  • F27 - Front Grill Spot Light Fuse
  • F29 - Front Grill Floods, Roof Beacon Fuse
  • F30 - Roof Flood Lights Fuse (Optional)
  • F31 - Trailer Lighting Flood Lights Fuses
  • F32 - Warning Light Switch, Left/Right Turn Signal
  • F35 - Left Rear Taillight/Right Front Clearance Light, 7 Pin Accessory Outlet Terminal 5
  • F36 - Right Rear Taillight/Left Front Clearance, License Plate Light, 7 Pin Accessory Outlet terminal 7
  • F37 - Brake Light Fuse
  • F39 - Trailer Lighting and Accessory Outlet Fuse
  • F42 - High/Low Beam Fuse
  • F44 - Left/Right Fender Fuse
  • H106 - Beacon Light Indicator
  • K1 - High Beam Relay
  • K3 - Roof Flood Lights Relay (Optional)
  • K4 - Front Grill Floods Relay
  • K5 - Trailer Lighting Flood Lights Relay
  • K7 - Left/Right Fender Floods Relay
  • K8 - Right Turn Relay
  • K9 - Left Turn Relay
  • K10 - Brake Light Relay
  • K11 - Low Beam Relay
  • K12 - Trailer Lighting and Accessory Outlet Relay
  • K14 - Front Grill Spot Light Relay
  • K31 - K14 Grounding Relay
  • M100 - Power Mirror
  • S101 - Warning Light Switch
  • S106 - Beacon Light Switch
  • S107 - Mirror Switch
  • S120 - Road Light Switch
  • S190 - Field Light Switch
  • V1 - Diode Block 1
  • V2 - Diode Block 2
  • X160 - Trailer Lighting and Accessory Outlet (Trailer Lighting)
  • X161 - Trailer Flood Light Connector (Eur)


  • E101 - Right Console Lights (2)
  • F41 - Convenience Outlets, Junction Blocks, Field Office Option, Auxiliary Power Strip, Cigarette Lighter (Unswitched circuit 262 only)
  • F47 - Convenience Outlets, Junction Blocks, (Left Side), Business Band Prewire, Field Office Option (Switched circuit 272 Only)
  • F48 - Convenience Outlets, Junction Blocks (Right Side), Auxiliary Power Strip (Switched circuit 192 only)
  • F500 - Back-Up Alarm Fuse
  • H500 - Back-Up Alarm Relay
  • K500 - Back-Up Alarm Relay
  • X240 - Left Junction Block #2
  • X241 - Right Junction Block #1
  • X242 - Convenience Outlet #1
  • X243 - Convenience Outlet #2
  • X244 - Convenience Outlet #3
  • X245 - Lighter #1
  • X246 - Lighter #2
  • X247 - Lighter #3
  • X248 - Auxiliary Power Strip
  • X249 - Business Band/CB Prewire


  • A830 - Hitch Control Unit/SCV I, II, III Control Unit (HSU/SCU)
  • B830 - Hitch Position Feedback Sensor
  • B832 - TOUCHSET™ Depth Control Position Sensor (cylinder 1)
  • B833 - TOUCHSET™ Depth Control Position Sensor (cylinder 2)
  • B890 - Hitch Draft Sensor
  • F5 - Hitch Control Unit (HCU) and SCV I Fuse
  • F6 - SCV II and SCV III Fuse
  • S830 - Hitch External Raise/Lower Switch
  • X830-1 - 30-way HCU/SCU Connector (White)
  • X830-2 - 18-way HCU/SCU Connector (White)
  • X831 - 8-way HCU/SCU Connector (Black) (SE7,W8), SCV I Solenoids-to-Chassis Harness (SE20,W8,W46)
  • X832 - 10-way HCU/SCU Connector (Black) (SE7,W8), SCV II and SCV III Solenoid-to-Chassis Harness
  • (SE20,W8,W46)
  • Y830 - Hitch Raise Solenoid
  • Y831 - Hitch Lower Solenoid
  • Y832 - SCV I Extend Solenoid (SE7, W8)(SE20,W46)
  • Y833 - SCV I Retract Solenoid (SE7, W8)(SE20,W46)
  • Y834 - SCV II Extend Solenoid (SE7, W8)(SE20,W47)
  • Y835 - SCV II Retract Solenoid (SE7, W8)(SE20,W47)
  • Y836 - SCV III Extend Solenoid (SE7, W8)(SE20,W47)
  • Y837 - SCV III Retract Solenoid (SE7, W8)(SE20,W47)
