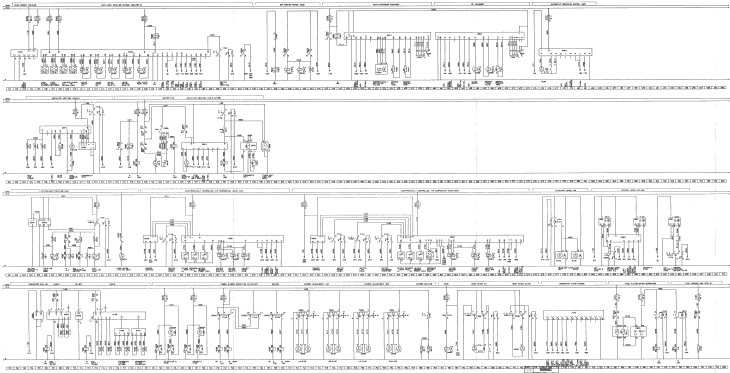

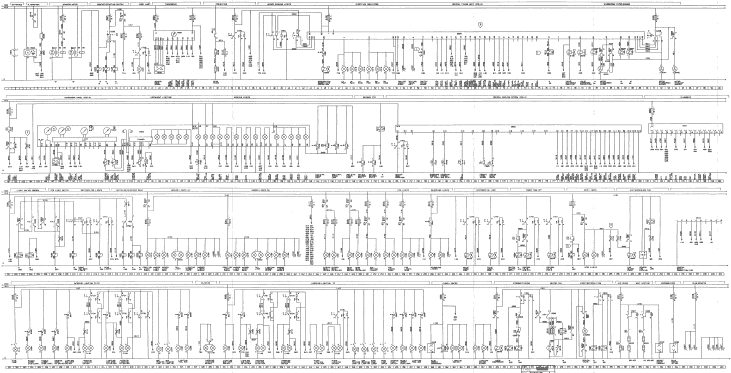

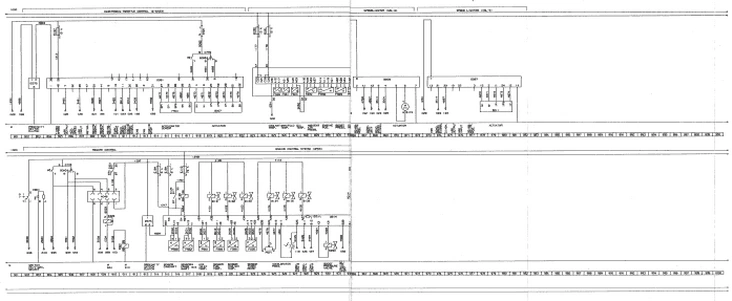

Электросхемы DAF 95XF CHASSIS NUMBER from 0E473500







OVERVIEW OF BASIC CODE NUMBERS IN CIRCUIT DIAGRAM 1316630/13-23
Column 1 : Basic code number
Column 2 : Description
Column 3 : Number on search bar of circuit diagram 1316630/13-23

Column 1      Column 2        Column 3
  • A000 (Semi-)trailer socket (7-pin) 56/57/230/241/284/399
  • A001 Rear fog light back-up light socket (7-pin) 258/262/397/399
  • A004 ABS FA socket (7-pin) 404
  • A007 24V socket (2-pin) 395
  • A021 Diagnostic socket (16-pin) 191
  • A026 Superstructure side-lights (4-pin) 230/241/396/400
  • A027 Accessory socket (4-pin) 400
  • A031 Diagnostic socket, 2-pin, SAE CUMMINS 849/850
  • A038 Accessory socket (2-pin) 40A 394
  • A040 Alarm system socket 776
  • A042 Dashboard socket (2-pin) 360
  • A043 Chair console socket on driver’s side (2-pin) 392
  • A046 Connector for the body builder for remote control connection 908
  • A500 Batteries (2) 2
  • A502 Generator of integrated voltage regulator 4
  • B000 Windscreen-wiper motor 84
  • B001 Windscreen-wiper pump motor 92
  • B002 Headlight-washer pump motor 94
  • B003 Electric motor for window control, driver’s side 728
  • B004 Electric motor for window control, co-driver’s side 724
  • B005 Left-hand mirror adjustment motor 741/750
  • B006 Right-hand mirror adjustment motor 745/754
  • B007 Vehicle/engine speed regulator motor E-gas 818
  • B009 Roof hatch motor 772
  • B010 Starting motor 8/11
  • B011 Electric motor for speed limiter 878
  • B015 4-speed heater fan 376/378/521/522/523
  • B017 Mirror heating, driver’s side 758
  • B018 Mirror heating, co-driver’s side 759
  • B023 Radio 707
  • B024 Left-hand loudspeaker 708/714
  • B025 Right-hand loudspeaker 709/715
  • B026 Citizen Band 711
  • B028 Air horn 762
  • B030 Cigarette lighter, driver’s side 362
  • B032 Seat heating, driver’s side 388
  • B033 Seat heating, co-driver’s side 390
  • B036 Resistor, alternator, D+ 6
  • B038 Glow filament 30/947
  • B039 Glow filament 30/947
  • B040 Glow filament 948
  • B041 Glow filament 948
  • B042 Air dryer element heating 386
  • B043 Air-conditioning compressor 369
  • B071 Lifting-gear lifting valve 613
  • B072 Lifting-gear lowering valve 607
  • B073 Lifting-gear motor pump 617
  • B079 Valve single-H-safety 81
  • B088 Intarder valve, proportional 468
  • B089 Intarder valve, air supply 466
  • B122 Fuel metering pump for auxiliary heating, Eberspächer 510/526
  • B129 Electric motor for left-hand headlight-height adjustment 678
  • B130 Electric motor for right-hand headlight-height adjustment 680
  • B131 Magnetic valve pump unit/injector cylinder 1 919
  • B132 Magnetic valve pump unit/injector cylinder 2 921
  • B133 Magnetic valve pump unit/injector cylinder 3 922
  • B134 Magnetic valve pump unit/injector cylinder 4 925
  • B135 Magnetic valve pump unit/injector cylinder 5 926
  • B136 Magnetic valve pump unit/injector cylinder 6 928
  • B166 Valve, ECAS front axle 634/665
  • B168 Glow filament for D1LC auxiliary heating 508
  • B170 Automatic lubrication pump with push-button switch 475
  • B174 Electric motor for speed limiter 871
  • B175 Roof panel motor Super Space Cab 766
  • B178 Left-hand loudspeaker 716
  • B179 Left-hand loudspeaker 718
  • B180 Right-hand loudspeaker 719
  • B181 Right-hand loudspeaker 720
  • B182 Fuel heater 797
  • B185 Radio 713
  • B186 Loudspeaker filter, driver’s side 717
  • B187 Loudspeaker filter, co-driver’s side 719
  • B192 Engine brake valve 79/851/934
  • B199 Central door locking, driver’s side 688
  • B200 Central door-locking motor, co-driver’s side F249 XH/XC 683/693
  • B237 ASC valve 419
  • B238 Valve ECAS driven axle, left/right, air supply (FT) 632
  • B241 Sensor for heating element fuel filter/water separator 785
  • B243 Axle locking differential control valve 265
  • B244 Inter-axle locking differential control valve 268
  • B245 PTO control valve 273
  • B246 PTO control valve 277
  • B247 Engine brake (DEB) valve 440
  • B248 Engine brake (DEB) valve 441
  • B250 Valve ECAS driven axle, left/right, air supply (FA) 630
  • B252 Recirculation valve 381
  • B253 Valve ECAS driven axle, left/right, air supply 662
  • B254 Valve ECAS trailing/leading axle lifting/lowering 667
  • B256 Left-hand front ABS valve 411
  • B257 Right-hand front ABS valve 413
  • B258 Left-hand rear ABS valve 415
  • B259 Right-hand rear ABS valve 417
  • B290 Electro-pneumatic boost pressure valve 930
  • B293 Gearbox gate safety valve 45
  • B294 Switch-off cab suspension valve, front height control 288
  • B298 Switch-off cab suspension valve, back height control 452
  • B501 Compact tachograph 22
  • C000 Dipped beam, left 245
  • C001 Dipped beam, right 246
  • C002 Main beam, left 249
  • C003 Main beam, right 250
  • C006 High-beam headlight, left 251
  • C007 High-beam headlights, right 252
  • C008 Fog light, front left 254
  • C009 Fog light, front right 255
  • C010 Side-headlight, left 220
  • C011 Side-headlight, right 232
  • C012 Side-light, front left 222
  • C013 Side-light, front right 233
  • C014 Direction indicator lamp, front left 48
  • C015 Direction indicator lamp, front right 51
  • C016 Direction indicator lamp, left, side 50
  • C017 Direction indicator lamp, right, side 54
  • C018 Rear direction indicator, left 49
  • C019 Rear direction indicator, right 52
  • C020 Brake light, left 281
  • C021 Brake light, right 283
  • C022 Rear light, left 225
  • C023 Rear light, right 236
  • C024 Fog light, rear left 256
  • C025 Fog light, rear right 257
  • C026 Back-up light, left 260
  • C027 Back-up light, right 261
  • C046 Map-reading lamp, driver’s side 322/349
  • C047 Map-reading lamp, co-driver’s side 323/351
  • C052 Heater fan light, left 366
  • C053 Heater fan light, right 367
  • C062 Stepwell lighting, driver’s side 309/331
  • C063 Stepwell lighting, co-driver’s side 315/333
  • C064 Central upper storage compartment lighting 304/356
  • C065 Central lower storage compartment lighting 305
  • C066 Right-hand storage compartment lighting 307
  • C067 Left-hand storage compartment lighting 325/357
  • C068 Right-hand tool compartment lighting 326/358
  • C071 Work lamp 19
  • C072 Ashtray light, left 363
  • C073 Ashtray light, right 364
  • C074 Side-light, rear left 223
  • C075 Side-light, rear left 234
  • C110 Lower bunk reading lamp with switch 352
  • C111 Upper bunk reading lamp with switch 353
  • C115 Bunk reading lamp with switch 302
  • C130 Red interior night light, driver’s side 346
  • C139 Red interior night light, co-driver’s side 344
  • C148 Interior lighting, driver’s side 2 x 21W 317/336
  • C149 Interior lighting, co-driver’s side 2 x 21W 312/339
  • C150 Left-hand storage compartment lighting 355
  • C151 Central interior lighting with switch 329
  • C154 Rear number plate light, left (trucks) 226
  • C155 Rear number plate light, right (trucks) 237
  • C156 First side-light left (trucks) 227
  • C157 First side-light right (trucks) 238
  • C158 Second side-light left (trucks) 228
  • C159 Second side-light right (trucks) 240
  • C539 Accessory start-contact switch 15
  • C588 Switch, 4-speed heater fan 377/522
  • C622 Switch, vehicle lighting and marker lights 204/207
  • C677 Fuel heater switch 794
  • C695 Switch for mirror adjustment, driver’s side 743/751
  • C696 Switch for mirror adjustment, co-driver’s side 747/755
  • C697 Switch for seat heating, driver’s side 388
  • C698 Switch for seat heating, co-driver’s side 390
  • C725 Work light switch 19
  • C726 Glow plug switch 32
  • C727 Rear fog light switch 210
  • C731 Interior lighting switch, roof console (bunk control), co-driver’s side F249 XC 317/337
  • C732 Interior lighting switch, roof console, co-driver’s side F249 XC 317/337
  • C733 Interior lighting switch, roof console (bunk control), driver’s side F249 XC 312/340
  • C734 Interior lighting switch, roof console, driver’s side F249 XC 312/340
  • C735 Interior night lighting switch FG249 XC 319/347
  • C736 Roof panel switch F249 XL/XH/XC 766/771
  • C737 ASC-traction switch 430
  • C738 Speed regulator cut-out switch 861
  • C739 Lifting-gear switch 613
  • C740 Switch ECAS, normal level 623/646
  • C741 Switch ECAS axle lifting 649
  • C742 Auxiliary drive-off switch 653
  • C743 Switch for electric window control on co-driver’s side (door on driver’s side) 730
  • C744 Switch for electric window control on co-driver’s side (door on co-driver’s side) 735
  • C745 Switch for electric window control on driver’s side (door on driver’s side) 738
  • C746 Switch, mirror heating 759
  • C747 Control switch for fuel filter/water separator 791
  • C748 Axle locking differential control switch 265
  • C749 Inter-axle locking differential control switch 268
  • C750 PTO control switch 273
  • C751 PTO control switch 277
  • C754 Engine-brake switch VF engine 859
  • C760 Air-conditioning switch 372
  • C761 CWS switch, more warnings 155
  • C763 Potentiometer for instrument light dimming 119
  • C764 Potentiometer for headlight-height adjustment 676
  • C765 Hazard light switch (with LED search light) 38
  • C773 Rear fog light switch 214
  • C774 Central door locking switch 693
  • C775 Switch for direction indicator, main beam/dipped beam/horn 41/217/762
  • C776 Stalk switch 91/818/839/905
  • C778 Switch for auxiliary heating 513/531
  • C799 Switch for retarder 458/471
  • C802 Recirculation switch 383
  • C803 Central door locking switch 684
  • C804 Flexible vehicle speed limitation switch 902
  • D503 Electronic unit for lifting gear 605
  • D525 Electronic unit for converter 24/12V 705
  • D529 Electronic unit for ECAS remote control 621/644
  • D587 Electronic unit for ZF intarder 472
  • D591 Electronic unit for E-gas 3 804
  • D597 Electronic unit for speed limiter for ASL-V 873
  • D609 Diode for light switch 208
  • D610 Diode for main beam/dipped beam 217
  • D611 Diode for lifting gear lowering valve damping 606
  • D612 Diode for lifting gear lifting valve damping 612
  • D613 Diode for lifting gear relay pump damping 610
  • D622 Diode for lifting gear lifting lock 613
  • D623 Diode for lifting gear lowering lock 607
  • D668 Diode for generator safety (D+) 6
  • D703 Diode for switching off the auxiliary heating/door contact at driver’s side 506
  • D704 Diode for switching off the auxiliary heating/door contact at co-driver’s side 505
  • D705 Diode for switching off the auxiliary heating with running engine 504
  • D708 Diode for interior lighting, prevent feedback to co-driver’s stepwell 316/335
  • D709 Diode for interior lighting, prevent feedback to co-driver’s switch 336
  • D710 Diode for interior lighting, prevent feedback to driver’s switch 312/340
  • D721 Diode for parking brake, prevent feedback 104
  • D722 Diode for brake lights, prevent feedback 285
  • D745 Diode for engine brake (DEB) valves 443
  • D758 Diode prevent feedback to CWS 291
  • D759 Diode prevent feedback to brake lights 286
  • D802 Electronic unit for ECAS-2 655
  • D804 Electronic unit for DAF/Cummins interface 861
  • D805 Electronic unit, CUMMINS CELECT 824
  • D806 Electronic unit for automatic lubrication 475
  • D809 Electronic unit for speed limiter for ASL-G 866
  • D814 Electronic unit ECS 915
  • D850 Electronic unit for ABS/ASC D-version 407
  • D851 Electronic unit for ECAS-2 (4x2) 626
  • D852 Instrument panel DIP-3 105
  • D853 Electronic unit for CWS-2 155
  • D855 Electronic unit for water separator 788
  • D862 Electronic unit, central door locking 684
  • D870 Electronic unit for Voith retarder 133-2 448
  • D871 Electronic unit for auxiliary heating D3LC 512
  • D884 Electronic unit CTE–3 43
  • D901 Electronic unit for auxiliary heating Eberspächer Hydronic 10 526
  • E000 Fuse for side-light, rear left 220
  • E001 Fuse for side-light, rear right 232
  • E004 Fuse, dipped beam, driver’s side 245
  • E005 Fuse for dipped lights indicator lamp, co-driver’s side 246
  • E006 Fuse for main beam, driver’s side 249
  • E007 Fuse for main beam indicator lamp, co-driver’s side 250
  • E008 Fuse, spot lights 251
  • E009 Fuse, front fog lights 254
  • E010 Fuse, rear fog lights 256
  • E013 Fuse, brake lights 280
  • E016 Fuse, reversing lights 260
  • E019 Fuse, preglowing, CTE, direction indicators, engine brake 32
  • E023 Fuse for switch for cold start, tachograph, auxiliary heating programming clock 22
  • E025 Fuse, windscreen wiper, headlight washer 91
  • E026 Fuse, cigarette lighter 362
  • E027 Fuse, 24V/12V converter 17
  • E028 Fuse, cab interior lighting 302/332
  • E029 Fuse for engine brake/retarders 446
  • E030 Fuse, horn 762
  • E031 Fuse for heater fan ITC unit 369/519
  • E033 Fuse, electric window control motor, co-driver’s side 723
  • E034 Fuse, electric window control motor, driver’s side 727
  • E035 Fuse for instruments and indicator lamps 101
  • E037 Fuse for contact switch 15
  • E040 Fuse, ABS 420
  • E041 Fuse, ABS 407
  • E042 Fuse, ABS 408
  • E043 Fuse, ABS, (semi-)trailer 404
  • E044 Fuse, mirror heating/adjustment 731
  • E048 Fuse, central power supply, (semi-)trailer 397
  • E051 Fuse for ECAS-1 658
  • E052 Fuse for ECAS remote control working light 19
  • E053 Fuse for ECAS diagnostic connector (16-pin) 191
  • E062 Fuse, lifting gear and ECAS 613/627/642
  • E084 Fuse, lighting 201
  • E091 Fuse, for air dryer element/fuel contamination separator 386
  • E108 Fuse for CTE–2/CTE–3 46
  • E112 Fuse for glow indicator lamp 31/949
  • E114 Fuse, auxiliary heating Eberspächer 510/520
  • E117 Fuse for search light 243
  • E118 Fuse, relay for UPEC power supply 917
  • E143 Fuse for E-gas tachograph 27
  • E157 Fuse, automatic lubrication 476
  • E160 Fuse for Cummins motor 824
  • E161 Fuse for Cummins motor 825
  • E164 Fuse for fuel heater before contact 797
  • E167 Fuse for take-over relay, starting motor 9
  • E168 Fuse for accessories/microwave 394
  • E170 Fuse for fuel filter/water separator control 789
  • E171 Fuse for fuel filter/water separator 785
  • E172 Fuse for ABS (semi-)trailer 10A 405
  • E184 Fuse UPEC 915
  • E194 Fuse for UPEC for the body builder 914
  • E197 Fuse for E-gas 805
  • E501 Control switch for back-up light 260
  • E507 Proximity switch for axle load protection of lifting-gear (10 tonnes) 604
  • E508 Thermal switch for air-conditioning compressor 372
  • E509 High / low pressure air-conditioning control switch 372
  • E511 Brake light control switch 280
  • E514 Control switch for interior step lighting, door switch on driver’s side 309/332
  • E515 Control switch for interior step lighting, door switch on co-driver’s side 315/334
  • E524 Control switch for lifting-gear limit switch oil pressure 611
  • E525 Control switch for central upper storage compartment lighting 304/356
  • E526 Control switch for central lower storage compartment lighting 306
  • E527 Control switch for right-hand storage compartment lighting 308
  • E528 Control switch for left-hand storage compartment lighting 325/358
  • E529 Control switch for right-hand tool compartment lighting 326/359
  • E550 Control switch for glow filament temperature 932
  • E560 Control switch for left-hand storage compartment lighting 355
  • E561 Control switch of gearbox gate safety 45
  • E564 Engine brake control switch 59/942
  • E566 Control switch for thermostat for auxiliary heating Eberspächer (D1LC) 511
  • E570 Control switch for coupling/PTO N/10 272
  • E571 Control switch for auxiliary heating Thermo 90 531
  • E575 Clutch proximity switch 803/857/913
  • E579 Proximity switch for thermostat for auxiliary heating fan Eberspächer 534
  • E580 Proximity switch for timer for auxiliary heating fan Eberspächer 536
  • F000 Parking brake control switch 101
  • F006 Control switch for differential lock, 1st differential 144
  • F007 Control switch for differential lock, 3rd differential 148
  • F011 Control switch for engine oil pressure 164
  • F033 Control switch for splitter signalling 127
  • F038 Control switch for differential lock, 2nd differential 147
  • F047 Control switch for steering system (1st circuit) 160
  • F048 Control switch for steering system (2nd circuit) 162
  • F050 Control switch for differential lock pressure (1st and 2nd differentials) 145
  • F087 Control switch for gearbox PTO 150
  • F088 Control switch for gearbox PTO 152
  • F501 Engine-speed sensor 107
  • F509 Cab temperature sensor of auxiliary heating 535
  • F512 Sensor for ABS blocking signal, front left 406
  • F513 Sensor for ABS blocking signal, front right 407
  • F514 Sensor for ABS blocking signal, left-hand drive axle 408
  • F515 Sensor for ABS blocking signal, right-hand drive axle 410
  • F531 Sensor for accelerator pedal E-gas 815
  • F533 Vehicle-speed sensor (4-pin), 1st 22
  • F535 Sensor for engine coolant temperature 115
  • F544 Sensor for coolant temperature of secondary retarder 456/469
  • F552 Crankshaft position sensor 917
  • F555 Boost pressure sensor 923
  • F558 Camshaft position sensor 915
  • F561 Inlet-air temperature sensor 918
  • F565 Fuel temperature sensor 920
  • F566 Sensor for engine coolant temperature 921
  • F571 Sensor for accelerator pedal ECS 840/841/924/927
  • F585 Sensor for engine coolant level 167
  • F608 Sensor for fuel level 116
  • F612 Height sensor, ECAS left-hand rear axle 626/655
  • F613 Height sensor, ECAS right-hand rear axle 627/657
  • F614 Height sensor, ECAS front axle 628/658
  • F615 Pressure sensor, ECAS driven axle, left/right 659
  • F616 Cab locking sensor 289
  • F620 Sensor for oil temperature in Voith retarder 133-2 454
  • G000 Relay, width/marker/tail lights 207/220
  • G001 Relay, dipped beam 217/245
  • G002 Relay, main beam 218/249
  • G003 Relay, spotlights 219/251
  • G004 Relay, front fog light 210/254
  • G005 Relay, rear fog light 214/256
  • G014 Glow-filament relay 30/76/932/947
  • G015 Contact relay 5/15
  • G028 Relay for electric window control, co-driver’s side 722/730
  • G029 Relay for electric window control, co-driver’s side 724/732
  • G030 Relay for electric window control, driver’s side 726/738
  • G031 Relay for electric window control, driver’s side 728/739
  • G036 Relay for brake light, 1st 280/281
  • G052 Lifting-gear motor relay 609/617
  • G065 Heater fan relay 520/524
  • G066 Lifting-gear takeover relay 609/611
  • G126 Relay for UPEC power supply 916/917
  • G170 Auxiliary-heating fan relay 520/531
  • G178 Relay, accessories 16/17
  • G201 Relay for fuel heater EFPH 794/797
  • G203 Starting-motor takeover relay 9/14
  • G231 Radio lighting relay (12V) 706/708/712/713
  • G234 Relay for window control, fuel filter/water separator 785/791
  • G236 Windscreen wiper microrelay (speed 1 or 2) 84/86
  • G237 Windscreen wiper microrelay (automatic zero position) 85/88
  • G238 Headlight-washer microrelay 83/94
  • G239 Relay for disengaging third brake 421/434
  • G240 PTO/engine speed microrelay 101/153
  • G243 Engine brake (DEB) microrelay 438/440/443/936
  • G247 Auxiliary-heating fan relay 519/526
  • G257 Recirculation valve microrelay 381/383
  • G258 Recirculation valve microrelay 381/384
  • G259 N-10-PTO control relay 272/273
  • G267 Air-conditioning microrelay 369/372
  • G279 Air-conditioning microrelay 371/375
  • G280 Heater fan relay 378/380
  • G284 Microrelay for Voith retarder 133-2 446/447
  • G297 Cab air suspension relay 288/291
  • G300 Microrelay for auxiliary heating, Thermo 90 517/518
  • G301 Microrelay, light D+ 203/204
  • G302 Microrelay for Swedish lighting 202/206
  • G321 UPEC connector relay for the body builder 910/911
  • G328 UPEC engine stop relay 909/944
  • G516 Central earth cab co-driver’s side 294
  • G525 Central earth flywheel housing motor 847
  • G718 Connection parking brake/PTO 102
  • G721 Speed regulator switch connection 818/839
  • G723 Connection for central door locking 694
  • G725 Connection for auxiliary heating D3LC 510
  • G726 Connection panel switch DEB 438


Назад к содержимому | Назад к главному меню
