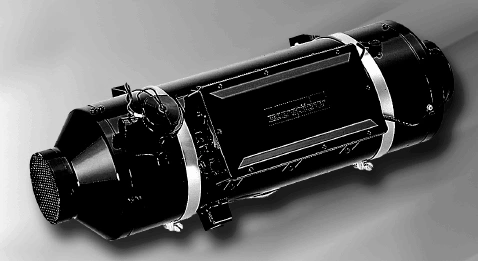

Автономный отопитель Eberspächer AIRTRONIC D 8 L C
(Air heater 8 L)



Parts list for the circuit diagram
1.1 Burner engine
1.1.1 Resistance for burner motor (partial load)
1.2 Glow plug
1.5 Overheating sensor
1.7 Printed circuit board
1.8.5 Varistor
1.12 Flame sensor
1.13 Temperature sensor
2.1 Controller
2.2 Dosing pump
2.3 Air solenoid (for combustion air)
2.5.1 Relay glow plug
2.7 Main fuse 12 Volt = 30 A
24 Volt = 25 A
2.15.1 Temperature sensor (room temperature)
5.1 Battery

Parts list circuit diagrams control elements
2.5.9 Ventilation relay
2.15.1 Temperature sensor (room temperature)
2.15.9 Temperature sensor (outside temperature)
3.1.11 Controll device circular
3.1.12 Fault code query, optional
3.1.16 Button, radio remote control
3.1.18 Button, CALLTRONIC
3.2.8 Timer (ADR – Potentiometer)
3.2.9 Timer, ADR
3.2.12 Timer, Mini – 12 / 24 Volt
3.2.14 Lighting, mini timer – nur 12 Volt
3.3.6 Radio remote control stationary part TP41i
3.3.7 Radio remote control stationary part TP5
3.3.8 Remote control CALLTRONIC
3.6.1 Cable harness for 3.1.11
3.8.3 Antenna
3.9.1 Diagnosis, JE diagnosis
a) Terminal "58" (lighting)
b) Terminal "15" (ignition)
c) Wiring bridge required for normal operation (not ADR)
d) External button ON/OFF
e) Timer connection: unravel line X here
f) Connection radio module
z) Lighting, terminal 58
Insulate any cable ends not being used.
Connectors and bush housings are shown from the cable inlet side.

Cable colours
  • rt = red
  • bl = blue
  • ws = white
  • sw = black
  • gn = green
  • gr = grey
  • ge = yellow
  • vi = violet
  • br = brown
  • li = purple

EasyStart R+ / R / T
2.5.9 Ventilation relay
2.15.1 Temperature sensor (room temperature) (included in the EasyStart R+ scope of supply, optional for EasyStart R / T)
2.15.9 External temperature sensor (optional)
3.1.7 ”ON / OFF“ button
3.1.11 ”Round“ control unit
3.1.16 Radio remote control button
3.2.15 EasyStart T timer
3.3.9 EasyStart R radio remote control (stationary unit)
3.3.10 EasyStart R+ radio remote control (stationary unit)
3.6.1 Adapter cable
3.8.3 Antenna
c) Terminal "58" (lighting)
e) EasyStart T timer connection
g) External ”ON / OFF“ button (optional)

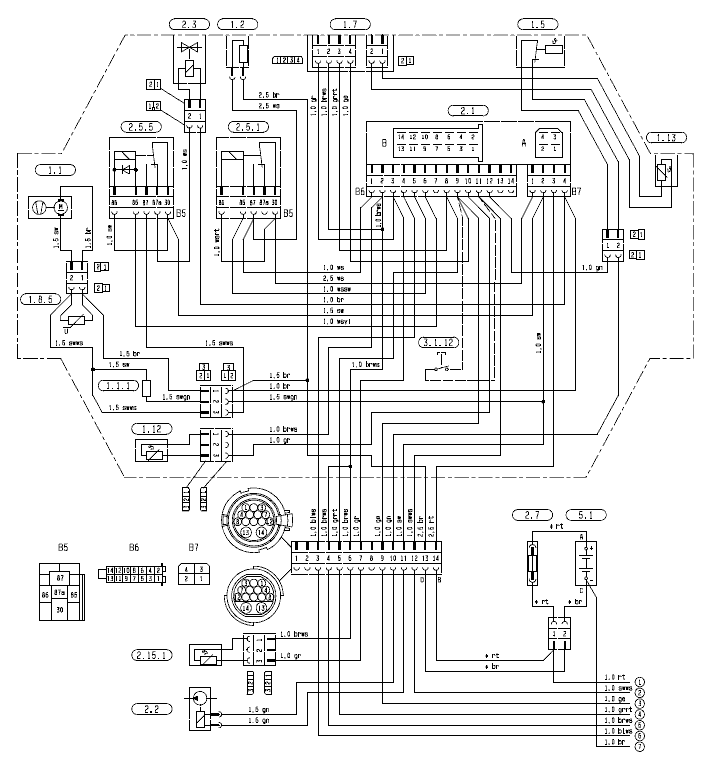

Circuit diagram air heater 8 L

25 1766 00 96 01 F

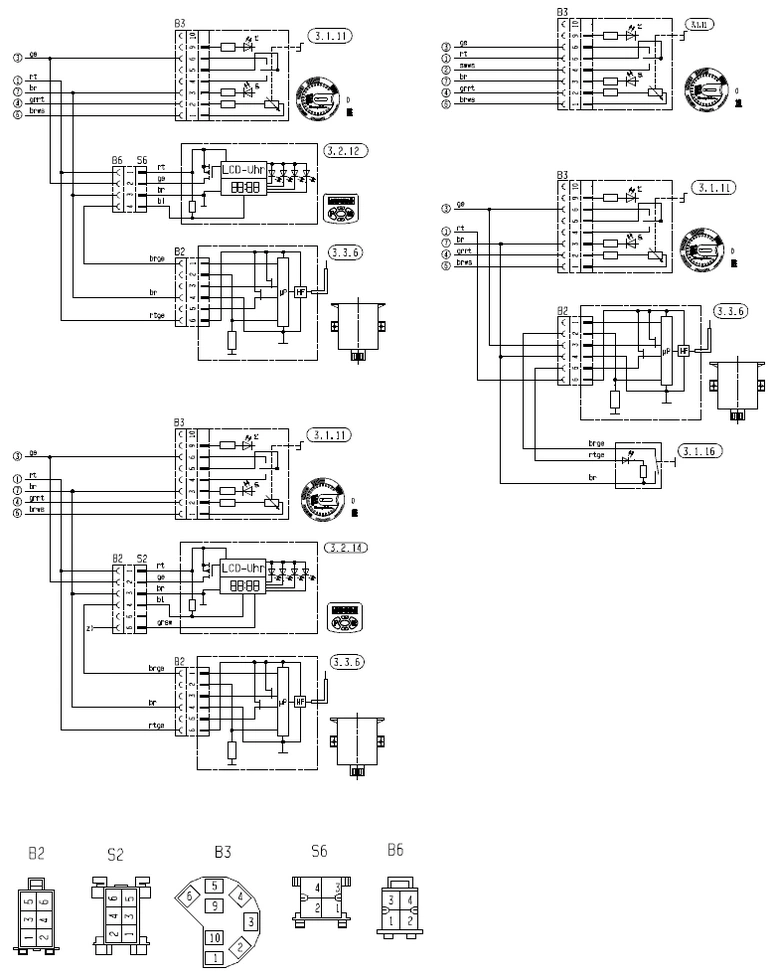

Circuit diagram – controls part 1

25 1766 00 96 01 F

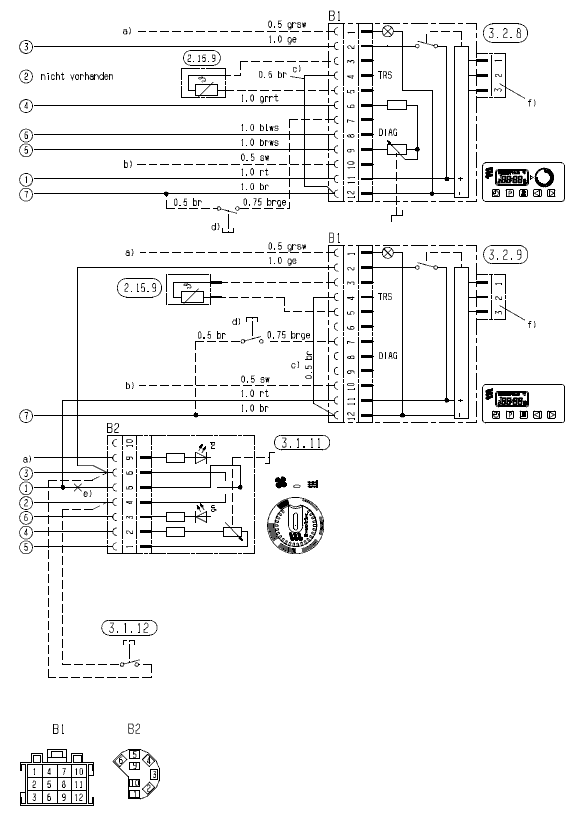

Circuit diagram – controls part 2

25 1766 00 96 03

Circuit diagram – controls part 3.1

25 1766 00 96 02

Circuit diagram – controls part 3.2

25 1766 00 96 02

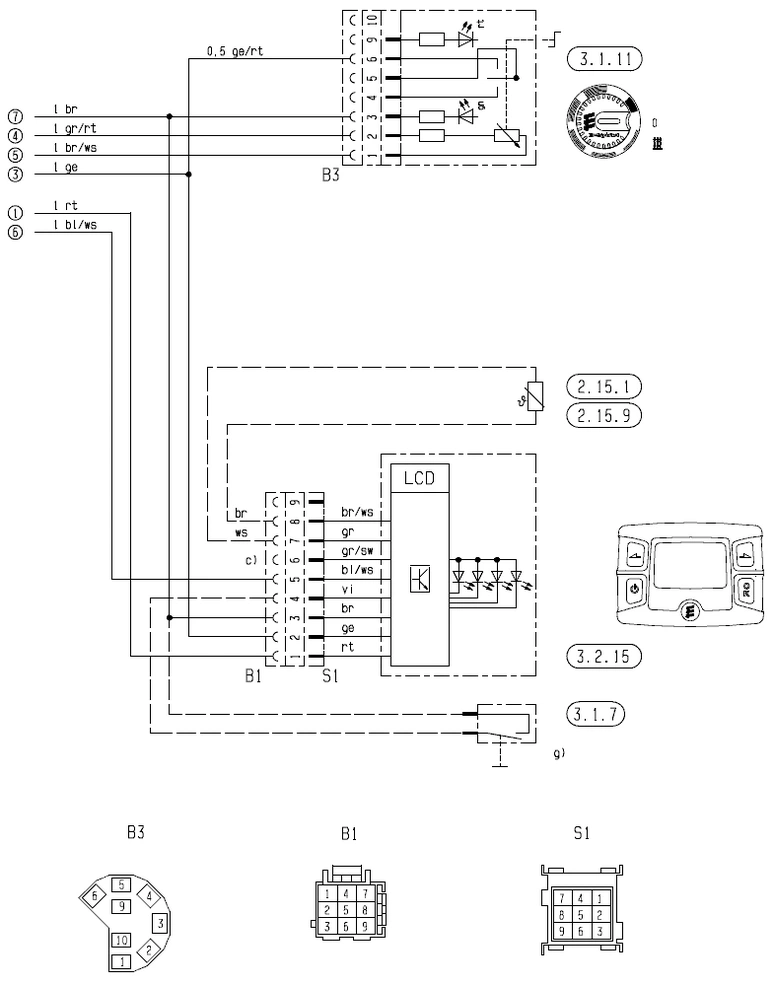

Circuit diagram – controls part 4

25 1766 00 96 04

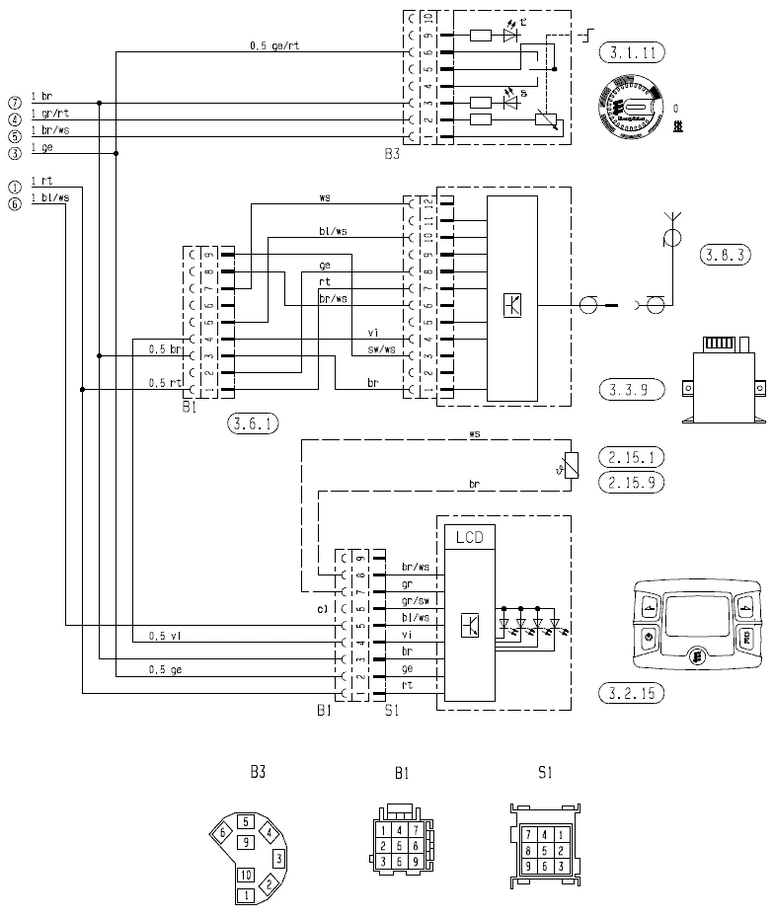

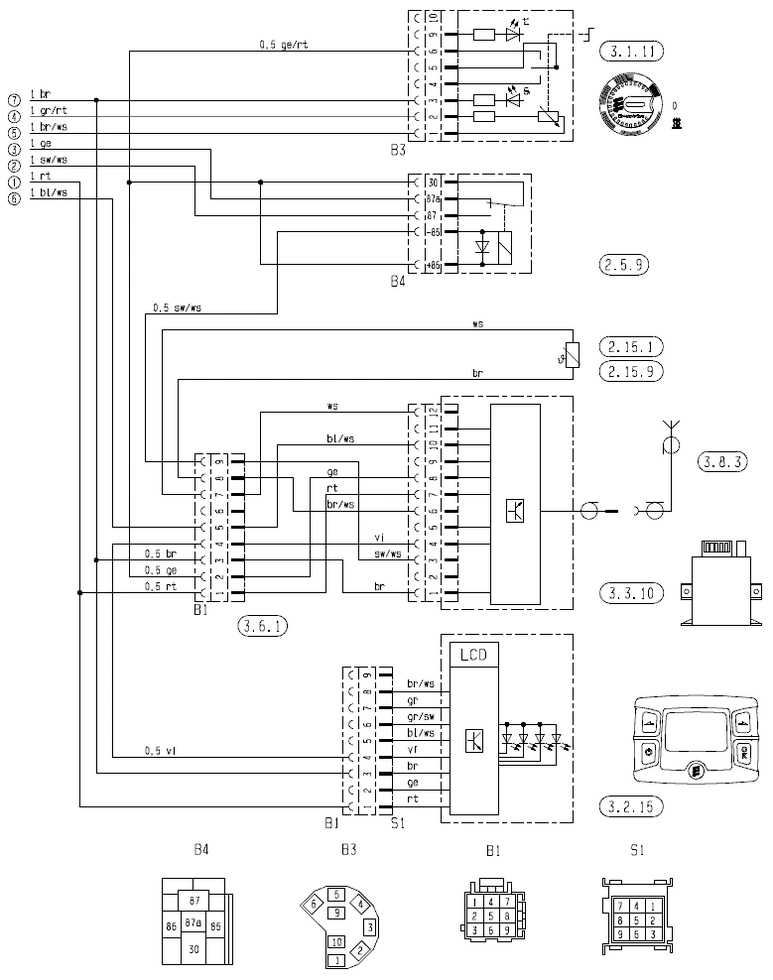

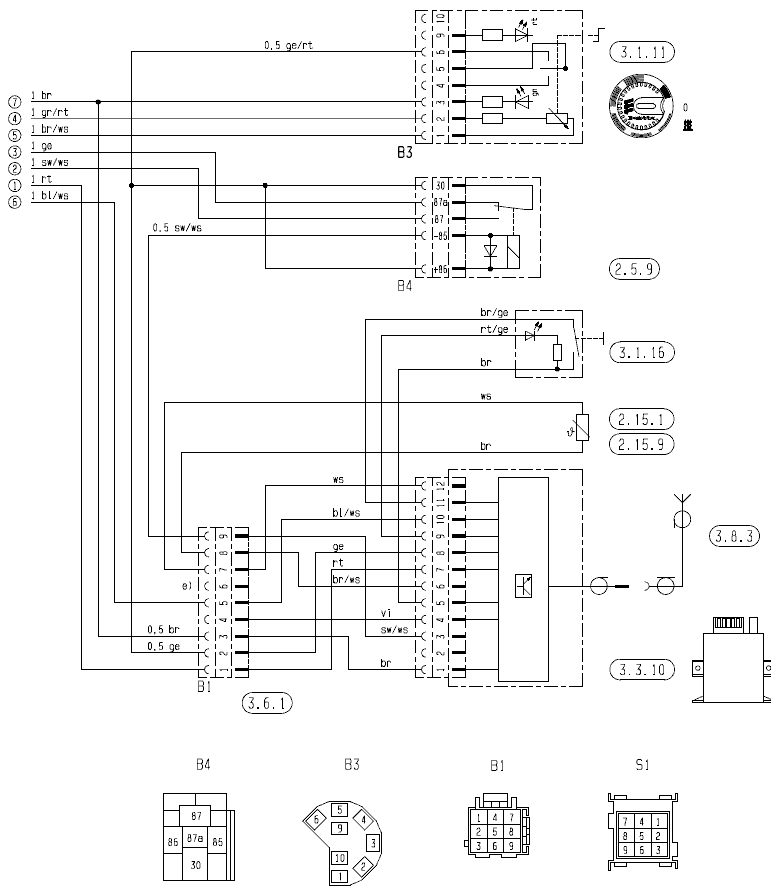

Circuit diagram – control unit EasyStart R+

25 1890 00 97 01 C

Circuit diagram – control unit EasyStart R+

25 1890 00 97 01 C

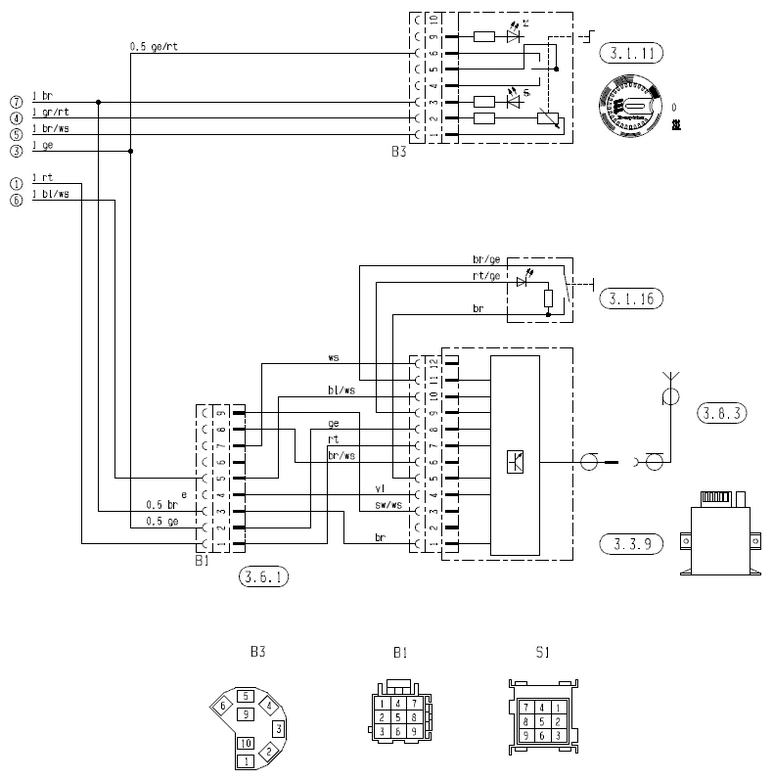

Circuit diagram – control unit EasyStart R

25 1890 00 97 02 B

Circuit diagram – control unit EasyStart R

25 1890 00 97 02 B

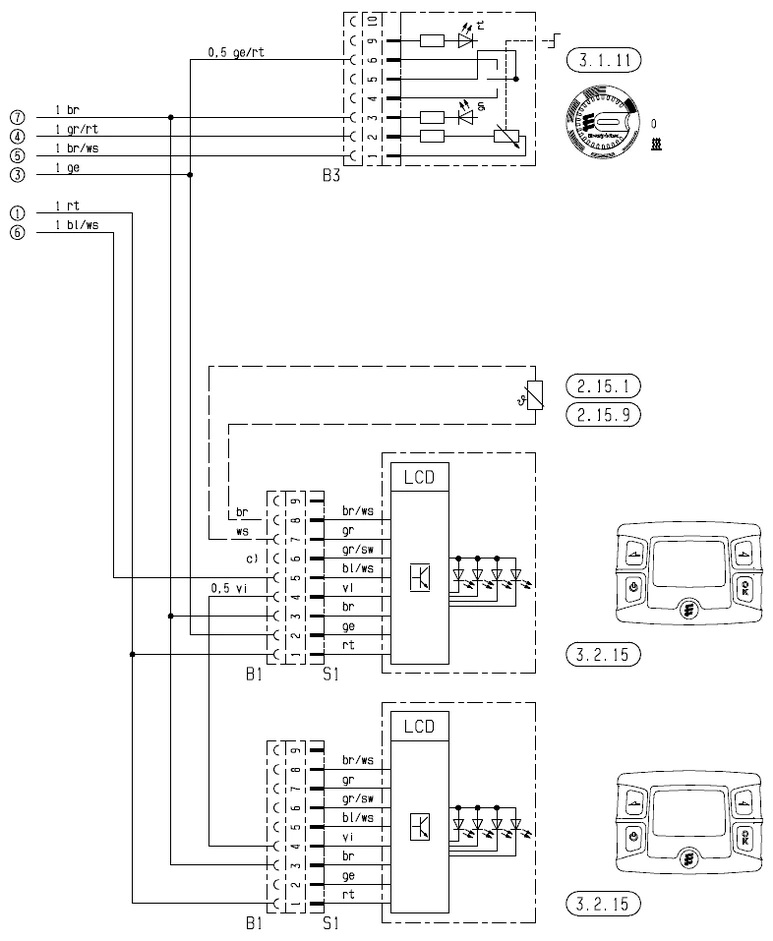

Circuit diagram – control unit EasyStart T

25 1890 00 97 03 A

Circuit diagram – control unit EasyStart T

25 1890 00 97 03 A
