Электросхемы E-gas 3 (ECAS) DAF

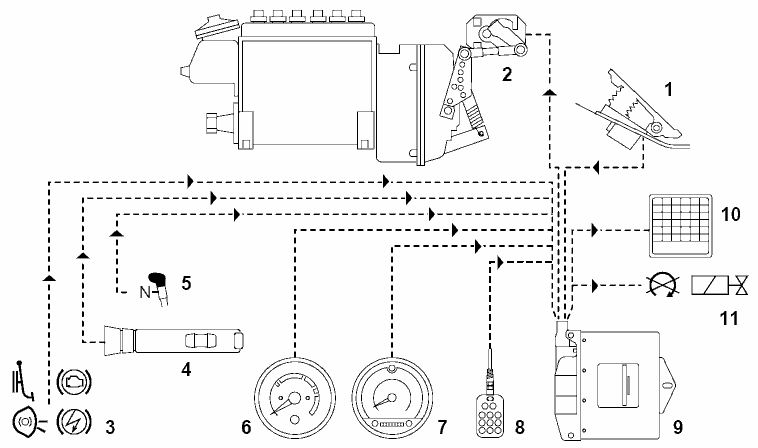

1. Pedal sensor
2. Actuator
3. Functions for switching off vehicle speed control (clutch, brakes, engine brake, retarder)
4. Multi-function switch
5. Gearbox neutral position switch
6. Engine speed signal
7. Vehicle speed signal
8. Remote control
9. Electronic unit
10. IWS/CWS panel
11. Engine stop valve

  • A021 Diagnostic socket (16-pin)
  • B007 Vehicle/engine speed E-gas regulator motor
  • B082 Engine stop/engine brake valve
  • B251 Neutral position buzzer, tilting cab
  • B501 Compact tachograph
  • B520 Compact tachograph, France (12 V)
  • C507 Switch windscreen wiper/washer intermittent, E-gas recommence cruise control, engine speed increase
  • D017 Warning lamp, PTO
  • D529 Remote control
  • D550 CTE-2 electronic unit
  • D555 Instrument panel
  • D561 Electronic unit IWS
  • D575 Instrument panel
  • D582 Electronic unit CWS
  • D587 ZF intarder Electronic unit
  • D591 E-gas 3 Electronic unit
  • D595 Electronic unit Voith retarder
  • D644 Diode, engine brake, cruise control, E-gas
  • D645 Diode, retarder, cruise control, E-gas
  • D669 Diode, PTO feedback
  • D712 Diode, engine PTO, prevent feedback
  • D721 Diode, parking brake, prevent feedback
  • D750 Diode, prevent feedback to 2nd PTO control
  • D816 DIP-2
  • D850 Electronic unit for ABS/ASC D-model
  • D852 Instrument panel DIP-3
  • D853 Electronic unit for CWS2
  • D884 CTE-3
  • E016 Fuse, gearbox neutral position
  • E019 Fuse, engine brake operation
  • E021 Fuse, engine brake, drawn vehicle
  • E030 Fuse, signal lever
  • E035 Fuse, instruments and warning lamps
  • E052 Fuse, ECAS remote control working light
  • E053 Fuse, diagnostic connector (16-pin)
  • E056 Fuse, E-gas
  • E062 Fuse, lifting gear, ECAS
  • E143 Fuse, E-gas, tachograph
  • E158 Fuse, CWS
  • E500 Operating switch, neutral position
  • E502 Operating switch, engine brake (pressure)
  • E522 Operating switch, E-gas clutch proximity switch
  • F000 Check switch, handbrake
  • F008 Control switch, engine PTO (NMV)
  • F039 Control switch, E-gas splitter
  • F041 Control switch, PTO
  • F081 Control switch, gearbox PTO
  • F082 Control switch, gearbox PTO
  • F531 Sensor, accelerator pedal, E-gas
  • G019 Relay, engine stop , E-gas
  • G036 Relay, brake light
  • G047 Relay, engine brake clutch
  • G120 Relay, E-gas PTO engine speed
  • G177 Relay, cab tilting in neutral position horn
  • G240 Micro relay, PTO/engine speed control
  • G516 Central earth connection, cab (co-driver’s side)
  • G701 Through-connection, E-gas

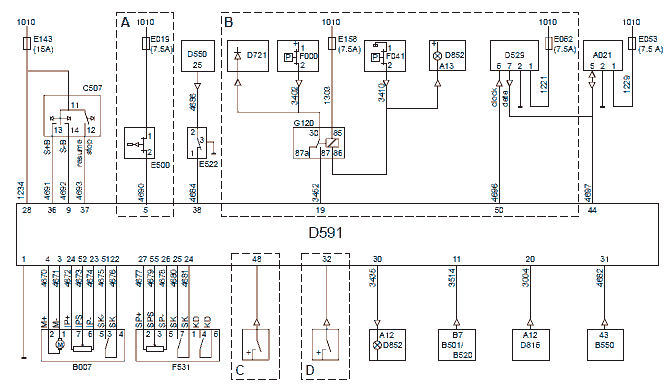

F75/F85 version up to and including week 45, 1995

A: Use if Eaton gearbox is present
B: Use if PTO is present

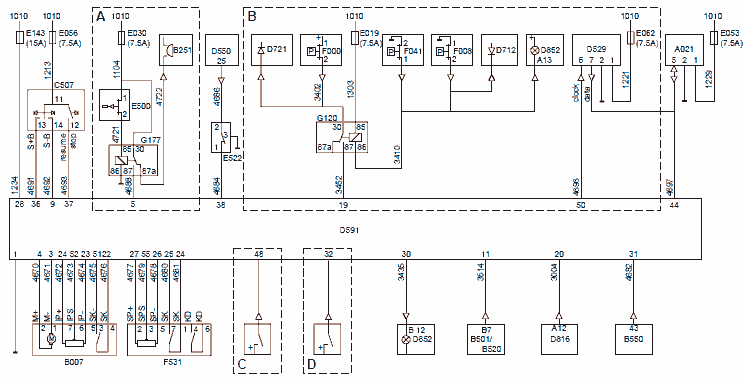

F75/F85 version from week 45,1995 up to and including week 25, 1996

A: Use if Eaton gearbox is present
B: Use if PTO is present
C: Fixed PTO speed N1
D: Speed limiter for special applications

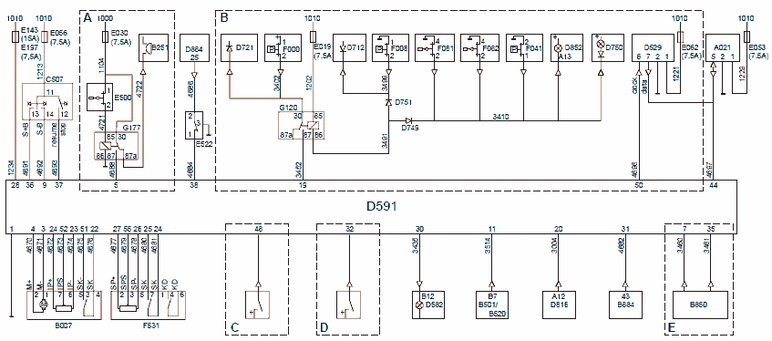

F75/F85 version from week 25, 1996

A: Use if Eaton gearbox is present
B: Use if PTO is present
C: Fixed PTO speed N1
D: Speed limiter for special applications

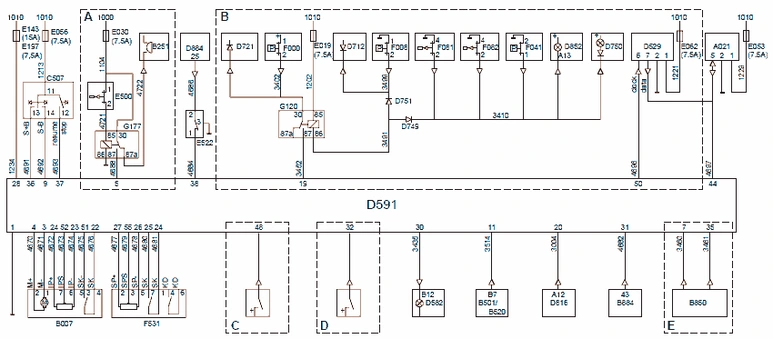

75/85 CF version

A: Use if Eaton gearbox is present
B: Use if PTO is present
C: Fixed PTO speed N1
D: Speed limiter for special applications
E: Use if ABS/ASR-D present

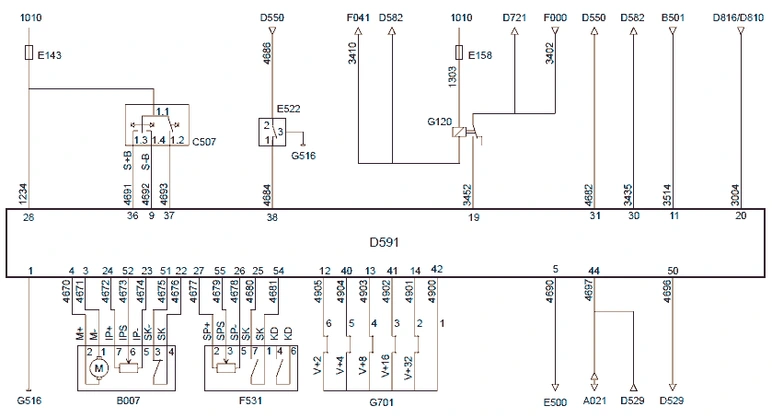

F95 version up to and including week 45, 1994

A: Use if retarder present
B: Use if no retarder is present

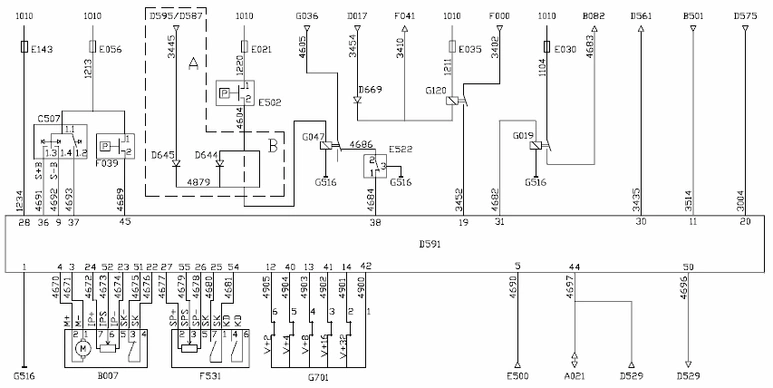

F95 version from week 45,1994 to week 45, 1995

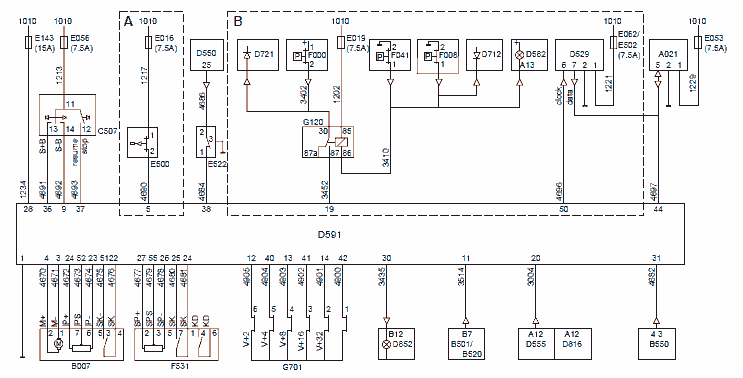

F95 version from week 45,1995 up to and including week 13, 1997

A: Use if Eaton gearbox is present
B: Use if PTO is present
C: Fixed PTO speed N1
D: Speed limiter for special applications

95 XF version

A: Use if ABS/ASR-D present
B: Use if PTO is present
C: Fixed PTO speed N1
D: Speed limiter for special applications
