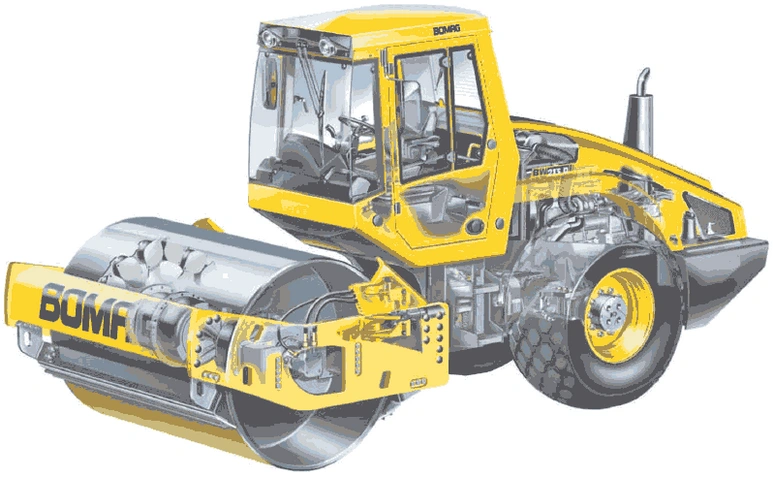

Engine BOMAG BW 213 / 214 (DH-4 / PDH-4)

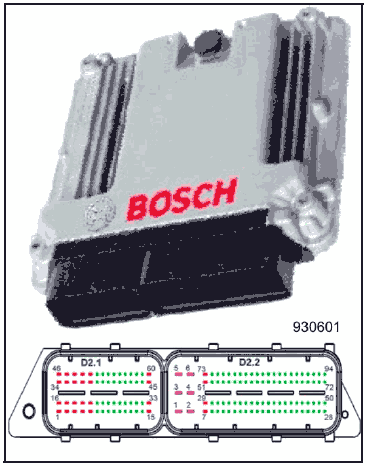

The EMR3-S (TCD 2012 and TCD 2013) engine control unit is fitted with two sockets on the front side of the housing:
  • lsocket D2.1 to connect the engine wiring loom,
  • lsocket D2.2 to connect the vehicle wiring loom.

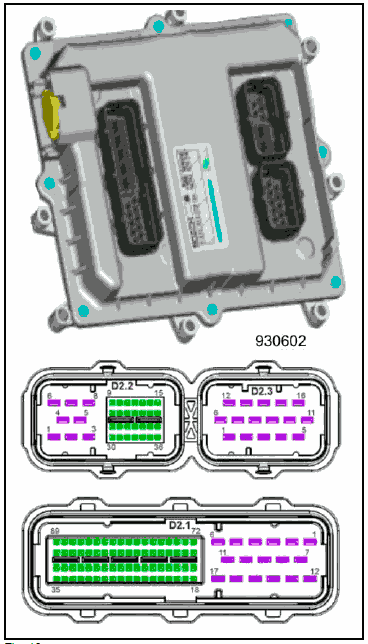

The EMR3-E (TCD 2015) engine control unit is fitted with three sockets on the upper side of the housing:
  • lsocket D2.1 to connect the vehicle wiring loom,
  • lsocket D2.2 to connect the engine wiring loom for sensors and actuators,
  • lsocket D2.3 to connect the engine wiring loom for fuel metering unit and injection valves.

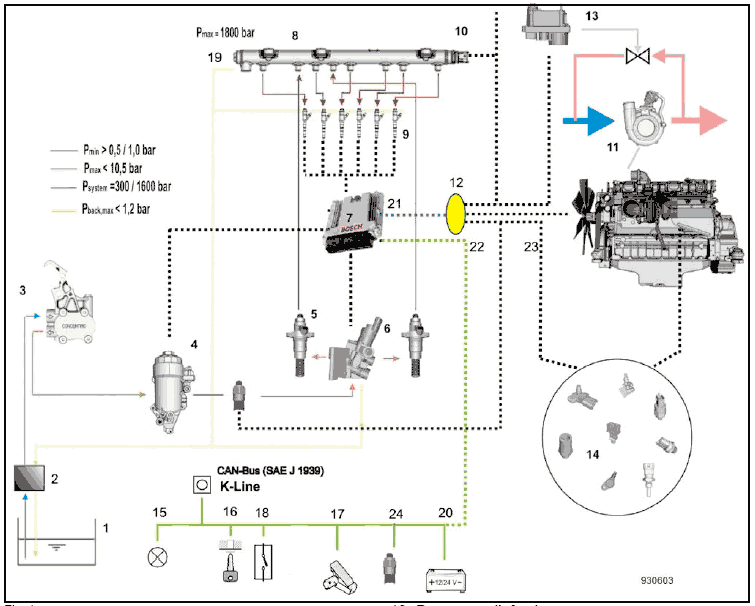

EMR-3 system in connection with injection system and electrics

1 Fuel tank
2 Pre-filter
3 Fuel lift pump
4 Fuel filter
5 High pressure fuel pump
6 Fuel control unit FCU
7 Control unit
8 High pressure accumulator, Rail
9 Injector
10 Rail pressure sensor
11 Exhaust gas turbocharger
12 Engine transfer plug
13 Exhaust gas recirculation, option
14 Engine sensors
15 Diagnostics lamp
16 Ignition switch
17 Pedal
18 Diagnostics button
19 Pressure relief valve
20 Battery terminal 31 and 30
21 Connecting line control unit-engine
22 Wiring loom connecting cable
23 Engine wiring harness
24 Sensor, water in fuel

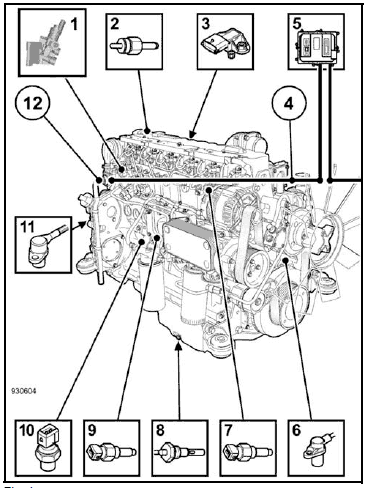

Sensors TCD 2012/2013

1 Fuel control unit FCU
2 Coolant temperature sensor
3 Sensor for charge air temperature and charge air pressure
4 Wiring loom connecting cable
5 Engine control unit
6 Crankshaft speed sensor
7 Rail pressure sensor
8 Oil level sensor, option
9 Oil pressure sensor
10 Fuel pressure sensor
11 Camshaft speed sensor
12 Central plug

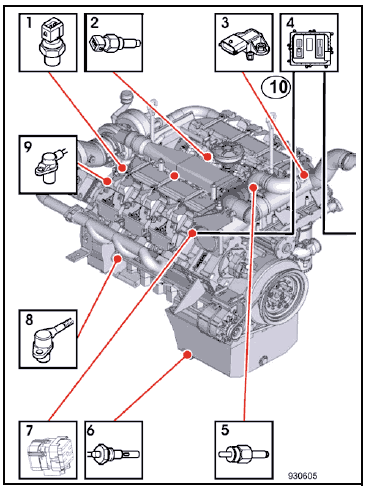

Sensors TCD 2015

1 Oil pressure sensor
2 Fuel temperature sensor
3 Sensor for charge air temperature and charge air pressure
4 Engine control unit
5 Coolant temperature sensor
6 Oil level sensor, option
7 Central plug
8 Crankshaft speed sensor
9 Camshaft speed sensor
10 Wiring loom connecting cable

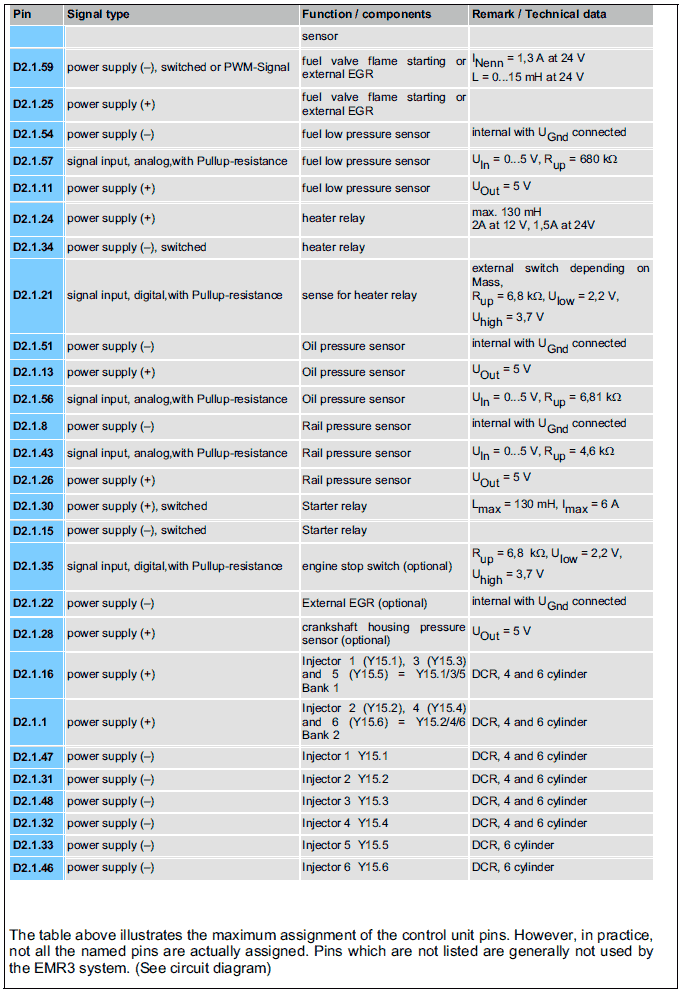

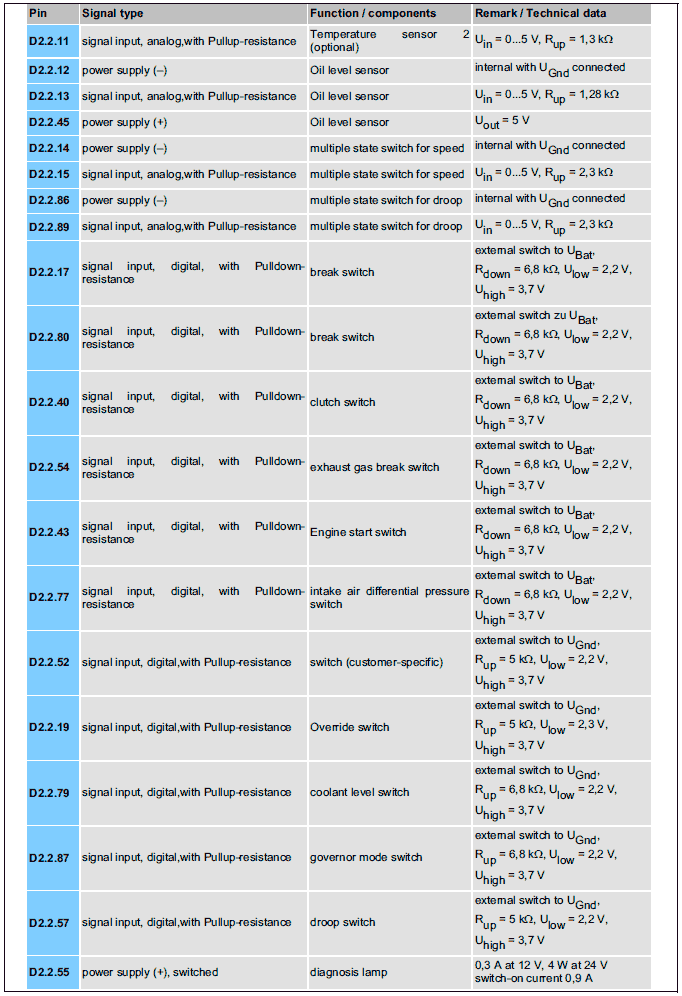

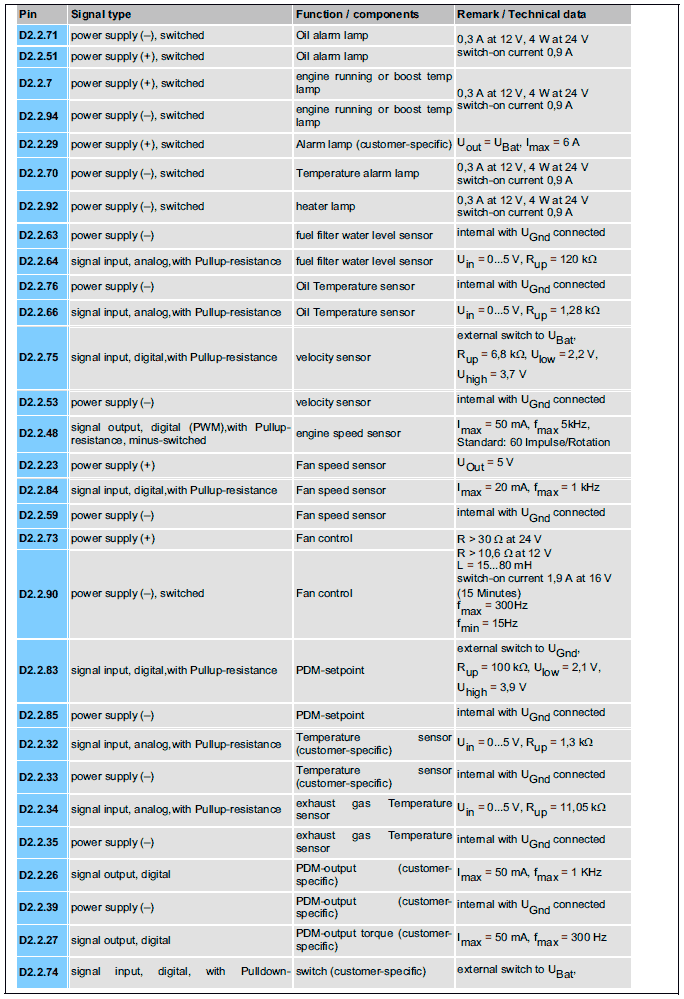

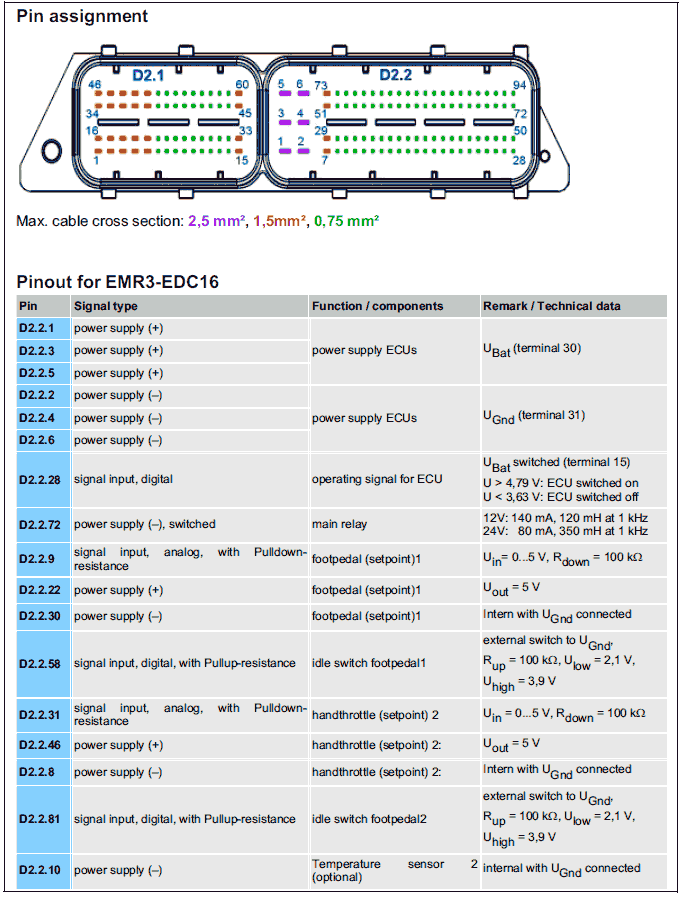

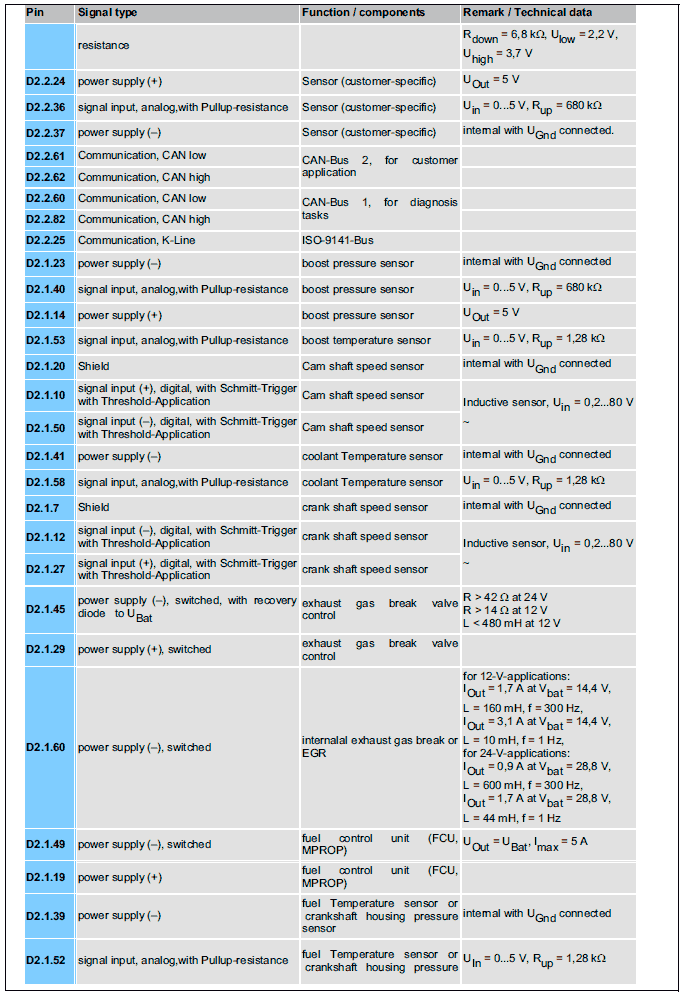

Pin assignment of engine control EDC16 / EMR3
