Электросхемы автобуса Lexio Euro 5

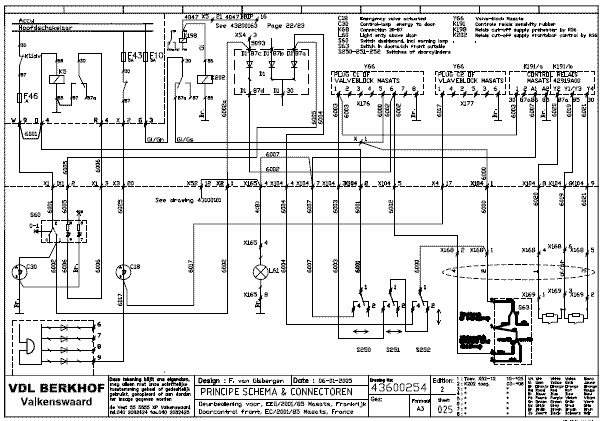

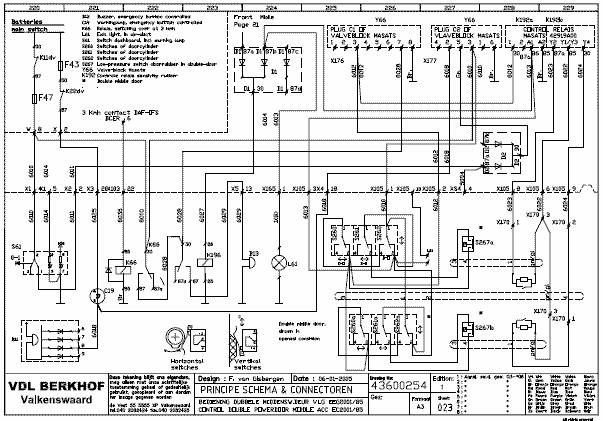

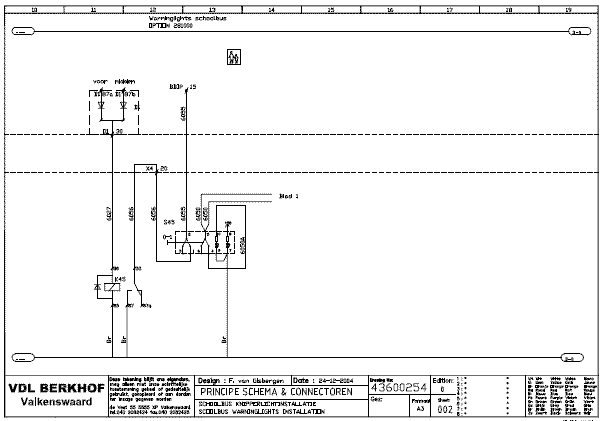

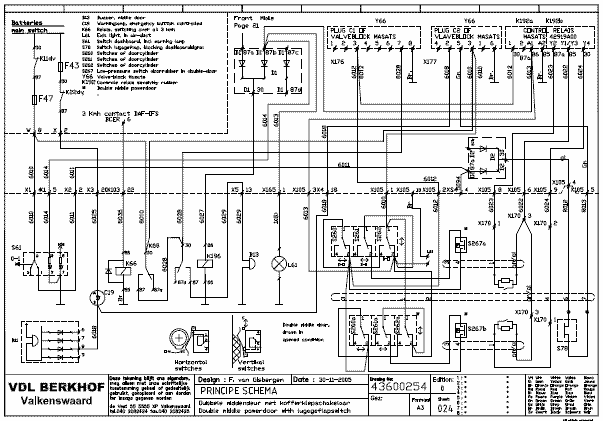

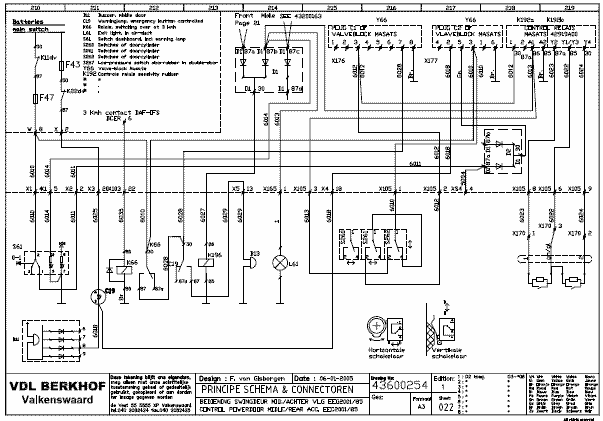

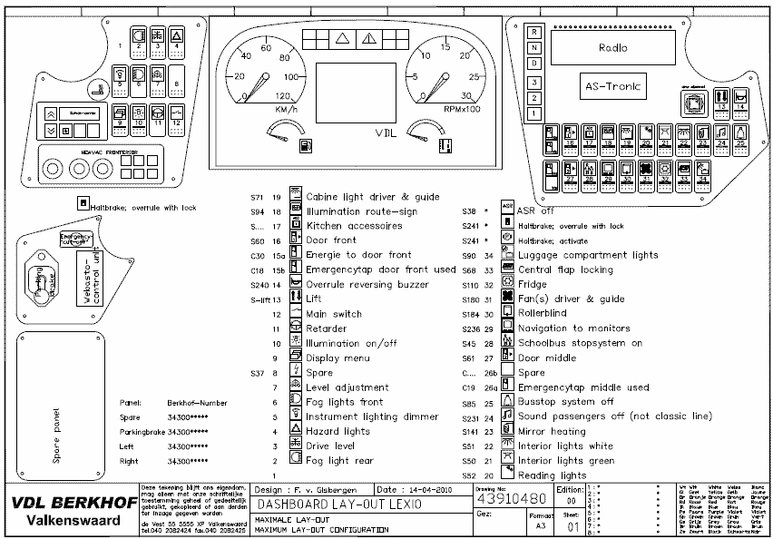

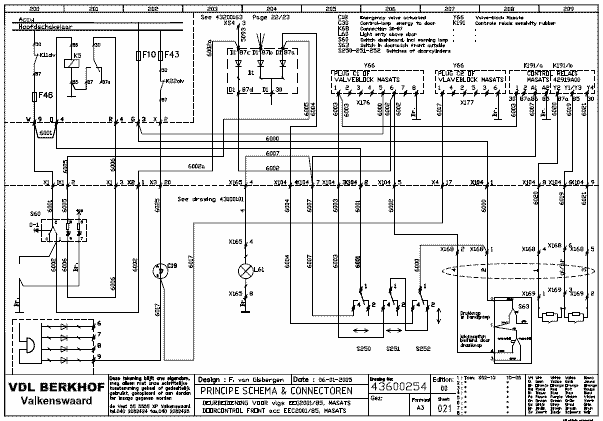

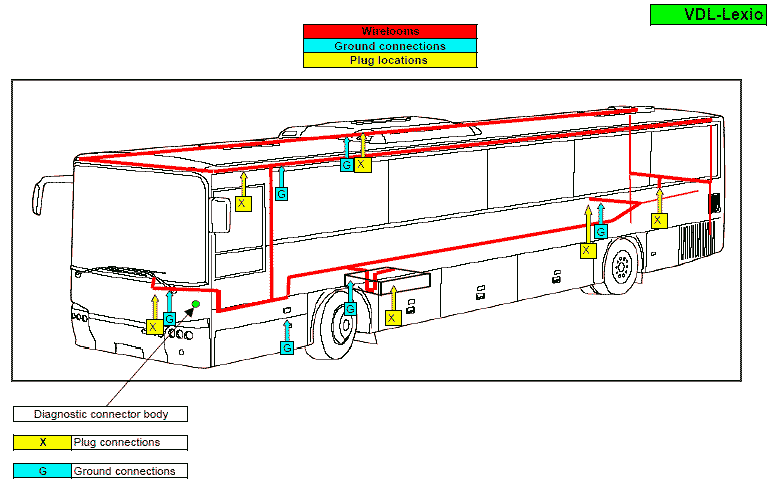

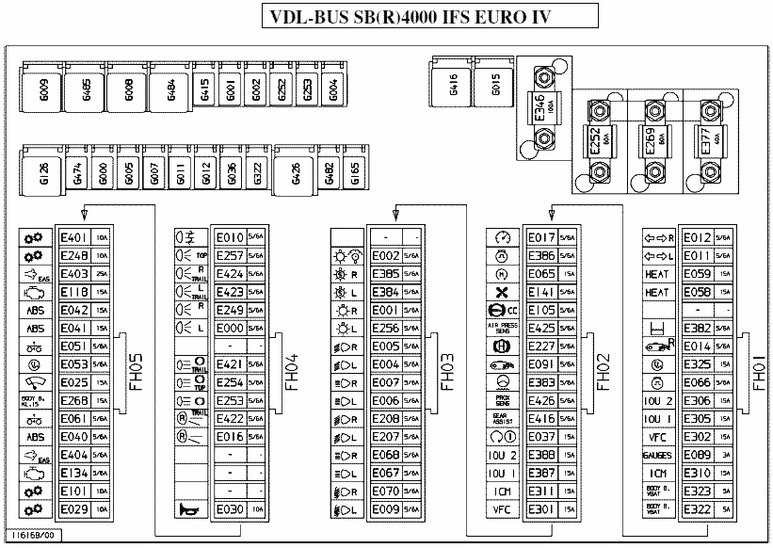

NR      Value       System

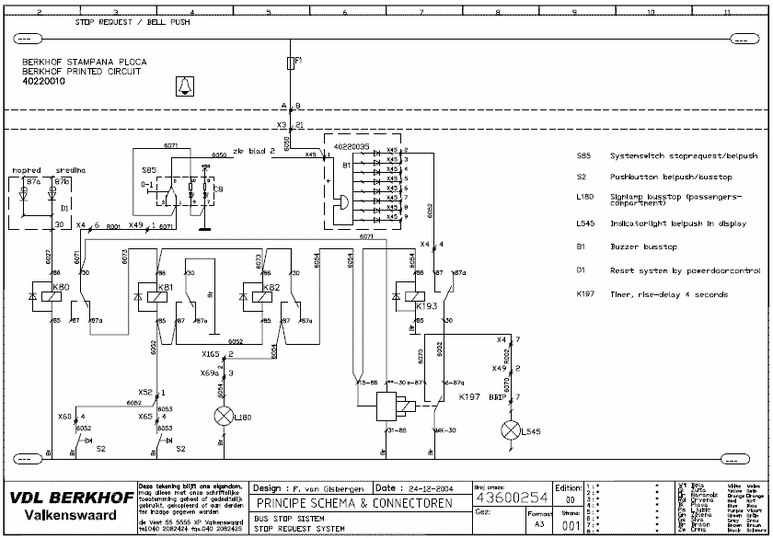

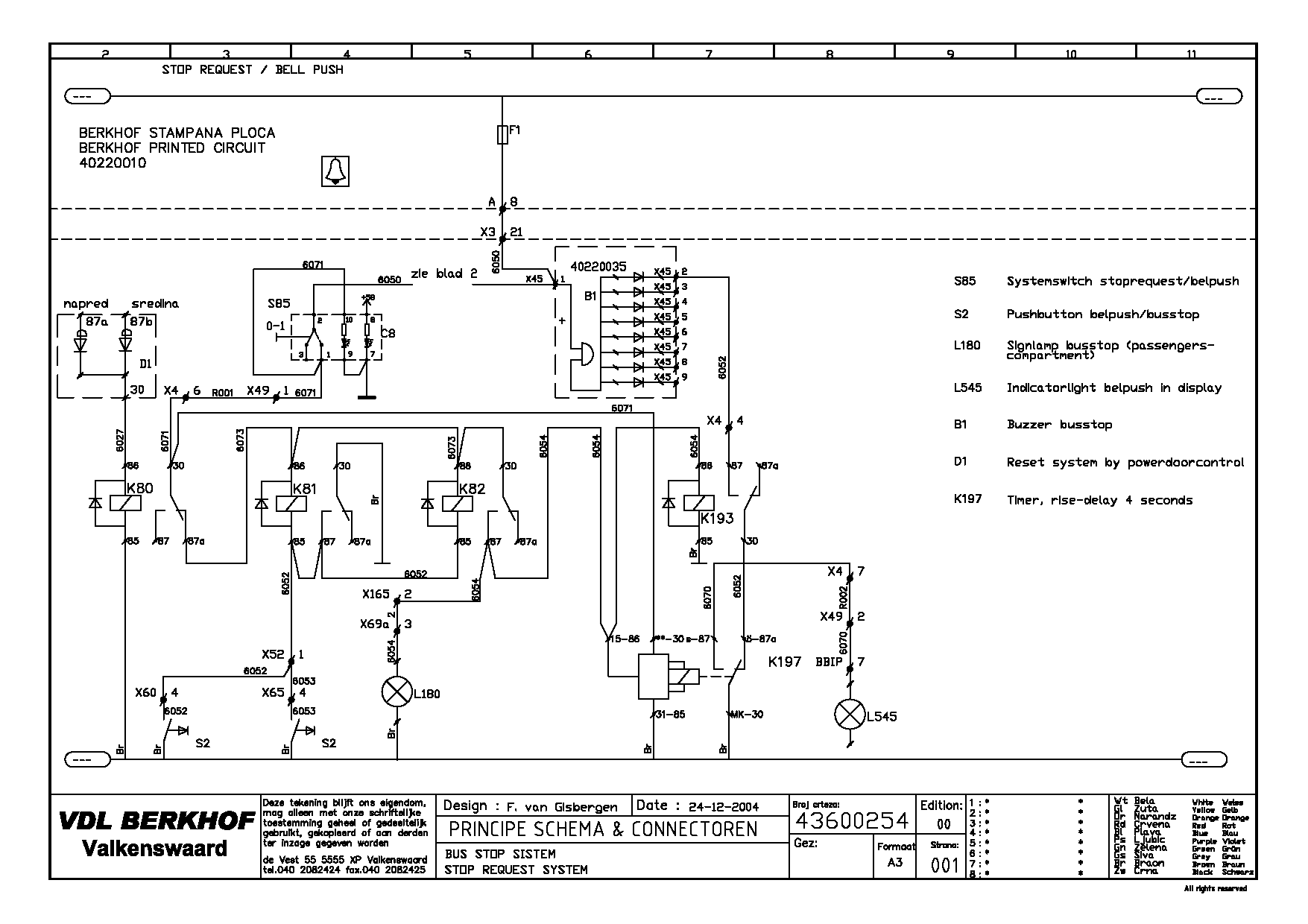

  • 1 10 Amp Nightlights interior (coloured), stop request system, alarm buzzer
  • 2 5 Amp. Spare, Monitor / LCD front
  • 3 5 Amp. Spare, Monitor / LCD middle, spare at RHD
  • 4 7,5 Amp. Spare, Controlling relay: power supply monitors / LCD

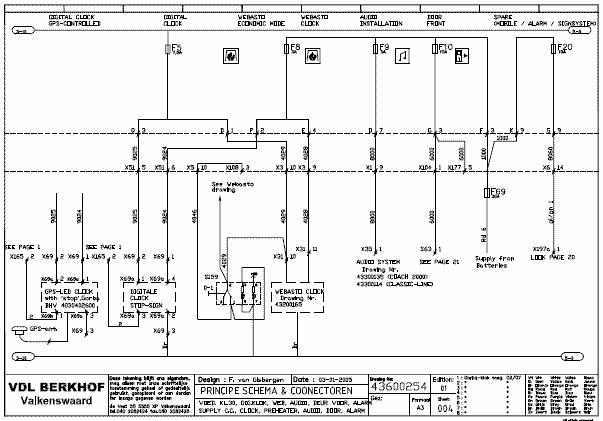

  • 5 7,5 Amp. Digital clock, Webasto controller
  • 6 5 Amp. Spare, DVD player, frame LCD, cabinet spotlight above driver

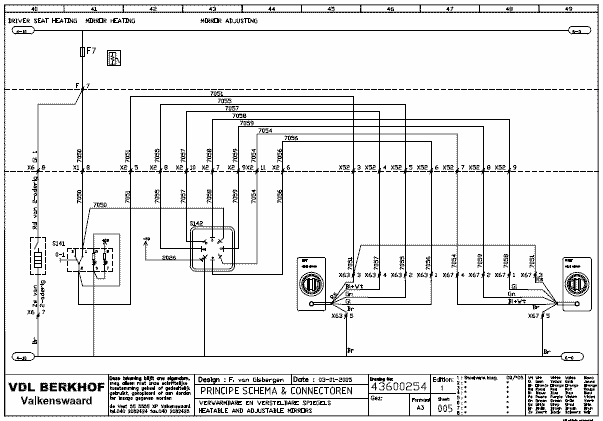

  • 7 7,5 Amp. Adjustable and heat able mirrors, driver seat heating
  • 8 3 Amp. Permanent supply: Webasto controller, digital clock
  • 9 3 Amp. Permanent supply: power supply audio
  • 10 5 Amp. Permanent supply: power door control front outside

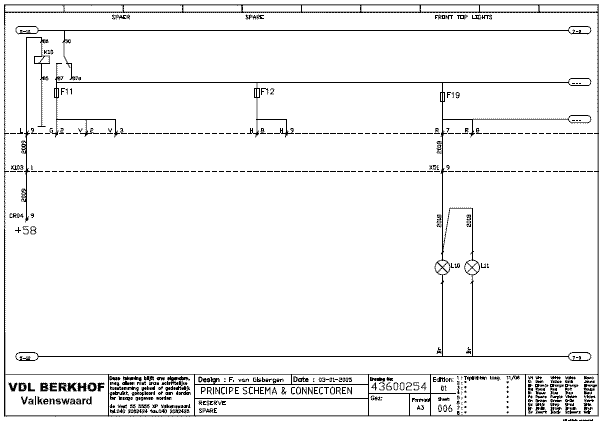

  • 11 7,5 Amp. Spare, +58
  • 12 5 Amp. Spare, +58

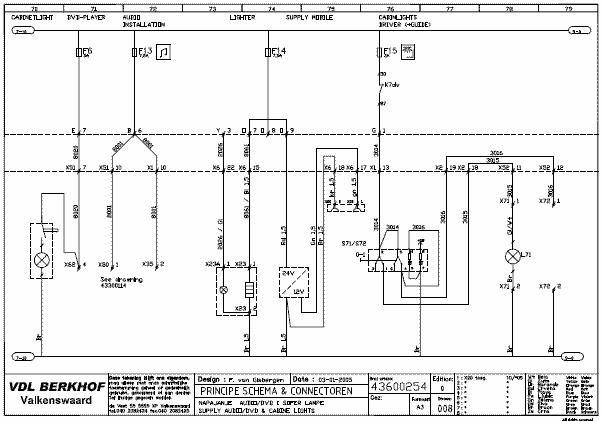

  • 13 7,5 Amp. Audio power supply
  • 14 7,5 Amp. Cigar lighter, CD-changer, car-telephone, convertor 24V/12V for mobile phone
  • 15 3 Amp. Cabin light driver / guide
  • 16 5 Amp. Spare, 3e LCD, central LCD

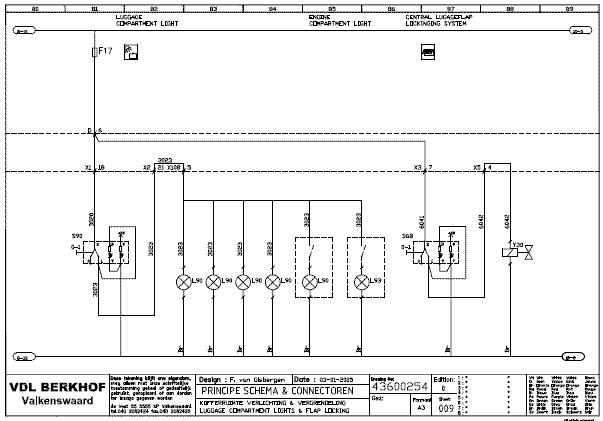

  • 17 3 Amp. Trunk lights, engine compartment light, central unlocking system luggage flaps
  • 18 7,5 Amp. Alternator controlled: AC-control unit BT 324, Toilet fan, boiler(K12), coffee-machine (K12)

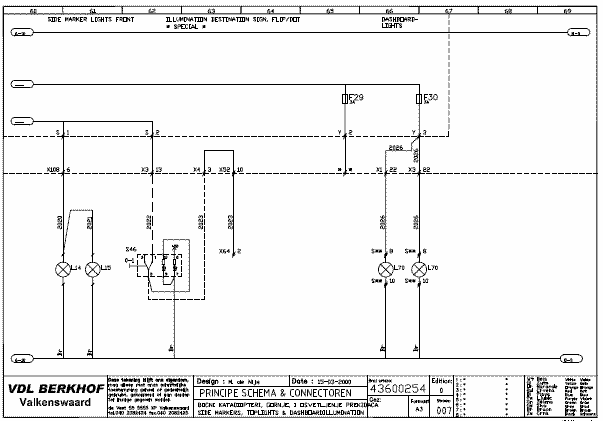

  • 19 5 Amp. +58: Top marker lights front, side marker lights
  • 20 10 Amp. Permanent supply: controller destination sign system, alcohol-lock system
  • 21 3 Amp. Interior light front
  • 22 - Amp Spare
  • 23 5 Amp. Spare, Amplifier video signal, video player, satellite navigation system, LCD

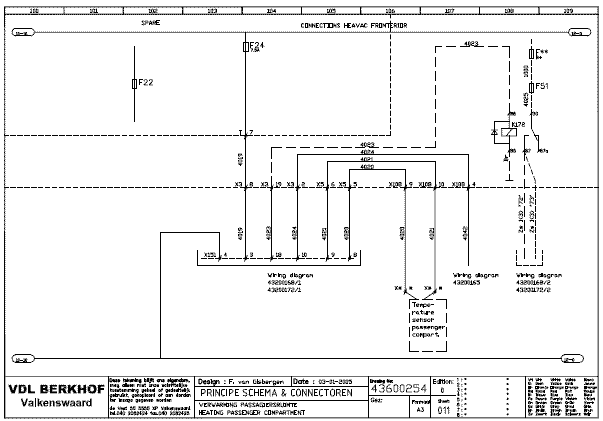

  • 24 7,5 Amp. Control unit frontbox and interior heating, Heavac ´Fronterior´

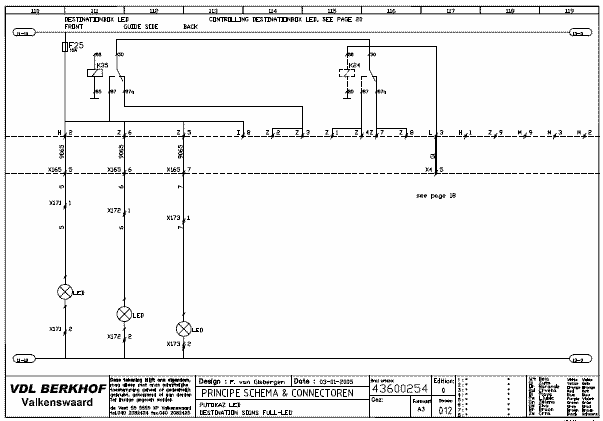

  • 25 15 Amp. Spare, Destination sign boxes
  • 26 7,5 Amp. Spare, Chemical toilet (pump)

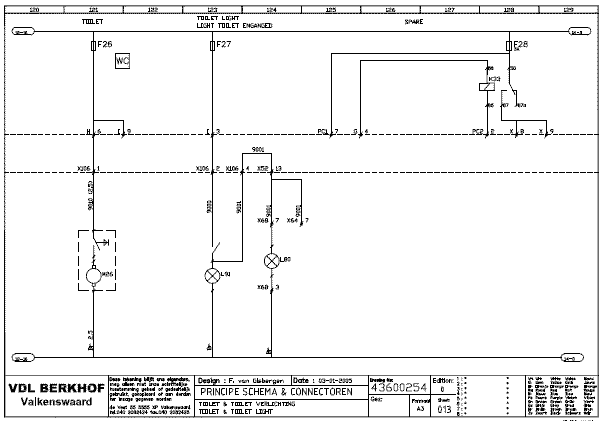

  • 27 5 Amp. Spare, Toilet lights, toilet warning light ´occupied´
  • 28 3 Amp. Spare, +15: alcohol lock
  • 29 3 Amp. +58: Spare
  • 30 3 Amp. Illumination dashboard switches

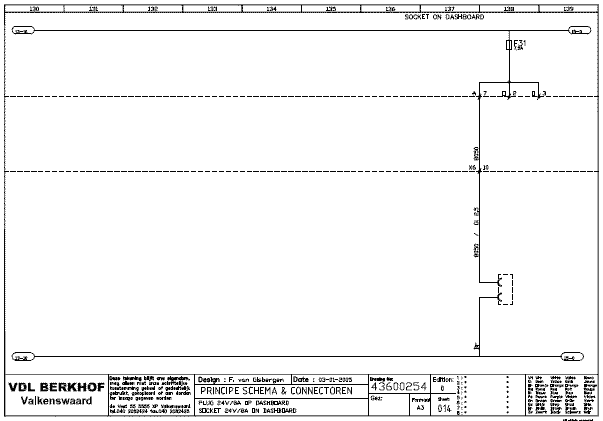

  • 31 7,5 Amp. Spare, Plug on dashboard, 24V/8A

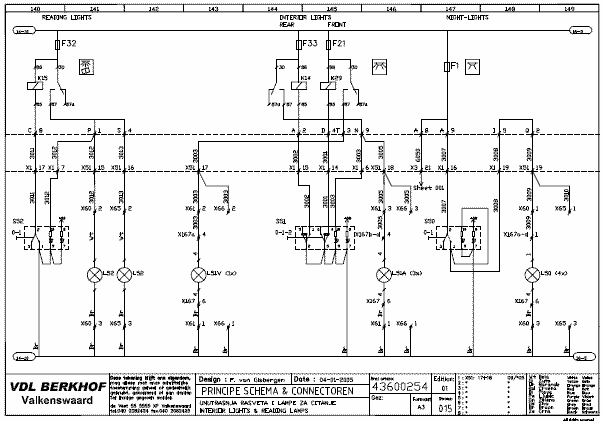

  • 32 10 Amp. Spare, Reading lamps
  • 33 10 Amp. Interior lights rear

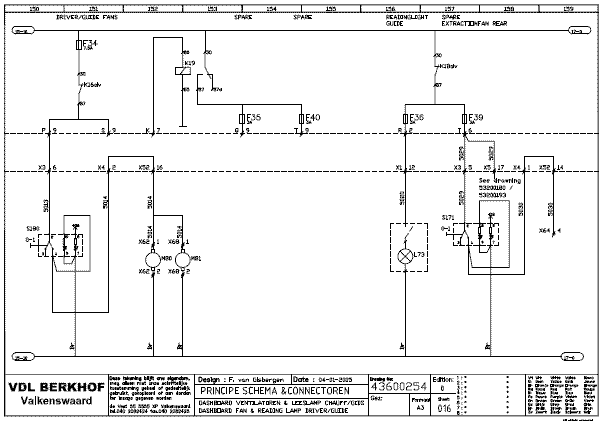

  • 34 7,5 Amp. Spare, auxiliary fan driver and/or guide
  • 35 5 Amp. Spare, illuminated sign ‘school children’
  • 36 7,5 Amp. Spare, reading lamp guide

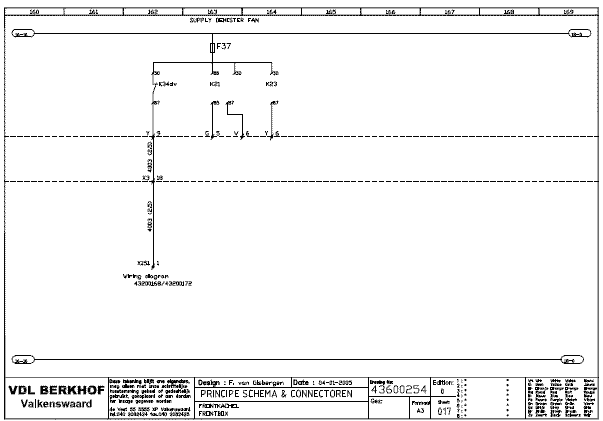

  • 37 15 Amp. Fan front box

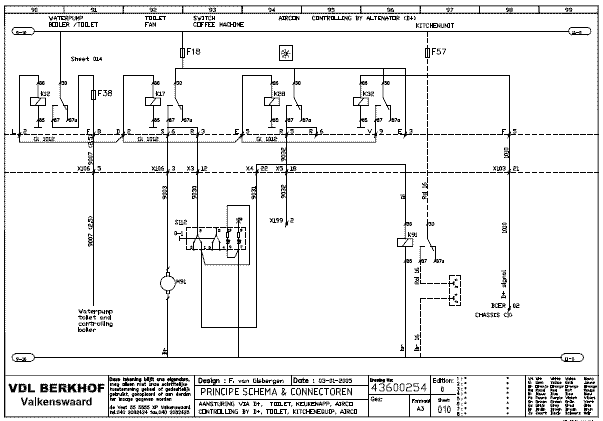

  • 38 10 Amp. Spare, Waterpump: toilet and/or boiler and/or coffeemachine
  • 39 7,5 Amp. Spare, AC-controlunit BT 324
  • 40 5 Amp. Spare

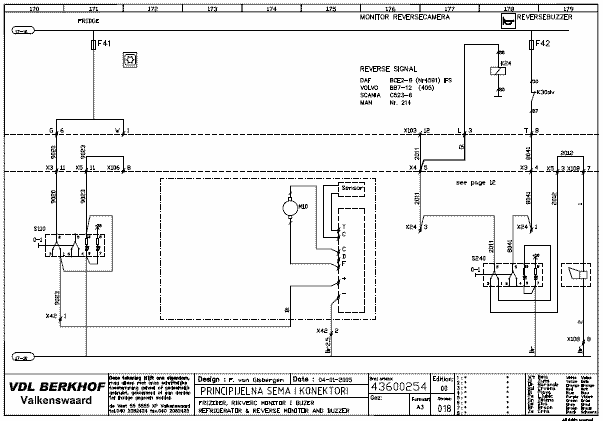

  • 41 7,5 Amp. Spare, Refrigerator in dashboard
  • 42 5 Amp. Spare, reversing camera

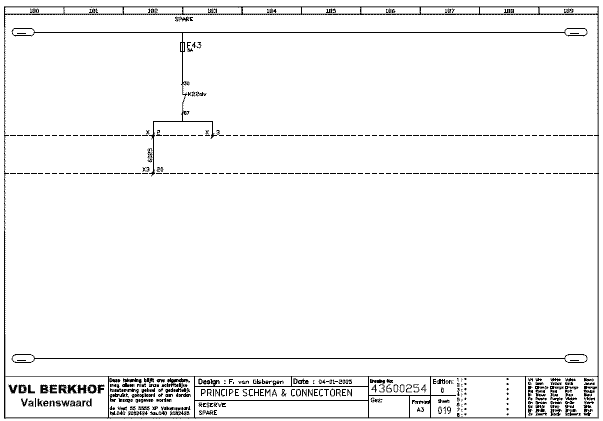

  • 43 5 Amp. Spare
  • 44 7,5 Amp. Spare

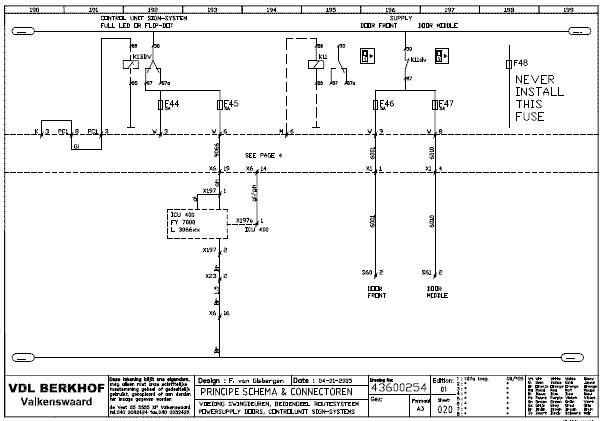

  • 45 5 Amp. Controller destination system
  • 46 5 Amp. Power door front
  • 47 5 Amp. Power door central / rear
  • 48 DO NOT MOUNT THIS FUSE !
  • 49 25 Amp. Auxiliary heater Webasto
  • 50 25 Amp. Auxiliary heater pump
  • 51 10 Amp. Permanent supply: control unit Heavac Fronterior
  • 52 10 Amp. Spare
  • 53 100 Amp. Main fuse climate system Sütrak 24kW (32kW = 125A)
  • 54 80 Amp. Main-fuse circuit-board Berkhof body
  • 55 100 Amp. Spare, Lift
  • 56 - Amp. Spare
  • 57 - Amp. Spare
  • 58 10 Amp. Interior heating
  • 59 7,5 Amp Interior heater half speed, right front + left rear
  • 60 7,5 Amp. Interior heater half speed, left front + right rear
  • 61 7,5 Amp. Interior heater full speed, right front + left rear
  • 62 7,5 Amp. Interior heater full speed, left front + right rear
  • 63 30 Amp. Permanent supply circuit-board of Berkhof
  • 64 7,5 Amp. Semi-air / extra heater drivers area and entrance
  • 65 7,5 Amp. Semi-air / extra heater drivers area and entrance
  • 66 7,5 Amp. Semi-air
  • 67 7,5 Amp. Semi-air
