      Daewoo BH120F
Месторасположение компонентов

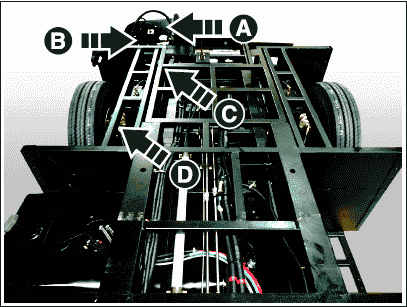

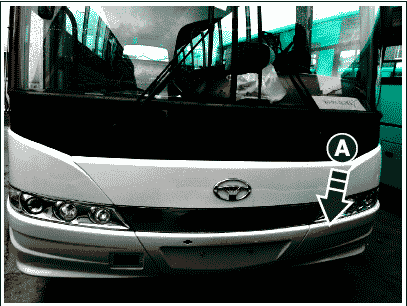

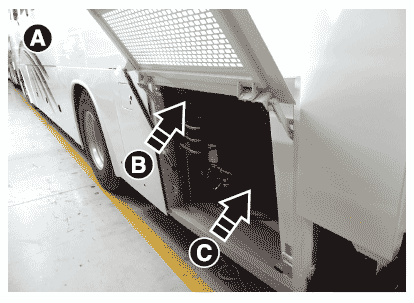

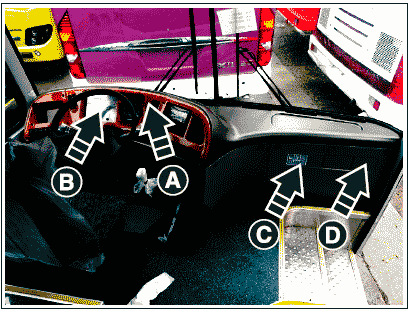

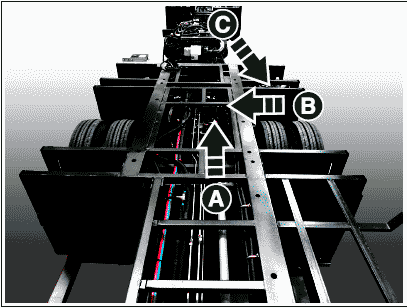

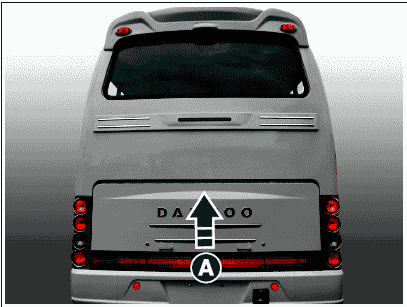

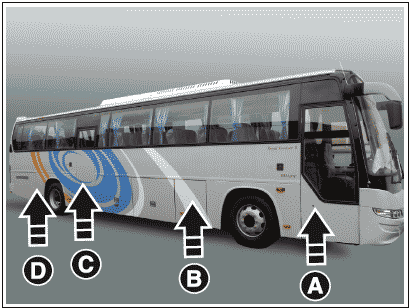

автобуса Daewoo BH (Luxury) EURO IV

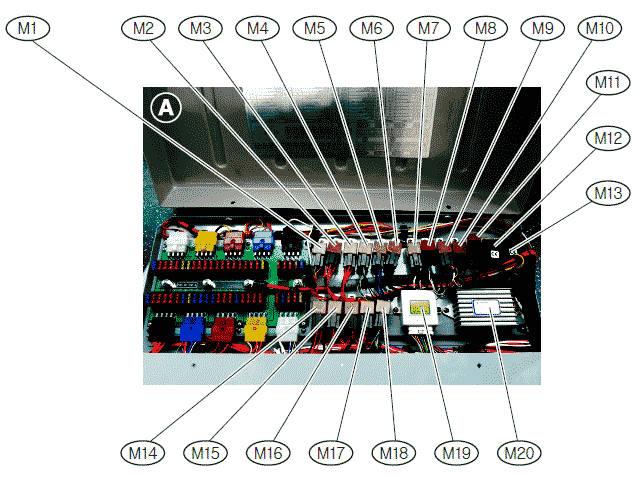

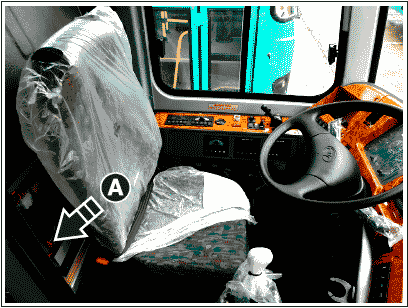

  • M1  Front Search Lamp Relay
  • M11  Horn Relay
  • M2  Head Lamp High Relay
  • M12  Blinker Unit 1
  • M3  Head Lamp Low Relay
  • M13  Blinker Unit 2
  • M4  Wiper LH Relay
  • M14  Reading Lamp Relay
  • M5 Wiper RH Relay
  • M15  Room Lamp 1 Relay
  • M6  TV/VCR Relay
  • M16  Room Lamp 2 Relay
  • M7  Parking Brake Relay
  • M17  Room Lamp 3 Relay
  • M8  Tail Lamp Relay
  • M18  Parking Tank Relay
  • M9  Mid Search Lamp Relay
  • M19  Relay Module
  • M10  Stop Lamp Relay
  • M20  Wiper Control Relay

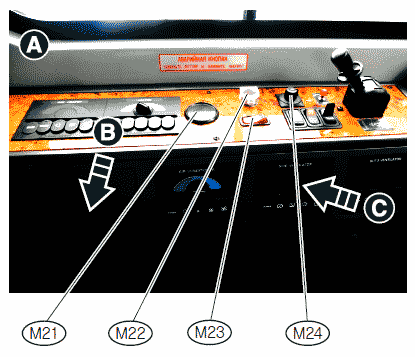

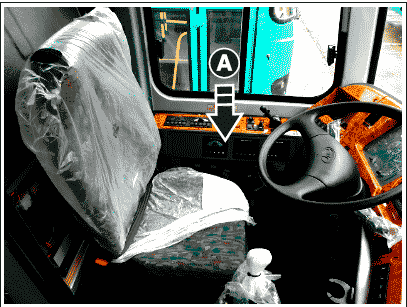

  • M21 Volt Meter
  • M29 Auto Venti Relay 2
  • M22 Emergency S/W
  • M30 Auto Venti Relay 1
  • M23 Hazard Light S/W

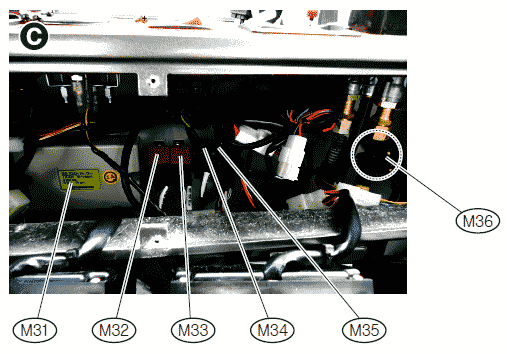

  • M31 Fog Relay (One Toutch)
  • M24 Power Mirror S/W
  • M32 QOS Lamp Relay

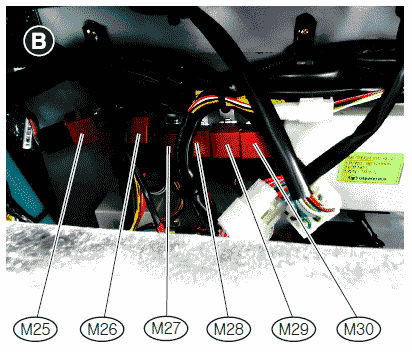

  • M25 Emer. Water Pump Relay
  • M33 Emer. Stop Relay
  • M26 Side Venti Relay 2
  • M34 Emer. Hazard Relay
  • M27 Side Venti Relay 1
  • M35 Emer. Room Lamp Relay
  • M28 Auto Venti Relay 3
  • M36 Diode 8~9(5A)

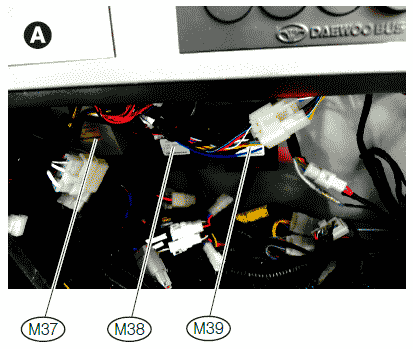

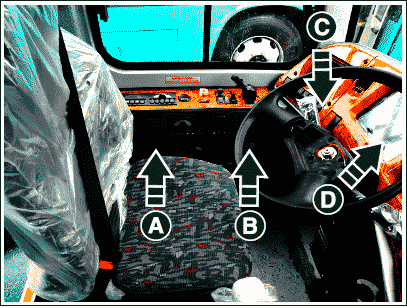

  • M37 Control Unit(Thermic Rays)
  • M38 Front Door Relay
  • M39 Mid Door Relay

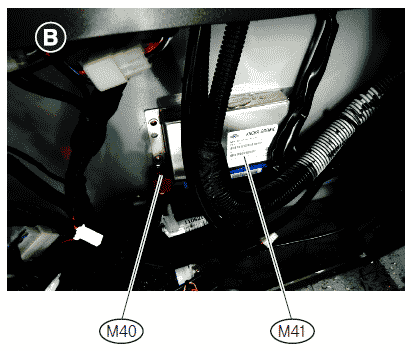

  • M40 DBR Relay
  • M41 ABS6 ECM

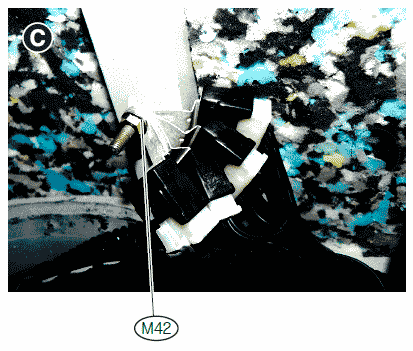

  • M42 G101~G102 Ground

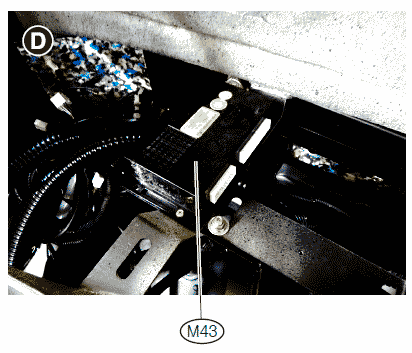

  • M43 Can Controller

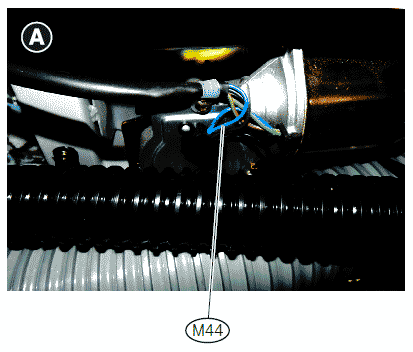

  • M44 LH Wiper Motor

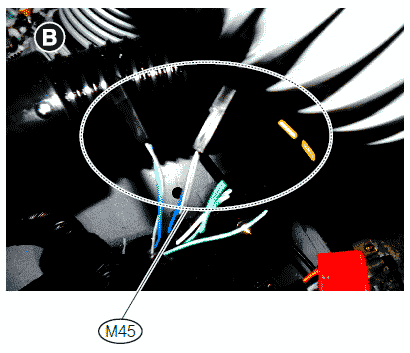

  • M45 Diode1~5(5A)

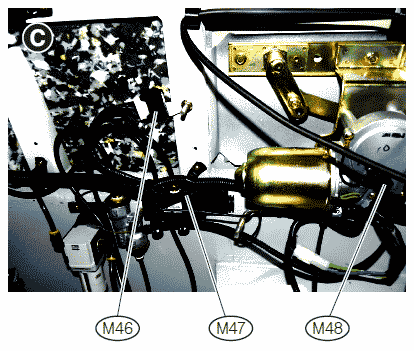

  • M46 G103 Ground
  • M47 Door M/V
  • M48 RH Wiper Motor

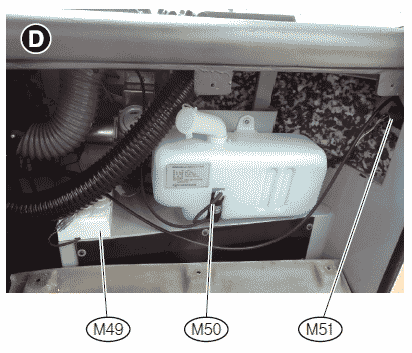

  • M49 Chime Bell
  • M50 Washer Tank
  • M51 Ent. Door Lock Key S/W

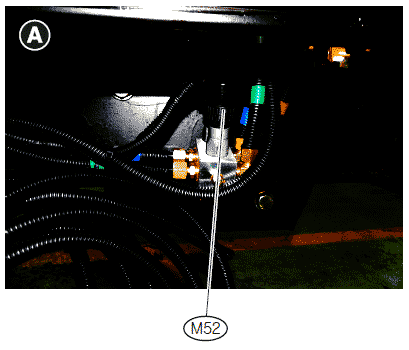

  • M52 Brake Lamp S/W 1,2

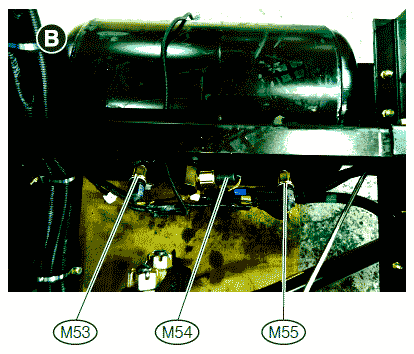

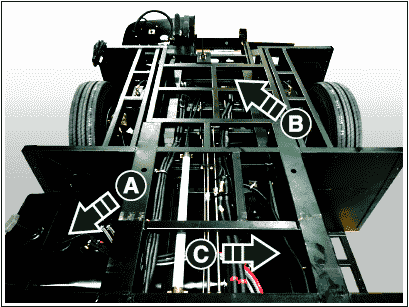

  • M53 Parking Air Tank S/W(4.2bar)
  • M54 Parking Air Tank S/W(6.2bar)
  • M55 Air Aux Tank S/W(5.3bar)
  • M56 G201 Ground

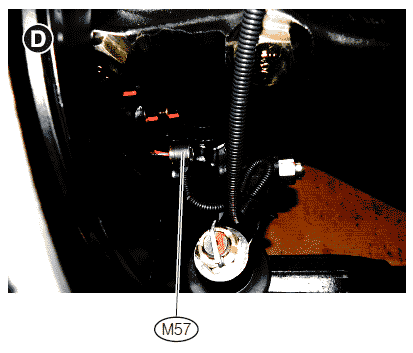

  • M57 Wheel Speed Sensor

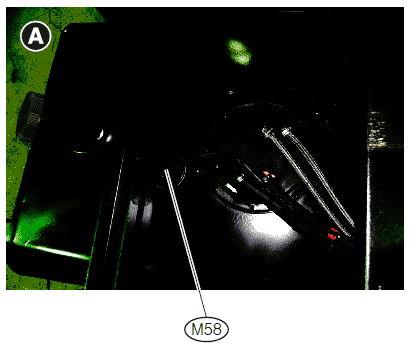

  • M58 Fuel Tank Unit

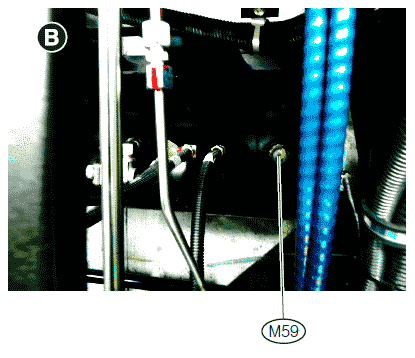

  • M59 Air sus Tank S/W
  • M60 Frt Brake Tank S/W
  • M61 Frt Brake Sensor

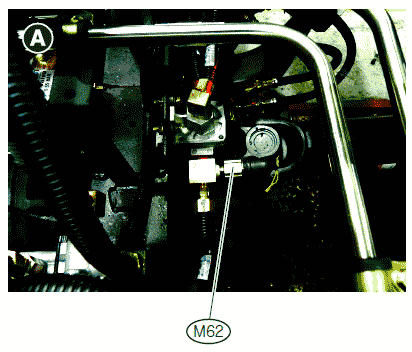

  • M62 PKB S/W

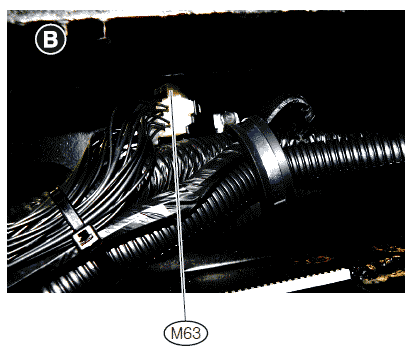

  • M63 G202 Ground

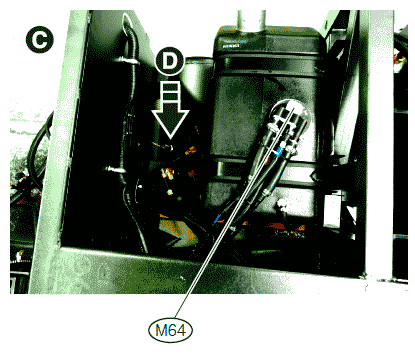

  • M64 Urea Tank Sensor

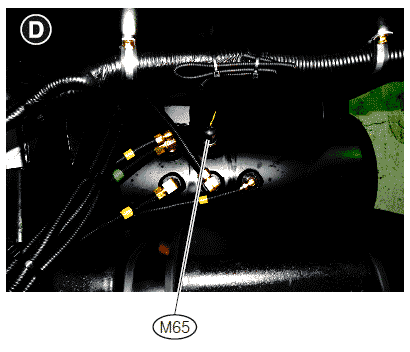

  • M65 Rear Brake Tank S/W

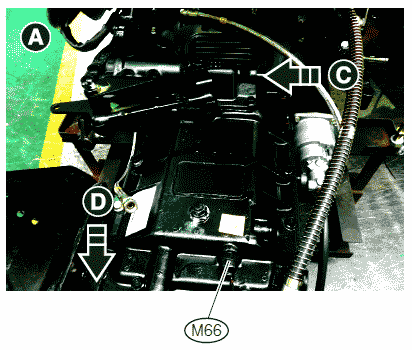

  • M66 T/M Neutral S/W
  • M67 Oil Clutch S/W

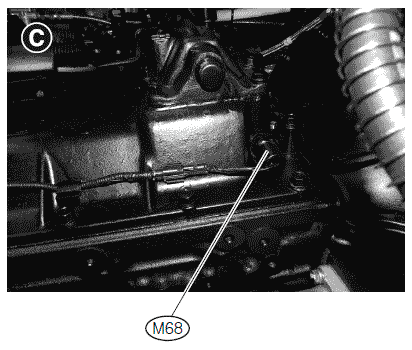

  • M68 Back up Lamp S/W

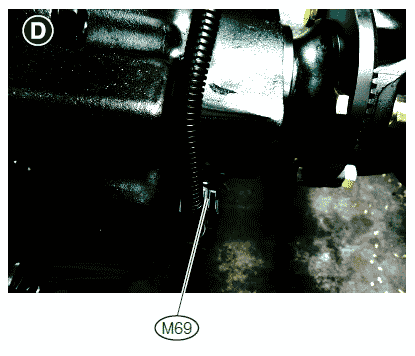

  • M69 Elec. Speedo Sensor

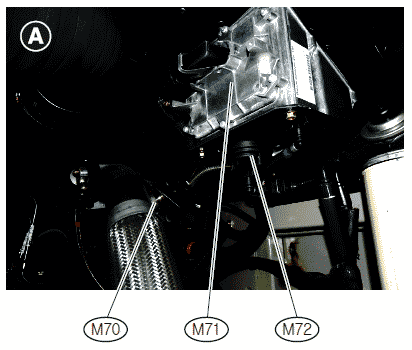

  • M70 Dosing Valve
  • M71 Dosing ECU
  • M72 Dosing Filter Heater

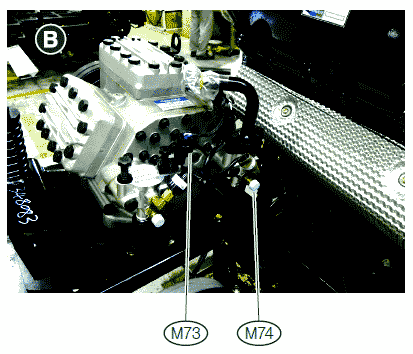

  • M73 Low Pressure S/W
  • M74 High Pressure S/W

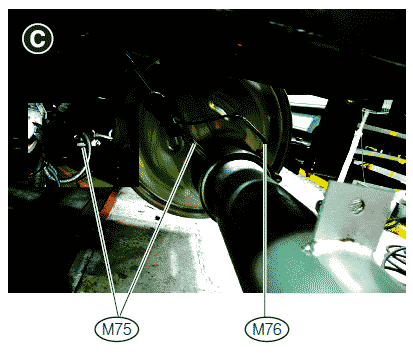

  • M75 Nox Sensor
  • M76 Temp Sensor(down)

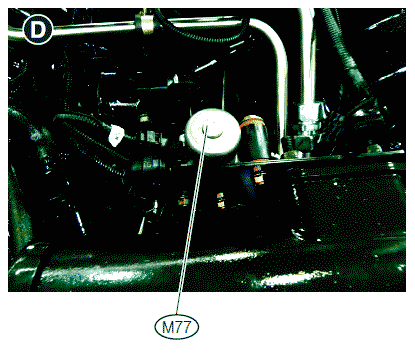

  • M77 Water Valve

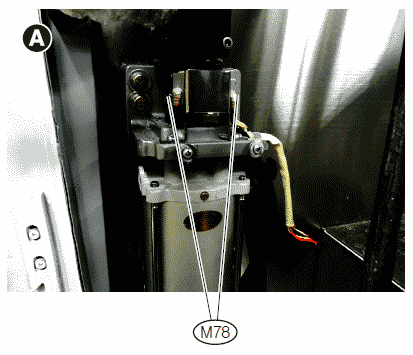

  • M78 Frt Door Micro S/W

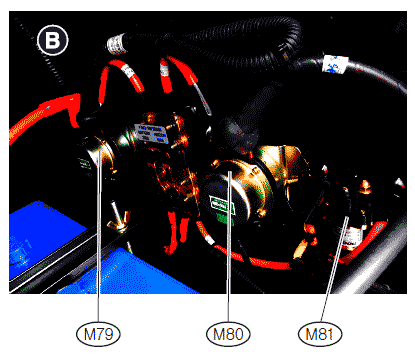

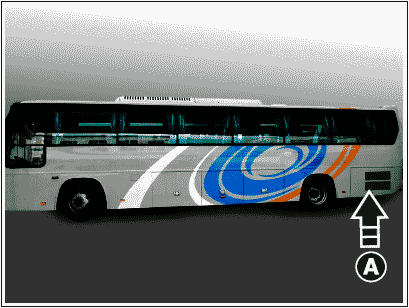

  • M79 Battery Main Relay
  • M80 Air Conditioner Relay
  • M81 Freheat Relay

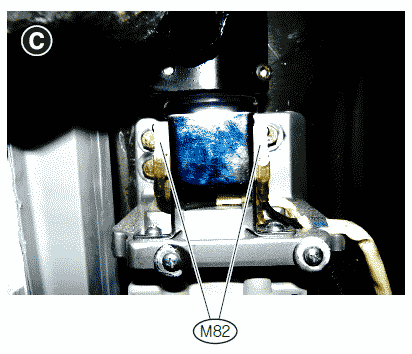

  • M82 Mid Door Micro S/W
  • M83 Preheat Control Unit

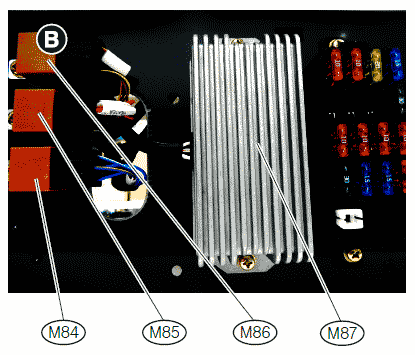

  • M84 Engine Brake Realy
  • M85 Fuel Filter Heater Relay
  • M86 Starter Safety Relay
  • M87 Voltage Regulator

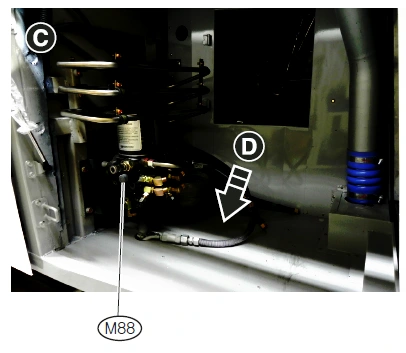

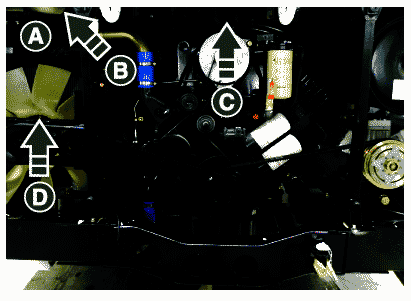

  • M88 Air Drier Sensor

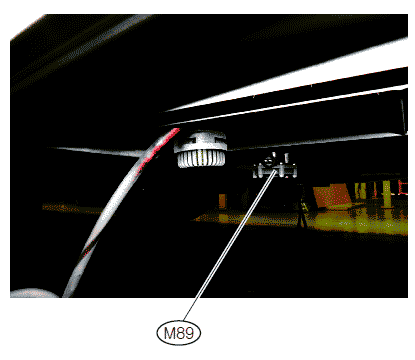

  • M89 Auto Drain Valve

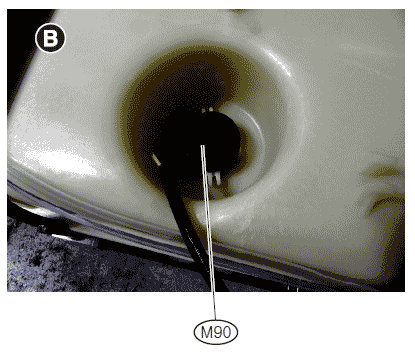

  • M90 Water Level S/W

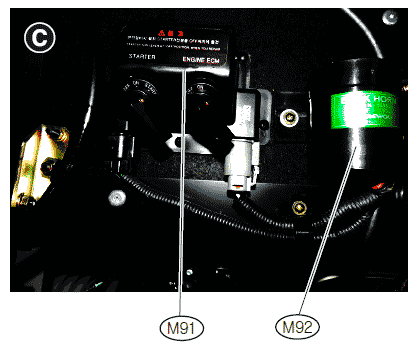

  • M91 Ignition Shut-Off S/W Auxiliary Iginition S/W ECU Power Cut-Off S/W
  • M92 Back Warining buzzer

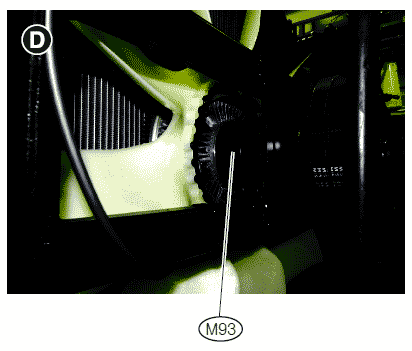

  • M93 Fan Clutch

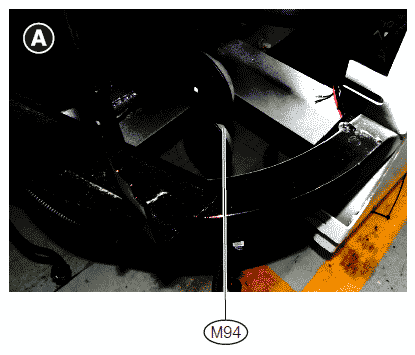

  • M94 Electronic Horn
