Электросхемы IVECO STRALIS AS EURO 4/5

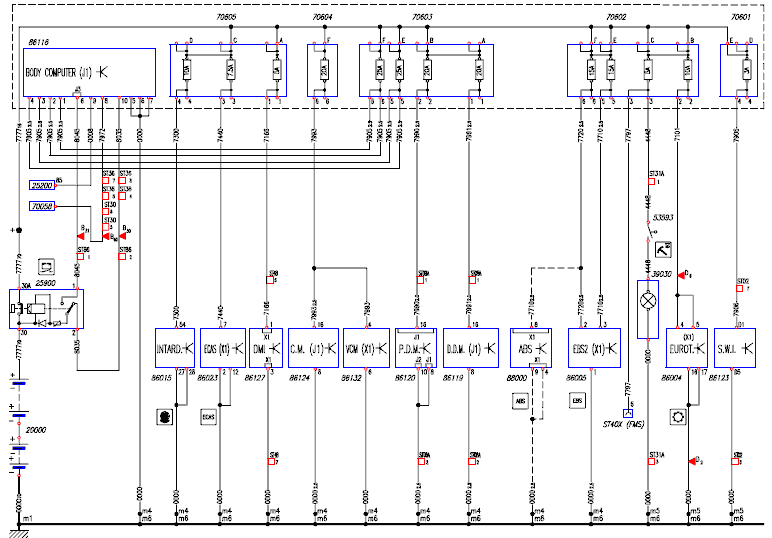

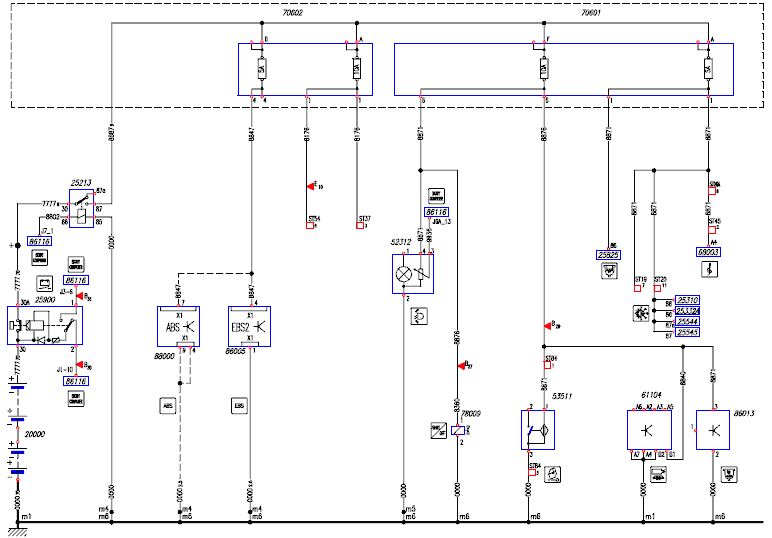

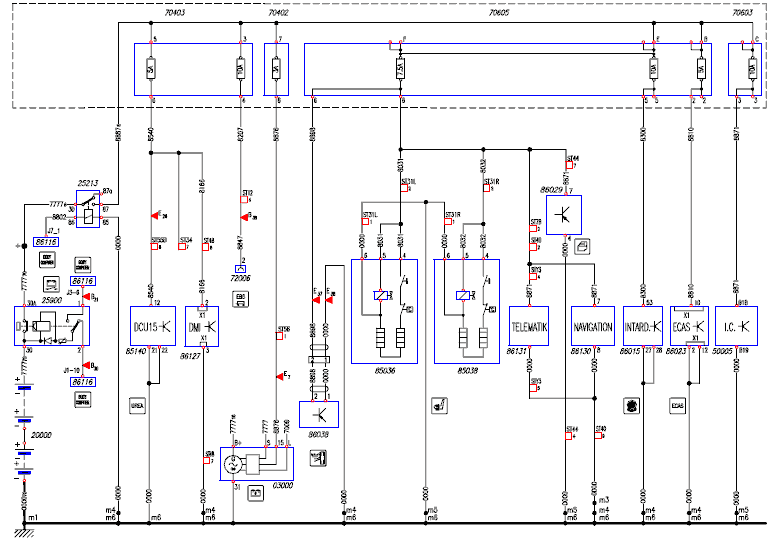

POWER SUPPLY VOLTAGE (+30)


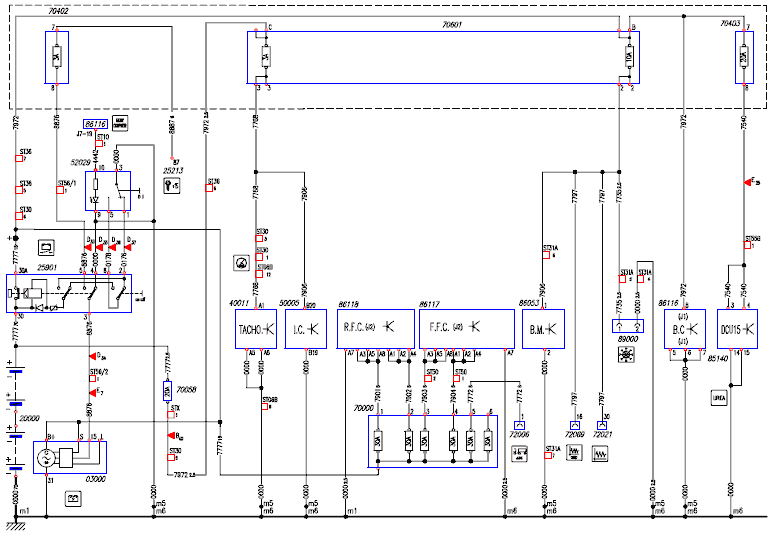

POWER SUPPLY VOLTAGE (+30) AFTER TGC


POWER SUPPLY VOLTAGE (+30) AFTER TGC


POWER SUPPLY VOLTAGE (+30) AFTER TGC

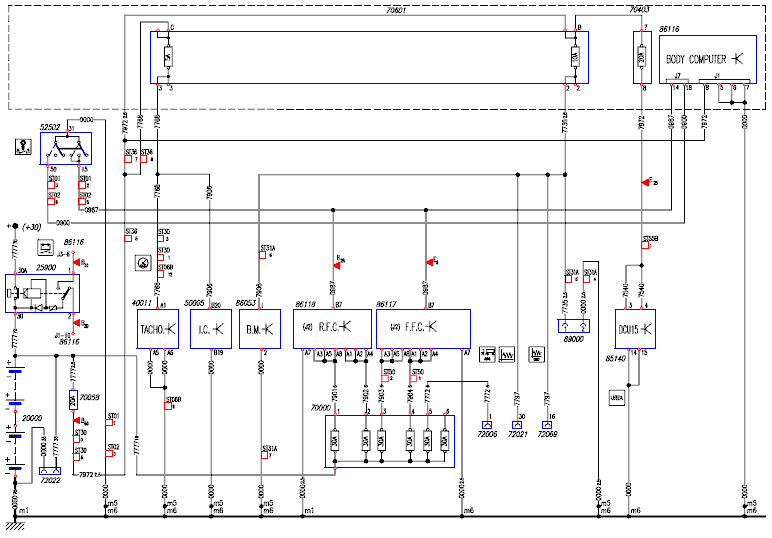

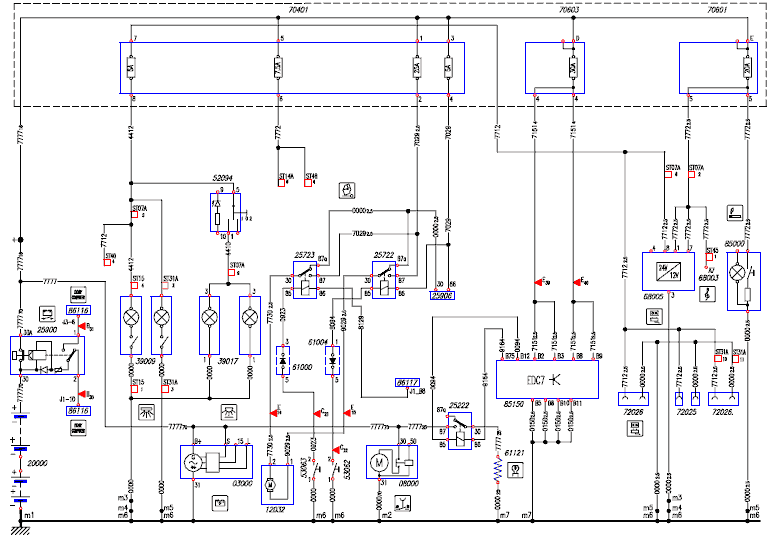

POWER SUPPLY VOLTAGE (+15)


POWER SUPPLY VOLTAGE (+15)

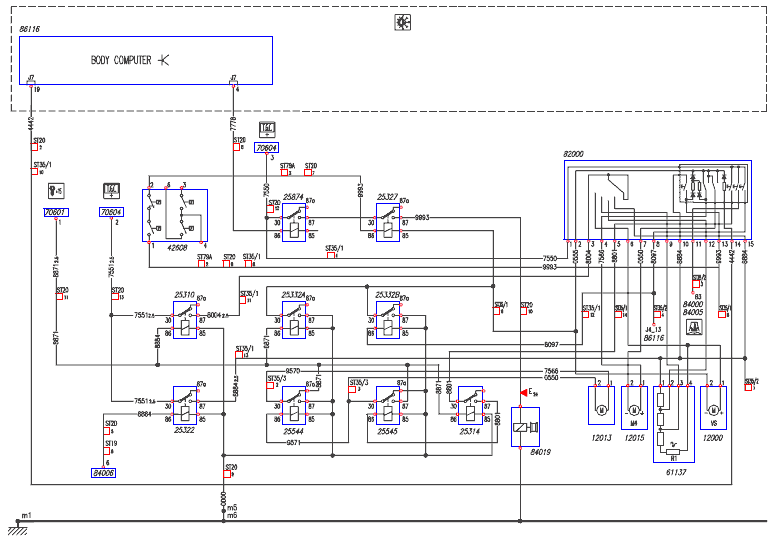

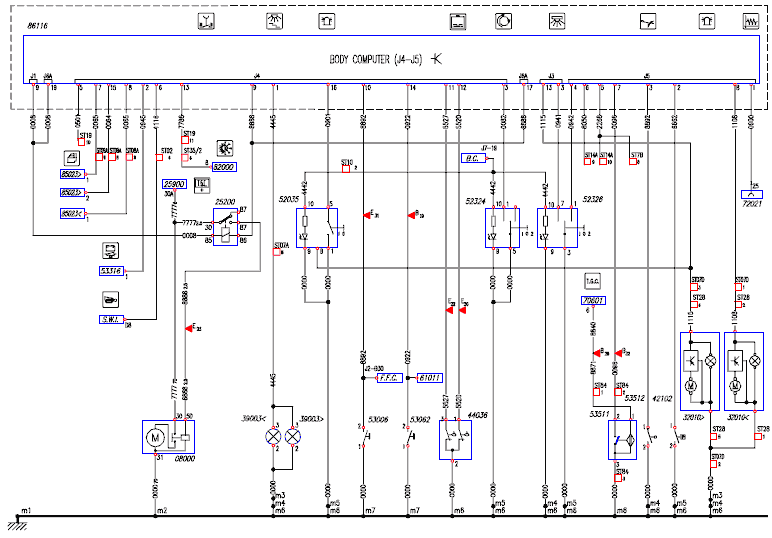

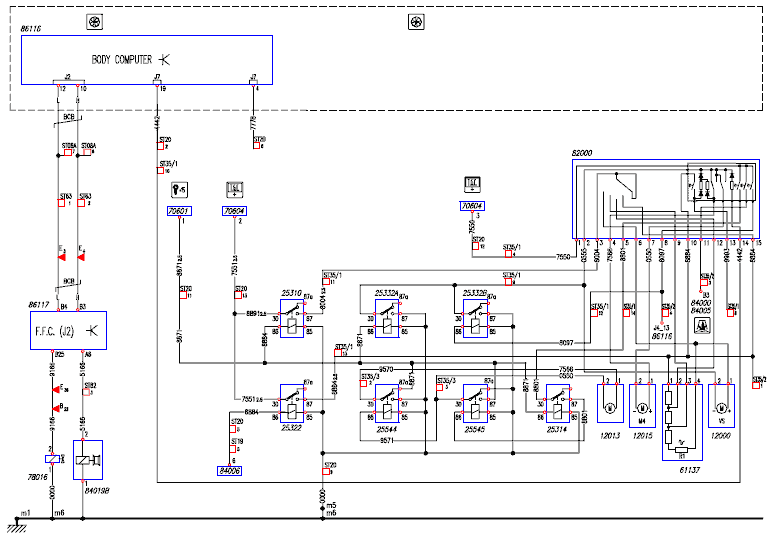

BODY COMPUTER (BC)


BODY COMPUTER (BC)


BODY COMPUTER (BC)


BODY COMPUTER (BC)


STEERING WHEEL INTERFACE (SWI)

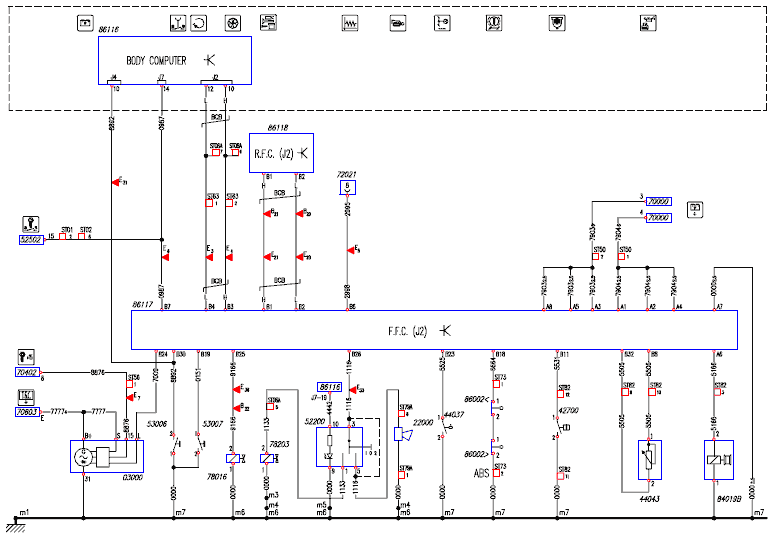

FRONT FRAME COMPUTER (FFC)


FRONT FRAME COMPUTER (FFC)


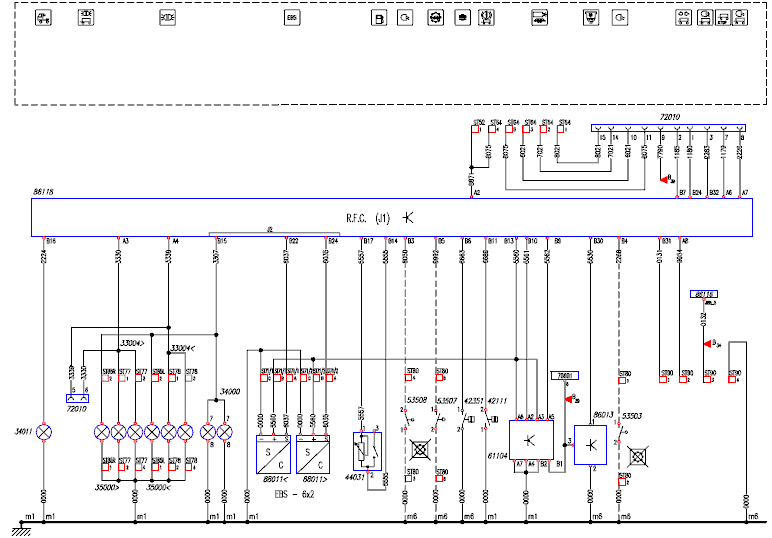

REAR FRAME COMPUTER (RFC)


REAR FRAME COMPUTER (RFC)


CABIN MODULE (CM)

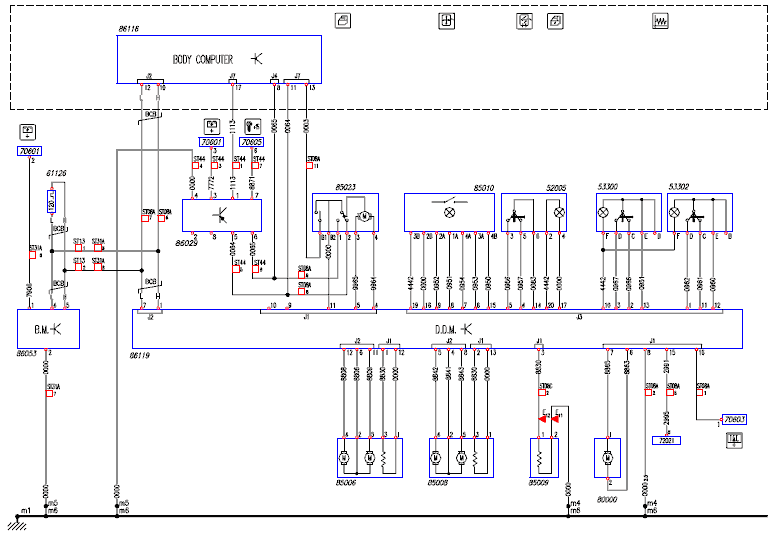

DRIVER DOOL MODULE (DDM) / BED MODULE (BM)


PASSENGER DOOR MODULE (PDM)

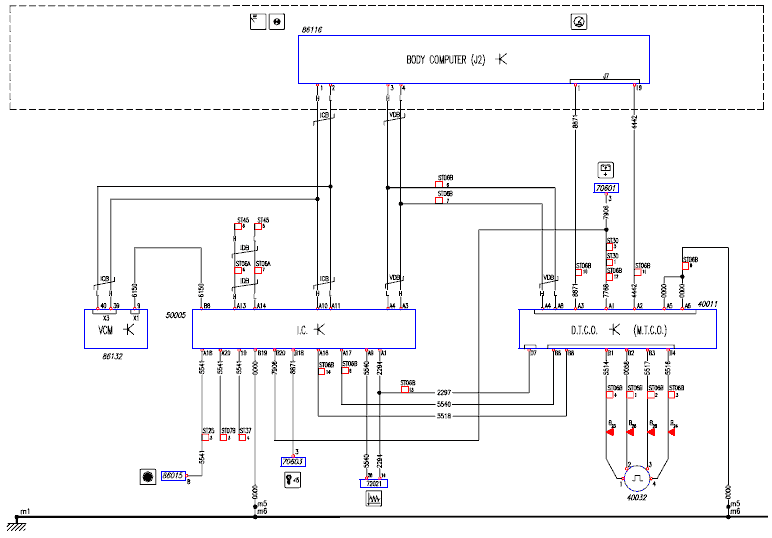

INSTRUMENT CLUSTER (IC) / TACHOGRAPH

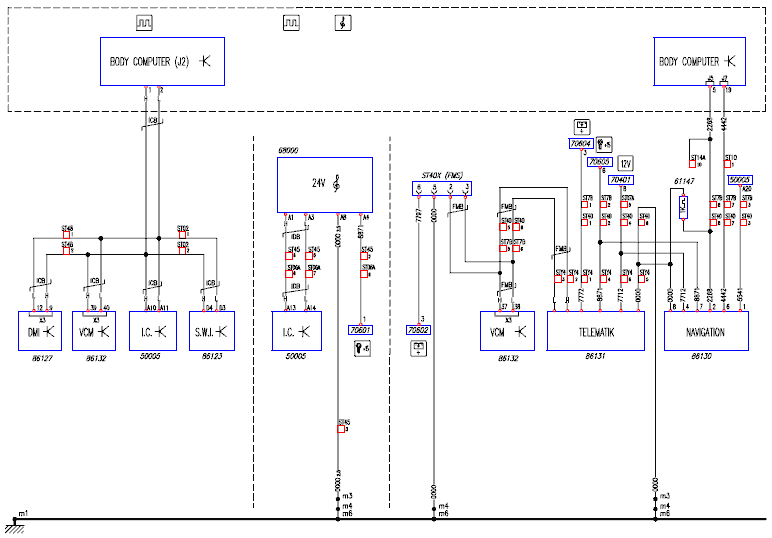

CAN LINES “ICB” - “IDB” - “FMB”


CAN LINES “SB” (EBS2-ABS)


CAN LINES “BCB”


CAN LINES “VDB”


CAN LINES “ECB”

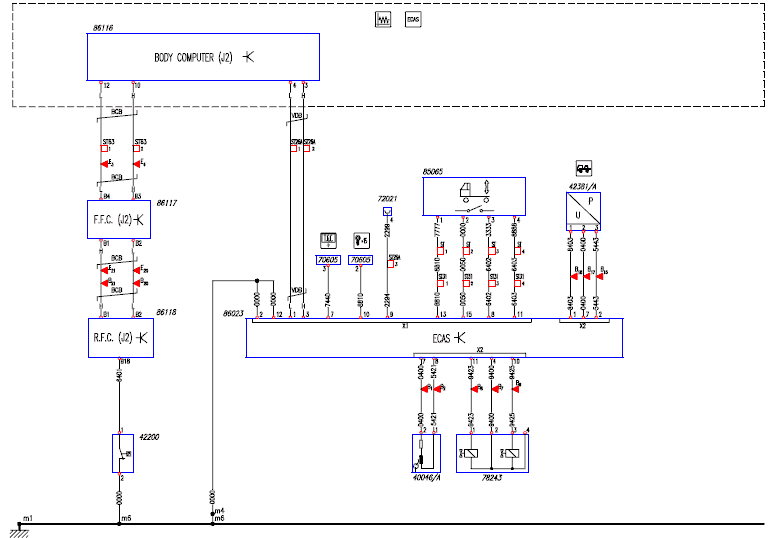

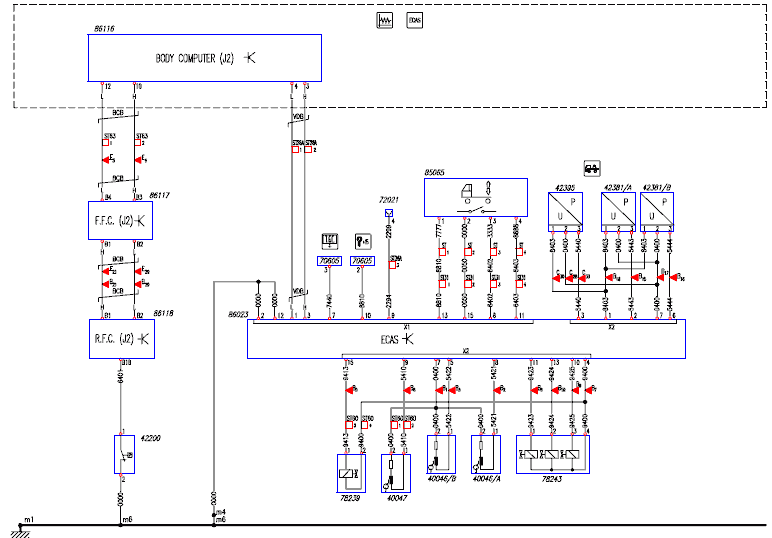

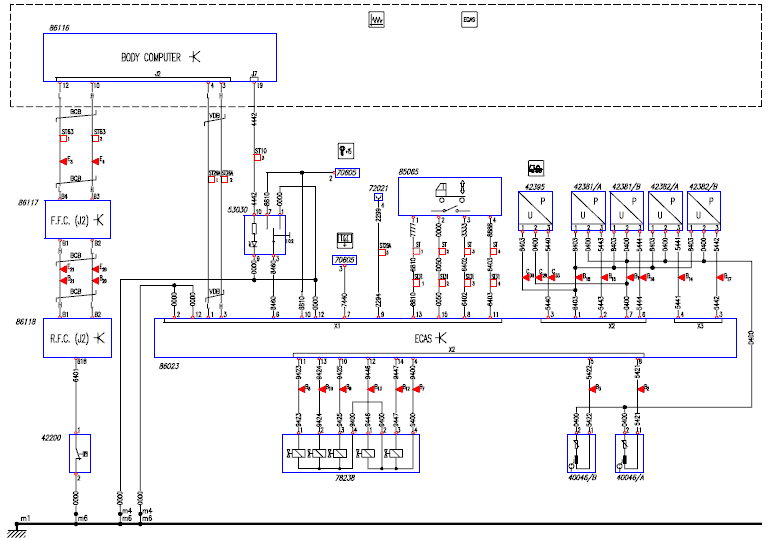

ECAS 4X2 P (TRACTOR)


ECAS 4X2 FP (TRACTOR)


ECAS 4X2 P / FP (TRUCK)


ECAS 6X4 P


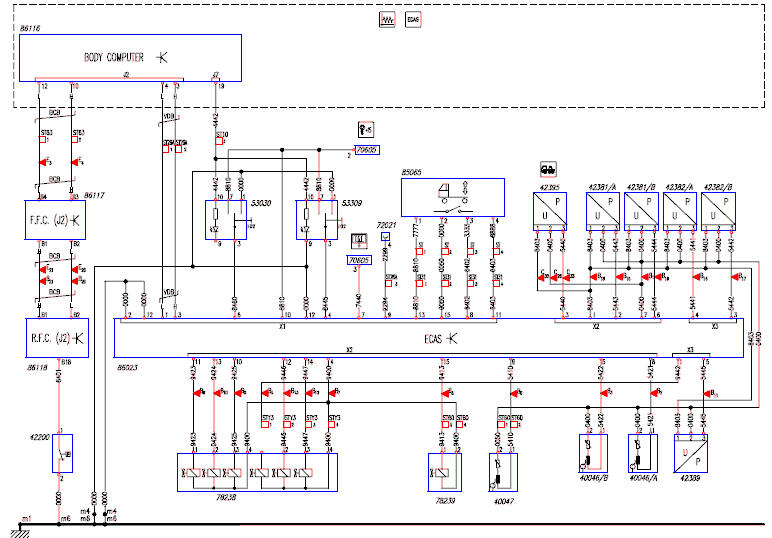

ECAS 6X2 P / FP / C (3RD AXLE LIFTABLE)


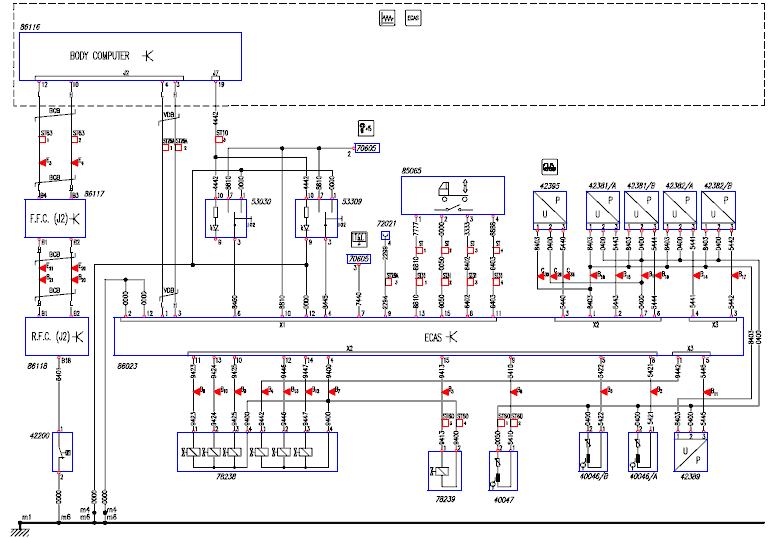

ECAS 6X2 P / FP (3RD AXLE NOT LIFTABLE)


ECAS 6X2 C (TRACTOR - 3RD AXLE NOT LIFTABLE)


RETARDER ZF

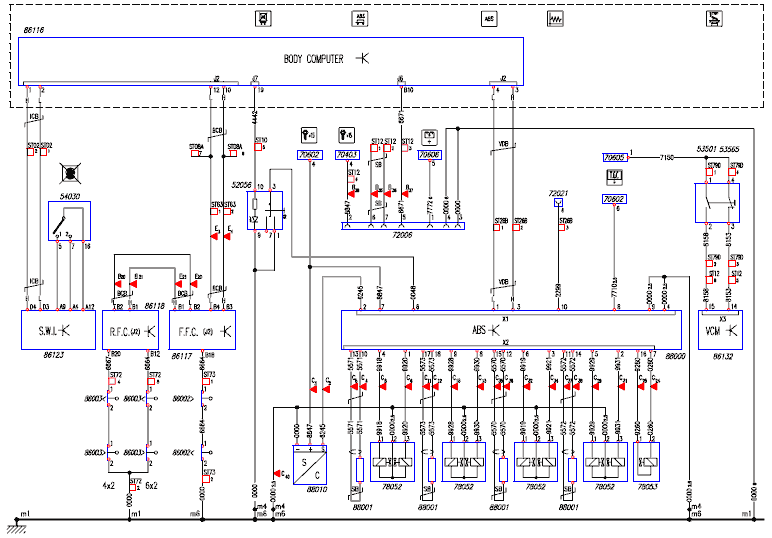

ABS

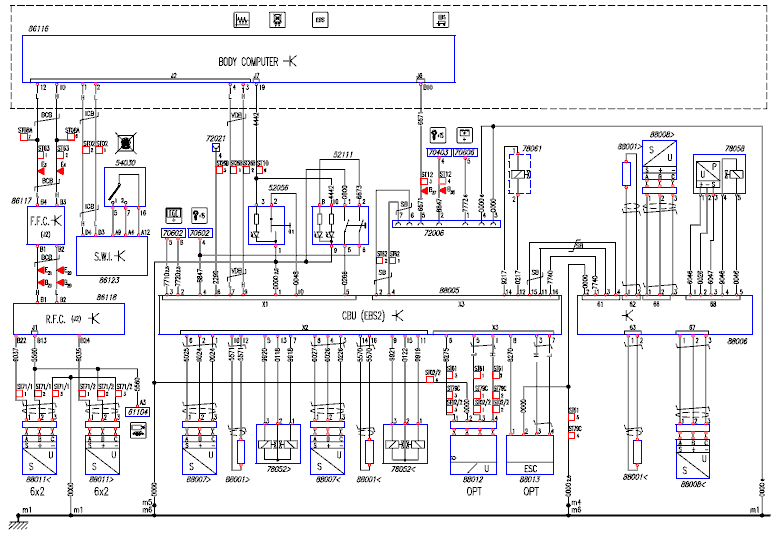

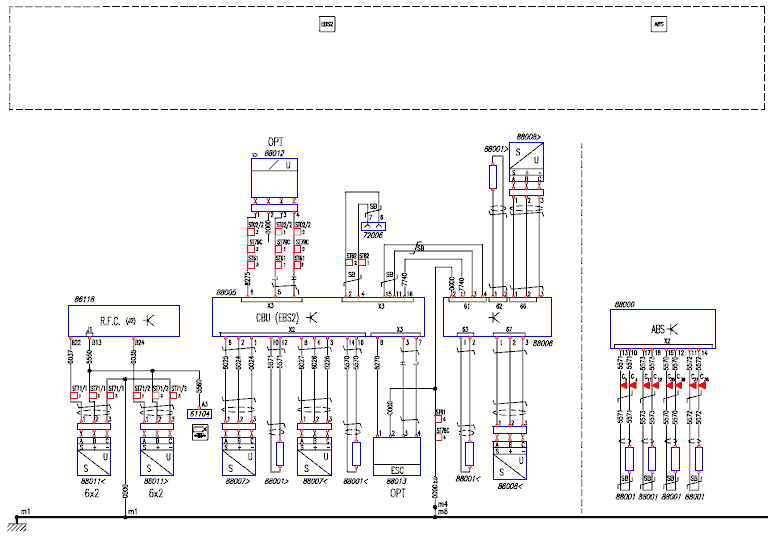

EBS2

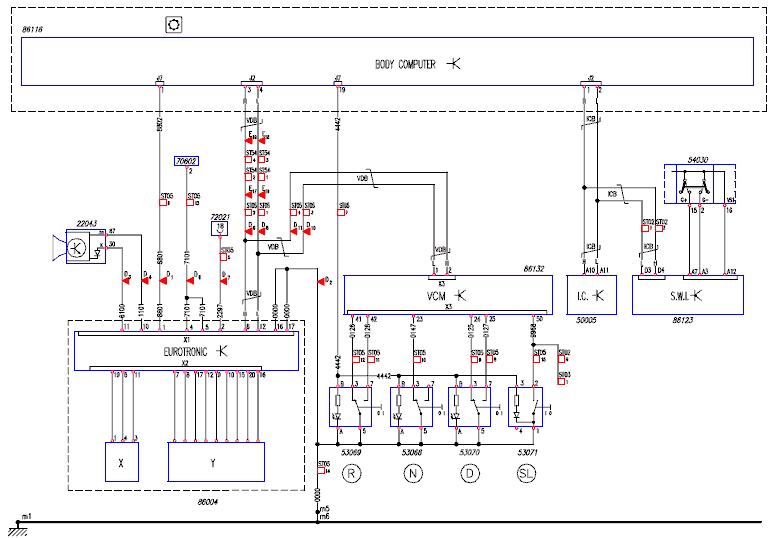

EUROTRONIC II

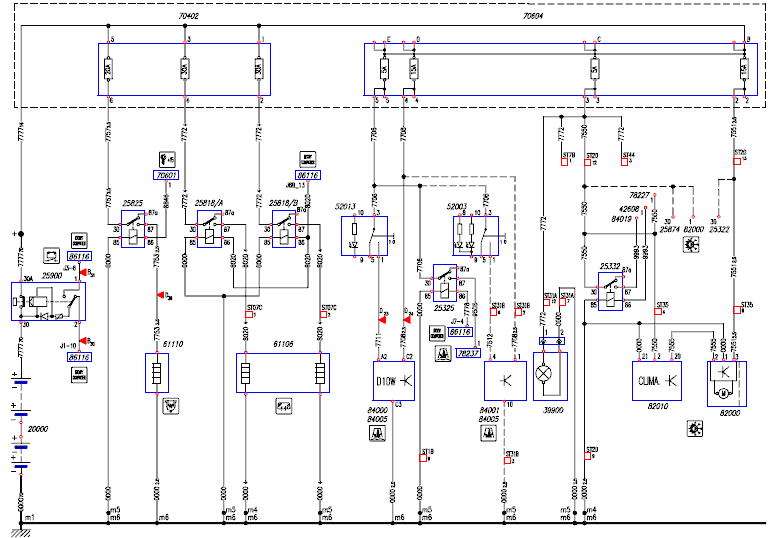

COOLING / ENGINE VENTILATION


HAND-OPERATED CONDITIONING SYSTEM

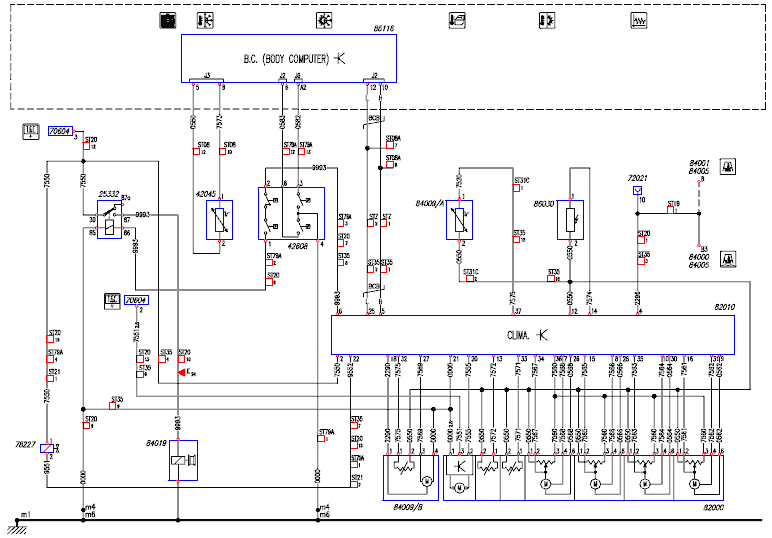

AUTOMATIC CONDITIONING SYSTEM

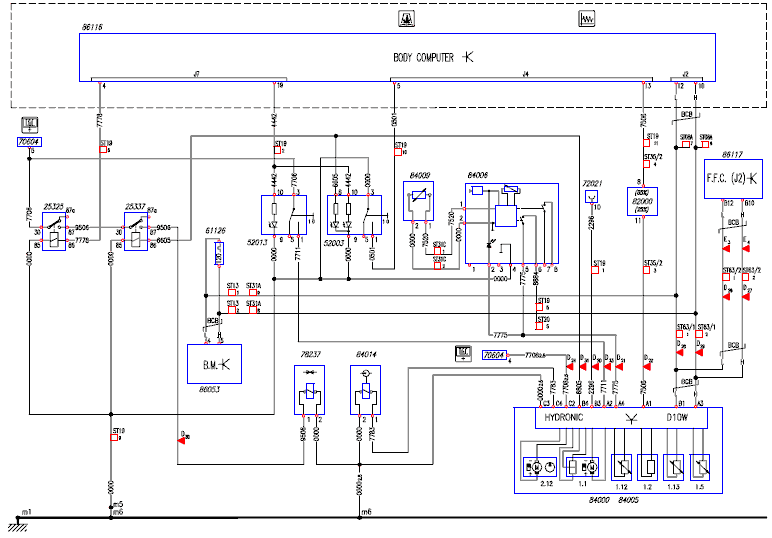

AUTOMATICALLY CONTROLLED SUPPLEMENTARY WATER HEATER

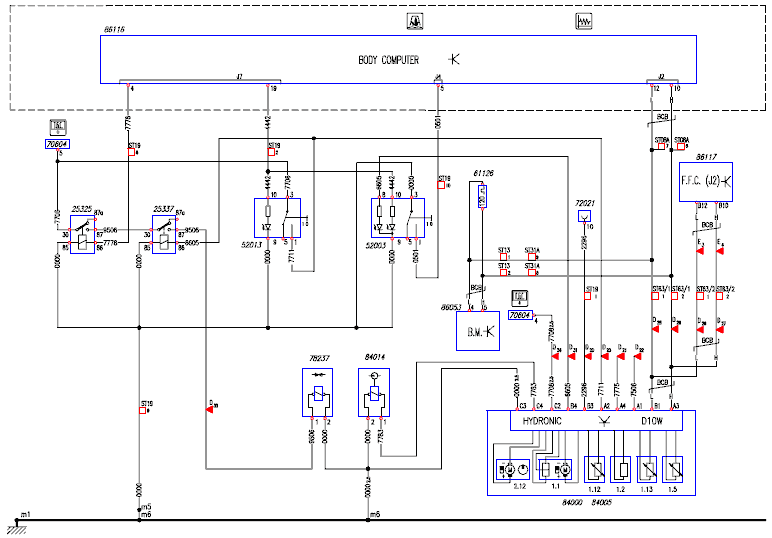

HAND-OPERATED SUPPLEMENTARY WATER HEATER


SUPPLEMENTARY AIR - OPERATED HEATER (MANUAL / AUTOMATIC)

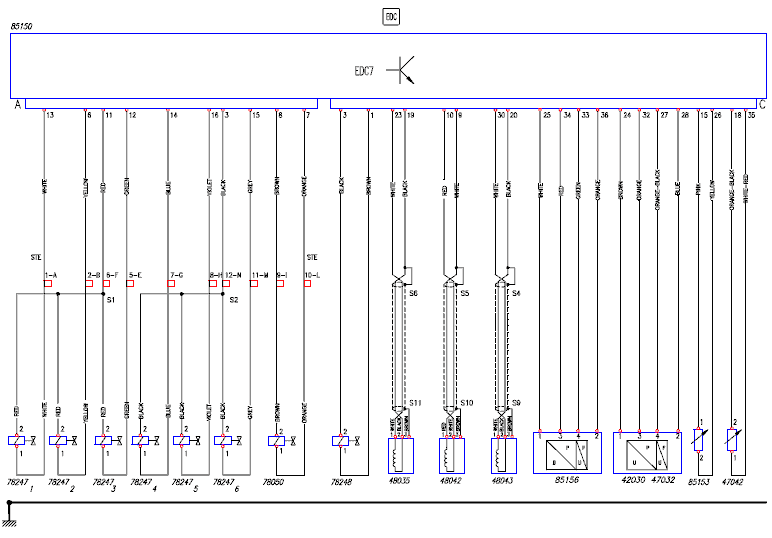

EDC (CONNECTOR B)


EDC (CONNECTOR A)


DMI PTO CONTROL UNIT


RADIO RECEIVER


ADR (2001 94/9/EG)


ADR (OPT. 0129)


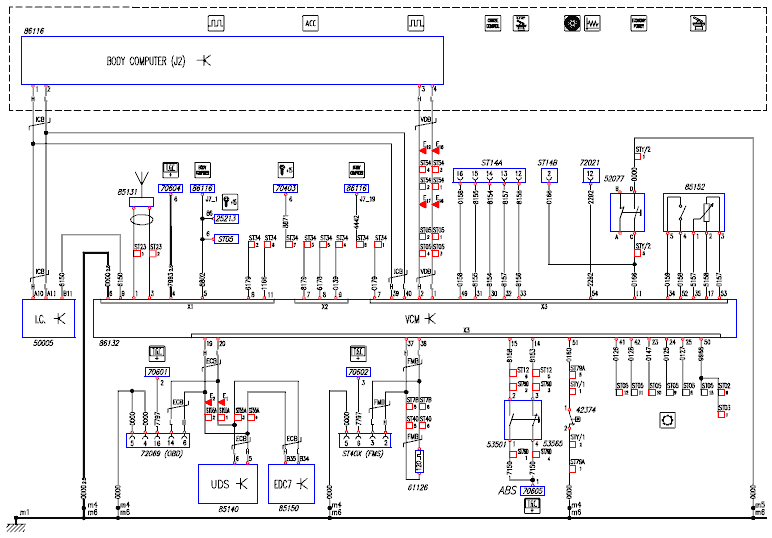

ELECTRONIC CONTROL UNIT VCM

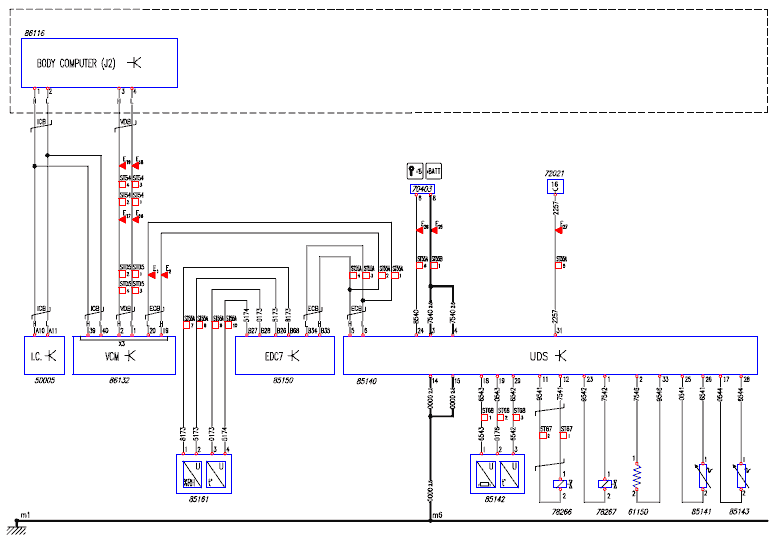

ELECTRONIC CONTROL UNIT DCU 15 (SYSTEM SCR)
