Электросхемы IVECO TRAKKER EURO 4/5

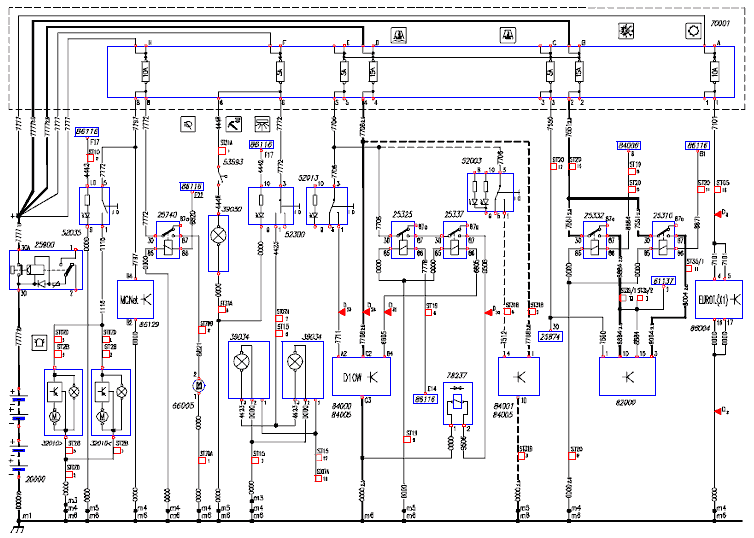

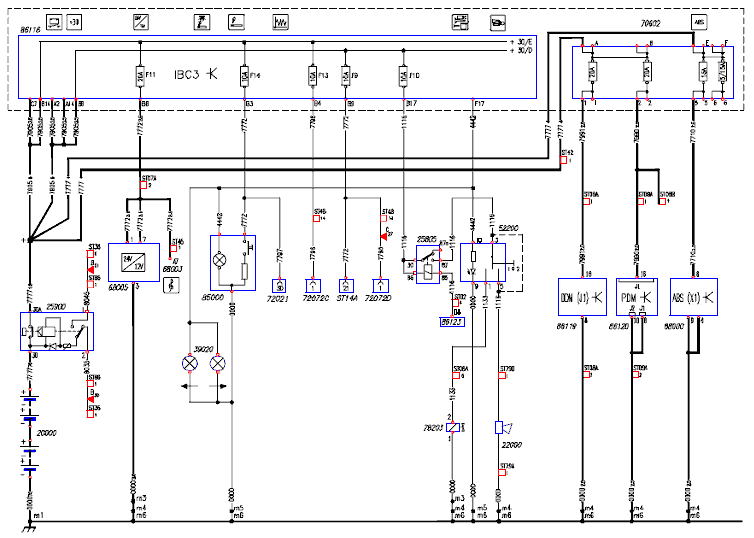

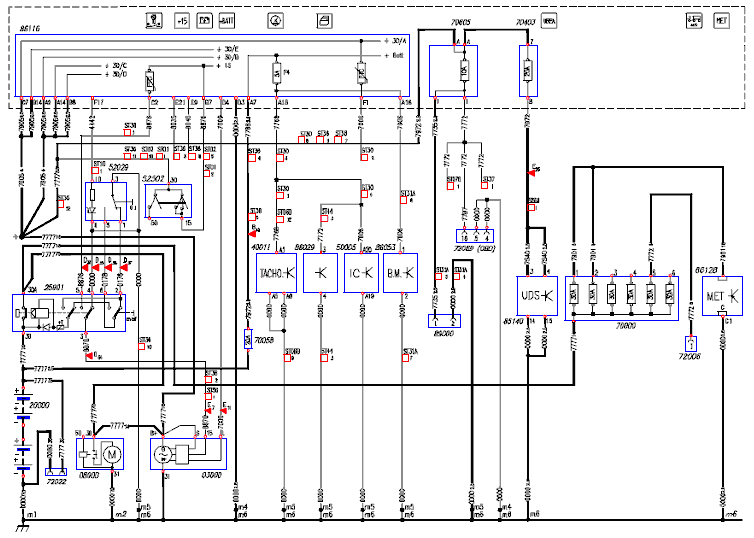

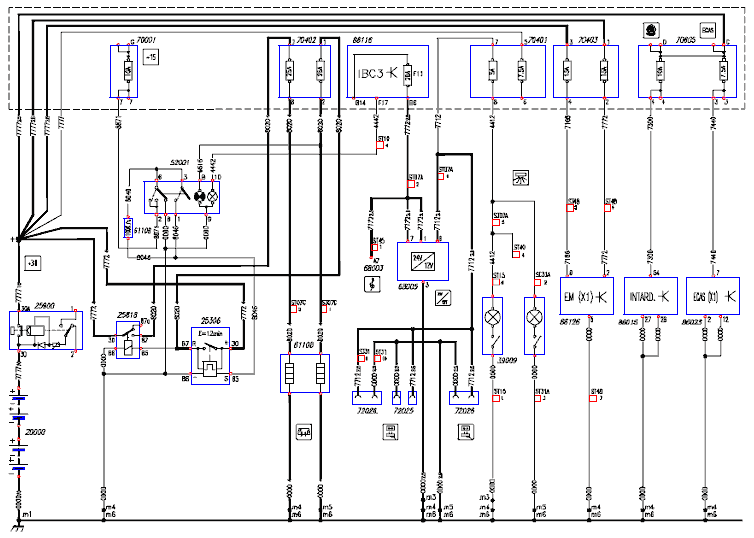

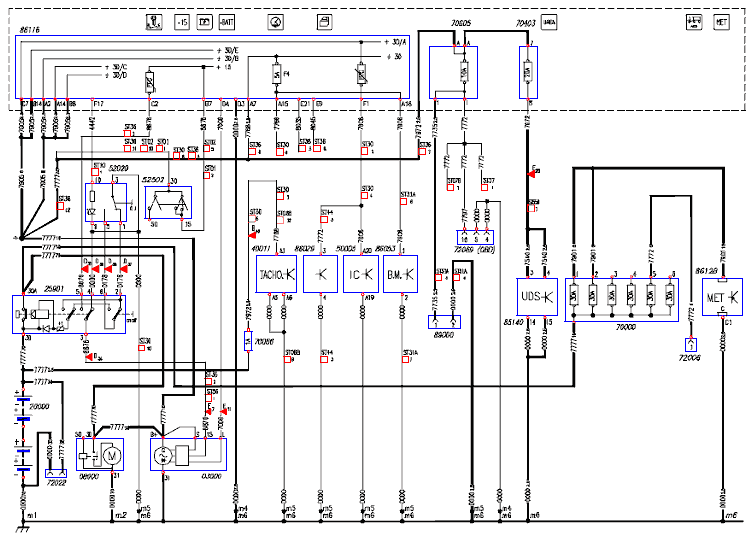

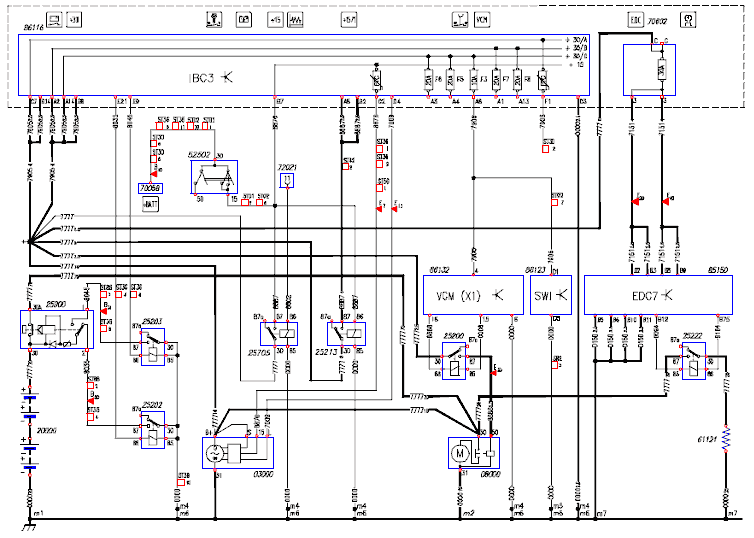

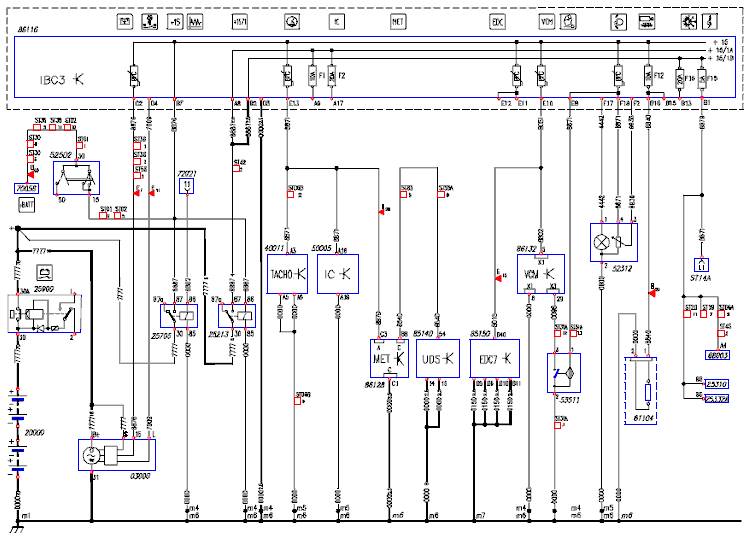

DIRECT POSITIVE TO BATTERY


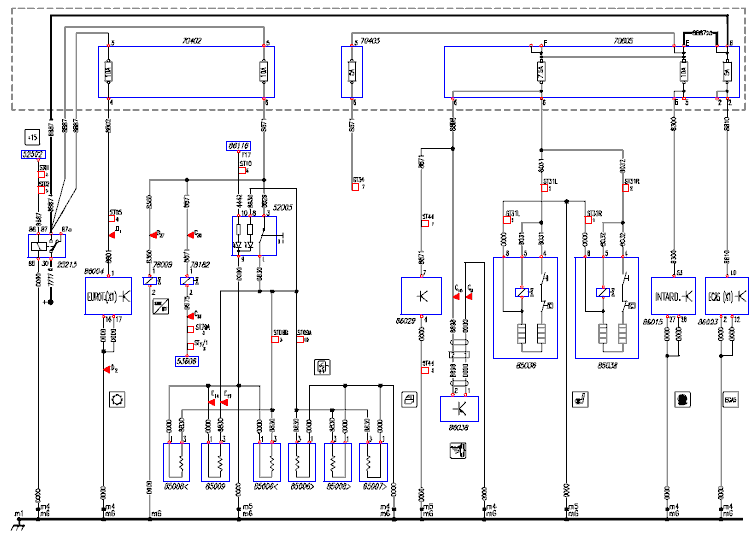

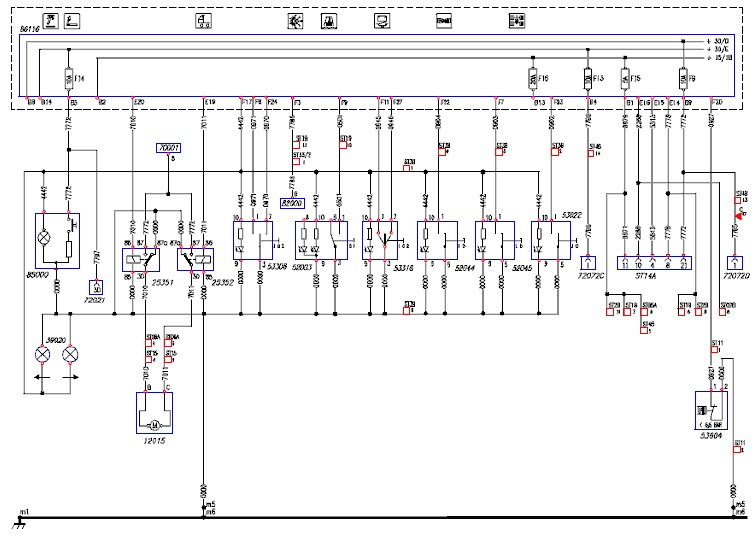

POSITIVE AFTER TGC (+30)


POSITIVE AFTER TGC (+30)


POSITIVE AFTER TGC (+30)


POSITIVE AFTER TGC (+30)


POWER SUPPLY (+15)


POWER SUPPLY (+15)


POWER SUPPLY (+15)

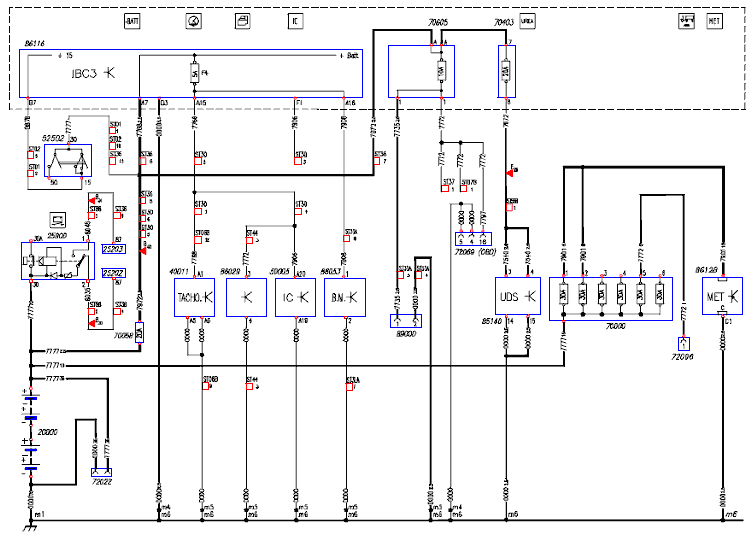

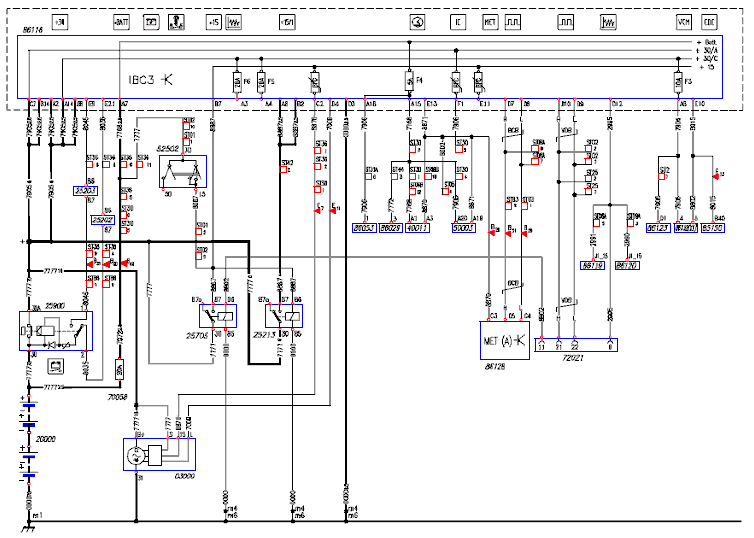

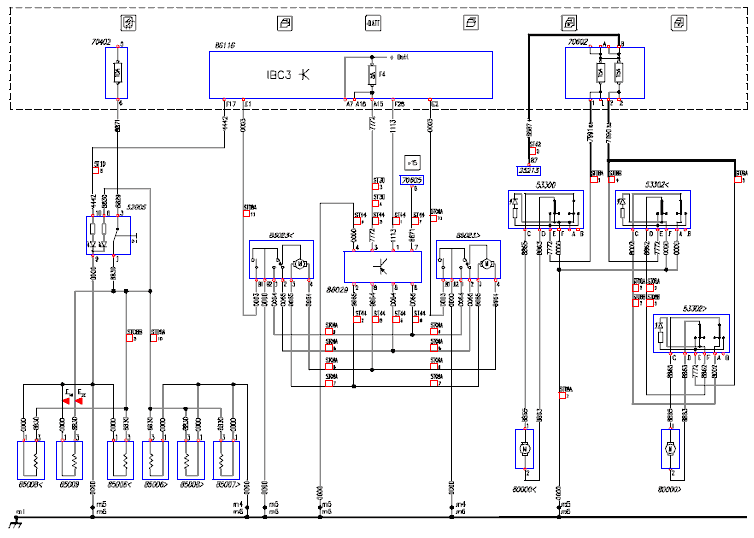

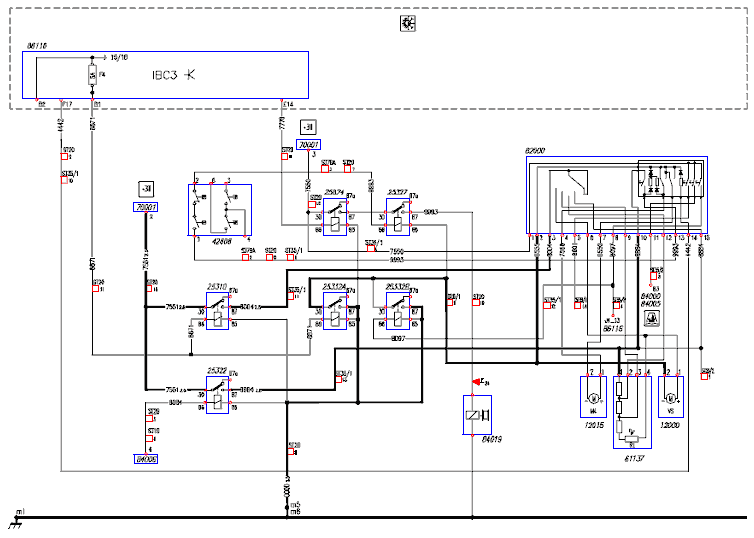

BODY CONTROLLER


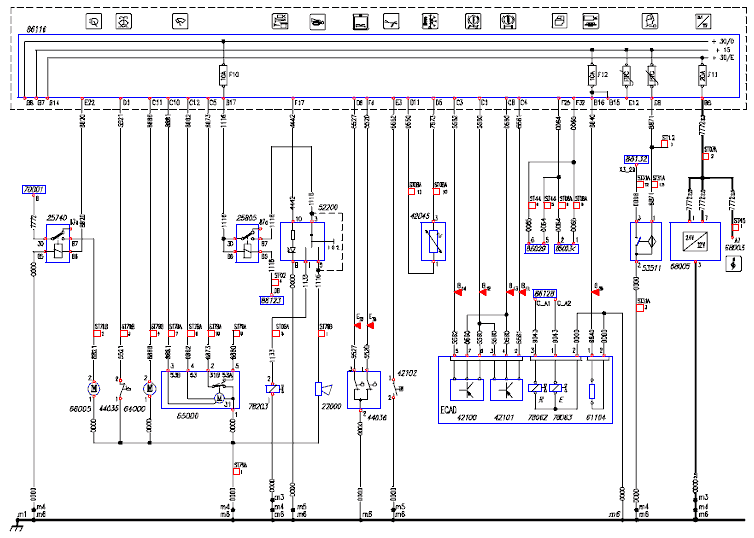

BODY CONTROLLER


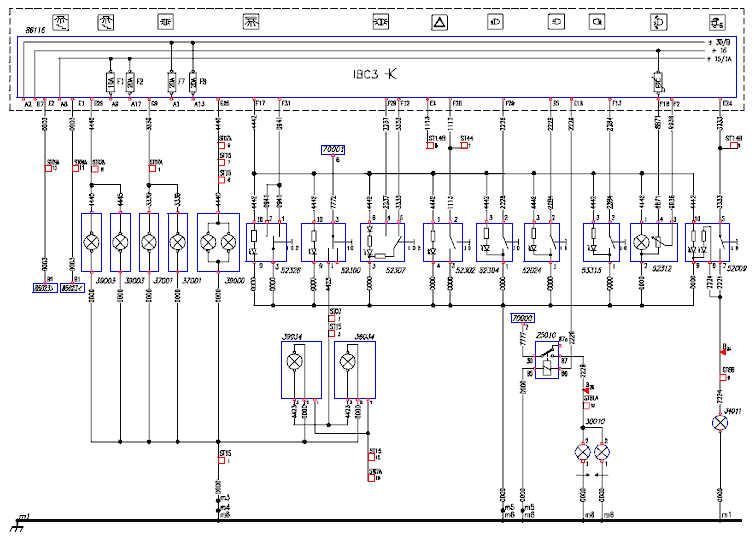

BODY CONTROLLER


BODY CONTROLLER

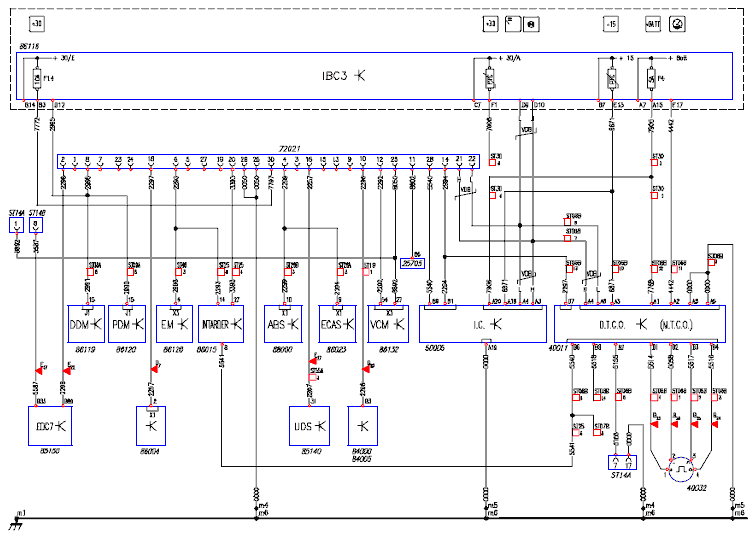

IC CONTROL UNIT

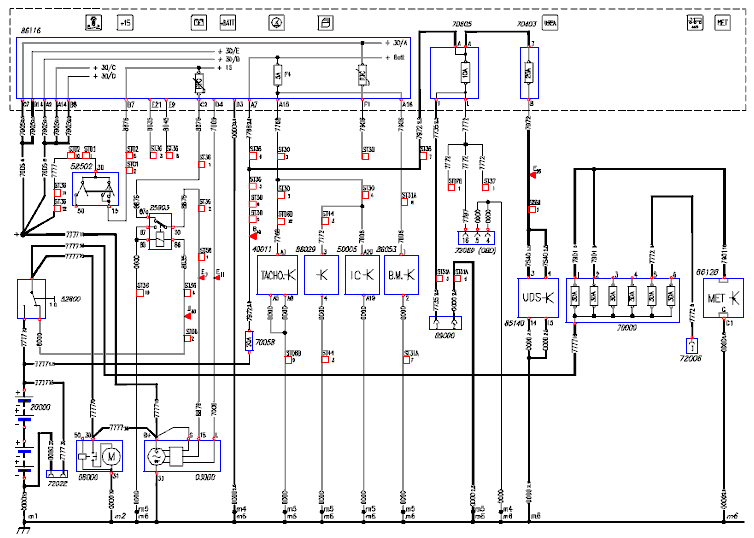

TACHOGRAPH / DIAGNOSIS SOCKET

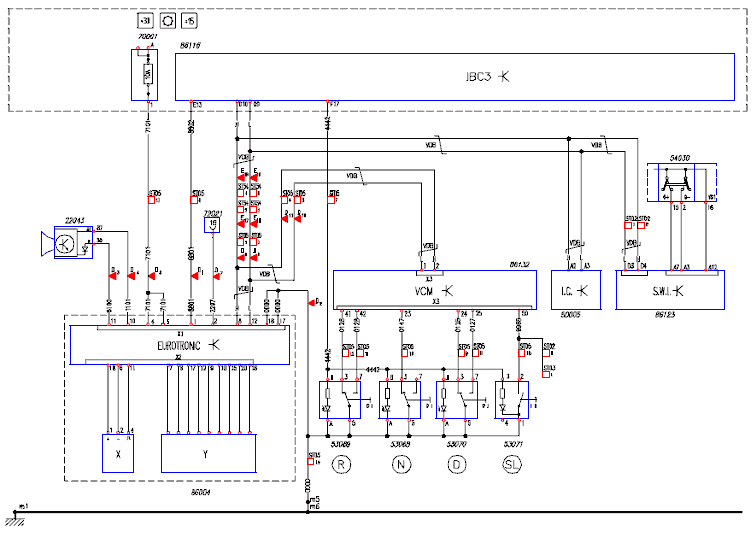

STEERING WHEEL INTERFACE (SWI)

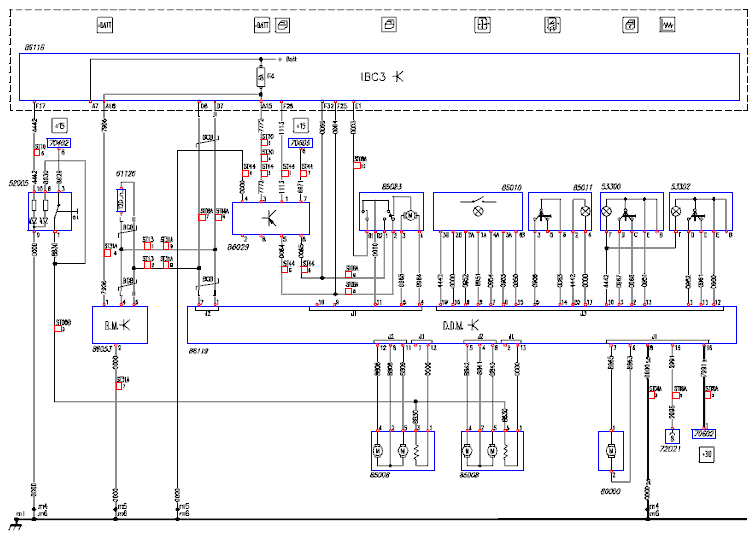

DDM-BM CONTROL UNIT

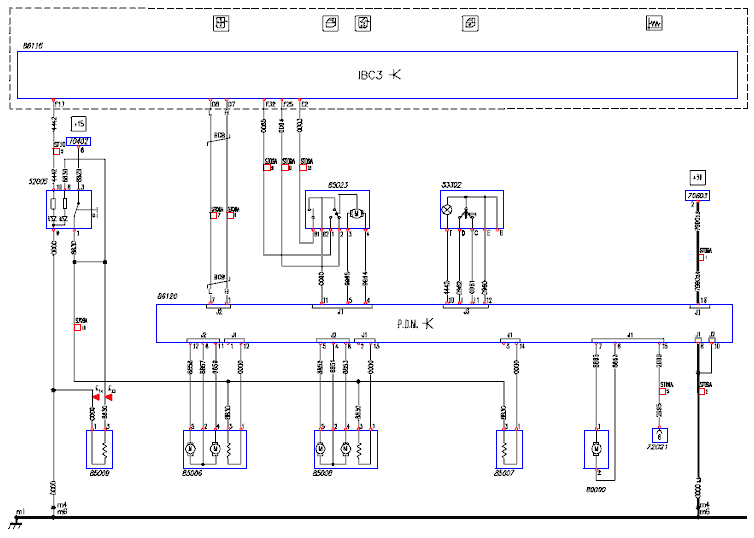

PDM CONTROL UNIT


THERMAL MIRRORS / CENTRALISED LOCKING / WINDOW WINDERS (WITHOUT DDM-PDM)

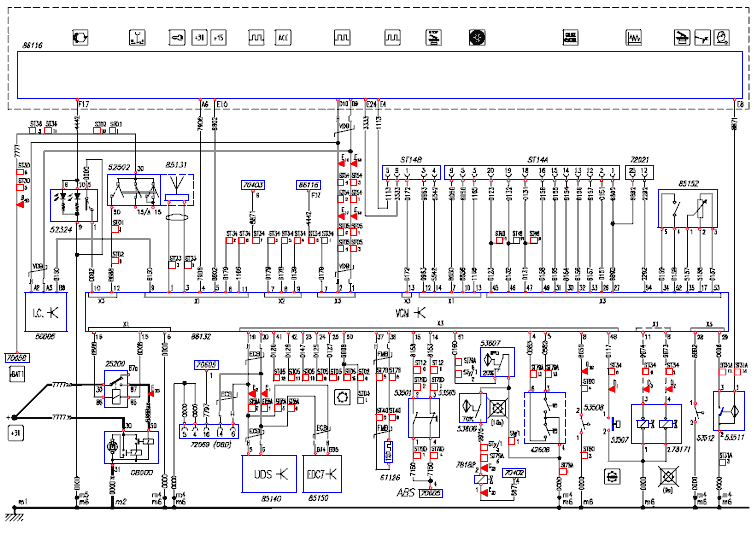

VCM CONTROL UNIT

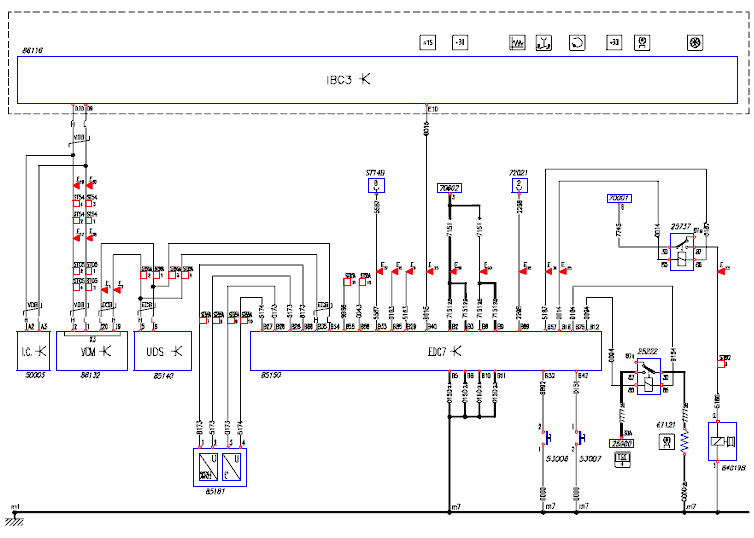

EDC (CONNECTOR B)


EDC (CONNECTOR A/C - F2B)


EDC (CONNECTOR A/C - F3B)

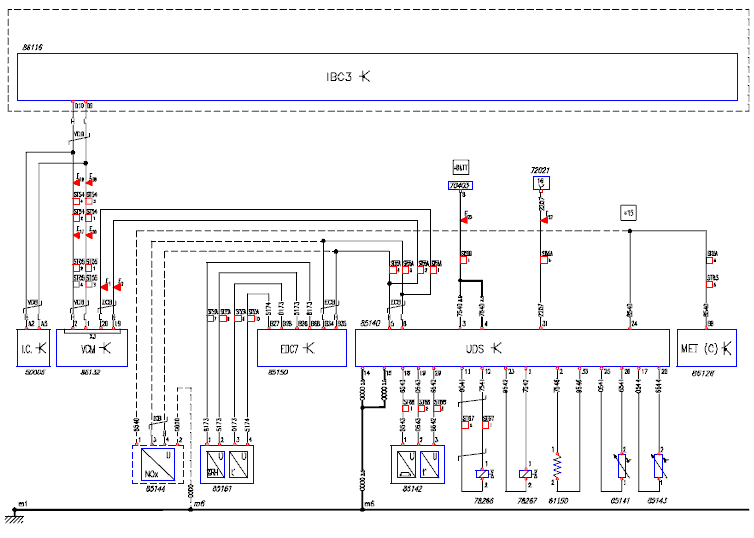

CONTROL UNIT UDS (DENOX 2)

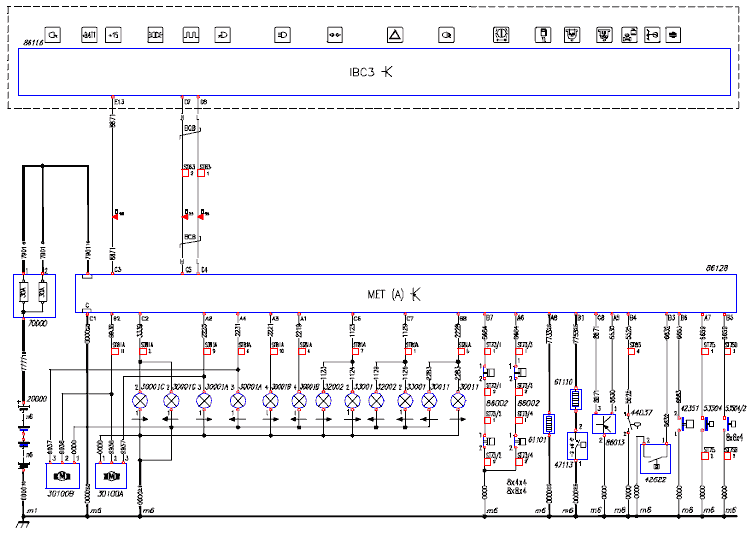

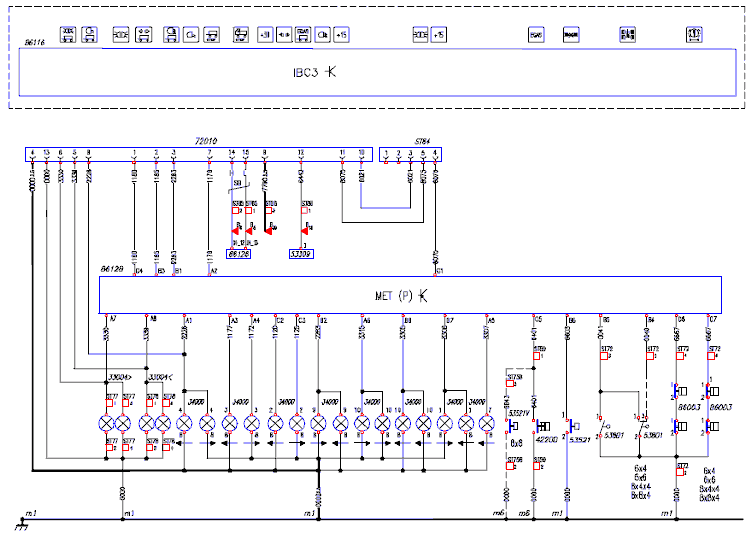

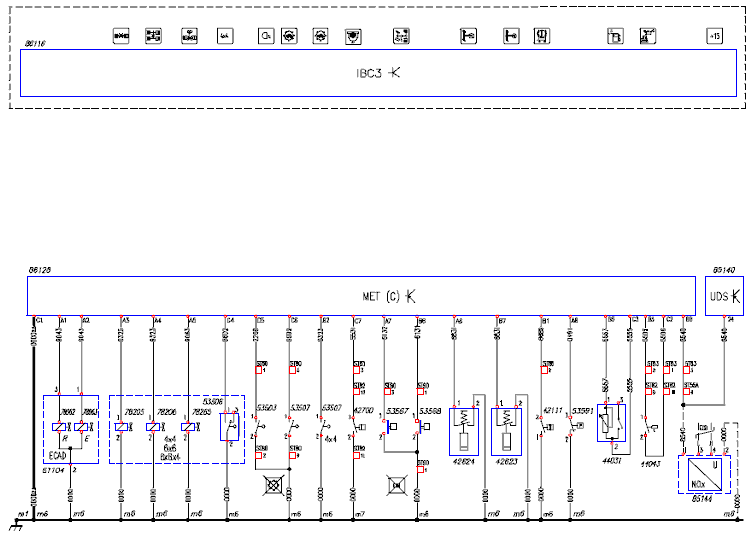

CONTROL UNIT MET


CONTROL UNIT MET


CONTROLI UNIT MET

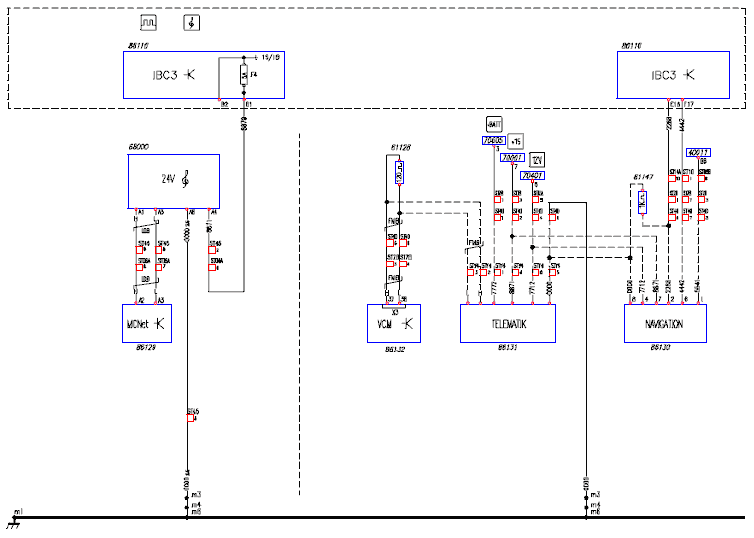

LINE CAN-IDB / FMB / CONTROL UNIT / TELEMATICS / NAVIGATOR


LINE CAN-BCB


LINE CAN-VDB


LINE CAN-ECB


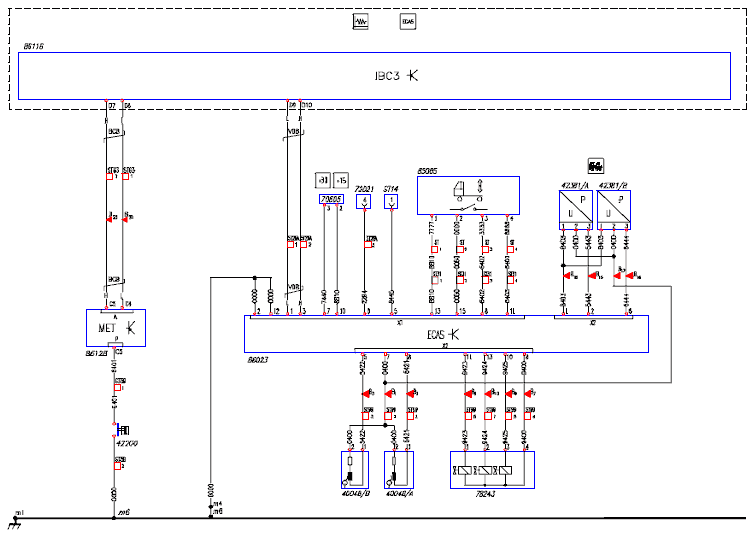

ECAS 4X2 P TRACTOR


ECAS 4X2P/4X4P/6X4P/8X4X4P (LORRY)


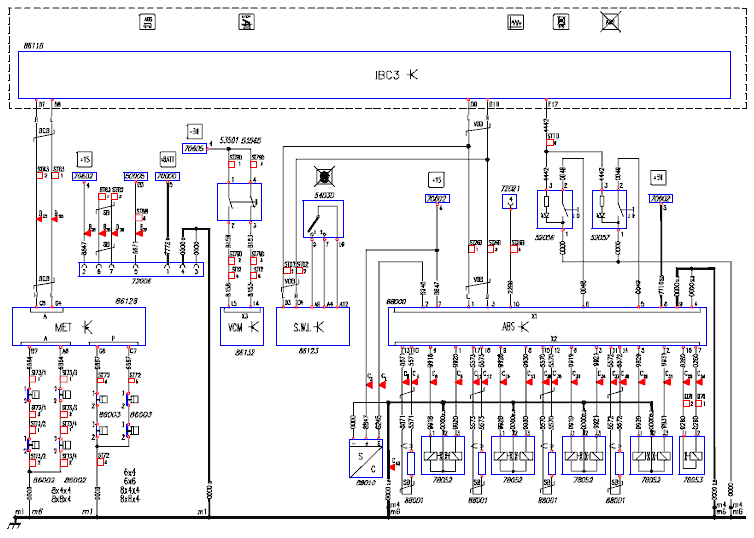

ABS


VENTILATION


MANUALLY CONTROLLED CLIMATE CONTROL SYSTEM

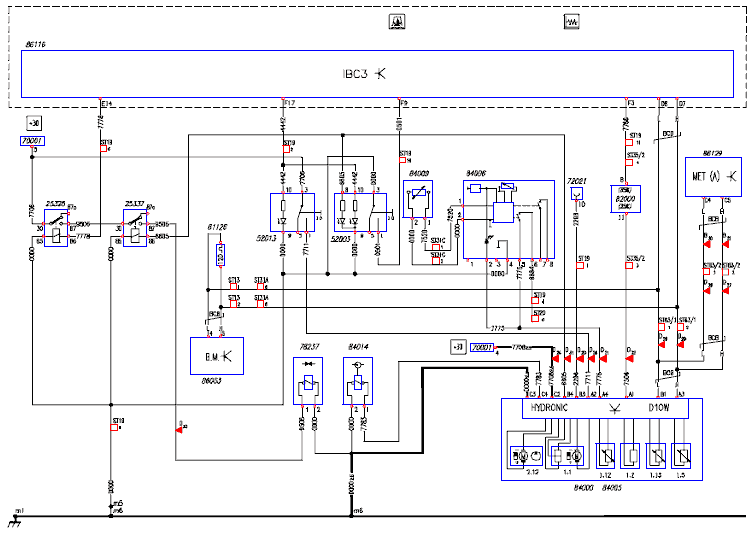

MANUALLY CONTROLLED ADDITIONAL AIR HEATER


MANUALLY CONTROLLED ADDITIONAL AIR HEATER


EUROTRONIC II


RETARDER ZF

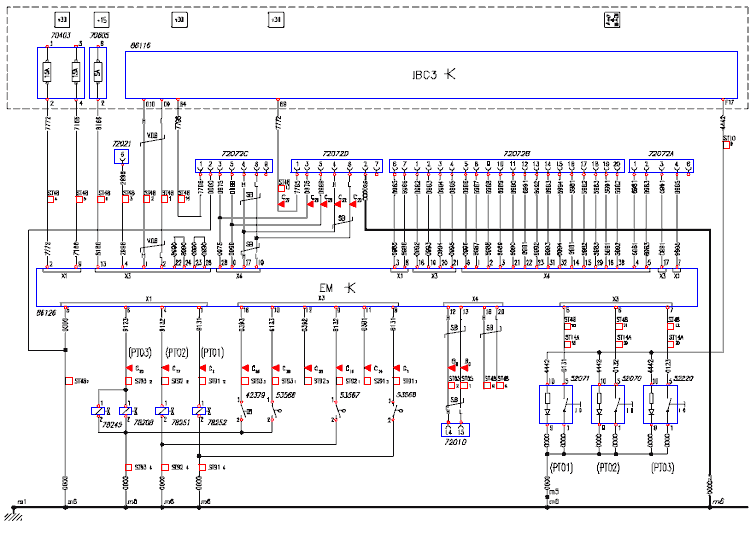

CONTROL UNIT EM (PTO)


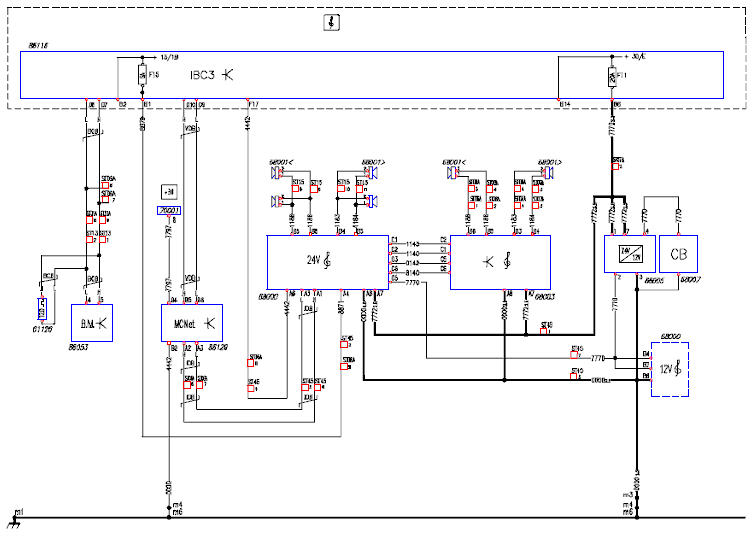

RADIO RECEIVER


GENERAL MECHANICAL POWER SWITCH (IGC)


ADR (2001)


DR (OPT. 0129)
