Электросхемы систем VIC-2+VIC-2 Lite DAF
LF45IV, LF55IV, CF65IV, CF75IV, CF85IV, XF105

VIC-2 LITE
BLOCK DIAGRAM FOR CAN NETWORK
Block diagram K102111 applies to:
- LF45 IV/LF55 IV models

  • A100 Connector, HD-OBD diagnosis, 16-pole
  • D310L ECU, VIC-2 Lite
  • D904 Menu Control Switch
  • E108 Fuse, VIC-2
  • E277 Fuse, VIC-2
  • E280 Fuse, VIC-2

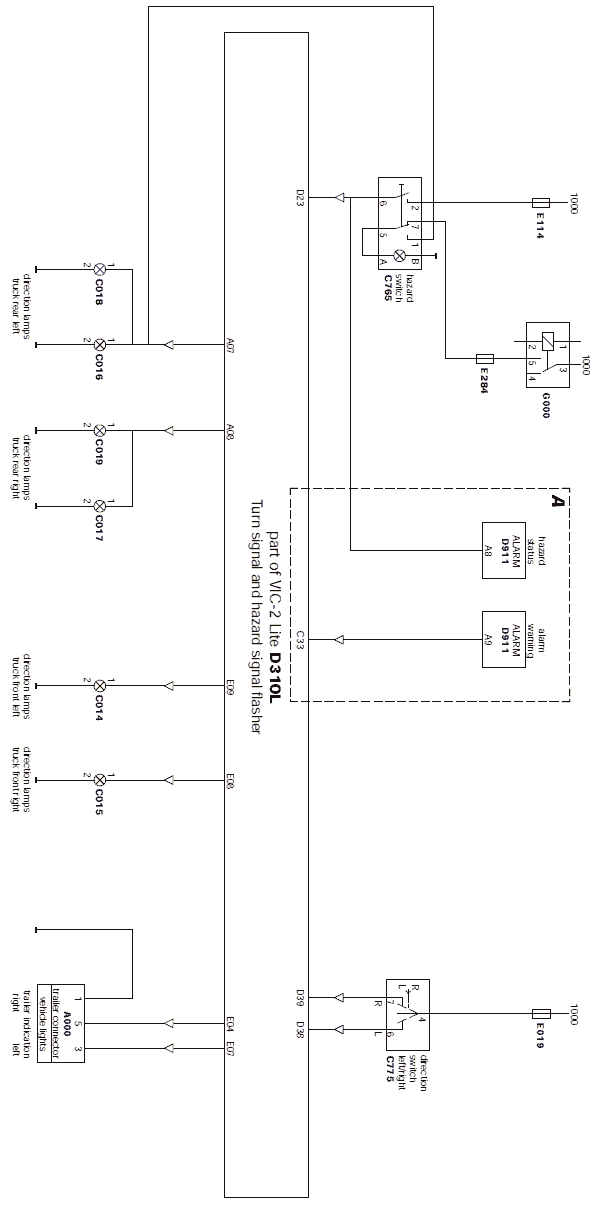

BLOCK DIAGRAM FOR HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM
Block diagram K102105 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer (7-pole)
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C765 Switch, hazard warning
  • C775 Switch, steering column, direction indicators
  • D310L ECU, VIC-2 Lite
  • D911 ECU, alarm, ALS-S
  • E019 Fuse, steering column, left
  • E114 Fuse, cab heater
  • E284 Fuse, search lights
  • G000 Relay, rear lights

BLOCK DIAGRAM FOR WINDSCREEN WIPER/WASHING SYSTEM
Block diagram K102106 applies to:
- LF45 IV/LF55 IV models

  • B000 Motor, windscreen wiper
  • B001 Pump, windscreen washer
  • C842 Steering column
  • D310L ECU, VIC-2 Lite
  • E018 Fuse, wiper motor
  • E025 Fuse, wiper motor
  • G008 Relay, wiper
  • G354 Relay, windscreen wiper

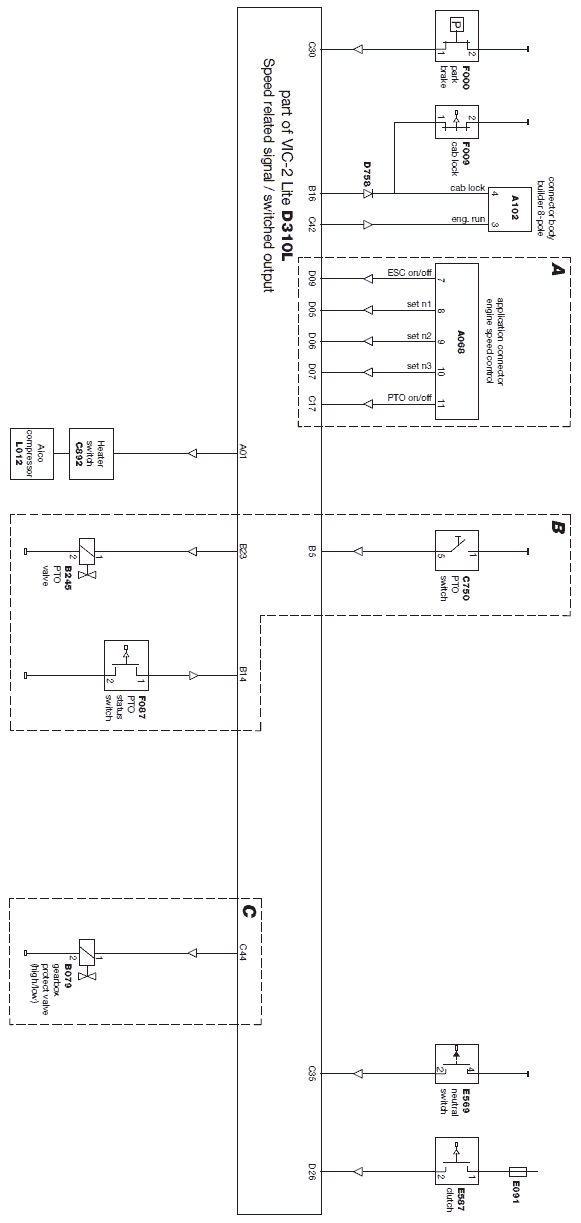

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102107 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with application connector A068
B: Application with PTO
C: Application with 9 gears

  • A068 Connector, ESC
  • A102 Connector, body builder, 8-pole
  • B079 Valve, range protection
  • B245 Valve, PTO 1 control
  • C750 Switch, PTO 1 control
  • C892 Switch, heater fan
  • D310L ECU, VIC-2 Lite
  • D758 Diode, anti-feedback to VIC
  • D941 ECU, ABS/ASR-D
  • E091 Fuse, heating element, PTO application connector
  • E569 Switch, neutral position
  • E587 Switch, brake lights/clutch
  • F000 Switch, park brake
  • F009 switch, cab lock
  • F087 Switch, PTO status, 1st
  • L012 Airco compressor

BLOCK DIAGRAM FOR SENSOR SIGNALS
Block diagram K102108 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application without main switch
B: Application with main switch
C: Application with air suspension
D: Application with differential lock
E: If glow system

  • A513 Alternator
  • B341 Glow element
  • D310L ECU, VIC-2 Lite
  • D851 ECU, ECAS-3
  • D924 ECU, main switch
  • E143 Fuse, tacho/alarm
  • F006 Switch, cross lock, 1st
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature
  • G014 Relay, grid heater
  • G425 Relay, main switch

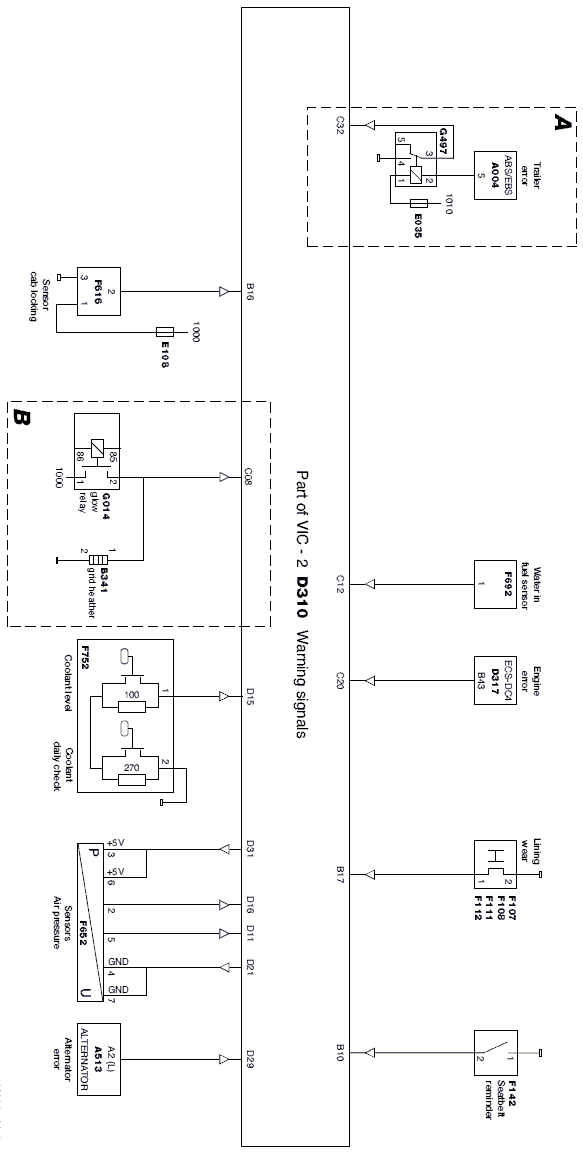

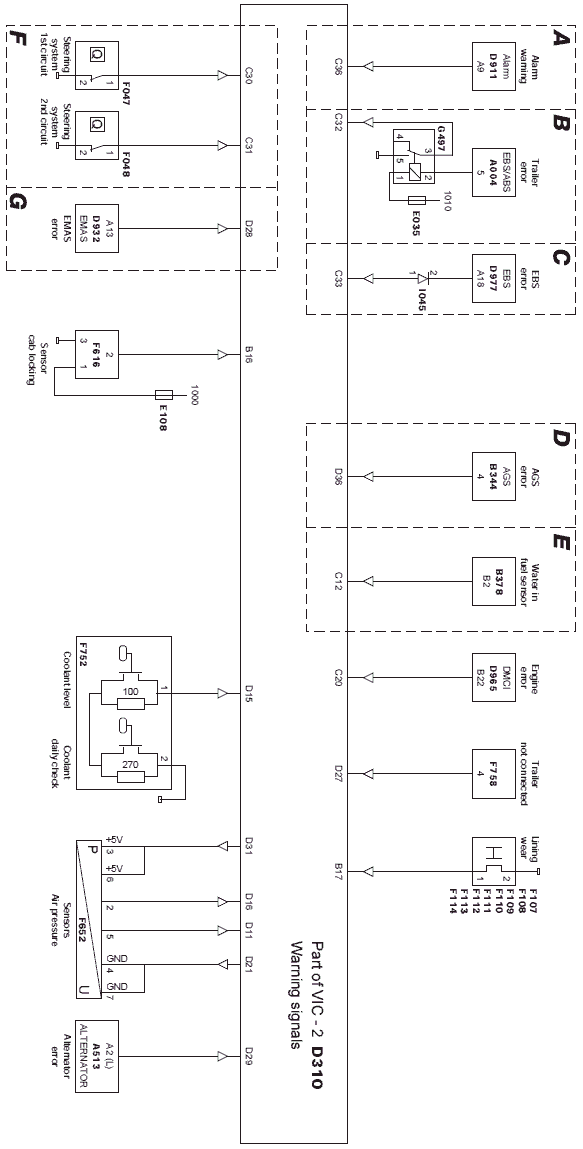

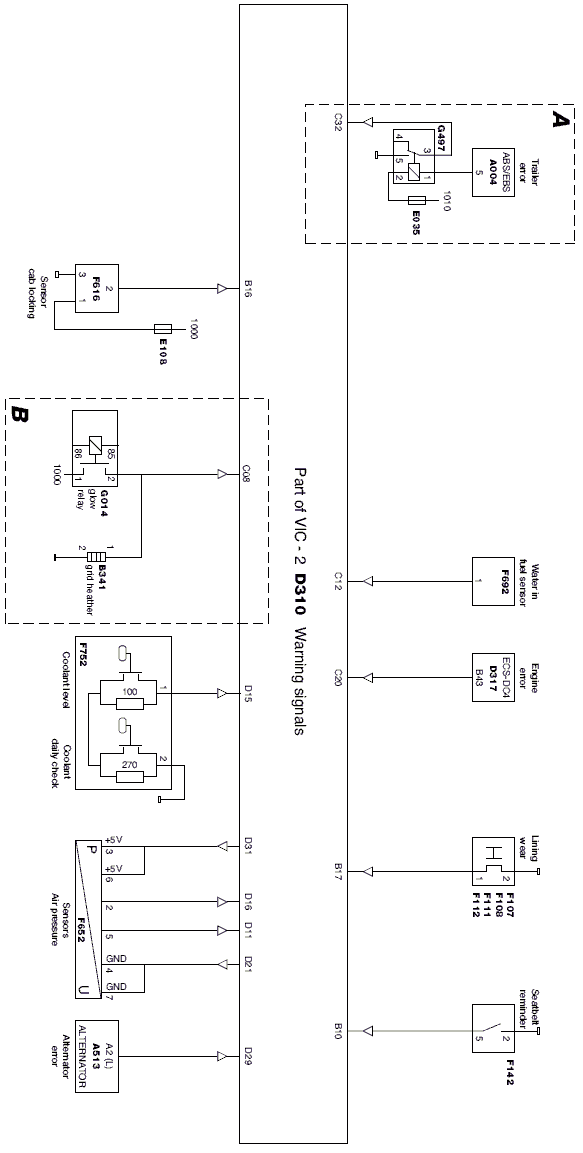

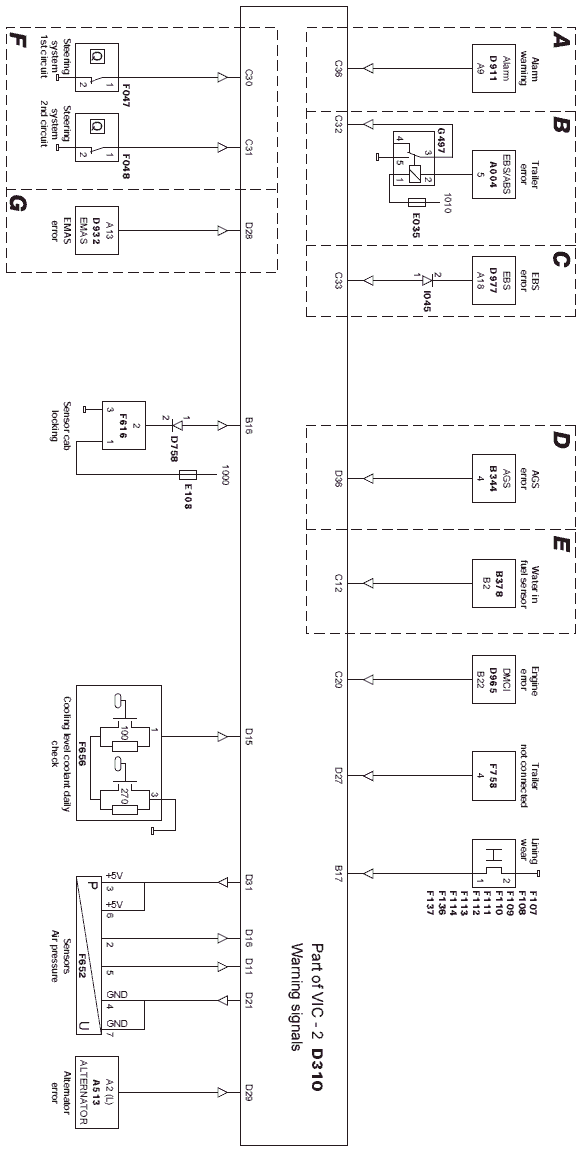

BLOCK DIAGRAM FOR WARNING SIGNALS
Block diagram K102109 applies to:
- LF45 IV/LF55 IV models, specification week <2007-32

Explanation of block diagram
A: Application with air suspension
B: Application with trailer connector (A104)
C: Application with airbag
D: Application with RAS-EC

  • A004 Connector, trailer, ABS, 7-pole
  • A513 Alternator
  • D310L ECU, VIC-2 Lite
  • D851 ECU, ECAS-3
  • D926 ECU, airbag
  • D940 ECU, RAS-EC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F652 Sensor, air pressure
  • F692 Sensor, water separator

Block diagram K102523 applies to:
- LF45 IV/LF55 IV models, specification week >2007-33
Modifications to LF45 IV/LF55 IV
- Seat belt reminder added

Explanation of block diagram
A: Application with air suspension
B: Application with trailer connector (A104)
C: Application with airbag
D: Application with RAS-EC

  • A004 Connector, trailer, ABS, 7-pole
  • A513 Alternator
  • D310L ECU, VIC-2 Lite
  • D851 ECU, ECAS-3
  • D926 ECU, airbag
  • D940 ECU, RAS-EC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F142 Switch, seat belt status
  • F652 Sensor, air pressure
  • F692 Sensor, water separator

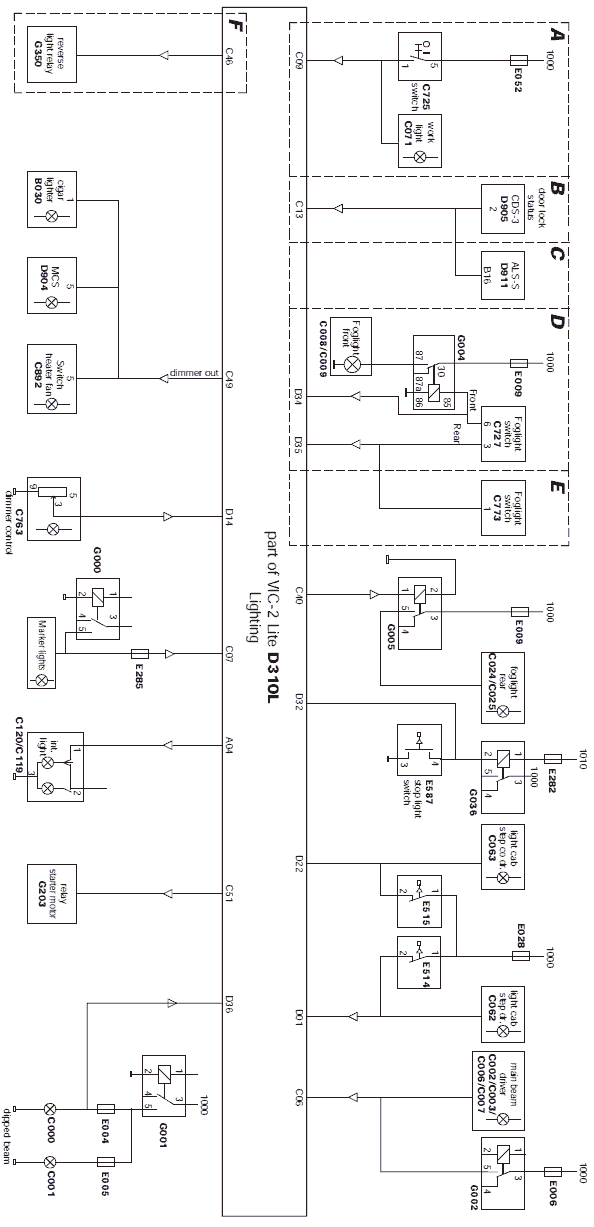

BLOCK DIAGRAM FOR LIGHTING
Block diagram K102110 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with ALS-S
D: Application with front and rear fog lights
E: Application with rear fog lights only
F: Application with AS Tronic Lite gearbox

  • B030 Cigar lighter, driver
  • C000 Light, dipped beam, left
  • C002 Light, main beam, left
  • C008 Light, fog, front left
  • C024 Light, fog, rear left
  • C062 Light, cab step, left
  • C063 Light, cab step, right
  • C071 Light, work
  • C192 Light, interior, with switch, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C763 Dimmer, instrument light
  • C773 Switch, fog lights, rear
  • C892 Switch, heater fan
  • D310L ECU, VIC-2 Lite
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • D911 ECU, alarm, ALS-S
  • E004 Fuse, dipped beam, driver's side
  • E006 Fuse, main beam, driver's side
  • E009 Fuse, front fog lights
  • E028 Fuse, interior
  • E052 Fuse, work lamp
  • E282 Fuse, engine brake / switch, stop lights
  • E285 Fuse, VIC-2 / switch, fog lights
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E587 Switch, brake lights/clutch
  • G000 Relay, rear lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G203 Relay, starter take over
  • G350 Relay, reverse lights

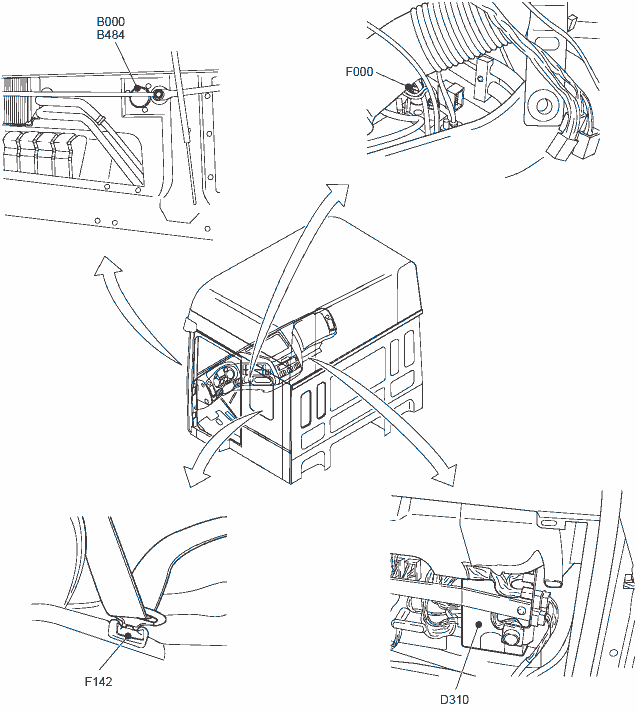

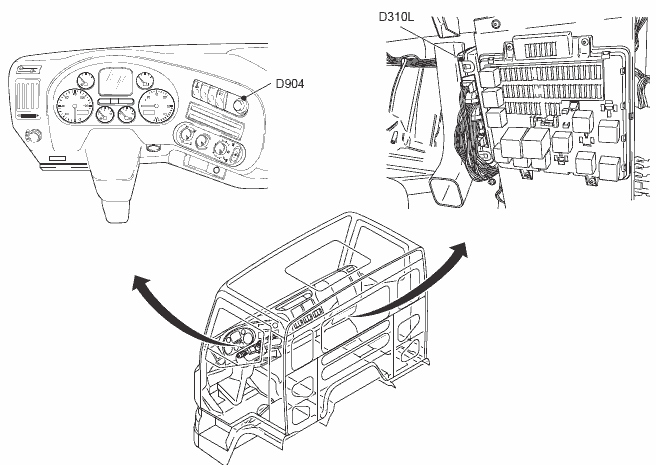

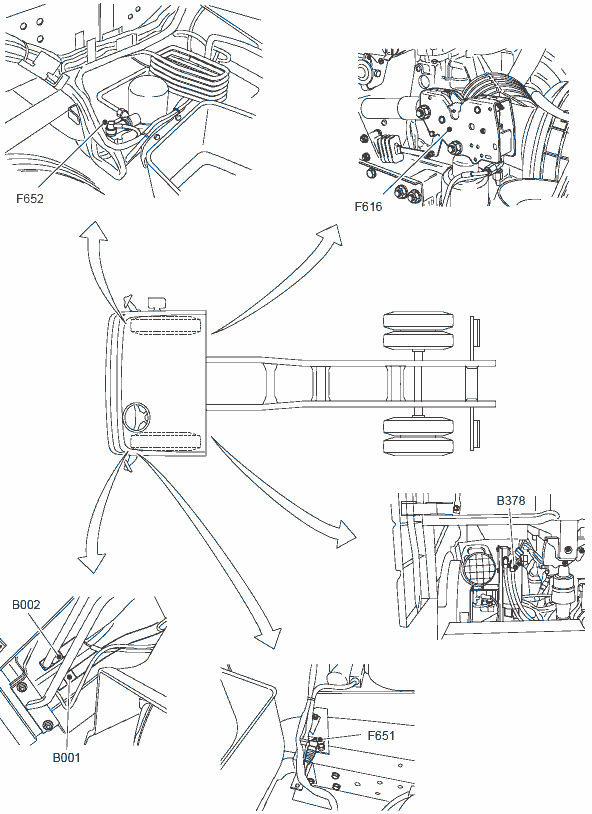

LOCATION INFORMATION, VIC-2 LITE, GENERAL


LOCATION INFORMATION, VIC-2 LITE, HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM


LOCATION INFORMATION, VIC-2 LITE, WINDSCREEN WIPER/WASHING SYSTEM

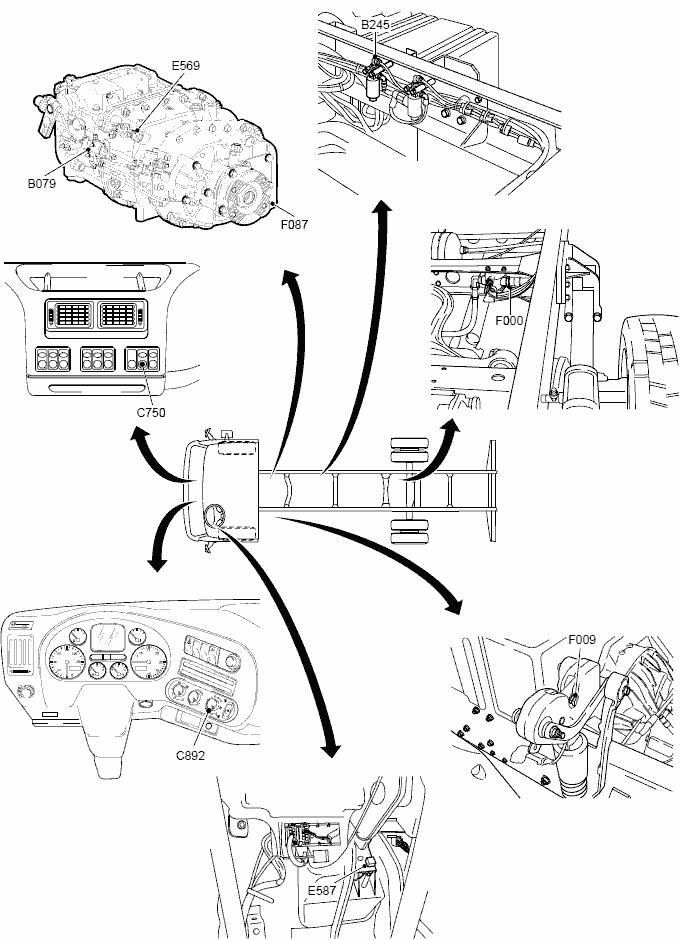

LOCATION INFORMATION, VIC-2 LITE, SPEED SIGNALS

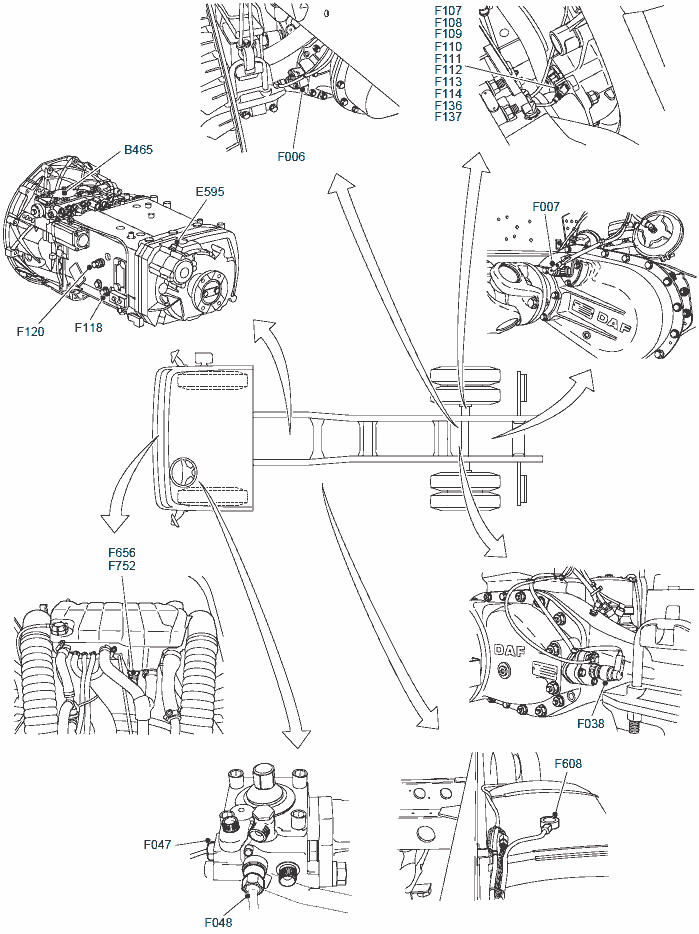

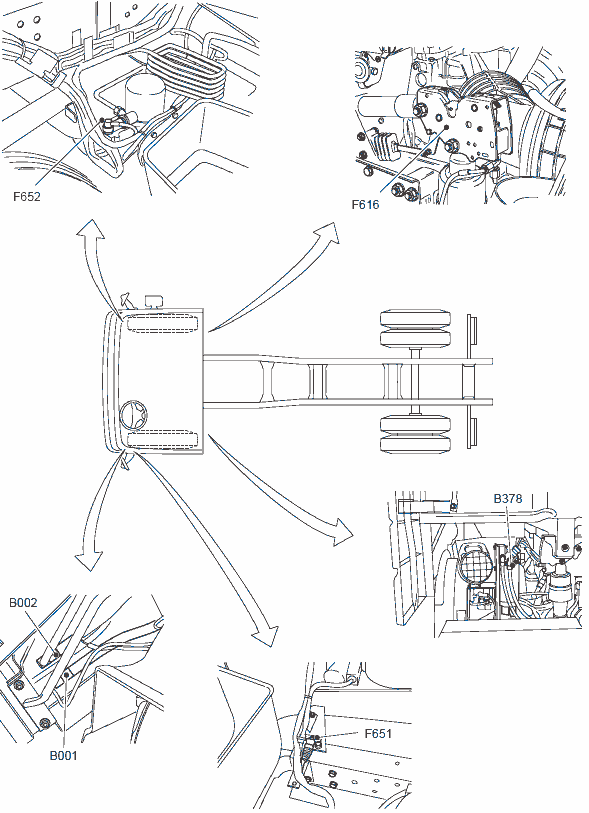

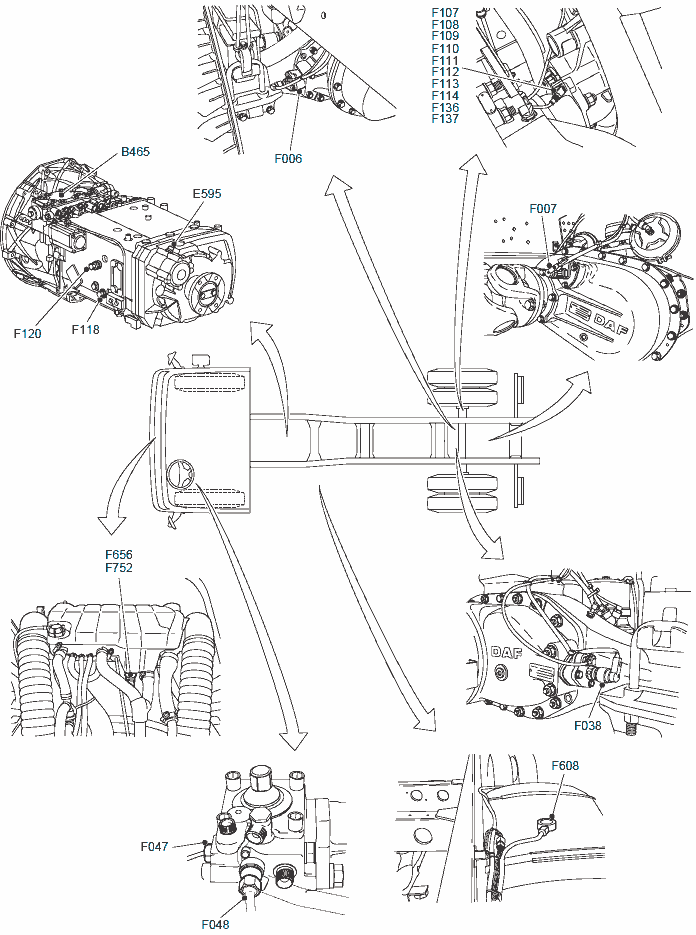

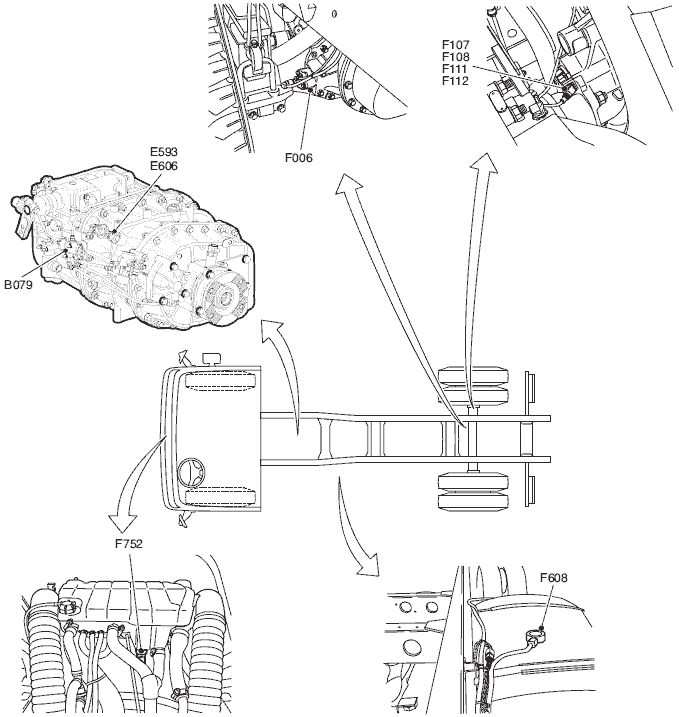

LOCATION INFORMATION, VIC-2 LITE, SENSOR SIGNALS

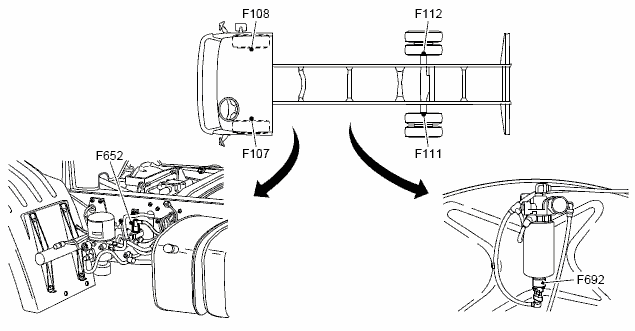

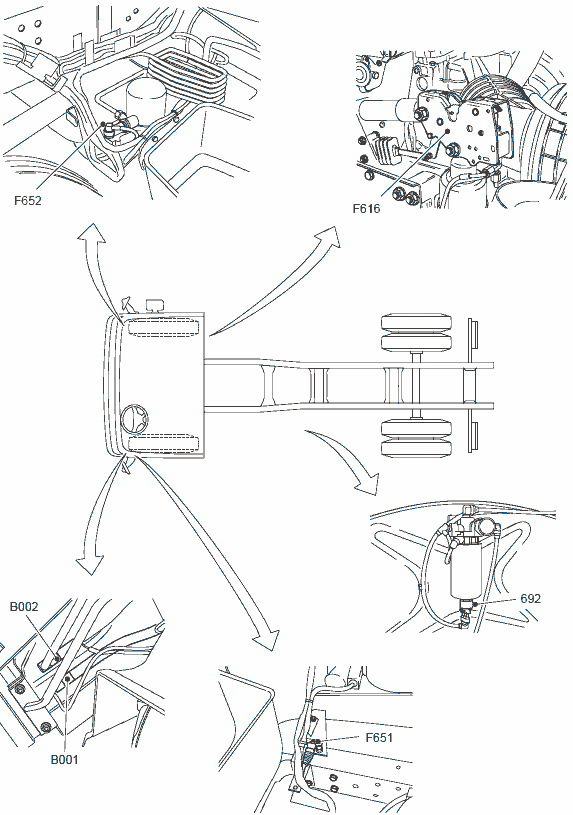

LOCATION INFORMATION, VIC-2 LITE, WARNING SIGNALS

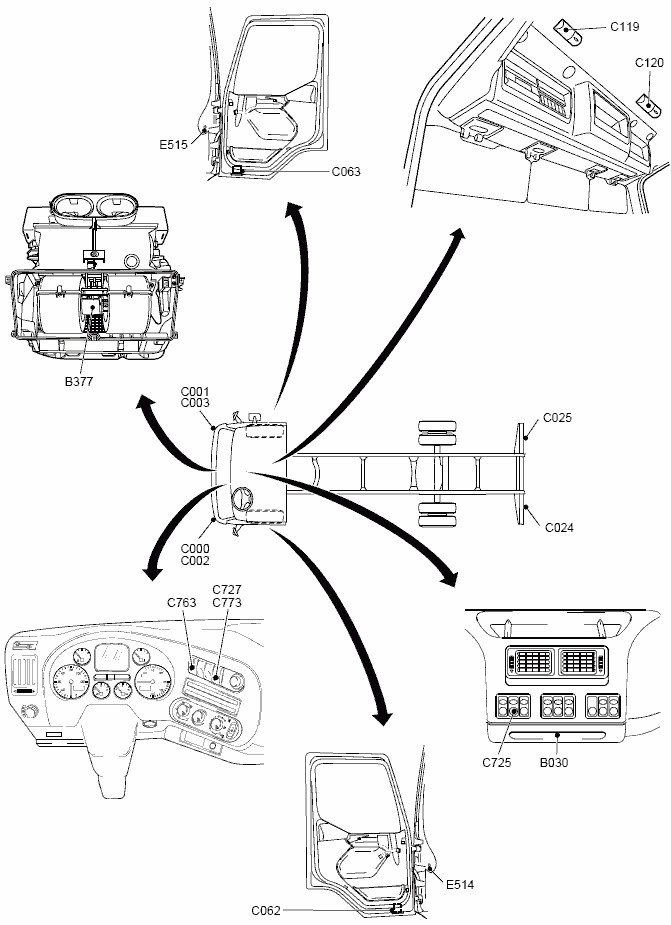

LOCATION INFORMATION, VIC-2 LITE, LIGHTING


CF65 IV

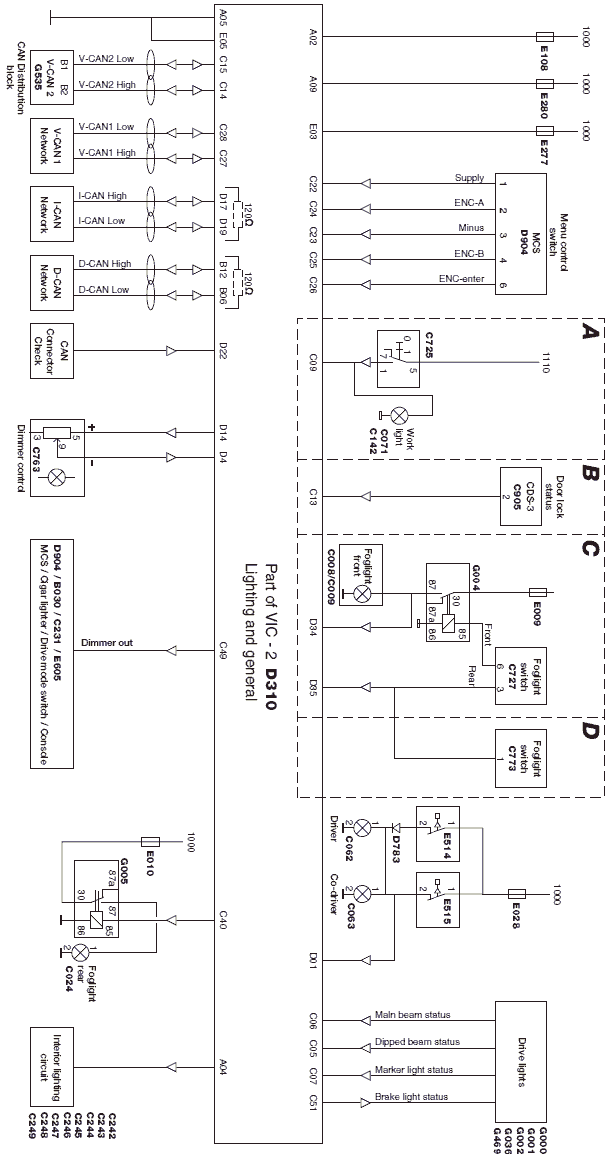

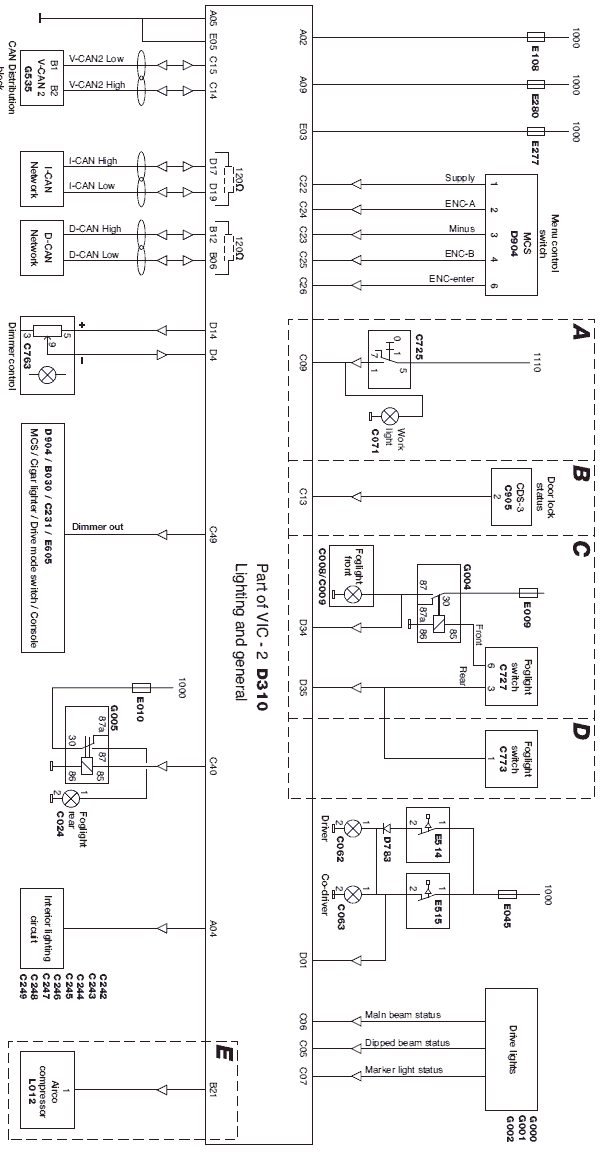

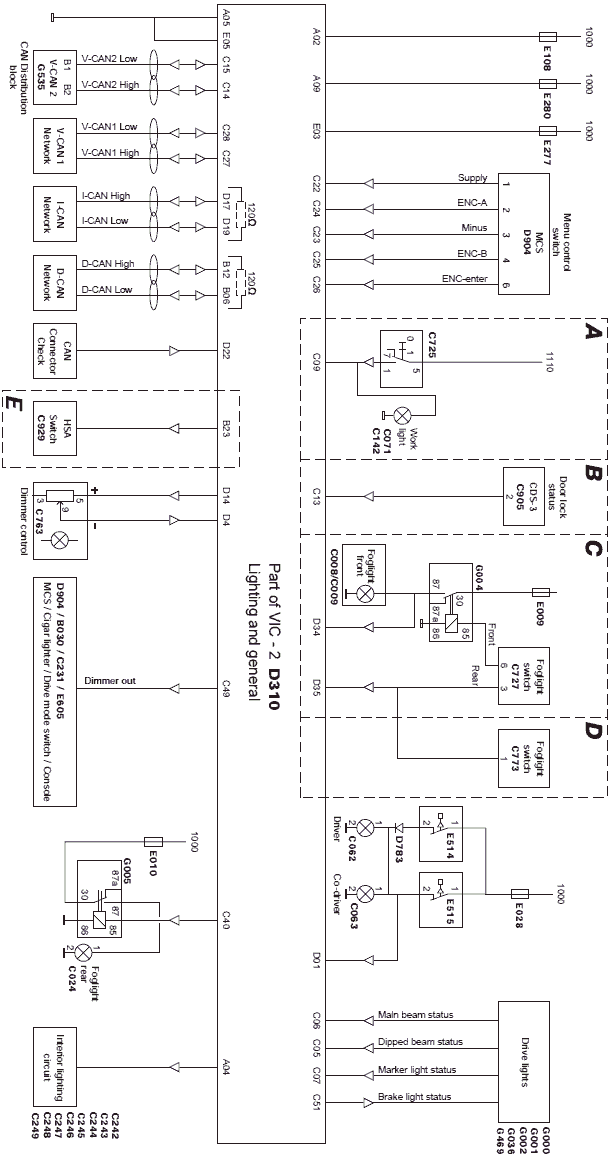

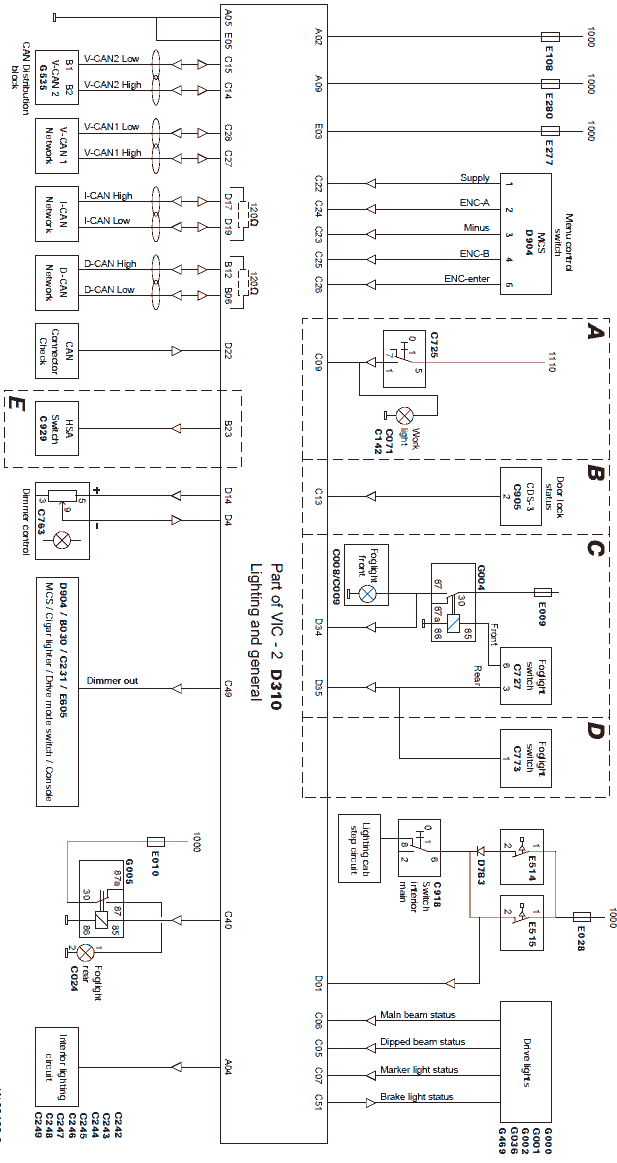

BLOCK DIAGRAM GENERAL AND LIGHTING
Block diagram K102723 applies to:
- CF65 IV, specification week <2006-48

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front and rear fog lights
D: Application with rear fog lights
E: Application with air conditioning

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E045 Fuse, interior lighting
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E605 Selector gear, AGC-A
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G535 CAN distribution block
  • L012 Airco compressor

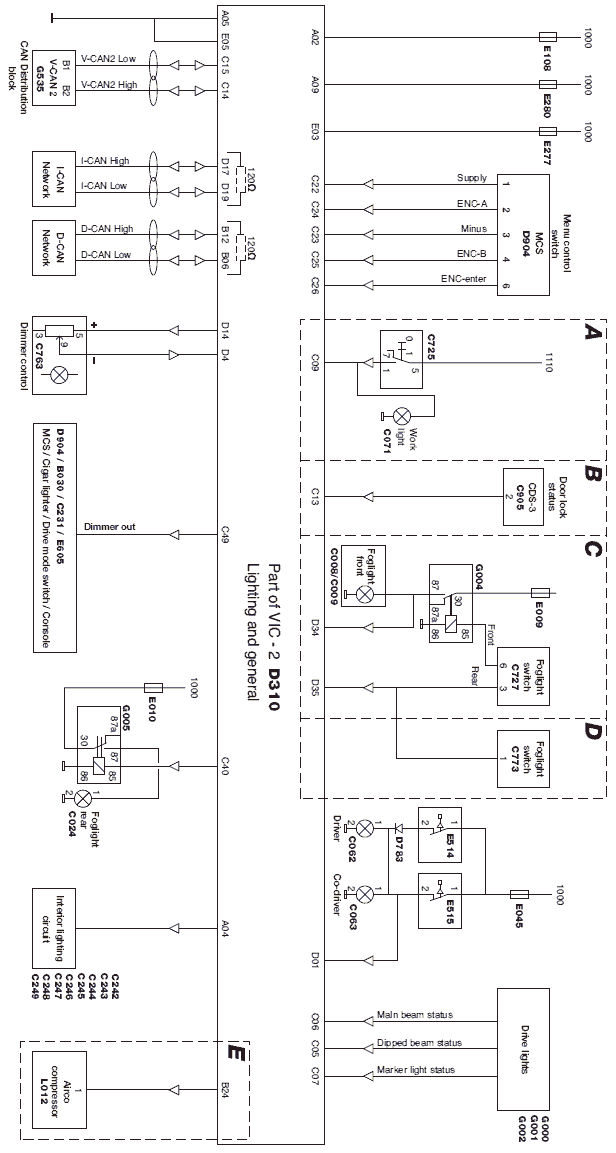

Block diagram K102357 applies to:
- CF65 IV, specification week >2006-49

Modifications
- Airco compressor (L012) connected to pin B24

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front and rear fog lights
D: Application with rear fog lights
E: Application with air conditioning

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E045 Fuse, interior lighting
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E605 Selector gear, AGC-A
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G535 CAN distribution block
  • L012 Airco compressor

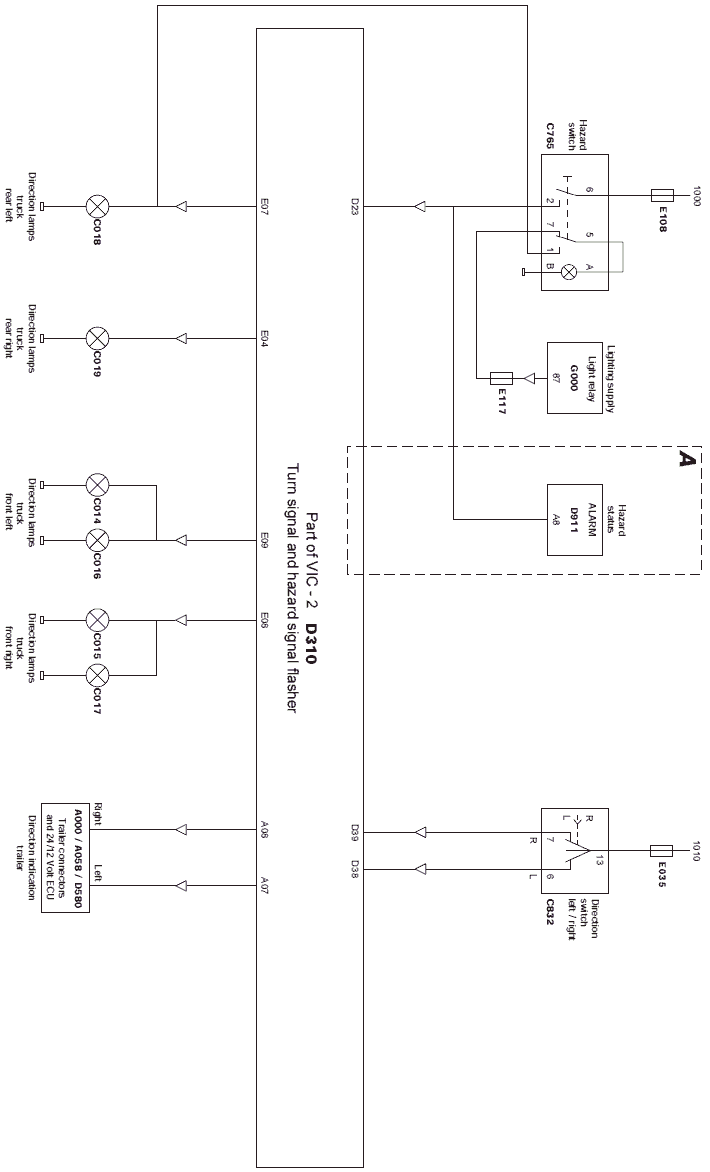

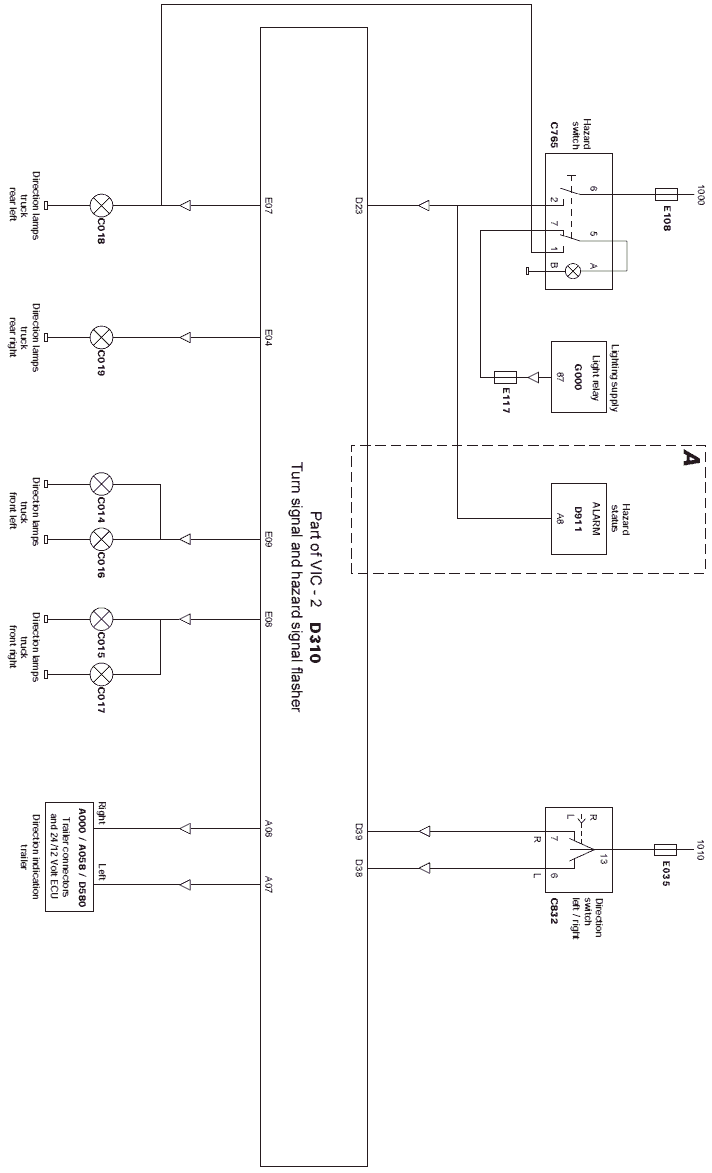

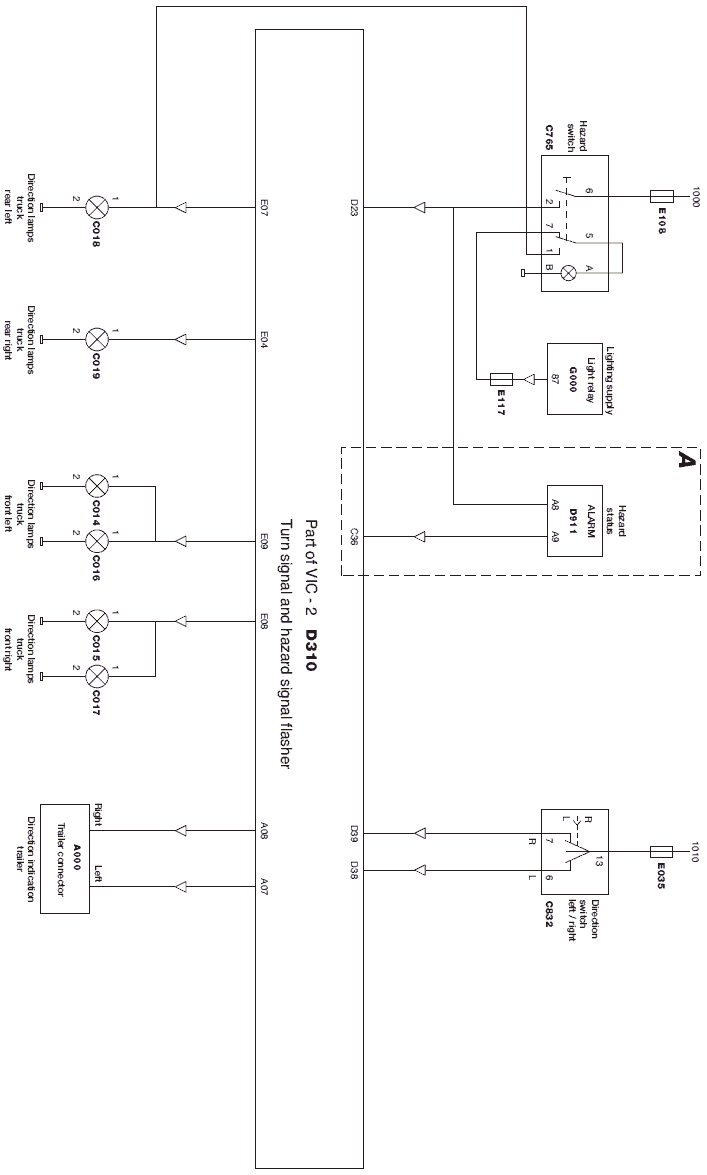

BLOCK DIAGRAM HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM
Block diagram K102353 applies to:
- CF65 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D911 ECU, alarm, ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • E117 Fuse, search lights
  • G000 Relay, rear, marker, search lights

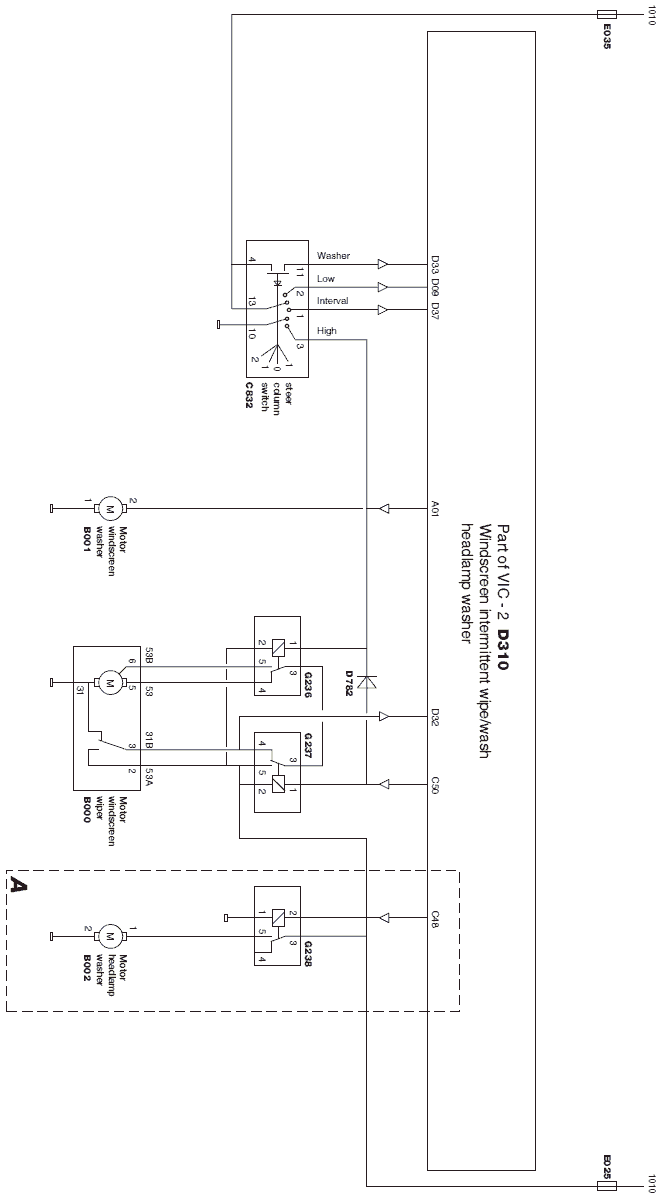

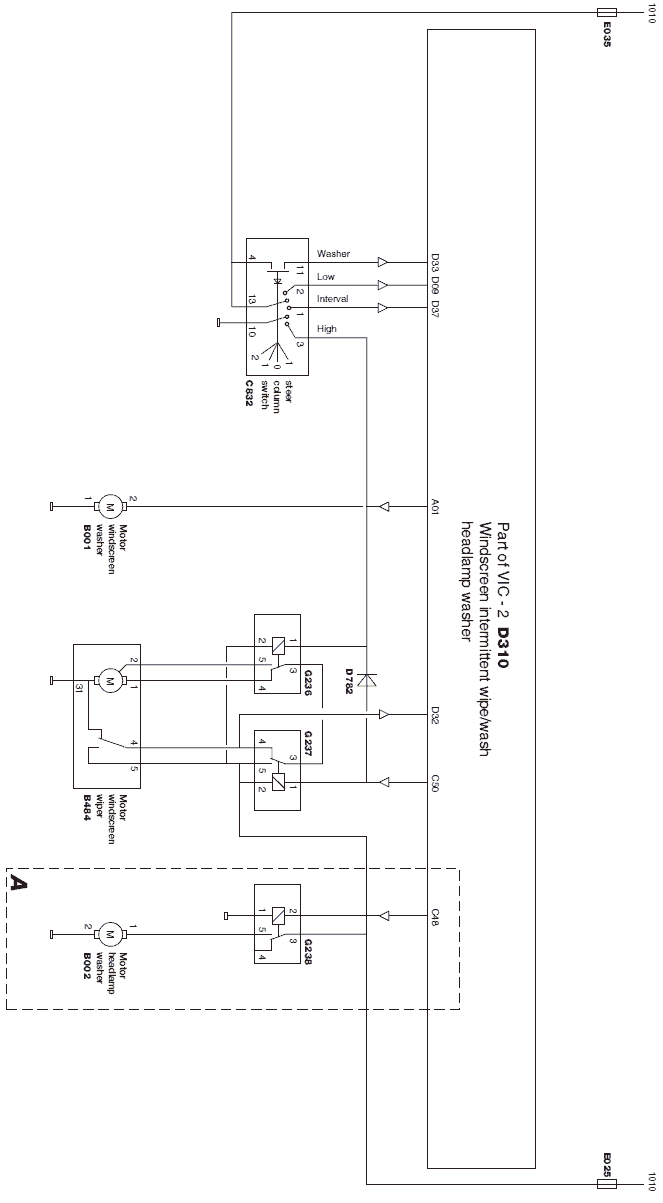

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING SYSTEM
Block diagram K101971 applies to:
- CF65 IV

Explanation of block diagram
A: Application with headlamp washer pump

  • B000 Motor, windscreen wiper
  • B001 Pump, windscreen washer
  • B002 Pump, headlamp washer
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

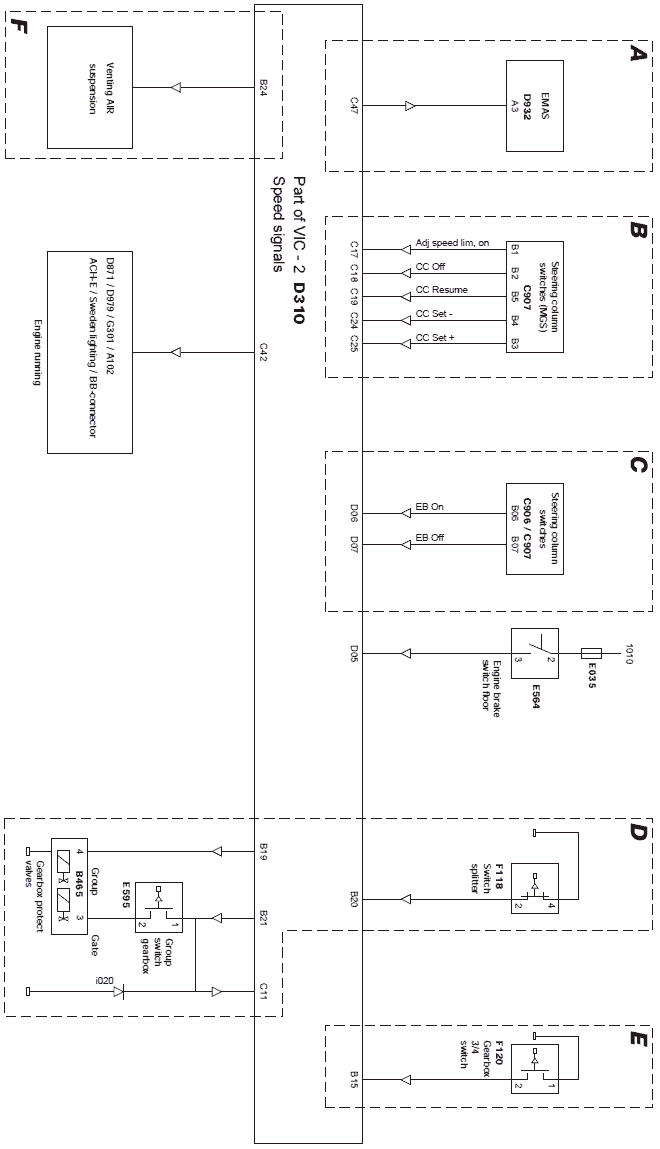

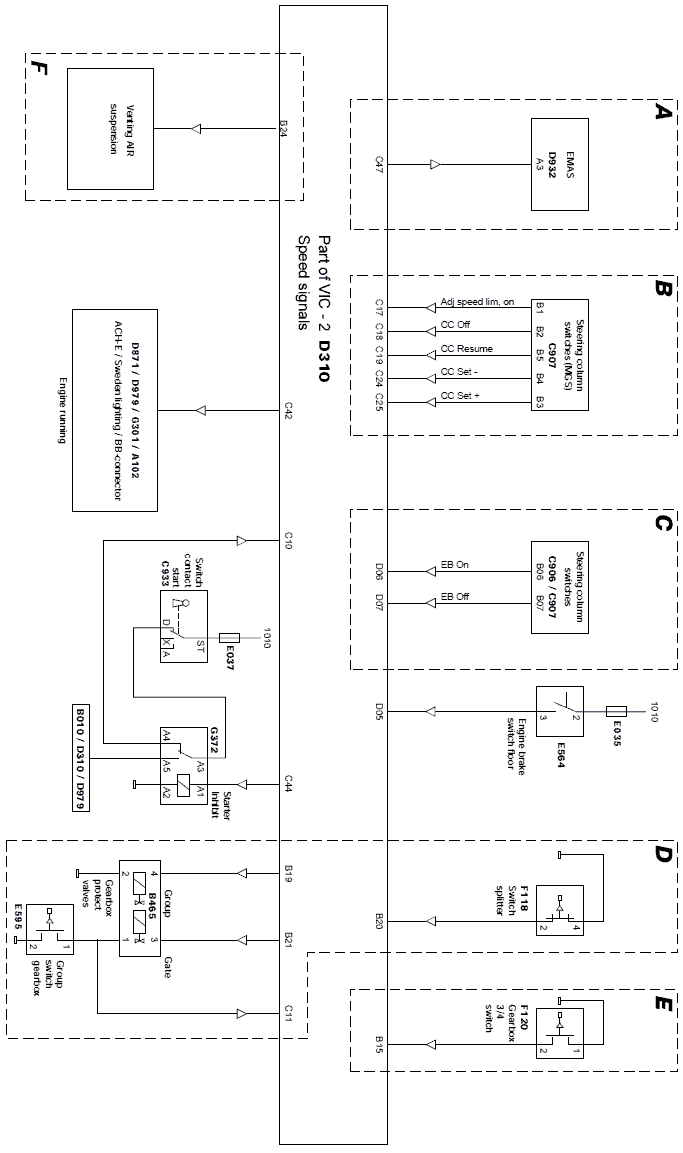

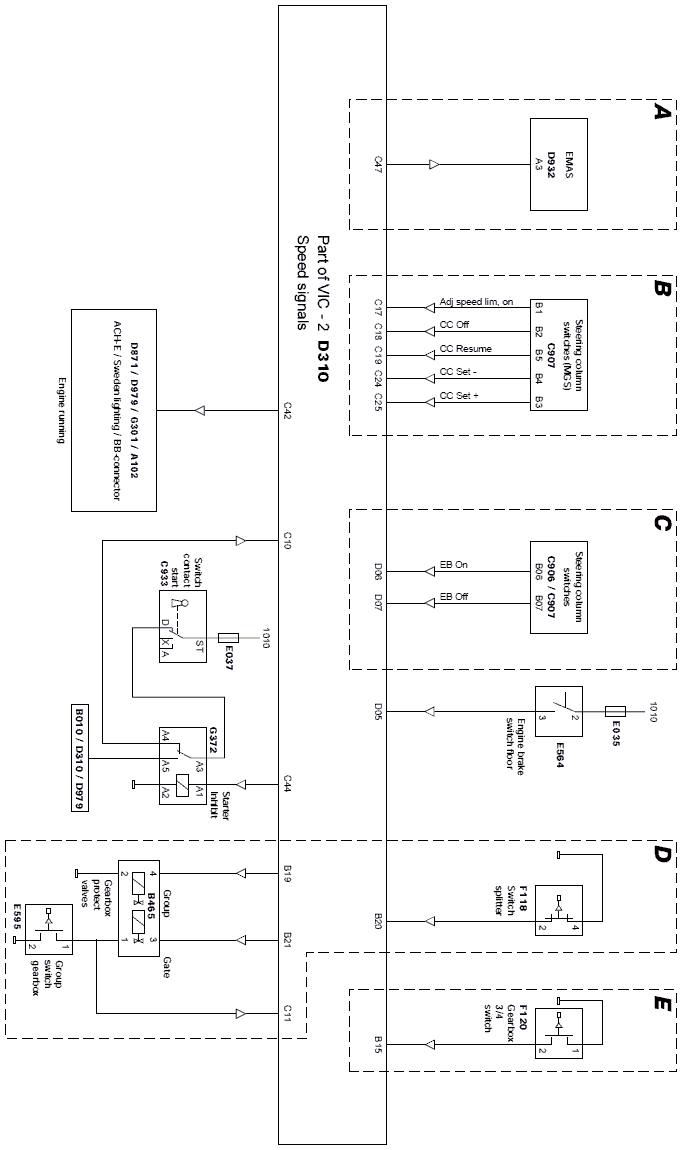

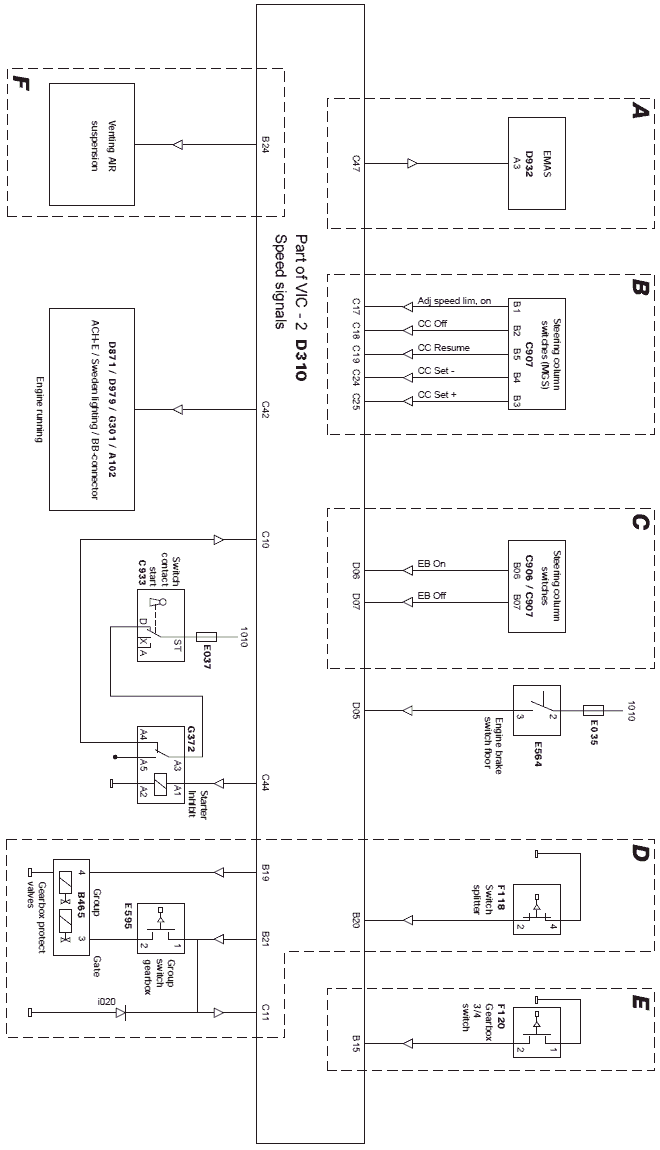

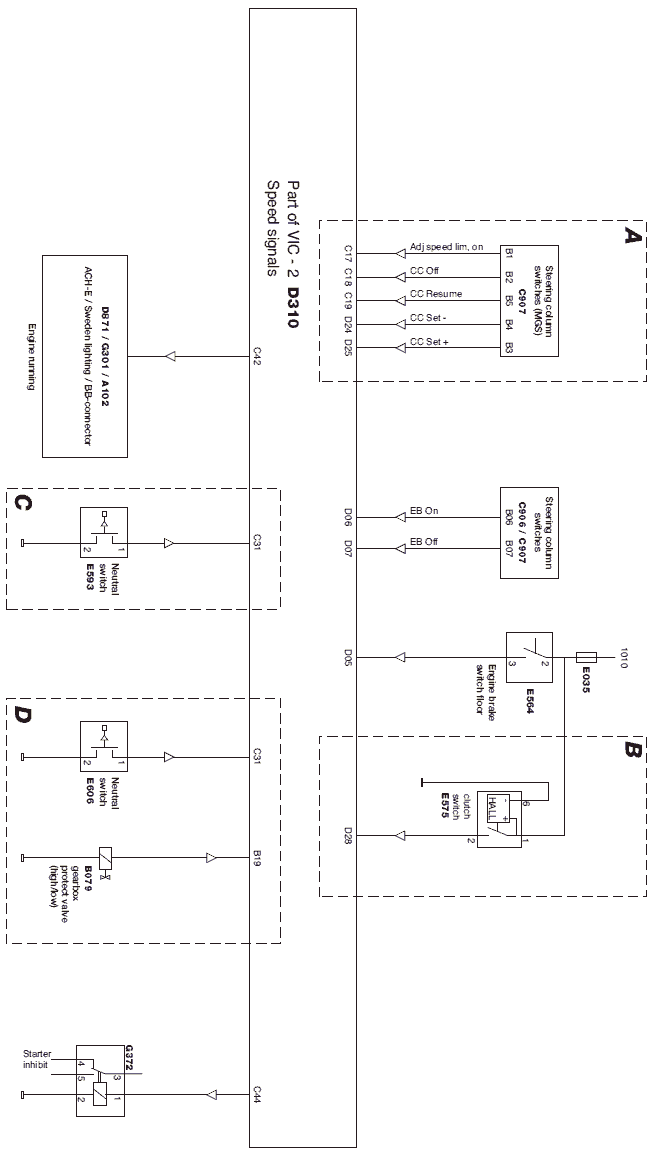

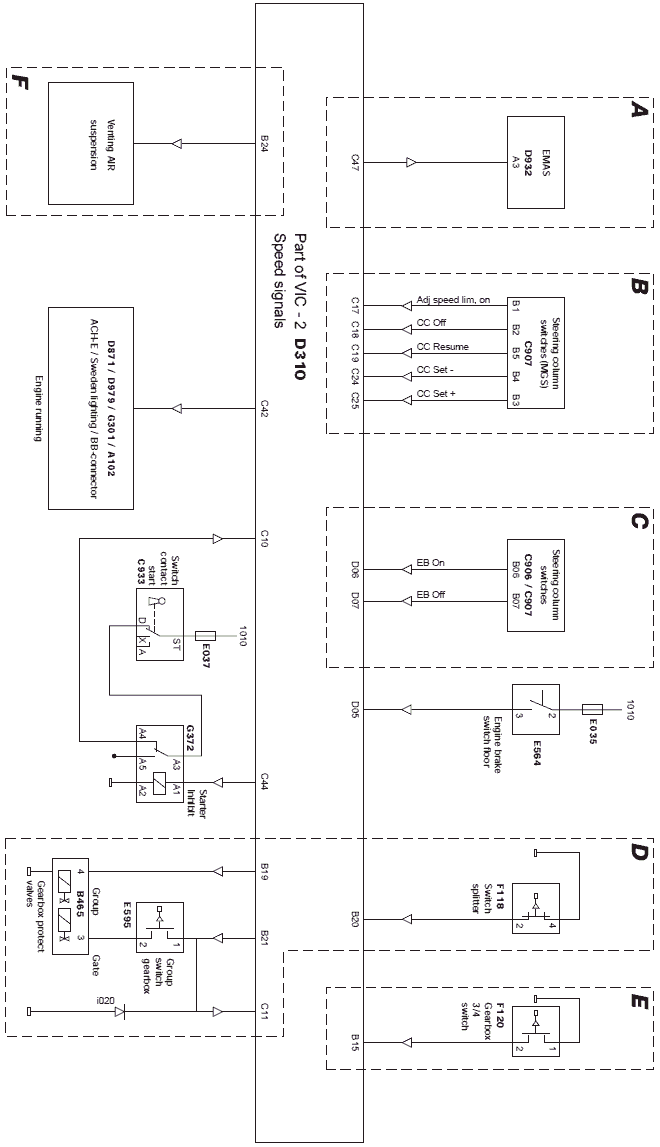

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102354 applies to:
- CF65 IV

Explanation of block diagram
A: Application without steering wheel switches
B: Application with manually operated gearbox
C: Application with manually operated gearbox, 6 gears
D: Application with manually operated gearbox, 9 gears

  • A102 Connector, bodybuilder (8-pole)
  • B079 Valve, range protection
  • C906 Steering column, AS Tronic
  • C907 Steering column, MGS/AGC
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • E564 Switch, engine brake
  • E575 Switch, clutch
  • E593 Switch, neutral position
  • E606 Switch, neutral position
  • G301 Relay, 'Sweden lighting'
  • G372 Relay, starter interrupt

BLOCK DIAGRAM STATUS SIGNALS
Block diagram K102355 applies to:
- CF65 IV

Explanation of block diagram
A: Application with differential lock

  • D310 ECU, VIC-2
  • E350 Fuse, electrical systems
  • F000 Switch, parking brake
  • F006 Switch, cross lock, 1st
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K102356 applies to:
- CF65 IV, specification week <2007-32

Explanation of block diagram
A: Application with trailer ABS connector
B: If glow system

  • A004 Connector, trailer, ABS (7-pole)
  • A513 Alternator
  • B341 Glow element
  • D310 ECU, VIC-2
  • D317 ECU, ECS-DC4
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F692 Sensor, water in fuel
  • F752 Sensor, coolant level
  • G014 Relay, grid heater
  • G497 Relay, ABS, trailer

Block diagram K102526 applies to:
- CF65 IV, specification week >2007-33

Modifications to CF65 IV
- Seat belt reminder added

Explanation of block diagram
A: Application with trailer ABS connector
B: If glow system

  • A004 Connector, trailer, ABS (7-pole)
  • A513 Alternator
  • B341 Glow element
  • D310 ECU, VIC-2
  • D317 ECU, ECS-DC4
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F142 Switch, seat belt status
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F692 Sensor, water in fuel
  • F752 Sensor, coolant level
  • G014 Relay, grid heater
  • G497 Relay, ABS, trailer

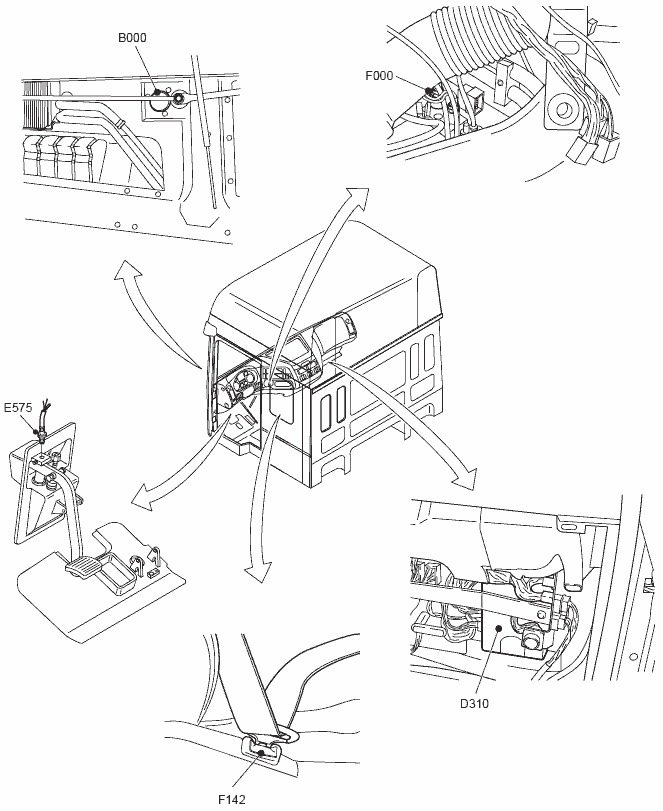

LOCATION INFORMATION, VIC-2, CAB


LOCATION INFORMATION, VIC-2, CHASSIS 1


LOCATION INFORMATION, VIC-2, CHASSIS 2


CF75 IV, CF85 IV
BLOCK DIAGRAM HAZARD WARNING/DIRECTION INDICATOR LIGHTS
Block diagram K101970 applies to:
- CF75 IV/CF85 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • A058 Connector, trailer, 15-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D580 ECU, 12V/24V
  • D911 ECU, alarm, ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • E117 Fuse, search lights
  • G000 Relay, rear, marker, search lights

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING
Block diagram K102422 applies to:
- CF75 IV/CF85 IV

Explanation of block diagram
A: Application with headlamp washer pump

  • B001 Pump, windscreen washer
  • B002 Pump, headlamp washer
  • B484 Motor, windscreen wiper
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102167 applies to:
- CF75 IV/CF85 IV, specification week <2007-48

Explanation of block diagram
A: Application with EMAS
B: Application without AS Tronic and without intarder
C: Application without intarder
D: Application with manually operated gearbox
E: Application with clutch protection
F: Application with leaf-sprung FTM vehicles

  • A102 Connector, body builder, 8-pole
  • B465 Valve, gearbox protection
  • C906 Steering column, AGC
  • C907 Steering column, MGS
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting
  • G372 Relay, starter interrupt

Block diagram K102563 applies to:
- CF75 IV/CF85 IV, specification week >2007-49

Modifications to CF75 IV/CF85 IV
- Range shift protection changed

Explanation of block diagram
A: Application with EMAS
B: Application without AS Tronic and without intarder
C: Application without intarder
D: Application with manually operated gearbox
E: Application with clutch protection

  • A102 Connector, body builder, 8-pole
  • B010 Motor, starter
  • B465 Valve, gearbox protection
  • C906 Steering column, AGC
  • C907 Steering column, MGS
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting
  • G372 Relay, starter interrupt

BLOCK DIAGRAM STATUS SIGNALS
Block diagram K102218 applies to:
- CF75 IV/CF85 IV, specification week <2007-32

Explanation of block diagram
A: Application with differential lock

  • D310 ECU, VIC-2
  • E035 Fuse, steering column
  • E350 Fuse, electrical systems
  • F000 Switch, park brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

Block diagram K102218 applies to:
- CF75 IV/CF85 IV, specification week >2007-33

Modifications to CF75 IV/CF85 IV
- Seat belt reminder added
- Connector for engine PTO active added
- Differential lock is not an option anymore

Explanation of block diagram
A: For future application

  • A131 Connector, engine PTO active
  • D310 ECU, VIC-2
  • E035 Fuse, steering column
  • E350 Fuse, electrical systems
  • F000 Switch, park brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K102184 applies to:
- CF75 IV/CF85 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)
B: Application with ABS/EBS braking system
C: Application with EBS braking system
D: Application with automatic greasing system (AGS)
E: Application with water separator sensor
F: Application with dual-circuit steering system
G: Application with EMAS

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • B344 ECU, AGS
  • B378 Sensor/heater, fuel filter
  • D310 ECU, VIC-2
  • D758 Diode, anti-feedback to VIC
  • D911 ECU, alarm, ALS-S
  • D932 ECU, EMAS
  • D965 ECU, DMCI
  • D977 ECU, EBS-2
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F047 Switch, steering system 1
  • F048 Switch, steering system 2
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F109 Switch, brake pad wear, 2nd front axle, left
  • F110 Switch, brake pad wear, 2nd front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F113 Switch, brake pad wear, 2nd rear axle, left
  • F114 Switch, brake pad wear, 2nd rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F752 Sensor, coolant level
  • F758 Sensor, trailer recognition
  • G372 Relay, starter interrupt
  • G497 Relay, EBS/ABS, trailer
  • I045 Diode, EBS error

BLOCK DIAGRAM LIGHTING AND GENERAL
Block diagram K102219 applies to:
- CF75 IV/CF85 IV, specification week <2006-32

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights
E: Application with gradient traction control

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • C929 Switch, hill start aid
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E028 Fuse, interior
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G469 Relay, brake applied
  • G535 CAN distribution block

Block diagram K102420 applies to:
- CF75 IV/CF85 IV, specification week >2006-33

Modifications to CF75 IV/CF85 IV
- Main switch, interior, added

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights
E: Application with gradient traction control

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • C918 Switch, interior, main
  • C929 Switch, hill start aid
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E028 Fuse, interior
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G469 Relay, brake applied
  • G535 CAN distribution block

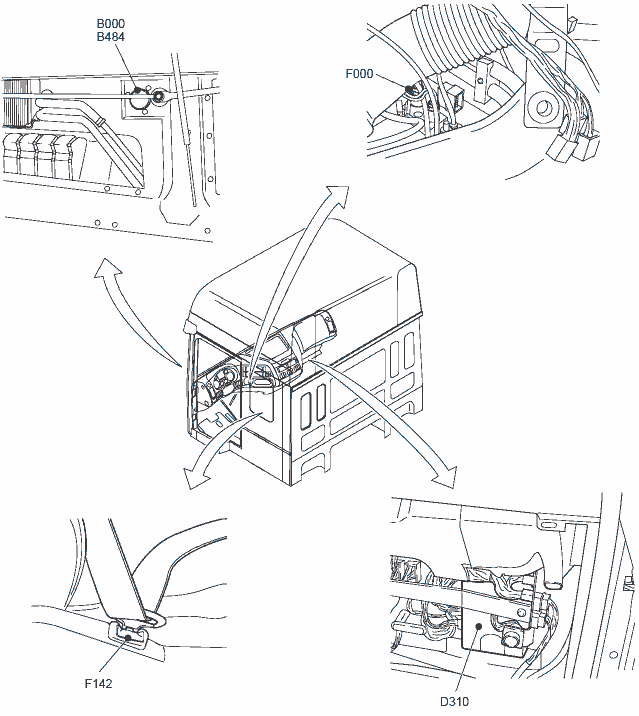

LOCATION INFORMATION, VIC-2, CAB


LOCATION INFORMATION, VIC-2, CHASSIS 1


LOCATION INFORMATION, VIC-2, CHASSIS 2


XF105
BLOCK DIAGRAM HAZARD WARNING/DIRECTION INDICATOR LIGHTS
Block diagram K101970 applies to:
- XF105

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • A058 Connector, trailer, 15-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D580 ECU, 12V/24V
  • D911 ECU, alarm, ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • E117 Fuse, search lights
  • G000 Relay, rear, marker, search lights

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING
Block diagram K101971 applies to:
- XF105

Explanation of block diagram
A: Application with headlamp washer pump

  • B000 Motor, windscreen wiper
  • B001 Pump, windscreen wiper
  • B002 Pump, headlamp washer
  • C832 Steering column, left
  • D310 ECU, VIC-2
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K101972 applies to:
- XF105, specification week <2006-12

Explanation of block diagram
A: Application with EMAS
B: Application without AS Tronic and without intarder
C: Application without intarder
D: Application with manually operated gearbox
E: Application with clutch protection
F: Application with leaf-sprung FTM vehicles

  • A102 Connector, body builder, 8-pole
  • B465 Valve, gearbox protection
  • C906 Steering column, AGC
  • C907 Steering column, MGS
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting

Block diagram K102167 applies to:
- XF105, specification week >2006-13 and <2007-48

Modifications to XF105
- Starter motor protection added to connection points C10 and C44
- Traction control (FTM vehicles) added to connection point B24

Explanation of block diagram
A: Application with EMAS
B: Application without AS Tronic and without intarder
C: Application without intarder
D: Application with manually operated gearbox
E: Application with clutch protection
F: Application with leaf-sprung FTM vehicles

  • A102 Connector, body builder, 8-pole
  • B465 Valve, gearbox protection
  • C906 Steering column, AGC
  • C907 Steering column, MGS
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting
  • G372 Relay, starter interrupt
  • I020 Diode, gate selection protection

Block diagram K102561 applies to:
- XF105, specification week >2007-49

Modifications to XF105
- Range shift protection changed

Explanation of block diagram
A: Application with EMAS
B: Application without AS Tronic and without intarder
C: Application without intarder
D: Application with manually operated gearbox
E: Application with clutch protection
F: Application with leaf-sprung FTM vehicles

  • A102 Connector, body builder, 8-pole
  • B010 Motor, starter
  • B465 Valve, gearbox protection
  • C906 Steering column, AGC
  • C907 Steering column, MGS
  • D310 ECU, VIC-2
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting
  • G372 Relay, starter interrupt

BLOCK DIAGRAM STATUS SIGNALS
Block diagram K101973 applies to:
- XF105, specification week <2006-20

Explanation of block diagram
A: Application with differential lock

  • D310 ECU, VIC-2
  • E035 Fuse, steering column
  • E350 Fuse, electrical systems
  • F000 Switch, park brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

Block diagram K102218 applies to:
- XF105, specification week >2006-21 and <2007-32

Modifications to XF105
- Parking brake switch switches to earth

Explanation of block diagram
A: Application with differential lock

  • D310 ECU, VIC-2
  • E035 Fuse, steering column
  • E350 Fuse, electrical systems
  • F000 Switch, park brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

Block diagram K102218 applies to:
- XF105, specification week >2007-33

Modifications to XF105
- Seat belt reminder added
- Connector for engine PTO active added
- Differential lock is not an option anymore

Explanation of block diagram
A: For future application

  • A131 Connector, engine PTO active
  • D310 ECU, VIC-2
  • E035 Fuse, steering column
  • E350 Fuse, electrical systems
  • F000 Switch, park brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K101974 applies to:
- XF105

Explanation of block diagram
A: Application with alarm system (ALS-S)
B: Application with ABS/EBS braking system
C: Application with EBS braking system
D: Application with automatic greasing system (AGS)
E: Application with water separator sensor
F: Application with dual-circuit steering system
G: Application with EMAS

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • B344 ECU, AGS
  • B378 Sensor/heater, fuel filter
  • D310 ECU, VIC-2
  • D758 Diode, anti-feedback to VIC
  • D911 ECU, alarm, ALS-S
  • D932 ECU, EMAS
  • D965 ECU, DMCI
  • D977 ECU, EBS-2
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F047 Switch, steering system 1
  • F048 Switch, steering system 2
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F109 Switch, brake pad wear, 2nd front axle, left
  • F110 Switch, brake pad wear, 2nd front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F113 Switch, brake pad wear, 2nd rear axle, left
  • F114 Switch, brake pad wear, 2nd rear axle, right
  • F136 Switch, brake pad wear, 3rd rear axle, left
  • F137 Switch, brake pad wear, 3rd rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F656 Sensor, coolant level
  • F758 Sensor, trailer recognition
  • G372 Relay, starter interrupt
  • G497 Relay, EBS/ABS, trailer
  • I045 Diode, EBS error

BLOCK DIAGRAM LIGHTING AND GENERAL
Block diagram K101975 applies to:
- XF105, specification week <2006-20

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E028 Fuse, interior
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G469 Relay, brake applied
  • G535 CAN distribution block

Block diagram K102219 applies to:
- XF105, specification week >2006-21 and <2006-32

Modifications to XF105
- Gradient traction control added

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights
E Application with gradient traction control

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • C929 Switch, hill start aid
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E028 Fuse, interior
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G469 Relay, brake applied
  • G535 CAN distribution block

Block diagram K102420 applies to:
- XF105, specification week >2006-33

Modifications to XF105
- Main switch, interior, added

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights
E Application with gradient traction control

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C773 Switch, fog lights, rear
  • C918 Switch, interior, main
  • C929 Switch, hill start aid
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E028 Fuse, interior
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G469 Relay, brake applied
  • G535 CAN distribution block

LOCATION INFORMATION, VIC-2, CAB


LOCATION INFORMATION, VIC-2, CHASSIS 1


LOCATION INFORMATION, VIC-2, CHASSIS 2

Назад к содержимому
