Электросхемы систем VIC-3 + VIC-3 Lite DAF
LF45IV, LF55IV, CF65IV, CF75IV, CF85IV, XF105

VIC-3 LITE
BLOCK DIAGRAM FOR CAN NETWORK
Block diagram K102774 applies to:
- LF45 IV/LF55 IV models

  • A100 Connector, HD-OBD diagnosis
  • D358L ECU, VIC-3 Lite
  • D904 Menu Control Switch
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC

BLOCK DIAGRAM FOR HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM
Block diagram K102775 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C765 Switch, hazard warning
  • C775 Switch, steering column, left
  • D358L ECU, VIC-3 Lite
  • D911 ECU, alarm, ALS-S
  • E019 fuse, horn/steering column, left
  • E114 Fuse, cab heater
  • E284 Fuse, marker lights, rear lights
  • G000 Relay, rear lights

BLOCK DIAGRAM FOR WINDSCREEN WIPER/WASHING SYSTEM
Block diagram K102776 applies to:
- LF45 IV/LF55 IV models

  • B000 Motor, windscreen wiper
  • B001 Pump, windscreen washer
  • C842 Steering column
  • D358L ECU, VIC-3 Lite
  • E018 Fuse, wiper
  • E025 Fuse, wiper
  • G008 Relay, windscreen wiper
  • G354 Relay, windscreen wiper

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102777 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with application connector A068
B: Application with 9 gears

  • A068 Connector, ESC
  • A102 Connector, body builder, 8-pole
  • B079 Valve, range protection
  • C892 Switch, heater fan
  • D358L ECU, VIC-3 Lite
  • D758 Diode, anti-feedback to VIC
  • E091 Fuse, heating element, PTO application connector
  • E569 Switch, neutral position
  • E587 Switch, brake lights/clutch
  • F000 Switch, park brake
  • F009 Switch, cab lock
  • L012 Airco compressor

BLOCK DIAGRAM FOR STATUS SIGNALS
Block diagram K102779 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application without main switch
B: Application with main switch
C: Application with air suspension
D: Application with differential lock
E: Application with PTO
F: If glow system

  • A513 Alternator
  • B245 Valve, PTO 1 control
  • B341 Glow element
  • C750 Switch, PTO 1 control
  • C763 Dimmer, instrument light
  • D358L ECU, VIC-3 Lite
  • D851 ECU, ECAS-3
  • D924 ECU, main switch
  • E143 Fuse, engine/tacho/alarm/ABS/ASR-E
  • E411 Fuse, auxiliary heating/alarm switch/telephone
  • F006 Switch, cross lock, 1st
  • F087 Switch PTO status 1st
  • F142 Switch, seat belt status
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature
  • G014 Relay, grid heater
  • G425 Relay, main switch

BLOCK DIAGRAM FOR WARNING SIGNALS
Block diagram K102780 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with air suspension
B: Application with trailer connector (A104)
C: Application with airbag
D: Application with RAS-EC
E: Application with alarm system (ALS-S)

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • D310L ECU, VIC-2 Lite
  • D851 ECU, ECAS-3
  • D911 ECU, alarm, ALS-S
  • D926 ECU, airbag
  • D940 ECU, RAS-EC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F652 Sensor, air pressure
  • G203 Relay, starter take over

BLOCK DIAGRAM FOR LIGHTING
Block diagram K102781 applies to:
- LF45 IV/LF55 IV models

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front and rear fog lights
D: Application with rear fog lights only
E: Application with AS Tronic Lite gearbox

  • B030 Cigar lighter, driver
  • C000 Light, dipped beam, left
  • C001 Light, dipped beam, right
  • C002 Light, main beam, left
  • C003 Light, main beam, right
  • C006 Light, spot, left
  • C007 Light, spot, right
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C022 Light rear, left
  • C023 Light rear, right
  • C024 Light, fog, rear left
  • C025 Light, fog, rear right
  • C062 Light, cab step, left
  • C063 Light, cab step, right
  • C071 Light, work
  • C119 Light, interior, with switch driver side
  • C120 Light, interior, with switch co-driver side
  • C156 Light, marker, middle, left, 1st
  • C157 Light, marker, middle, right, 1st
  • C158 Light, marker, middle, left, 2nd
  • C159 Light, marker, middle, right, 2nd
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C763 Dimmer, instrument light
  • C773 Switch, fog lights, rear
  • C892 Switch, heater fan
  • D358L ECU, VIC-3 Lite
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E004 Fuse, dipped beam, driver's side
  • E005 Fuse, dipped beam, co-driver's side
  • E006 Fuse, main beam, driver's side
  • E009 Fuse, front fog lights
  • E028 Fuse, interior
  • E052 Fuse, work lamp
  • E282 Fuse, engine brake / switch, stop lights
  • E285 Fuse, VIC / fog lights
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E587 Switch, brake lights/clutch
  • G000 Relay, rear lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G203 Relay, starter takeover
  • G350 Relay, reverse lights

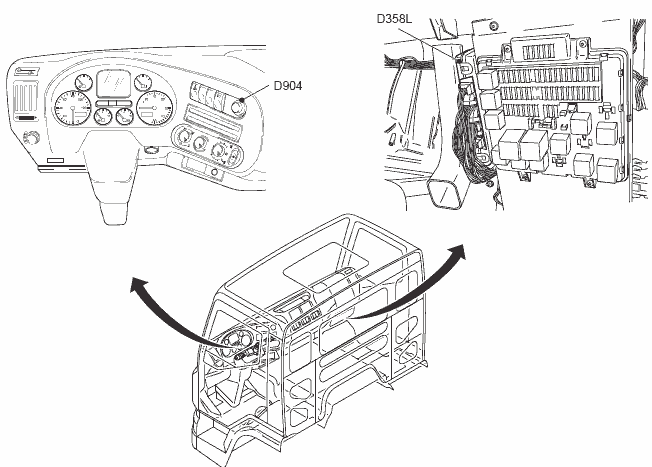

LOCATION INFORMATION, VIC-3 LITE, GENERAL


LOCATION INFORMATION, VIC-3 LITE, HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM

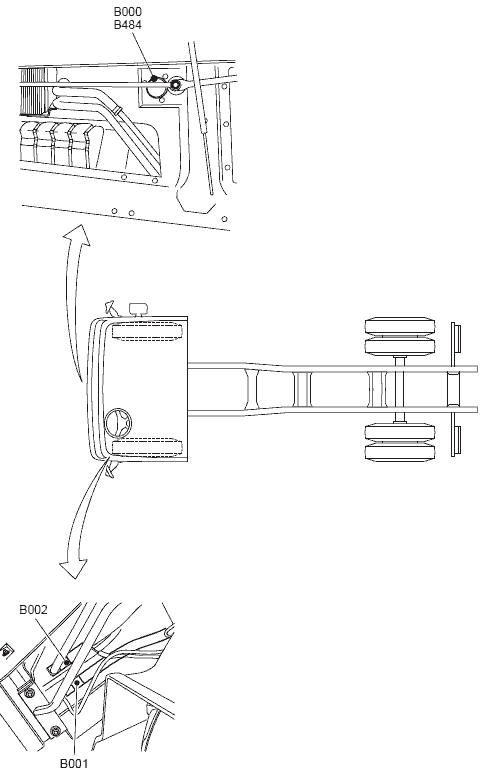

LOCATION INFORMATION, VIC-3 LITE, WINDSCREEN WIPER/WASHING SYSTEM

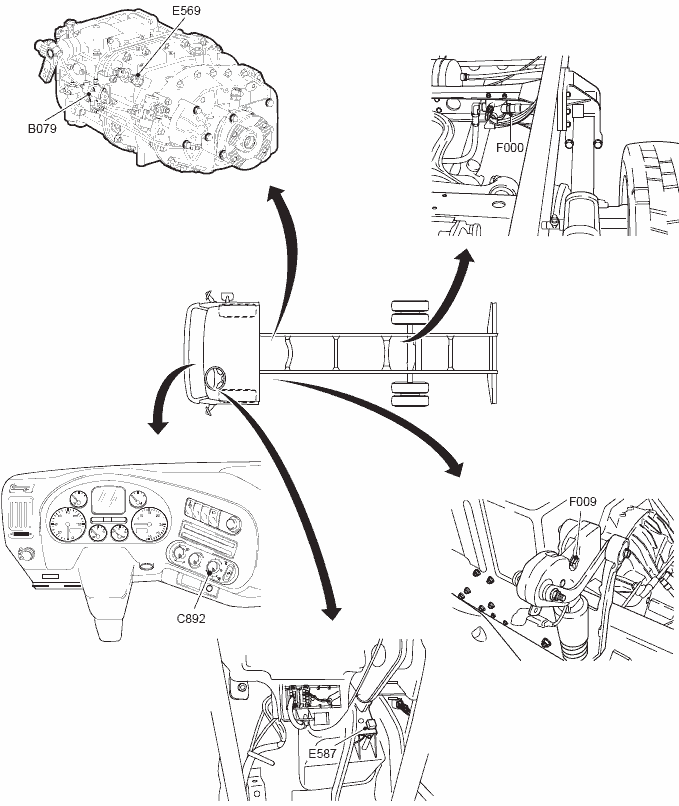

LOCATION INFORMATION, VIC-3 LITE, SPEED SIGNALS

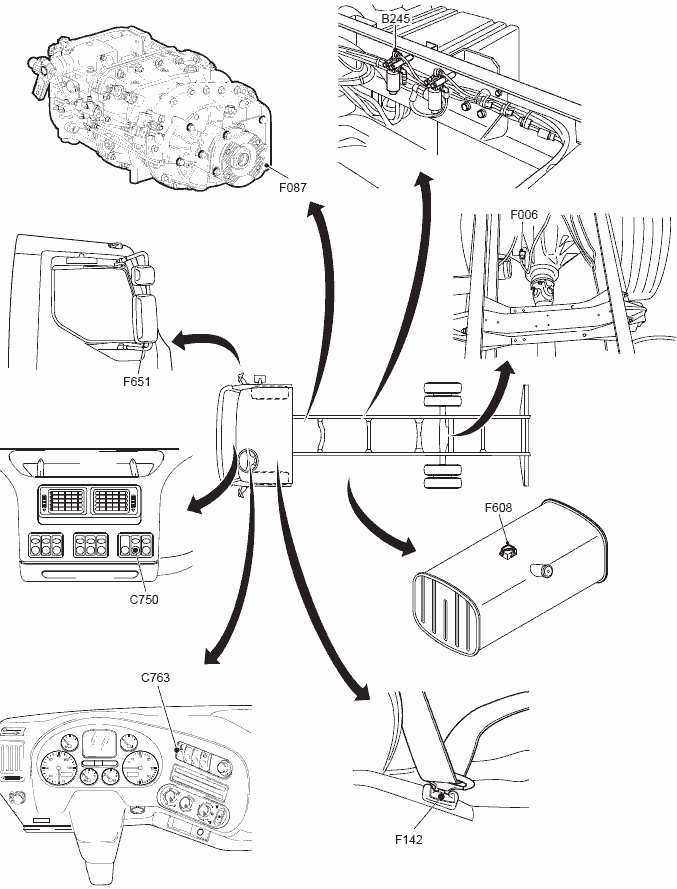

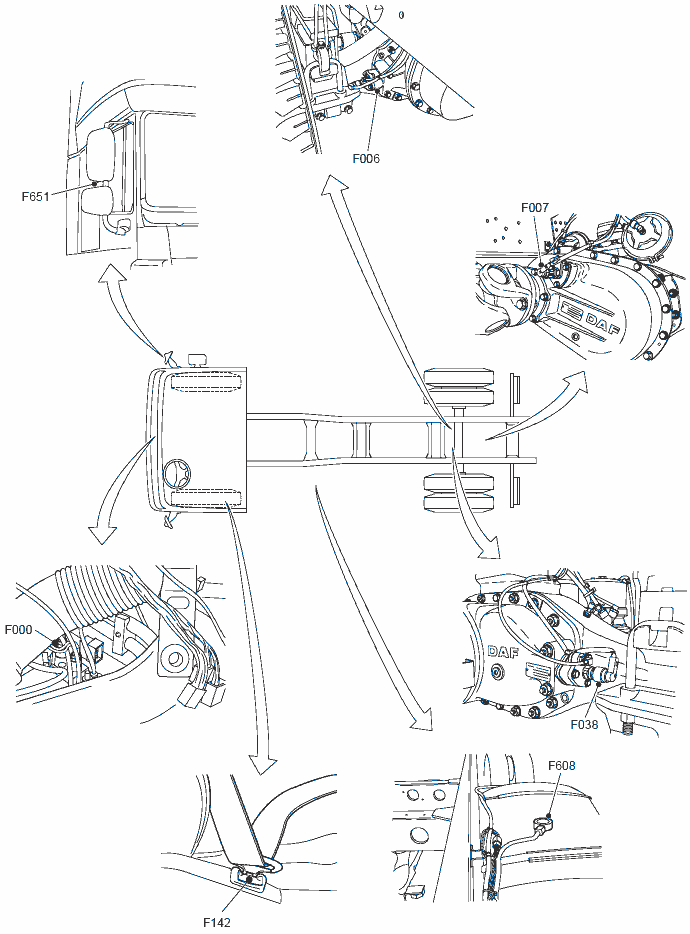

LOCATION INFORMATION, VIC-3 LITE, STATUS SIGNALS


LOCATION INFORMATION, VIC-3 LITE, WARNING SIGNALS

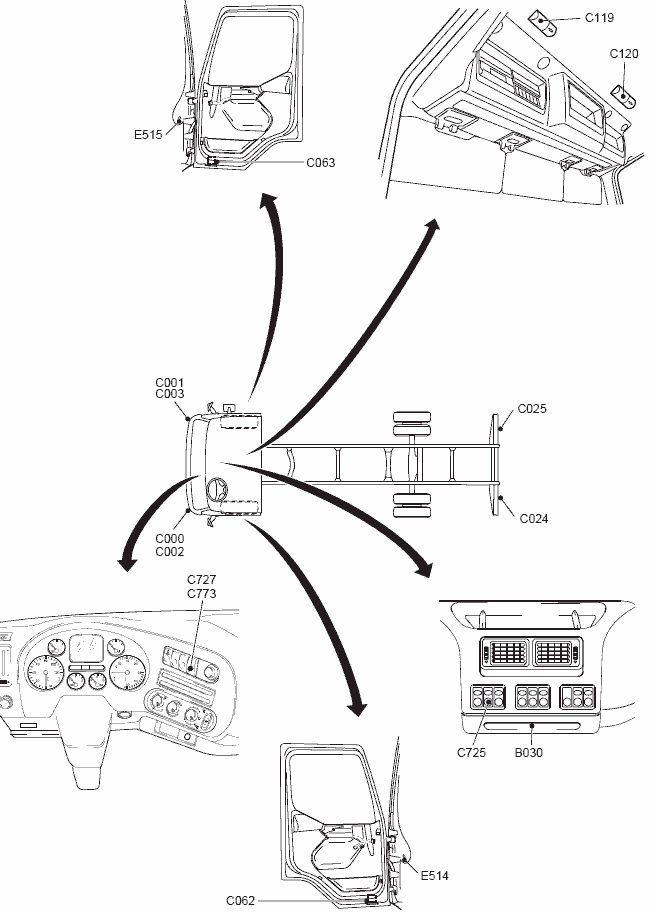

LOCATION INFORMATION, VIC-3 LITE, LIGHTING


CF65IV

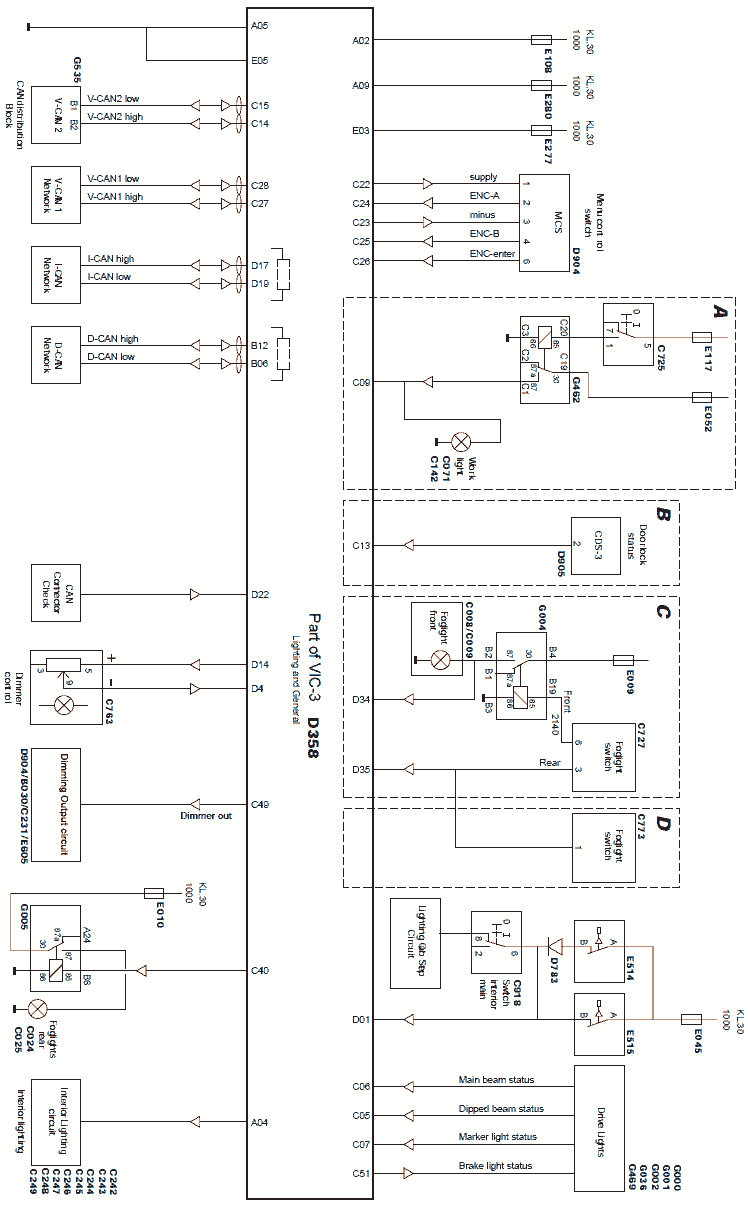

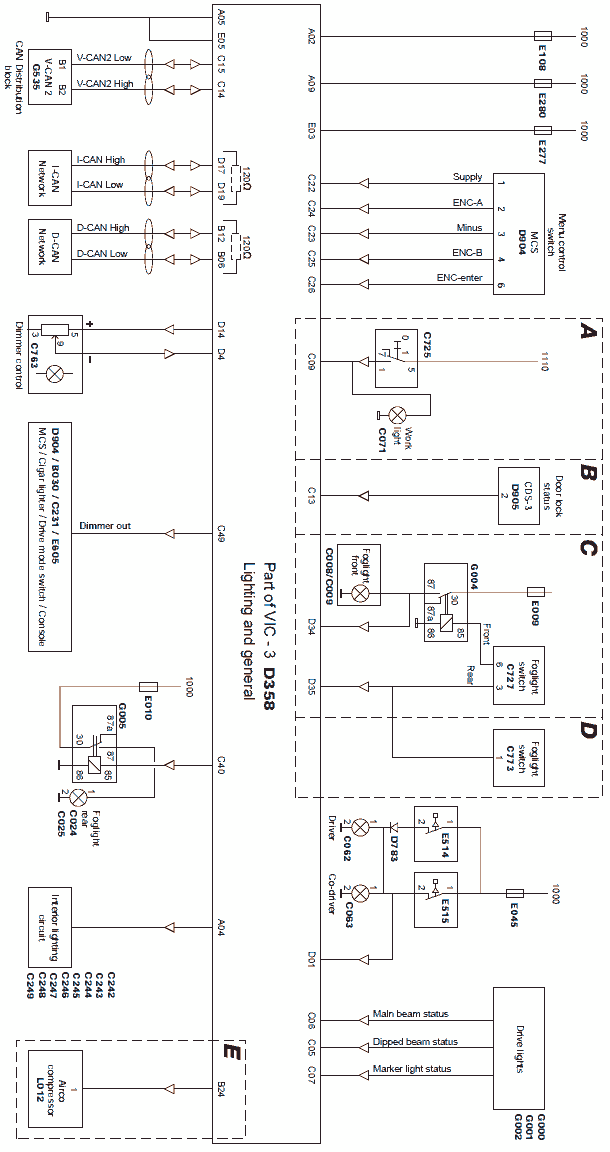

BLOCK DIAGRAM GENERAL AND LIGHTING
Block diagram K102785 applies to:
- CF65 IV

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front and rear fog lights
D: Application with rear fog lights
E: Application with air conditioning

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C025 Light, fog, rear right
  • C062 Light, cab, step, left
  • C063 Light, cab, step, right
  • C071 Light, work
  • C231 Light, centre console, lower
  • C242 Light, interior, driver's side
  • C243 Light, interior, co-driver's side
  • C244 Light, interior, driver's side
  • C245 Light, interior, co-driver's side
  • C246 Light, interior, driver's side
  • C247 Light, interior, co-driver's side
  • C248 Light, interior, driver's side
  • C249 Light, interior, co-driver's side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C763 Dimmer, instrument light
  • C773 Switch, fog lights, rear
  • D783 Diode, step lighting
  • D358 ECU, VIC-3
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E045 Fuse, interior lights
  • E108 Fuse, VIC
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E605 Selector gear, AGC-A
  • G000 Relay, tail light
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G535 CAN distribution block
  • L012 Airco compressor

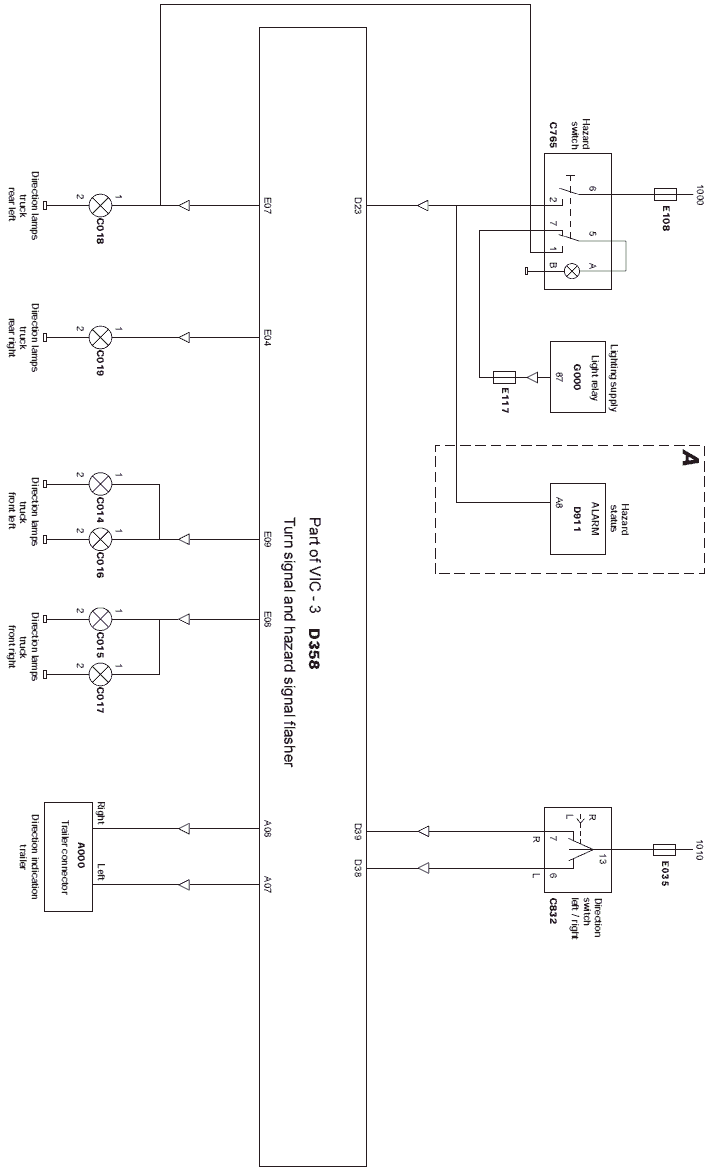

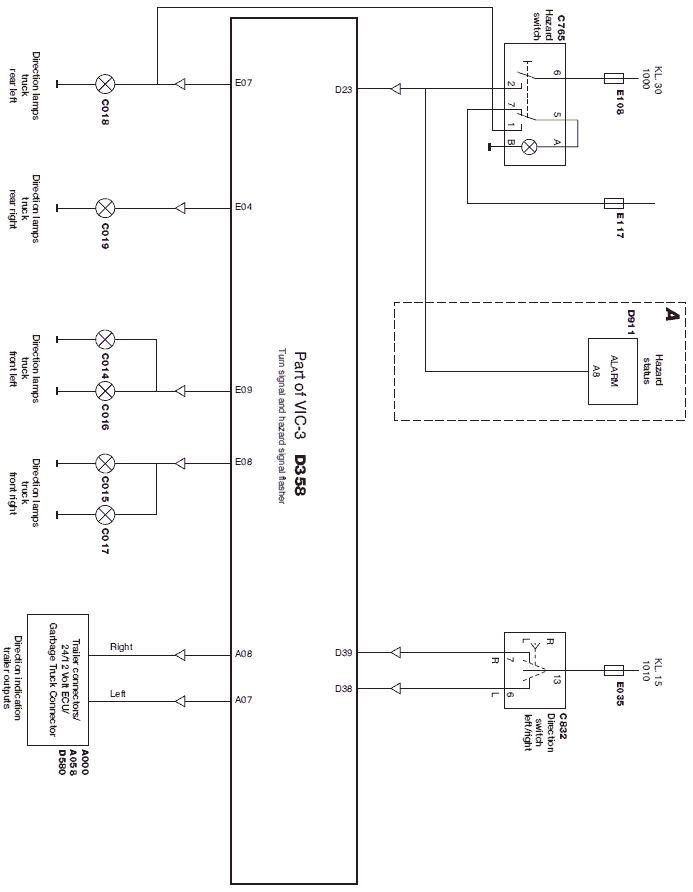

BLOCK DIAGRAM HAZARD WARNING/DIRECTION INDICATOR LIGHTS SYSTEM
Block diagram K102786 applies to:
- CF65 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C765 Switch, hazard warning
  • C832 Steering column, left
  • D358 ECU, VIC-3
  • D911 ECU, alarm, ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • E117 Fuse, search lights
  • G000 Relay, rear, marker, search lights

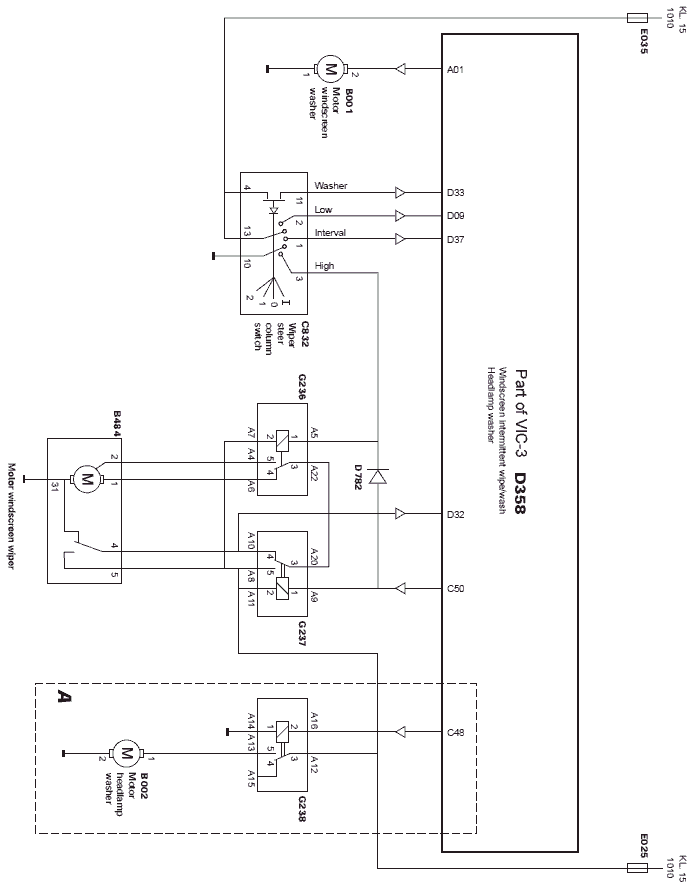

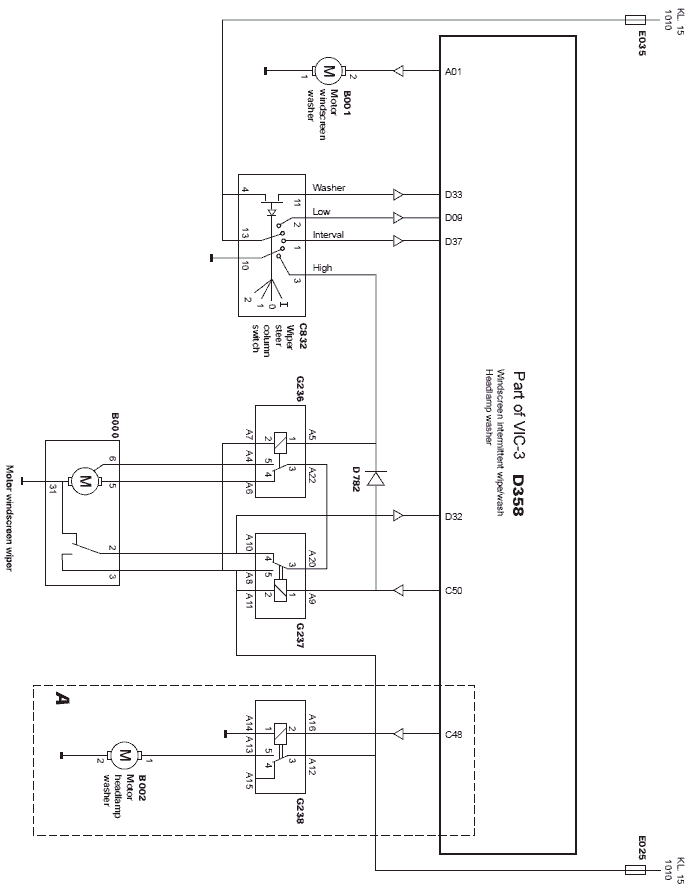

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING SYSTEM
Block diagram K102787 applies to:
- CF65 IV

Explanation of block diagram
A: Application with headlamp washer pump

  • B001 Pump, windscreen washer
  • B002 Pump, headlamp washer
  • B484 Motor, windscreen wiper
  • C832 Steering column, left
  • D358 ECU, VIC-3
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

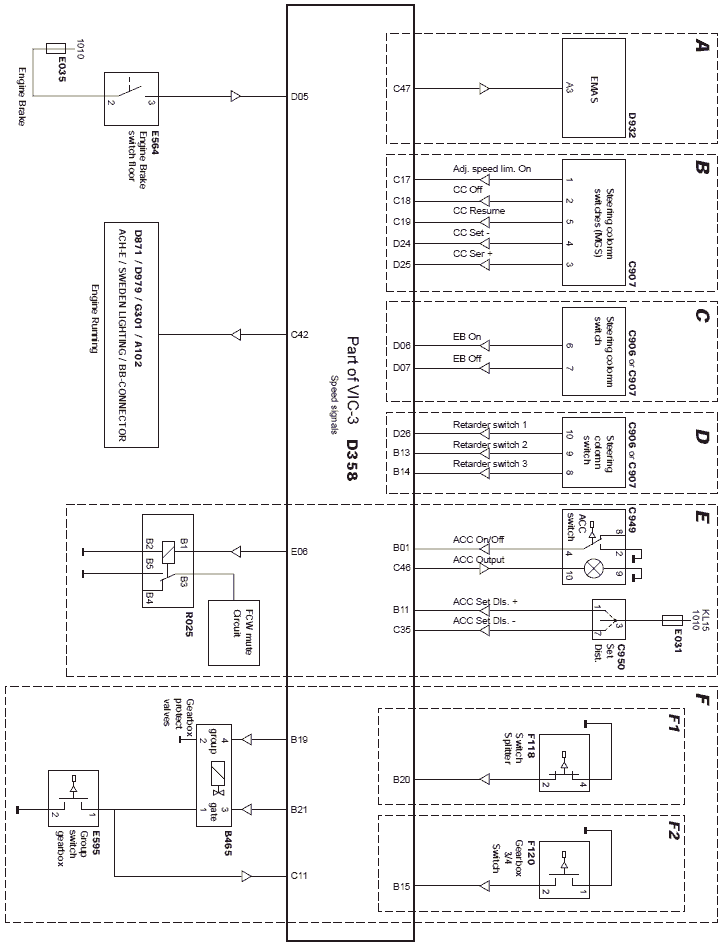

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102788 applies to:
- CF65 IV

Explanation of block diagram
A: Application without steering wheel switches
B: Application with manually operated gearbox
C: Application with manually operated gearbox, 6 gears
D: Application with manually operated gearbox, 9 gears

  • A102 Connector, body builder, 8-pole
  • B079 Valve, range protection
  • C906 Steering column, AS Tronic
  • C907 Steering column, MGS/AGC
  • D358 ECU, VIC-3
  • D871 ECU, ACH-EA
  • E035 Fuse, steering column
  • E564 Switch, engine brake
  • E575 Switch, clutch
  • E593 Switch, neutral position
  • E606 Switch, neutral position
  • G301 Relay, 'Sweden lighting'
  • G372 Relay, starter interrupt

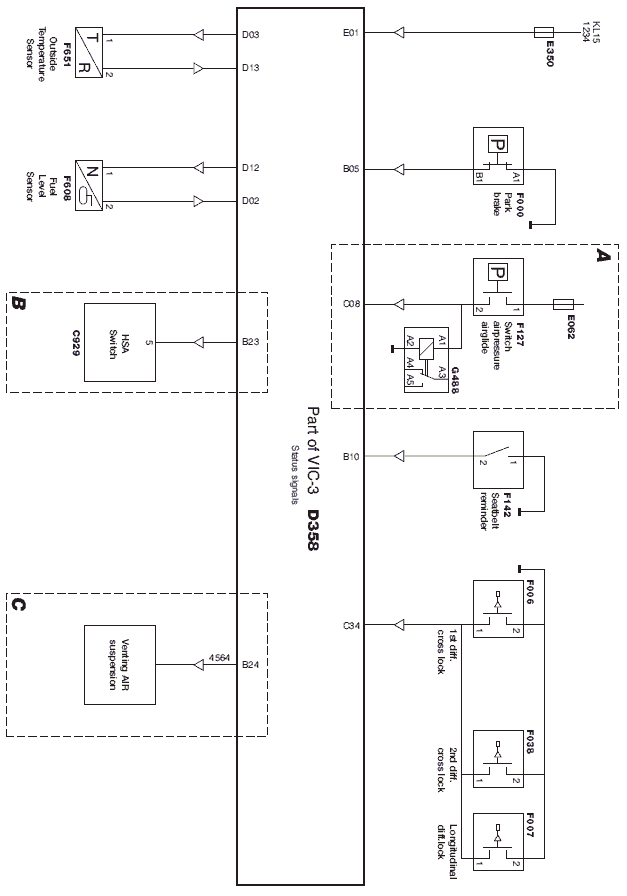

BLOCK DIAGRAM STATUS SIGNALS
Block diagram K102789 applies to:
- CF65 IV

Explanation of block diagram
A: Application with differential lock

  • D358 ECU, VIC-3
  • E013 Fuse, brake lights
  • E350 Fuse, electrical systems
  • E511 Switch, stop light
  • F000 Switch, parking brake
  • F006 Switch, cross lock, 1st
  • F142 Switch, seat belt status
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature
  • G036 Relay, brake light

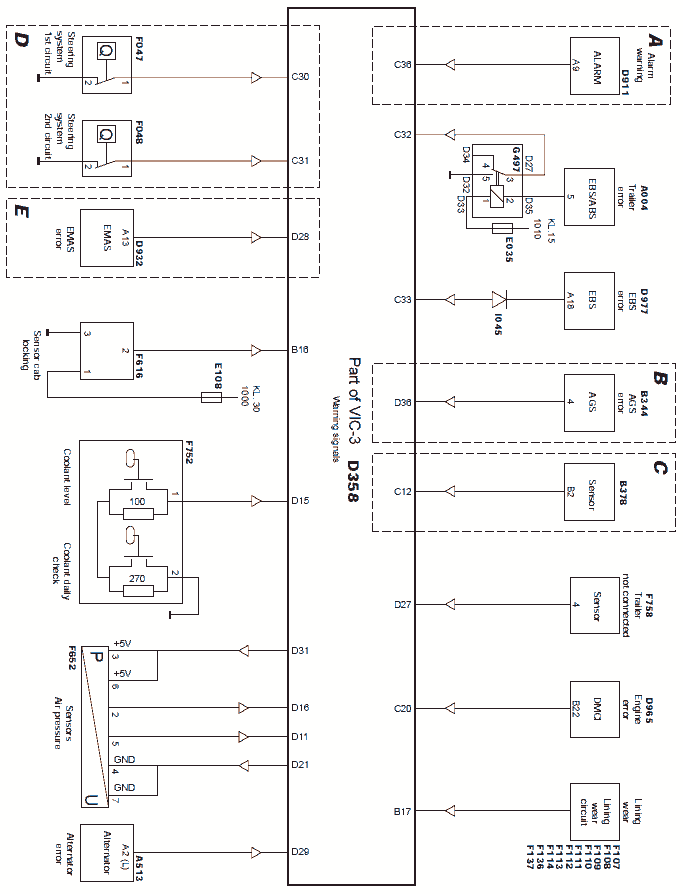

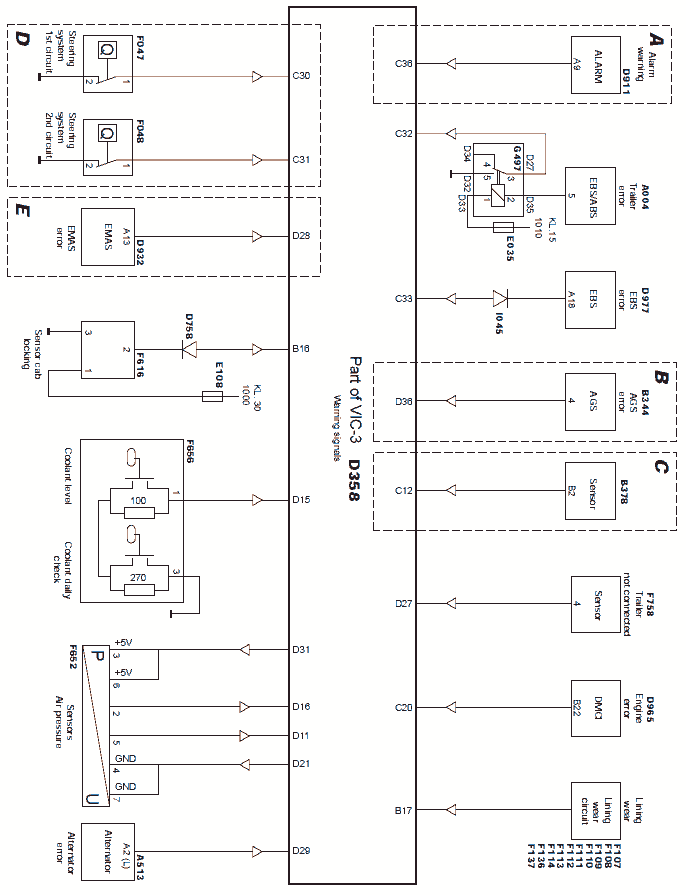

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K102790 applies to:
- CF65 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)
B: Application with trailer ABS connector
C: If glow system

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • B341 Glow element
  • D358 ECU, VIC-3
  • D911 ECU, alarm ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F752 Sensor, coolant level
  • G014 Relay, grid heater
  • G497 Relay, EBS/ABS, trailer

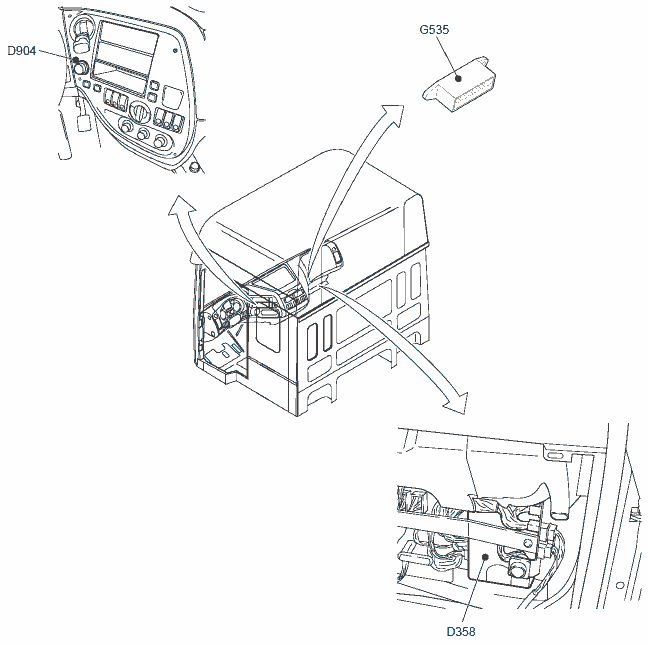

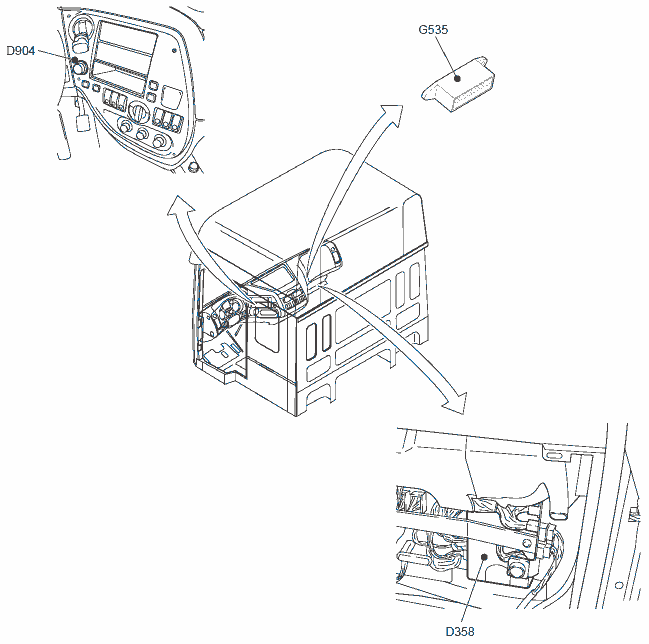

LOCATION INFORMATION, VIC-3, LIGHTING AND GENERAL

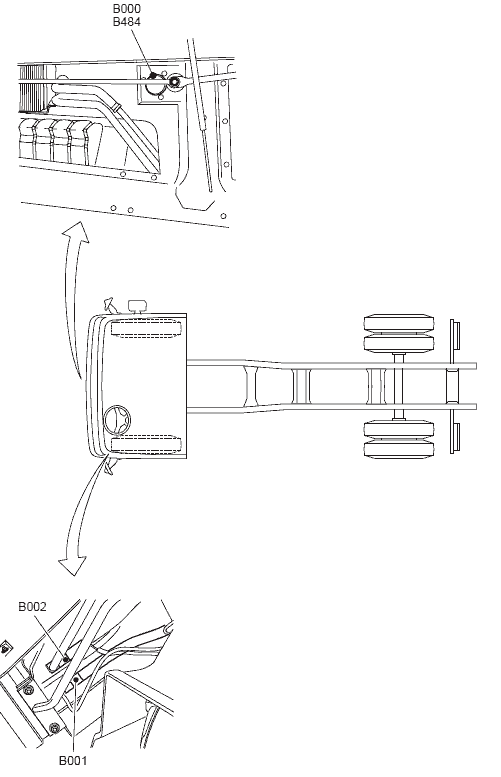

LOCATION INFORMATION, VIC-3, WINDSCREEN WIPER/WASHING

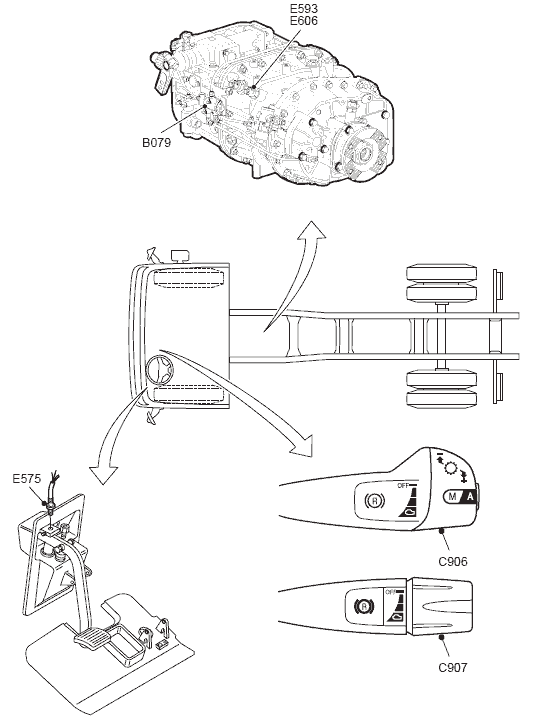

LOCATION INFORMATION, VIC-3, SPEED SIGNALS

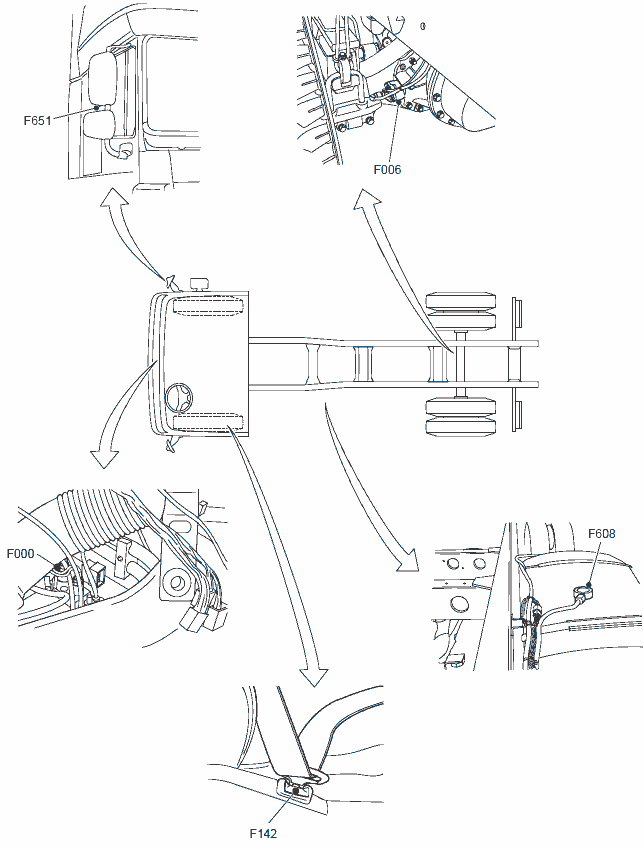

LOCATION INFORMATION, VIC-3, STATUS SIGNALS

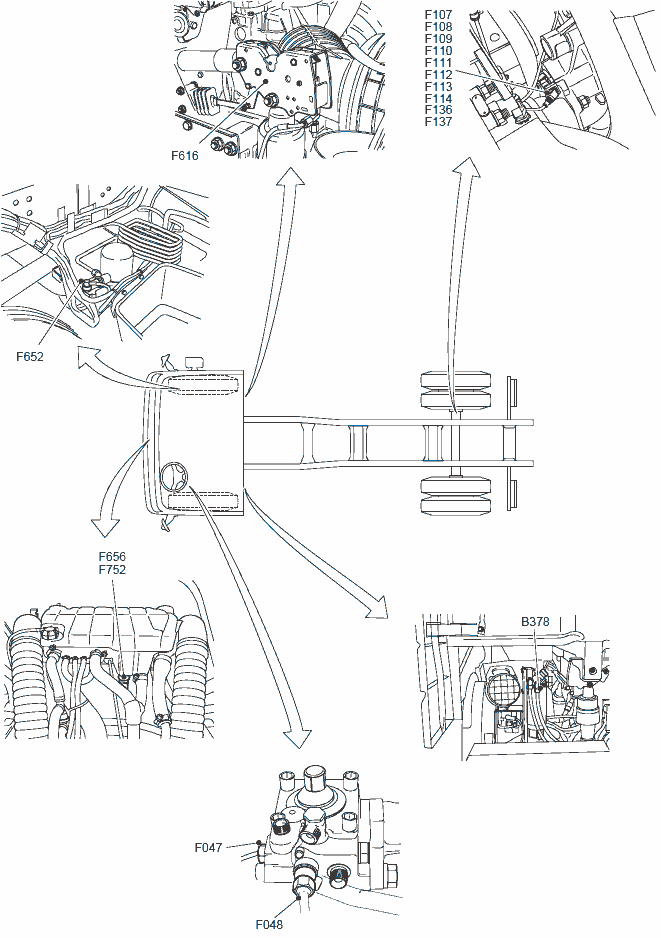

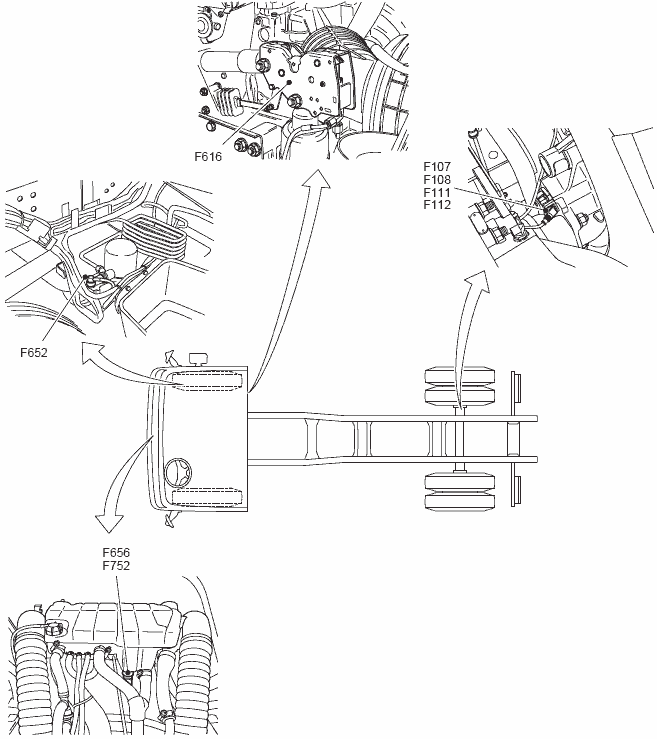

LOCATION INFORMATION, VIC-3, WARNING SIGNALS


CF75IV, CF85IV, XF105
BLOCK DIAGRAM LIGHTING AND GENERAL
Block diagram K102733 applies to:
- CF75 IV, CF85 IV and XF105

Explanation of block diagram
A: Application with work lamp
B: Application with CDS-3
C: Application with front fog lights
D: Application without front fog lights

  • B030 Cigar lighter, driver
  • C008 Light, fog, front left
  • C009 Light, fog, front right
  • C024 Light, fog, rear left
  • C025 Light, fog, rear right
  • C071 Light, work
  • C142 Light, work, 2nd
  • C231 Light, centre console, lower
  • C242 Light, interior, driver side
  • C243 Light, interior, co-driver side
  • C244 Light, interior, driver side
  • C245 Light, interior, co-driver side
  • C246 Light, interior, driver side
  • C247 Light, interior, co-driver side
  • C248 Light, interior, driver side
  • C249 Light, interior, co-driver side
  • C725 Switch, work light
  • C727 Switch, fog light, rear and front
  • C763 Dimmer, instrument light
  • C773 Switch, fog lights, rear
  • C918 Switch, interior, main
  • D358 ECU, VIC-3
  • D783 Diode, step lighting
  • D904 Menu Control Switch
  • D905 ECU, CDS
  • E009 Fuse, front fog lights
  • E010 Fuse, rear fog lights
  • E045 Fuse, interior lights
  • E052 Fuse, worklamp
  • E108 Fuse, VIC
  • E117 Fuse, search lights
  • E277 Fuse, VIC
  • E280 Fuse, VIC
  • E514 Switch, door, driver's side
  • E515 Switch, door, co-driver's side
  • E605 Selector gear, AGC-A
  • G000 Relay, rear, marker, search lights
  • G001 Relay, dipped beam
  • G002 Relay, main beam
  • G004 Relay, front fog lights
  • G005 Relay, rear fog lights
  • G036 Relay, brake light
  • G462 Relay, work light
  • G469 Relay, brake applied
  • G535 CAN, distribution block

BLOCK DIAGRAM HAZARD WARNING/DIRECTION INDICATOR LIGHTS
Block diagram K102726 applies to:
- CF75 IV, CF85 IV and XF105

Explanation of block diagram
A: Application with alarm system (ALS-S)

  • A000 Connector, trailer, 7-pole
  • A058 Connector, trailer, 15-pole
  • C014 Light, indicator, front left
  • C015 Light, indicator, front right
  • C016 Light, indicator, side, driver
  • C017 Light, indicator, side, co-driver
  • C018 Light, indicator, rear left
  • C019 Light, indicator, rear right
  • C765 Switch, hazard warning
  • C832 Steering column, left
  • D358 ECU, VIC-3
  • D580 ECU, 24V/12V
  • D911 ECU, alarm, ALS-S
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • E117 Fuse, search lights

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING
Block diagram K102727 applies to:
- CF75 IV/CF85 IV

Explanation of block diagram
A: Application with headlamp washer

  • B001 Pump, windscreen wiper
  • B002 Pump, headlamp washer
  • B484 Motor, windscreen wiper
  • C832 Steering column, left
  • D358 ECU, VIC-3
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

BLOCK DIAGRAM WINDSCREEN WIPER/WASHING
Block diagram K102728 applies to:
- XF105

Explanation of block diagram
A: Application with headlamp washer

  • B000 Motor, windscreen wiper
  • B001 Pump, windscreen wiper
  • B002 Pump, headlamp washer
  • C832 Steering column, left
  • D358 ECU, VIC-3
  • D782 Diode, wiper
  • E025 Fuse, wiper
  • E035 Fuse, steering column
  • G236 Relay, windscreen wiper (speed 1 or 2)
  • G237 Relay, windscreen wiper (0 position)
  • G238 Relay, headlamp washer

BLOCK DIAGRAM SPEED SIGNALS
Block diagram K102729 applies to:
- CF75 IV, CF85 IV and XF105

Explanation of block diagram
A: Application with EMAS
B: Application without SWS
C: Application without intarder
D: Application with intarder
E: Application with Adaptive Cruise Control (ACC)
F: Application with manually operated gearbox (8, 9 or 16 speed)
F1: Application with splitter
F2: Application with clutch protection

  • A102 Connector, body builder, 8-pole
  • B465 Valve, gearbox protection
  • C906 Steering column, AS Tronic
  • C907 Steering column, MGS/AGC
  • C949 Switch, ACC on/off
  • C950 Switch, ACC set distance
  • D358 ECU, VIC-3
  • D871 ECU, ACH-EA
  • D932 ECU, EMAS
  • D979 ECU, ACH-EW
  • E031 Fuse, heater fan
  • E035 Fuse, steering column
  • E564 Switch, engine brake
  • E595 Switch, range group, low
  • F118 Switch, splitter status
  • F120 Switch, gate 3/4 detection
  • G301 Relay, Sweden lighting
  • G372 Relay, starter interrupt
  • R025 Relay, FCW mute speakers

BLOCK DIAGRAM STATUS SIGNALS
Block diagram K102730 applies to:
- CF75 IV, CF85 IV and XF105

Explanation of block diagram
A: Application with Airglide
B: Application with AS Tronic or Allison
C: Application with leaf-sprung driving aid on FTM vehicles

  • C929 Switch, hill start aid
  • D358 ECU, VIC-3
  • E062 Fuse, hydraulic lifting gear
  • E350 Fuse, electrical systems
  • F000 Switch, parking brake
  • F006 Switch, cross lock, 1st
  • F007 Switch, longitudinal lock
  • F038 Switch, cross lock, 2nd
  • F127 Switch, air pressure, Airglide
  • F142 Switch, seat belt status
  • F608 Sensor, fuel level
  • F651 Sensor, ambient temperature
  • G488 Relay, signal, Airglide

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K102731 applies to:
- CF75 IV, CF85 IV

Explanation of block diagram
A: Application with alarm system (ALS-S)
B: Application with automatic greasing system (AGS)
C: Application with water separator sensor
D: Application with dual-circuit steering system
E: Application with EMAS

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • B344 ECU, AGS
  • B378 Sensor/heater, fuel filter
  • D358 ECU, VIC-3
  • D911 ECU, alarm, ALS-S
  • D932 ECU, EMAS
  • D965 ECU, DMCI
  • D977 ECU, EBS-2
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F047 Switch, steering system 1
  • F048 Switch, steering system 2
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F109 Switch, brake pad wear, 2nd front axle, left
  • F110 Switch, brake pad wear, 2nd front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F113 Switch, brake pad wear, 2nd rear axle, left
  • F114 Switch, brake pad wear, 2nd rear axle, right
  • F136 Switch, brake pad wear, 3rd rear axle, left
  • F137 Switch, brake pad wear, 3rd rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F752 Sensor, coolant level
  • F758 Sensor, trailer recognition
  • G497 Relay, EBS/ABS, trailer
  • I045 Diode, EBS error

BLOCK DIAGRAM WARNING SIGNALS
Block diagram K102732 applies to:
- XF105

Explanation of block diagram
A: Application with alarm system (ALS-S)
B: Application with automatic greasing system (AGS)
C: Application with water separator sensor
D: Application with dual-circuit steering system
E: Application with EMAS

  • A004 Connector, trailer, ABS/EBS, 7-pole
  • A513 Alternator
  • B344 ECU, AGS
  • B378 Sensor/heater, fuel filter
  • D358 ECU, VIC-3
  • D758 Diode, anti-feedback to VIC
  • D911 ECU, alarm, ALS-S
  • D932 ECU, EMAS
  • D965 ECU, DMCI
  • D977 ECU, EBS-2
  • E035 Fuse, steering column
  • E108 Fuse, VIC
  • F047 Switch, steering system 1
  • F048 Switch, steering system 2
  • F107 Switch, brake pad wear, 1st front axle, left
  • F108 Switch, brake pad wear, 1st front axle, right
  • F109 Switch, brake pad wear, 2nd front axle, left
  • F110 Switch, brake pad wear, 2nd front axle, right
  • F111 Switch, brake pad wear, 1st rear axle, left
  • F112 Switch, brake pad wear, 1st rear axle, right
  • F113 Switch, brake pad wear, 2nd rear axle, left
  • F114 Switch, brake pad wear, 2nd rear axle, right
  • F136 Switch, brake pad wear, 3rd rear axle, left
  • F137 Switch, brake pad wear, 3rd rear axle, right
  • F616 Sensor, cab lock
  • F652 Sensor, air pressure
  • F656 Sensor, coolant level
  • F758 Sensor, trailer recognition
  • G497 Relay, EBS/ABS, trailer
  • I045 Diode, EBS error

LOCATION INFORMATION, VIC-3, LIGHTING AND GENERAL

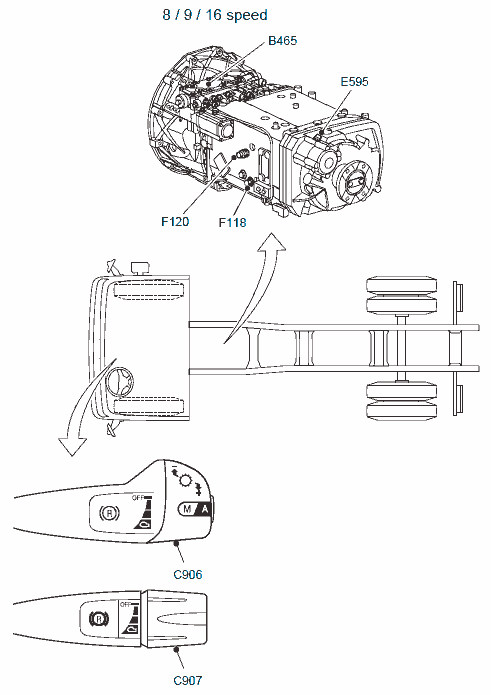

LOCATION INFORMATION, VIC-3, WINDSCREEN WIPER/WASHING


LOCATION INFORMATION, VIC-3, SPEED SIGNALS


LOCATION INFORMATION, VIC-3, STATUS SIGNALS


LOCATION INFORMATION, VIC-3, WARNING SIGNALS



Назад к содержимому | Назад к главному меню
