Хитрости > VOLVO > Америка

Электросхемы всех систем VOLVO VN / VHD / VAN с 1999 по 2016 г.
(размер 1.2 гиг)

Будет доступно пользователям
с выходом 57 обновления




Для примера - покажем схемы двигателя 2010 г. VOLVO VN


Engine Controls: A/C Compressor, Variable Geometry Turbo


Engine Controls: Power, Ground, Data Lines

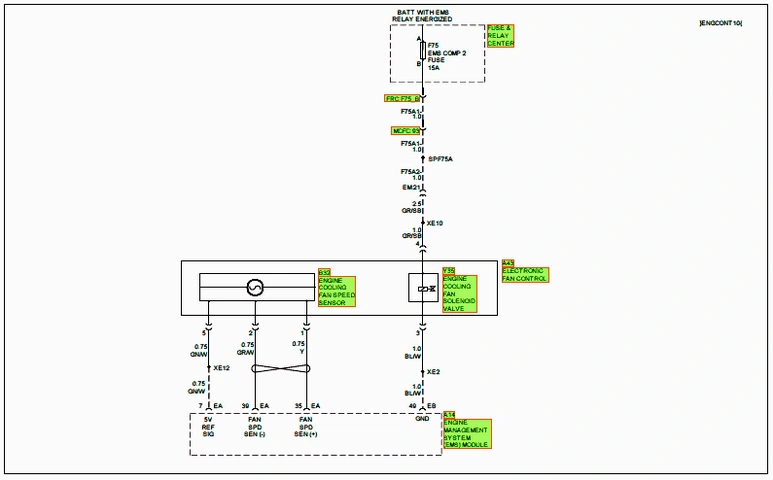

Engine Controls: Electronic Fan Control (W/E-Viscous Fan Only)

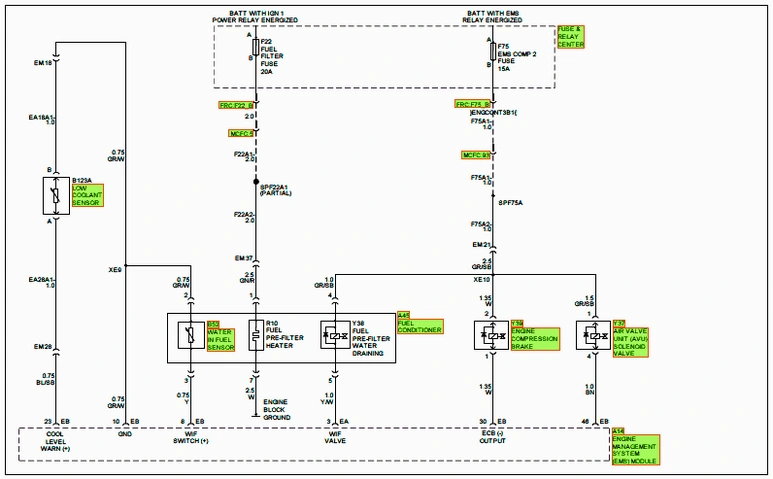

Engine Controls: Coolant Level Sensor, Fuel Conditioner, Engine Compression Brake & Air Valve Unit Solenoid

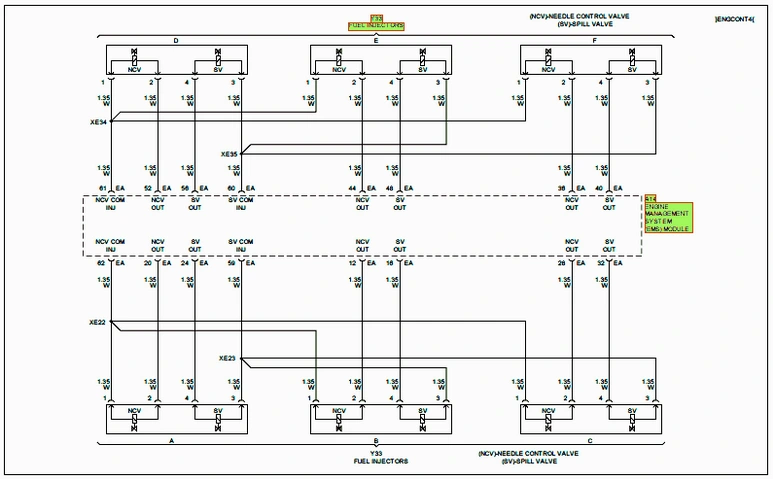

Engine Controls: Fuel Injectors

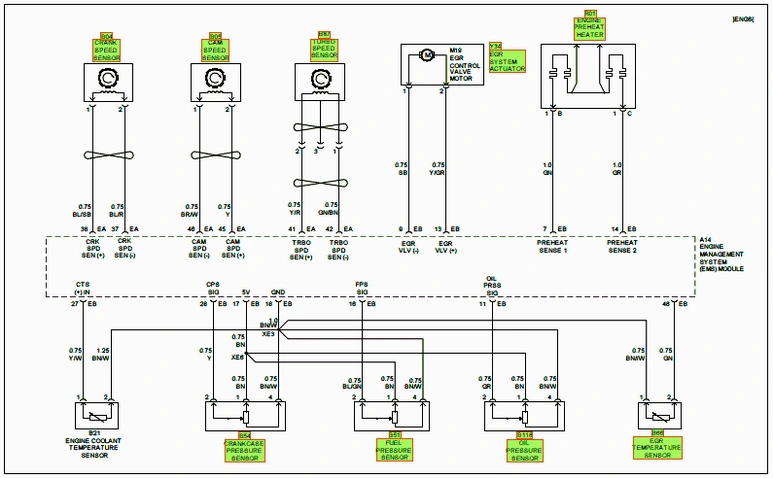

Engine Controls: Engine Controls: EGR Differential Pressure, Boost Pressure, Boost Temperature, After Treatment Fuel Pressure, Oil Level/Temperature Sensors, DPF Temperature/Pressure NOx Sensor Assembly


Engine Controls: EGR System Actuator, Engine Pre-Heater, Sensors

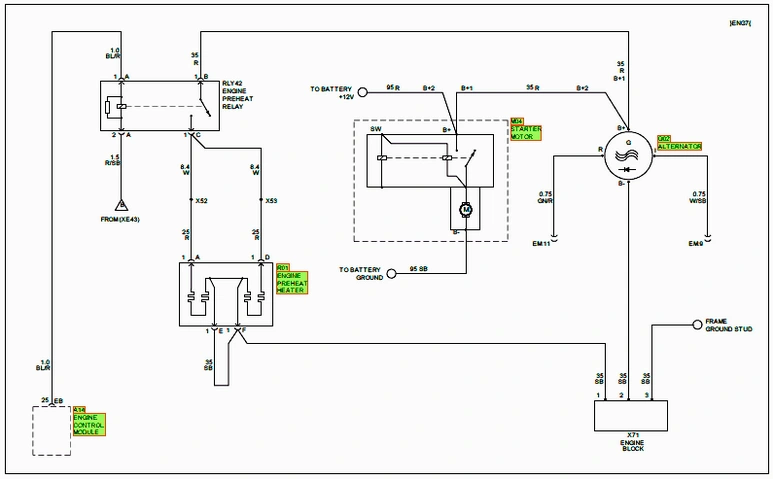

Engine Controls: Starter Motor & Alternator, Engine Preheat, Engine Preheat Relay


Engine Controls: Engine Fan Solenoid (W/ON/OFF Fan Only)


Engine Controls: HDMS Fan Drive Assembly (W/HDMS Fan Only)

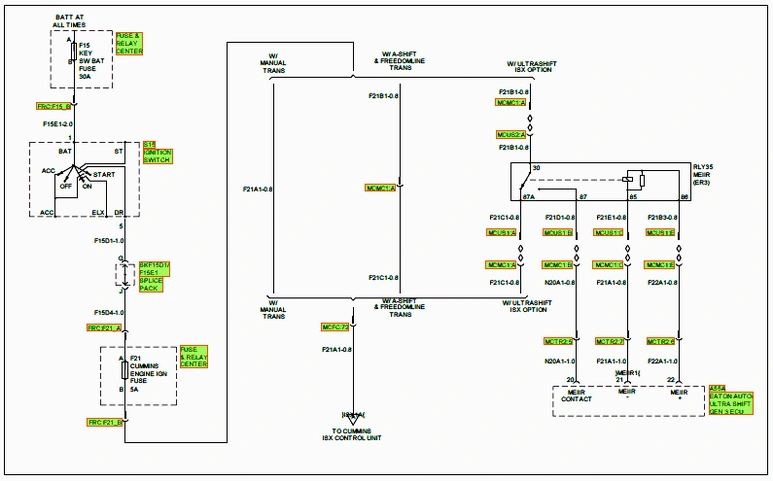

Engine Controls: Cummins ISX US07 MEIIR Relay


Engine Controls: Cummins ISX US07 Control Unit

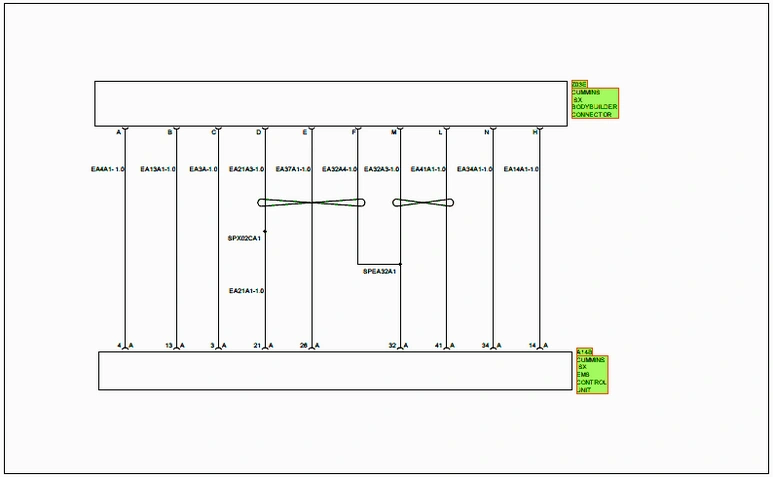

Engine Controls: Cummins ISX US07 Control Unit and Cummings ISX Bodybuilder Connector


АББРЕВИАТУРЫ
  • AC  AIR CONDITIONING
  • AD  AIR DRYER
  • ABS  ABS HARNESS
  • AFT  AFTERTREATMENT
  • AL  ADDITIONAL LIGHTING
  • ALS  ALLISON SELECTOR -GEAR
  • AR  AIR RESTRICTION JUMPER
  • AS  AUTOSHIFT
  • AT  AUTOMATIC TRANSMISSION
  • AX  AUXILIARY SWITCH HARNESS
  • B  EXPANSION BLOCK
  • BB  BODY BUILDER DASH OVERLAY
  • BBM  BODY BUILDER MODULE
  • BEC  BUSSED ELECTRICAL CENTER
  • BOC  BACK OF CAB LAMP JUMPER
  • CB  C.B. STUDS JUMPER
  • CE  CHASSIS EXTENSION
  • CTI  CENTRAL TIRE INFL.
  • DCL  DATA COMMAND LANGUAGE
  • DEF  DIESEL EXHAUST FLUID
  • DL  DOOR - LEFT
  • DLR  DIFFERENTIAL LOCK
  • DPF  DIESEL PARTICLE FILTER
  • DR  DOOR - RIGHT
  • DV  DRAIN VALVE -HEATER
  • EB  ENGINE BRAKE JUMPER
  • ECM  ENGINE CONTROL MODULE
  • EGR  EXHAUST GAS RECIRCULATION
  • EMS  ENGINE MANAGEMENT SYSTEM
  • EN  ENGINE
  • EPDM  ENGINE POWER DISTRIBUTION MODULE
  • FA  FRONT ANTENNA (VORAD)
  • FC  FRONT CHASSIS
  • FD  FOG AND DRIVING LAMPS
  • FRC  FUSE AND RELAY CENTER
  • FS  FAN SOLENOID
  • HL  HEADLIGHT
  • HT  HOOD TILT SWITCH
  • IWDL  INTERWHEEL DIFFERENTIAL LOCK
  • LA  LIFT AXLE OVERLAY
  • LK  DOOR LOCK OVERLAY
  • MC  MAIN CAB
  • MEIIR  MOMENTARY ENGINE IGNITION INTERRUPT RELAY
  • MI  MARKER INTERRUPT
  • MJ  MIRROR JUMPER
  • MLX  HOOD MARKER LPS. HARNESS
  • MM  MOBILE MAX HARNESS
  • MO  MIRROR OVERLAY
  • OCP  OVERCRANK PROTECTION OB      OVERHEAD BUNK
  • OF  OVERHEAD FRONT
  • OL  MOBILE MAX OVERLAY HARNESS
  • OPT  OPTIONAL DATALINK
  • PL  SNOW PLOW OVERLAY
  • PM  POWER MODULE
  • PS  PREMIUM SOUND OVERLAY
  • PTO  POWER TAKE-OFF
  • PW  POWER WINDOW
  • QC  QUALCOMM
  • RA  REAR AXLE
  • RAJ  REAR AXLE JUMPER
  • RF  ROOF SIGN
  • RFJ  ROOF SIGN JUMPER
  • RH  REAR WALL HEADER
  • RJ  RADIO JUMPER
  • RS  RADIO SHELF PREP.
  • RSO  ROOF SIGN OVERLAY
  • RW  REAR WALL
  • SK  SINK/FAUCET PUMP
  • SL  SLEEPER
  • SN  SHIFT KNOB
  • SPJ  SOLENOID PACK JUMPER
  • SPO  SNOW PLOW OVERHEAD
  • PL  SNOWPLOW OPTION
  • SR  SIDE REPEATER
  • SRA  SMART REMOTE ACTUATOR
  • SS  SIDE SENSOR (VORAD)
  • SV  SUNVISOR
  • SW  STEERING WHEEL SWITCHES OVERLAY
  • TBJ  TABLE LAMP JUMPER
  • TBP  TRANSMISSION BATTERY POWER
  • TE  TAIL LIGHT EXTENSION
  • TECU  TRANSMISSION ELECTRONIC CONTROL MODULE
  • TL  TAIL LIGHT
  • TLK  TOUCH LOCK OVERLAY
  • TR  TRANSMISSION
  • TS  TEMP A START OVL.
  • US  ULTRASHIFT
  • VA  REAR WALL VALANCE
  • VE  VORAD/ECS OVERLAYS
  • VECU  VEHICLE ELECTRONIC CONTROL UNIT
  • VGT  VARIABLE GEOMETRY TURBO
  • WB  WASHER BOTTLE
