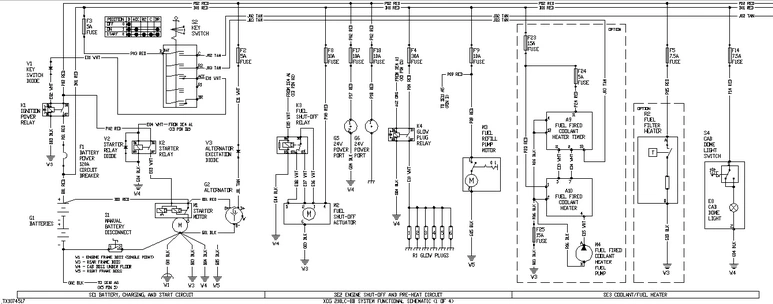

Электрические схемы экскаватора XCG 210LC-8B


  • A9 - Fuel Fired Coolant Heater Timer
  • A10 - Fuel Fired Coolant Heater
  • E8 - Cab Dome Light
  • F1 - Battery Power 120 A Circuit Breaker
  • F2 - Alternator Excitation 5 A Fuse
  • F3 - Key Switch 5 A Fuse
  • F4 - Glow Plug 30 A Fuse
  • F5 - Fuel Heater 7.5 A Fuse
  • F8 - Fuel Shut-Off Actuator 10 A Fuse
  • F9 - Fuel Refill Pump 10 A Fuse
  • F14 - Dome Light 7.5 A Fuse
  • F17 - 24 V Power Port 10 A Fuse
  • F18 - 24 V Power Port 10 A Fuse
  • F23 - Fuel Fired Coolant Heater 15 A Fuse
  • F24 - Fuel Fired Coolant Heater Timer 5 A Fuse
  • F25 - Fuel Fired Coolant Heater Ground 15 A Fuse
  • G1 - Batteries
  • G2 - Alternator
  • G5 - 24 V Power Port 1
  • G6 - 24 V Power Port 2
  • K1 - Ignition Power Relay
  • K2 - Starter Relay
  • K3 - Fuel Shut-off Relay
  • K4 - Glow Plug Relay
  • M1 - Starter Motor
  • M2 - Fuel Shut-off Actuator
  • M3 - Fuel Refill Pump Motor
  • M4 - Fuel Fired Coolant Heater Fuel Pump
  • R1 - Glow Plugs
  • R2 - Fuel Filter Heater
  • S1 - Manual Battery Disconnect Switch
  • S2 - Key Switch
  • S4 - Cab Dome Light Switch
  • V1 - Key Switch Diode
  • V2 - Starter Relay Diode
  • V3 - Alternator Excitation Diode
  • W1 - Engine Frame Ground
  • W3 - Rear Frame Ground
  • W4 - Cab Ground
  • W5 - Right Frame Ground


  • A1 - Flex Load Controller (FLC)
  • B1 - Travel Pilot Pressure Switch
  • B2 - Dig Pilot Pressure Switch
  • B3 - Engine Speed Sensor
  • B4 - Fuel Level Sensor
  • B5 - Hydraulic Oil Temperature Sensor
  • B6 - Engine Coolant Temperature Sensor
  • B7 - Pump 1 Pressure Sensor
  • B8 - Pump 2 Pressure Sensor
  • B9 - Hydraulic Oil Filter Restriction Switch
  • B10 - Engine Oil Pressure Switch
  • B11 - Air Filter Restriction Switch
  • E1 - Left Boom Light
  • E2 - Right Boom Light
  • E3 - Left Front Cab Light
  • E4 - Right Front Cab Light
  • E5 - Right Front Frame Light
  • E6 - Rotary Beacon Light
  • F6 - Flex Load Controller (FLC) 20 A Fuse
  • F7 - Pilot Enable 10 A Fuse
  • F16 - Pilot Pressure Switch 5 A Fuse
  • H1 - Horn
  • H2 - Monitor Alarm
  • H3 - Travel Alarm
  • M5 - Wiper Motor
  • M6 - Wiper Washer Motor
  • R3 - Engine Speed Control Dial
  • S3 - Pilot Enable Switch
  • S5 - Horn Switch
  • S6 - Pressure Boost Switch
  • W3 - Rear Frame Ground
  • W4 - Cab Ground
  • W5 - Right Frame Ground
  • Y1 - Torque Control Solenoid
  • Y2 - Travel Speed Solenoid
  • Y3 - Pressure Boost Solenoid
  • Y4 - Pilot Enable Solenoid


  • A6 - Heater and Air Conditioner
  • A7 - Heater and Air Conditioner Controller
  • B12 - Air Conditioner Pressure Switch
  • B15 - Cab Air Temperature Sensor
  • F19 - Air Conditioner Controller 10 A Fuse
  • F20 - Heater and Air Conditioner Power 30 A Fuse
  • K5 - Air Conditioner Compressor Clutch Relay
  • K6 - Blower Motor (Low) Relay
  • K7 - Blower Motor (High) Relay
  • M7 - Blower Motor
  • M8 - Internal/External Air Actuator
  • M9 - Temperature Mixer Actuator
  • M10 - Vent Mode Actuator
  • M11 - Defrost/Foot Mode Actuator
  • R6 - Blower Motor Resistor
  • R7 - Mode Position Sensor
  • R8 - Temperature Position Sensor
  • W4 - Cab Ground
  • Y6 - Air Conditioner Compressor Clutch


  • A2 - Advanced Display Unit (ADU)
  • A3 - Engine Speed Control Actuator
  • A4 - Sealed Switch Module (SSM)
  • A5 - Radio
  • A8 - Telematics
  • B13 - Left Speaker
  • B14 - Right Speaker
  • E7 - License Plate Light
  • F10 - Sealed Switch Module (SSM) 5 A Fuse
  • F11 - Advanced Display Unit (ADU) Switched Power 10 A Fuse
  • F12 - Advanced Display Unit (ADU) Unswitched Power 10 A Fuse
  • F13 - Engine Speed Control Actuator 7.5 A Fuse
  • F15 - Radio 10 A Fuse
  • F21 - Telematics 10 A Fuse 1
  • F22 - Telematics 10 A Fuse 2
  • R4 - CAN 1 Termination Resistor 1
  • R5 - CAN 1 Termination Resistor 2
  • W3 - Rear Frame Ground
  • W4 - Cab Ground
  • W9 - Antenna
  • X5 - Left Frame Harness-to-Telematics Controller 6-pin Connector
  • X6 - Left Frame Harness-to-Telematics Controller 8-pin Connector
  • X18 - Service Advisor Diagnostic Connector
