Электросхемы и коды неисправностей
 Landscape Loader 210LJ John Deere

(S.N. —890226)

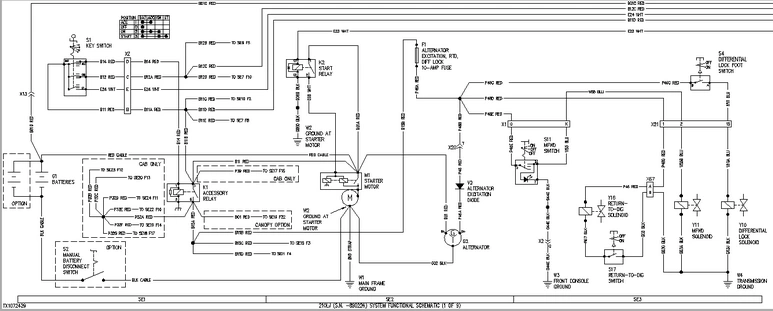

  • F1 - Alternator Excitation, Return-to-Dig, and Differential Lock 10-Amp Fuse
  • G1 - Batteries
  • G2 - Alternator
  • K1 - Accessory Relay
  • K2 - Start Relay
  • M1 - Starter Motor
  • S1 - Key Switch
  • S2 - Manual Battery Disconnect Switch (if equipped)
  • S4 - Differential Lock Foot Switch
  • S11 - MFWD Switch
  • S17 - Return-to-Dig Switch
  • V2 - Alternator Excitation Diode
  • W1 - Main Frame Ground
  • W2 - Ground at Starter Motor
  • W3 - Front Console Ground
  • W4 - Transmission Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector (marked as CONNECTOR 2)
  • X13 - ECU Unswitched Battery Power Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X21 - Load Center Harness-to-Transmission Harness 31-Pin Connector
  • X67 - Transmission Harness-to-Return-to-Dig Harness 2-Pin Connector
  • Y10 - Differential Lock Solenoid
  • Y11 - Mechanical Front Wheel Drive (MFWD) Solenoid
  • Y16 - Return-to-Dig Solenoid


  • A1 - Engine Control Unit (ECU)
  • B11 - Fuel Rail Pressure Sensor
  • B15 - Engine Coolant Temperature Sensor
  • B17 - Fuel Temperature Sensor
  • B18 - Manifold Air Temperature (MAT) Sensor
  • B19 - Crankshaft Position Sensor
  • B20 - Foot Throttle Position Sensor
  • B21 - Hand Throttle Position Sensor (if equipped)
  • B22 - Camshaft Position Sensor
  • B23 - Engine Oil Pressure Sensor
  • B60 - Water-in-Fuel (WIF) Sensor
  • F6 - ECU, Park Brake, and FNR 10-Amp Fuse
  • F7 - Start Relay 10-Amp Fuse
  • F9 - Fuel Transfer Pump 10-Amp Fuse
  • F21 - Engine Control Unit (ECU) Unswitched Power 20-Amp Fuse
  • K4 - Fuel Transfer Pump Relay
  • M10 - Fuel Transfer Pump
  • R3 - CAN Termination Resistor
  • W2 - Ground at Starter Motor
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X41 - Engine Control Unit (ECU) 32-Pin Connector
  • X42 - Engine Control Unit (ECU) 48-Pin Connector
  • Y17 - Fuel Pump Control Valve Solenoid
  • Y21 - Electronic Injector Solenoid (Cylinder 1)
  • Y22 - Electronic Injector Solenoid (Cylinder 2)
  • Y23 - Electronic Injector Solenoid (Cylinder 3)
  • Y24 - Electronic Injector Solenoid (Cylinder 4)

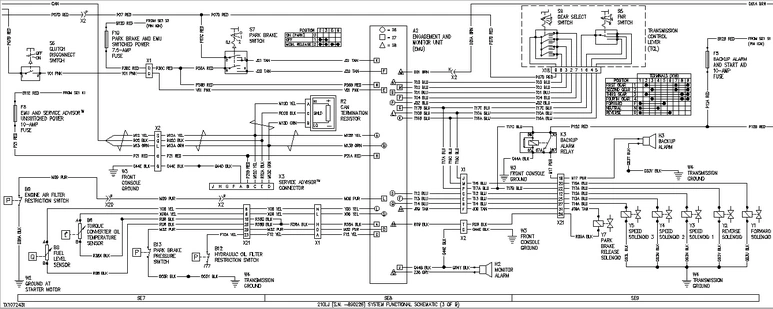

  • A2 - Engagement and Monitor Unit (EMU)
  • B6 - Torque Converter Oil Temperature Sensor
  • B8 - Fuel Level Sensor
  • B9 - Engine Air Filter Restriction Switch
  • B12 - Hydraulic Oil Filter Restriction Switch
  • B13 - Park Brake Pressure Switch
  • F5 - Backup Alarm and Start Aid 10-Amp Fuse
  • F8 - Engagement and Monitor Unit (EMU) and Service ADVISOR™ Unswitched Power 10-Amp Fuse
  • F10 - Park Brake and Engagement and Monitor Unit (EMU) Switched Power 7.5-Amp Fuse
  • H2 - Monitor Alarm
  • H3 - Backup Alarm
  • K3 - Backup Alarm Relay
  • R2 - CAN Termination Resistor
  • S5 - Forward, Neutral, and Reverse (FNR) Switch
  • S6 - Clutch Disconnect Switch
  • S7 - Park Brake Switch
  • S9 - Gear Select Switch
  • W2 - Ground at Starter Motor
  • W3 - Front Console Ground
  • W4 - Transmission Ground
  • X1 - Load Center Harness-to-Front Console Harness 22-Pin Connector (marked as CONNECTOR 1)
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector (marked as CONNECTOR 2)
  • X3 - Service ADVISOR™ Connector
  • X6 - Engagement and Monitor Unit (EMU) 16-Pin Connector
  • X7 - Engagement and Monitor Unit (EMU) 14-Pin Connector
  • X8 - Engagement and Monitor Unit (EMU) 12-Pin Connector
  • X18 - Forward, Neutral, Reverse (FNR) Switch and Gear Select Switch Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X21 - Load Center Harness-to-Transmission Harness 31-Pin Connector
  • Y1 - Transmission Forward Directional Solenoid
  • Y2 - Transmission Reverse Directional Solenoid
  • Y3 - Transmission Speed Solenoid 1
  • Y4 - Transmission Speed Solenoid 2
  • Y5 - Transmission Speed Solenoid 3
  • Y7 - Park Brake Release Solenoid


  • B26 - Right Brake Pedal Pressure Switch
  • B27 - Left Brake Pedal Pressure Switch
  • E1 - Left Rear Work Light
  • E2 - Right Rear Work Light
  • E3 - Left Front Work Light
  • E4 - Right Front Work Light
  • E5 - Left Brake/Tail Light
  • E6 - Right Brake/Tail Light
  • F2 - Horn, Turn Lights, 4-Way Flasher, and Brake Lights 20-Amp Fuse
  • F4 - Work Lights and Tail Lights 25-Amp Fuse
  • H10 - Horn
  • S10 - Horn Switch
  • S15 - Start Aid Switch (if equipped)
  • S25 - Light Switch
  • W2 - Ground at Starter Motor
  • W3 - Front Console Ground
  • W5 - Canopy (ROPS) Harness Ground
  • W7 - Cab Roof Harness Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector (marked as CONNECTOR 2)
  • X4 - Load Center Harness-to-Cab/Canopy Harness 6-Pin Connector
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • Y15 - Start Aid Solenoid (if equipped)


  • E7 - Left Rear Turn Light
  • E8 - Right Rear Turn Light
  • E9 - Left Front Turn Light (if equipped)
  • E10 - Right Front Turn Light (if equipped)
  • E12 - Beacon Light (if equipped)
  • F3 - Beacon and Auxiliary 10-Amp Fuse
  • K9 - Turn Light Flasher
  • S29 - Beacon Light Switch (if equipped)
  • S30 - Turn Light Switch
  • S31 - 4-Way Flasher Switch
  • V3 - 4-Way Flasher Diode Left
  • V4 - 4-Way Flasher Diode Right
  • W3 - Front Console Ground
  • W5 - Canopy (ROPS) Harness Ground
  • W7 - Cab Roof Harness Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector (marked as CONNECTOR 2)
  • X4 - Load Center Harness-to-Cab/Canopy Harness 6-Pin Connector
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X10 - Auxiliary Power 2-Pin Connector
  • X19 - Load Center Harness-to-Canopy Beacon Light Switch Harness 2-Pin Connector

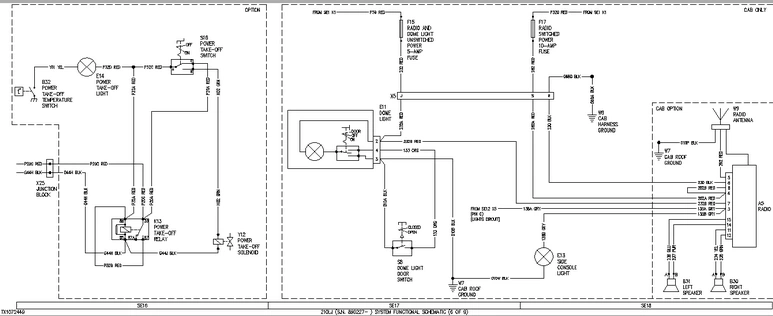

  • A5 - Radio (if equipped)
  • B30 - Right Speaker (if equipped)
  • B31 - Left Speaker (if equipped)
  • B32 - Power Take-Off Temperature Switch (if equipped)
  • E11 - Dome Light (if equipped)
  • E13 - Side Console Light (if equipped)
  • E14 - Power Take-Off Light (if equipped)
  • F15 - Radio and Dome Light Unswitched Power 5-Amp Fuse (if equipped)
  • F17 - Radio Switched Power 10-Amp Fuse (if equipped)
  • K13 - Power Take-Off Relay (if equipped)
  • S8 - Dome Light Door Switch (if equipped)
  • S16 - Power Take-Off Switch (if equipped)
  • W6 - Cab Harness Ground
  • W7 - Cab Roof Harness Ground
  • W9 - Radio Antenna
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X10 - Auxiliary Power 2-Pin Connector
  • Y12 - Power Take-Off Solenoid (if equipped)

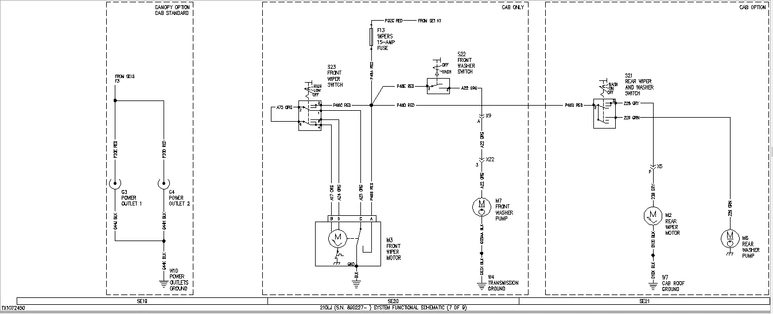

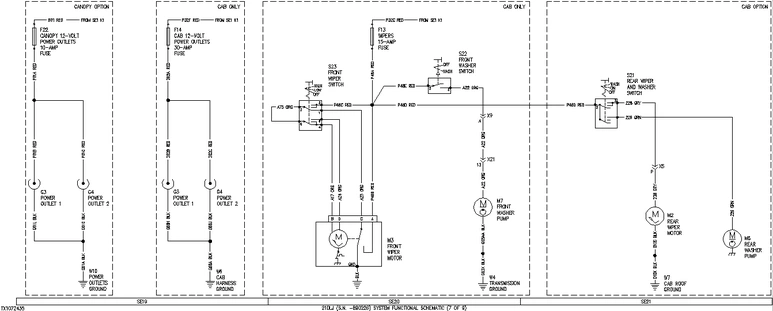

  • F13 - Wipers 15-Amp Fuse (if equipped)
  • F14 - Cab 12-Volt Power Outlets 30-Amp Fuse (if equipped)
  • F22 - Canopy 12-Volt Power Outlets 20-Amp Fuse (if equipped)
  • G3 - Power Outlet 1
  • G4 - Power Outlet 2
  • M2 - Rear Wiper Motor (if equipped)
  • M3 - Front Wiper Motor (if equipped)
  • M6 - Rear Washer Pump (if equipped)
  • M7 - Front Washer Pump (if equipped)
  • S21 - Rear Wiper and Washer Switch (if equipped)
  • S22 - Front Washer Switch (if equipped)
  • S23 - Front Wiper Switch (if equipped)
  • W4 - Transmission Ground
  • W6 - Cab Harness Ground
  • W7 - Cab Roof Harness Ground
  • W10 - Power Outlets Ground
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X9 - Load Center Harness-to-Cab Harness 2-Pin Connector
  • X21 - Load Center Harness-to-Transmission Harness 31-Pin Connector

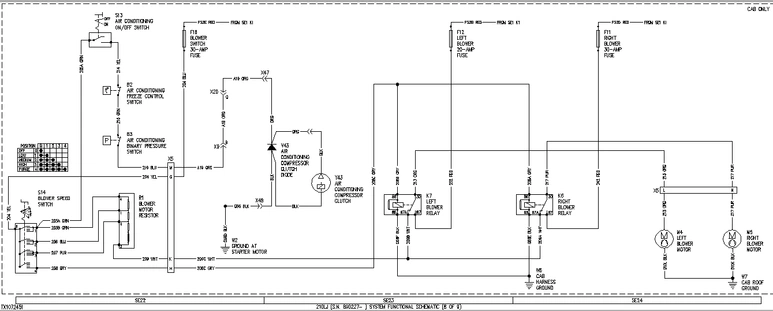

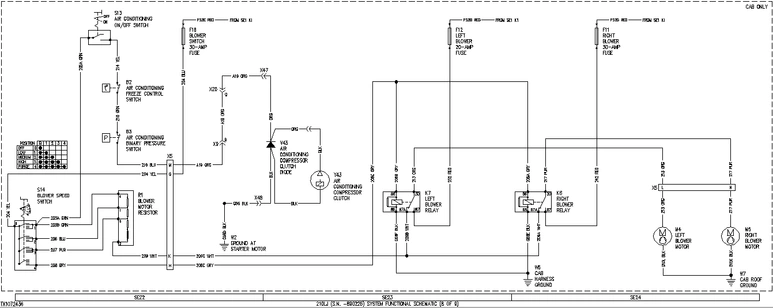

  • B2 - Air Conditioning Freeze Control Switch (if equipped)
  • B3 - Air Conditioning Binary Pressure Switch (if equipped)
  • F11 - Right Blower 30-Amp Fuse (if equipped)
  • F12 - Left Blower 20-Amp Fuse (if equipped)
  • F16 - Blower Switch 30-Amp Fuse (if equipped)
  • K6 - Right Blower Relay (if equipped)
  • K7 - Left Blower Relay (if equipped)
  • M4 - Left Blower Motor (if equipped)
  • M5 - Right Blower Motor (if equipped)
  • R1 - Blower Motor Resistor
  • S13 - Air Conditioning On/Off Switch (if equipped)
  • S14 - Blower Speed Switch (if equipped)
  • V43 - Air Conditioning Compressor Clutch Diode
  • W2 - Ground at Starter Motor
  • W6 - Cab Harness Ground
  • W7 - Cab Roof Harness Ground
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X9 - Load Center Harness-to-Cab Harness 2-Pin Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X47 - Air Conditioner Compressor-to-Engine Harness Connector
  • X48 - Air Conditioner Compressor-to-Engine Harness Connector
  • Y43 - Air Conditioning Compressor Clutch (if equipped)

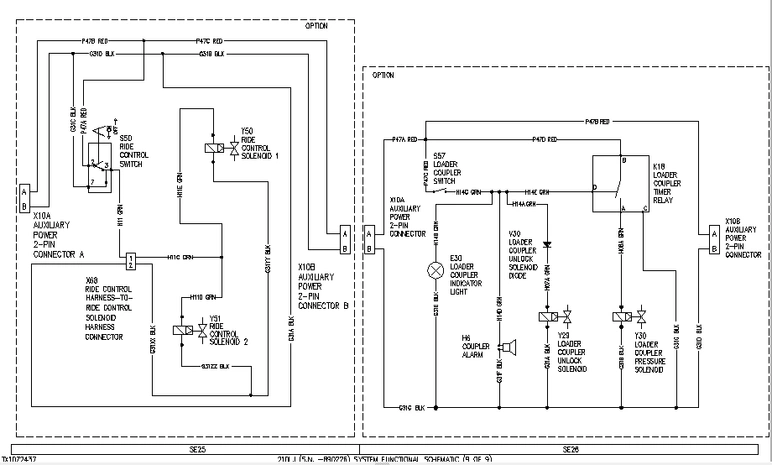

  • E30 - Loader Coupler Indicator Light (if equipped)
  • H6 - Coupler Alarm (if equipped)
  • K18 - Loader Coupler Timer Relay (if equipped)
  • S50 - Ride Control Switch (if equipped)
  • S57 - Loader Coupler Switch (if equipped)
  • V30 - Loader Coupler Unlock Solenoid Diode (if equipped)
  • X10A - Auxilary Power 2-Pin Connector A
  • X10B - Auxilary Power 2-Pin Connector B
  • X68 - Ride Control Harness-to-Ride Control Solenoid Harness Connector
  • Y29 - Loader Coupler Unlock Solenoid (if equipped)
  • Y30 - Loader Coupler Pressure Solenoid (if equipped)
  • Y50 - Ride Control Solenoid 1 (if equipped)
  • Y51 - Ride Control Solenoid 2 (if equipped)

(S.N. 890227— )

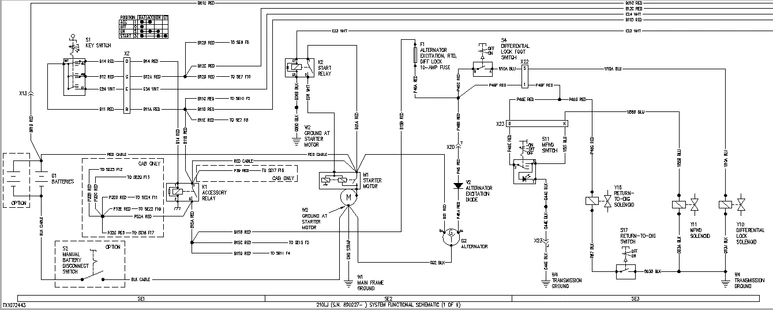

  • F1 - Alternator Excitation, Return-to-Dig, and Differential Lock 10-Amp Fuse
  • G1 - Batteries
  • G2 - Alternator
  • K1 - Accessory Relay
  • K2 - Start Relay
  • M1 - Starter Motor
  • S1 - Key Switch
  • S2 - Manual Battery Disconnect Switch (if equipped)
  • S4 - Differential Lock Foot Switch
  • S11 - MFWD Switch
  • S17 - Return-to-Dig Switch
  • V2 - Alternator Excitation Diode
  • W1 - Main Frame Ground
  • W2 - Ground at Starter Motor
  • W4 - Transmission Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector
  • X13 - ECU Unswitched Battery Power Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X22 - Load Center Harness-to-Transmission Harness 6-Pin Connector
  • X23 - Front Console Harness-to-Transmission Harness 22-Pin Connector
  • Y10 - Differential Lock Solenoid
  • Y11 - Mechanical Front Wheel Drive (MFWD) Solenoid
  • Y16 - Return-to-Dig Solenoid


  • A1 - Engine Control Unit (ECU)
  • B11 - Fuel Rail Pressure Sensor
  • B15 - Engine Coolant Temperature Sensor
  • B17 - Fuel Temperature Sensor
  • B18 - Manifold Air Temperature (MAT) Sensor
  • B19 - Crankshaft Position Sensor
  • B20 - Foot Throttle Position Sensor
  • B21 - Hand Throttle Position Sensor (if equipped)
  • B22 - Camshaft Position Sensor
  • B23 - Engine Oil Pressure Sensor
  • B60 - Water-in-Fuel (WIF) Sensor
  • F6 - ECU, Park Brake, and FNR 10-Amp Fuse
  • F7 - Start Relay 10-Amp Fuse
  • F9 - Fuel Transfer Pump 10-Amp Fuse
  • F21 - Engine Control Unit (ECU) Unswitched Power 20-Amp Fuse
  • K4 - Fuel Transfer Pump Relay
  • M10 - Fuel Transfer Pump
  • R3 - CAN Termination Resistor
  • W2 - Ground at Starter Motor
  • W3 - Front Console Ground
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X41 - Engine Control Unit (ECU) 32-Pin Connector
  • X42 - Engine Control Unit (ECU) 48-Pin Connector
  • X50 - Engine Harness-to-Electronic Injector (EI) Harness 8-Pin Connector
  • Y17 - Fuel Pump Control Valve Solenoid
  • Y21 - Electronic Injector Solenoid (Cylinder 1)
  • Y22 - Electronic Injector Solenoid (Cylinder 2)
  • Y23 - Electronic Injector Solenoid (Cylinder 3)
  • Y24 - Electronic Injector Solenoid (Cylinder 4)


  • A2 - Engagement and Monitor Unit (EMU)
  • B6 - Torque Converter Oil Temperature Sensor
  • B8 - Fuel Level Sensor
  • B9 - Engine Air Filter Restriction Switch
  • B12 - Hydraulic Oil Filter Restriction Switch
  • B13 - Park Brake Pressure Switch
  • F5 - Backup Alarm and Start Aid 10-Amp Fuse
  • F8 - Engagement and Monitor Unit (EMU) and Service ADVISOR™ Unswitched Power 10-Amp Fuse
  • F10 - Park Brake and Engagement and Monitor Unit (EMU) Switched Power 7.5-Amp Fuse
  • H2 - Monitor Alarm
  • H3 - Backup Alarm
  • K3 - Backup Alarm Relay
  • R2 - CAN Termination Resistor
  • S5 - Forward, Neutral, and Reverse (FNR) Switch
  • S6 - Clutch Disconnect Switch
  • S7 - Park Brake Switch
  • S9 - Gear Select Switch
  • W2 - Ground at Starter Motor
  • W3 - Front Console Ground
  • W4 - Transmission Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector
  • X3 - Service ADVISOR™ Connector
  • X6 - Engagement and Monitor Unit (EMU) 16-Pin Connector
  • X7 - Engagement and Monitor Unit (EMU) 14-Pin Connector
  • X8 - Engagement and Monitor Unit (EMU) 12-Pin Connector
  • X18 - Forward, Neutral, Reverse (FNR) Switch and Gear Select Switch Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X22 - Load Center Harness-to-Transmission Harness 6-Pin Connector
  • X23 - Front Console Harness-to-Transmission Harness 22-Pin Connector
  • Y1 - Transmission Forward Directional Solenoid
  • Y2 - Transmission Reverse Directional Solenoid
  • Y3 - Transmission Speed Solenoid 1
  • Y4 - Transmission Speed Solenoid 2
  • Y5 - Transmission Speed Solenoid 3
  • Y7 - Park Brake Release Solenoid


  • B26 - Right Brake Pedal Pressure Switch
  • B27 - Left Brake Pedal Pressure Switch
  • E1 - Left Rear Work Light
  • E2 - Right Rear Work Light
  • E3 - Left Front Work Light
  • E4 - Right Front Work Light
  • E5 - Left Brake/Tail Light
  • E6 - Right Brake/Tail Light
  • F2 - Horn, Turn Lights, 4-Way Flasher, and Brake Lights 20-Amp Fuse
  • F4 - Work Lights and Tail Lights 25-Amp Fuse
  • H10 - Horn
  • S10 - Horn Switch
  • S15 - Start Aid Switch (if equipped)
  • S25 - Light Switch
  • W2 - Ground at Starter Motor
  • W4 - Transmission Ground
  • W5 - Canopy (ROPS) Harness Ground
  • W7 - Cab Roof Harness Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector
  • X4 - Load Center Harness-to-Cab/Canopy Harness 6-Pin Connector
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X23 - Front Console Harness-to-Transmission Harness 22-Pin Connector
  • Y15 - Start Aid Solenoid (if equipped)


  • E7 - Left Rear Turn Light
  • E8 - Right Rear Turn Light
  • E9 - Left Front Turn Light (if equipped)
  • E10 - Right Front Turn Light (if equipped)
  • E12 - Beacon Light (if equipped)
  • F3 - Beacon and Auxiliary 10-Amp Fuse
  • K9 - Turn Light Flasher
  • S29 - Beacon Light Switch (if equipped)
  • S30 - Turn Light Switch
  • S31 - 4-Way Flasher Switch
  • V3 - 4-Way Flasher Diode Left
  • V4 - 4-Way Flasher Diode Right
  • W3 - Front Console Ground
  • W5 - Canopy (ROPS) Harness Ground
  • W7 - Cab Roof Harness Ground
  • X2 - Load Center Harness-to-Front Console Harness 22-Pin Connector
  • X4 - Load Center Harness-to-Cab/Canopy Harness 6-Pin Connector
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X23 - Front Console Harness-to-Transmission Harness 22-Pin Connector


  • A5 - Radio (if equipped)
  • B30 - Right Speaker (if equipped)
  • B31 - Left Speaker (if equipped)
  • B32 - Power Take-Off Temperature Switch (if equipped)
  • E11 - Dome Light (if equipped)
  • E13 - Side Console Light (if equipped)
  • E14 - Power Take-Off Light (if equipped)
  • F15 - Radio and Dome Light Unswitched Power 5-Amp Fuse (if equipped)
  • F17 - Radio Switched Power 10-Amp Fuse (if equipped)
  • K13 - Power Take-Off Relay (if equipped)
  • S16 - Power Take-Off Switch (if equipped)
  • S8 - Dome Light Door Switch (if equipped)
  • W6 - Cab Harness Ground
  • W7 - Cab Roof Harness Ground
  • W9 - Radio Antenna
  • X25 - Junction Block
  • Y12 - Power Take-Off Solenoid (if equipped)


  • F13 - Wipers 15-Amp Fuse (if equipped)
  • G3 - Power Outlet 1
  • G4 - Power Outlet 2
  • M2 - Rear Wiper Motor (if equipped)
  • M3 - Front Wiper Motor (if equipped)
  • M6 - Rear Washer Pump (if equipped)
  • M7 - Front Washer Pump (if equipped)
  • S21 - Rear Wiper and Washer Switch (if equipped)
  • S22 - Front Washer Switch (if equipped)
  • S23 - Front Wiper Switch (if equipped)
  • W4 - Transmission Ground
  • W7 - Cab Roof Harness Ground
  • W10 - Power Outlets Ground
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X9 - Load Center Harness-to-Cab Harness 2-Pin Connector
  • X22 - Load Center Harness-to-Transmission Harness 6-Pin Connector


  • B2 - Air Conditioning Freeze Control Switch (if equipped)
  • B3 - Air Conditioning Binary Pressure Switch (if equipped)
  • F11 - Right Blower 30-Amp Fuse (if equipped)
  • F12 - Left Blower 20-Amp Fuse (if equipped)
  • K6 - Right Blower Relay (if equipped)
  • K7 - Left Blower Relay (if equipped)
  • M4 - Left Blower Motor (if equipped)
  • M5 - Right Blower Motor (if equipped)
  • R1 - Blower Motor Resistor
  • S13 - Air Conditioning On/Off Switch (if equipped)
  • S14 - Blower Speed Switch (if equipped)
  • V43 - Air Conditioning Compressor Clutch Diode
  • W2 - Ground at Starter Motor
  • W6 - Cab Harness Ground
  • W7 - Cab Roof Harness Ground
  • X5 - Cab Harness-to-Cab Roof Harness 16-Pin Connector
  • X9 - Load Center Harness-to-Cab Harness 2-Pin Connector
  • X20 - Load Center Harness-to-Engine Harness 23-Pin Connector
  • X47 - Air Conditioner Compressor-to-Engine Harness Connector
  • X48 - Air Conditioner Compressor-to-Engine Harness Connector
  • Y43 - Air Conditioning Compressor Clutch (if equipped)

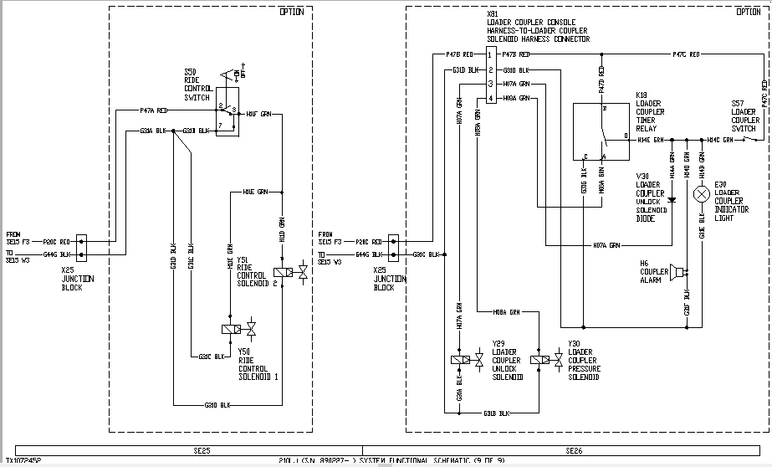

  • E30 - Loader Coupler Indicator Light (if equipped)
  • H6 - Coupler Alarm (if equipped)
  • K18 - Loader Coupler Timer Relay (if equipped)
  • S50 - Ride Control Switch (if equipped)
  • S57 - Loader Coupler Switch (if equipped)
  • V30 - Loader Coupler Unlock Solenoid Diode (if equipped)
  • X25 - Junction Block
  • X81 - Loader Coupler Console Harness-to-Loader Coupler Solenoid Harness Connector
  • Y29 - Loader Coupler Unlock Solenoid (if equipped)
  • Y30 - Loader Coupler Pressure Solenoid (if equipped)
  • Y50 - Ride Control Solenoid 1 (if equipped)
  • Y51 - Ride Control Solenoid 2 (if equipped)

Коды неисправностей
ECU (Level 16)
  • 000028.03 Digital Throttle Signal Out of Range High
  • 000028.04 Digital Throttle Signal Out of Range Low
  • 000028.14 Digital Throttle Inhibited
  • 000029.03 Secondary Analog Throttle Signal Out of Range High
  • 000029.03 Hand Throttle Short to Power
  • 000029.04 Secondary Analog Throttle Signal Out of Range Low
  • 000029.04 Hand Throttle Open or Short
  • 000029.14 Secondary Analog Throttle Inhibited
  • 000029.14 Hand Throttle Out of Range
  • 000084.31 ECU Calculated Vehicle Speed and CAN Vehicle Speed Mismatch
  • 000091.03 Primary Analog Throttle Signal Out of Range High
  • 000091.03 Foot Throttle Short to Power
  • 000091.04 Primary Analog Throttle Signal Out of Range Low
  • 000091.04 Foot Throttle Open or Short
  • 000091.09 Primary Analog Throttle Signal Erratic
  • 000091.14 Primary Analog Throttle Inhibited
  • 000091.14 Foot Throttle Sensor Out of Range
  • 000094.03 Low Pressure Fuel Signal Out of Range High
  • 000094.04 Low Pressure Fuel Signal Out of Range Low
  • 000094.17 Low Pressure Fuel Signal Slightly Low
  • 000097.03 Water In Fuel Signal Out of Range High
  • 000097.04 Water In Fuel Signal Out of Range Low
  • 000097.16 Water In Fuel Detected
  • 000100.01 Engine Oil Pressure Signal Extremely Low
  • 000100.04 Engine Oil Pressure Signal Out of Range Low
  • 000100.18 Engine Oil Pressure Signal Moderately Low
  • 000100.31 Engine Oil Pressure Detected with Engine Stopped
  • 000105.00 Manifold Air Temperature Signal Extremely High
  • 000105.03 Manifold Air Temperature Signal Out of Range High
  • 000105.04 Manifold Air Temperature Signal Out of Range Low
  • 000105.15 Manifold Air Temperature Signal Slightly High
  • 000105.16 Manifold Air Temperature Signal Moderately High
  • 000107.00 Air Filter Restriction Switch Activated
  • 000108.02 Barometric Air Pressure Signal Invalid
  • 000110.00 Coolant Temperature Signal Extremely High
  • 000110.03 Coolant Temperature Signal Out of Range High
  • 000110.04 Coolant Temperature Signal Out of Range Low
  • 000110.15 Coolant Temperature Signal Slightly High
  • 000110.16 Coolant Temperature Signal Moderately High
  • 000111.01 Coolant Level Extremely Low
  • 000157.03 Fuel Rail Pressure Signal Out of Range High
  • 000157.04 Fuel Rail Pressure Signal Out of Range Low
  • 000157.10 Fuel Rail Pressure Loss Detected
  • 000157.17 Fuel Rail Pressure Not Developed
  • 000158.17 ECU Power Down Error
  • 000160.02 Vehicle Speed Signal Invalid
  • 000171.03 Ambient Air Temperature Out of Range High
  • 000171.04 Ambient Air Temperature Out of Range Low
  • 000174.00 Fuel Temperature Signal Extremely High
  • 000174.03 Fuel Temperature Signal Out of Range High
  • 000174.04 Fuel Temperature Signal Out of Range Low
  • 000174.16 Fuel Temperature Signal Moderately High
  • 000189.00 Engine Speed Derate Condition Exists
  • 000190.00 Engine Speed Extremely High
  • 000190.16 Engine Speed Moderately High
  • 000237.02 VIN Security Data Invalid
  • 000237.13 VIN Option Code Security Data Conflict
  • 000237.31 VIN Security Data Missing
  • 000569.03 Rear Axle Differential Lock Signal Out of Range High
  • 000569.04 Rear Axle Differential Lock Signal Out of Range Low
  • 000611.03 Injector Shorted to Voltage Source
  • 000611.04 Injector Shorted to Ground
  • 000627.01 All Injector Circuits Have High Resistance
  • 000627.18 Injector Power Supply Voltage Out of Range Low
  • 000629.12 ECU EEPROM Error
  • 000629.13 ECU Boot Block Error
  • 000636.02 Camshaft Position Signal Invalid
  • 000636.05 Camshaft Position Circuit Has High Resistance
  • 000636.06 Camshaft Position Circuit Has Low Resistance
  • 000636.08 Camshaft Position Signal Missing
  • 000636.10 Camshaft Position Signal Rate of Change Abnormal
  • 000637.02 Crankshaft Position Signal Invalid
  • 000637.05 Crankshaft Position Circuit Has High Resistance
  • 000637.06 Crankshaft Position Circuit Has Low Resistance
  • 000637.07 Crankshaft and Camshaft Position Signals Out of Sync
  • 000637.08 Crankshaft Position Signal Missing
  • 000637.10 Crankshaft Position Signal Rate of Change Abnormal
  • 000640.31 External Derate Commanded
  • 000647.05 Engine Fan Drive Circuit Has High Resistance
  • 000647.31 Engine Fan Drive Manual Purge Switch Active Too Long
  • 000651.02 Injector #1 Part Number Invalid
  • 000651.05 Injector #1 Circuit Has High Resistance
  • 000651.06 Injector #1 Circuit Has Low Resistance
  • 000651.07 Injector #1 Not Responding
  • 000651.13 Injector #1 Calibration Fault
  • 000652.02 Injector #2 Part Number Invalid
  • 000652.05 Injector #2 Circuit Has High Resistance
  • 000652.06 Injector #2 Circuit Has Low Resistance
  • 000652.07 Injector #2 Not Responding
  • 000652.13 Injector #2 Calibration Fault
  • 000653.02 Injector #3 Part Number Invalid
  • 000653.05 Injector #3 Circuit Has High Resistance
  • 000653.06 Injector #3 Circuit Has Low Resistance
  • 000653.07 Injector #3 Not Responding
  • 000653.13 Injector #3 Calibration Fault
  • 000654.02 Injector #4 Part Number Invalid
  • 000654.05 Injector #4 Circuit Has High Resistance
  • 000654.06 Injector #4 Circuit Has Low Resistance
  • 000654.07 Injector #4 Not Responding
  • 000654.13 Injector #4 Calibration Fault
  • 000655.02 Injector #5 Part Number Invalid
  • 000655.05 Injector #5 Circuit Has High Resistance
  • 000655.06 Injector #5 Circuit Has Low Resistance
  • 000655.07 Injector #5 Not Responding
  • 000655.13 Injector #5 Calibration Fault
  • 000656.02 Injector #6 Part # Data Invalid
  • 000656.05 Injector #6 Circuit Has High Resistance
  • 000656.06 Injector #6 Circuit Has Low Resistance
  • 000656.07 Injector #6 Not Responding
  • 000656.13 Injector #6 Calibration Fault
  • 000676.03 Cold Start Aid Signal Received When Not Expected
  • 000676.05 Cold Start Aid Circuit Has High Resistance
  • 000898.09 Engine Speed CAN Message Invalid
  • 000970.31 External Shutdown Switch Activated
  • 000970.31 External Shutdown Switch Activated
  • 000971.31 External Derate Switch Activated
  • 001069.31 Tire Size Invalid
  • 001075.05 Low Pressure Fuel Pump Circuit Has High Resistance
  • 001075.05 Fuel Transfer Pump Relay Open Circuit
  • 001075.06 Low Pressure Fuel Pump Circuit Has Low Resistance
  • 001075.06 Fuel Transfer Pump Relay Short to Ground
  • 001109.31 Approaching Engine Protection Shutdown
  • 001110.31 Engine Protection Shutdown Active
  • 001136.00 ECU Temperature Signal Extremely High
  • 001136.16 ECU Temperature Signal Moderately High
  • 001321.05 Starter Solenoid Lockout Relay Drive Circuit Has High Resistance
  • 001321.05 Starter Relay Open Circuit
  • 001321.06 Starter Solenoid Lockout Relay Drive Circuit Has Low Resistance
  • 001321.06 Starter Relay Short to Ground
  • 001321.16 Crank Cycle Too Long
  • 001321.30 Starter Solenoid Lockout Relay Drive Circuit Fault
  • 001347.03 Suction Control Valve Signal Out of Range High
  • 001347.05 Suction Control Valve Circuit Has High Resistance
  • 001347.07 Fuel Rail Pressure Actual to Desired Mismatch
  • 001569.31 Engine in Power Derate Condition
  • 001638.09 Hydraulic Oil Temperature Erratic
  • 001639.01 Fan Speed Signal Extremely Low
  • 001639.16 Fan Speed Signal Moderately High
  • 002000.13 Incorrect ECU for Application
  • 002003.09 No CAN Message Received From Source Address 3
  • 002004.09 No CAN Message Received From Source Address 4
  • 002023.09 No CAN Message From Source Address 23
  • 002023.09 Hand Throttle Message Missing
  • 002033.09 No CAN Message Received From Source Address 33
  • 002033.14 Incorrect CAN Message Received From Source Address 33
  • 002033.19 Synchronizing Problem with Source Address 33
  • 002057.09 No CAN Message Received From Source Address 57
  • 002071.09 No CAN Message From Source Address 71
  • 003509.03 Sensor Supply #1 Voltage Out of Range High
  • 003509.04 Sensor Supply #1 Voltage Out of Range Low
  • 003510.03 Sensor Supply #2 Voltage Out of Range High
  • 003510.04 Sensor Supply #2 Voltage Out of Range Low
  • 003511.03 Sensor Supply #3 Voltage Out of Range High
  • 003511.04 Sensor Supply #3 Voltage Out of Range Low
  • 523702.09 Flex Power Message Missing
  • 523792.04 EPGDS LTC Pump Signal Out of Range Low
  • 524037.02 MFWD Switch Circuit Fault
  • 524099.11 EPGDS LTC Pump Blockage
  • 524223.03 Rear Axle Differential Lock Circuit Fault
  • 524225.31 Engine Start Protection Bypass Detected
  • 524235.03 MFWD Solenoid Signal Out of Range High
  • 524235.04 MFWD Solenoid Signal Out of Range Low

EMU
  • 000070.04 Park Brake Switch Out of Range Low
  • 000070.07 Park Brake Switch Data Invalid
  • 000096.03 Fuel Sensor Out of Range High
  • 000096.04 Fuel Sensor Out of Range Low
  • 000107.00 Engine Air Filter Restricted
  • 000158.00 System Voltage Above Normal
  • 000158.16 System Voltage High
  • 000158.18 System Voltage Low
  • 000177.00 Torque Converter Oil Temperature Too High
  • 000177.03 Torque Converter Oil Temperature Sensor Out of Range High
  • 000177.04 Torque Converter Oil Temperature Sensor Out of Range Low
  • 000525.03 Gear Switch Out of Range High
  • 000525.04 Gear Switch Out of Range Low
  • 000525.05 Gear Switch Open Circuit
  • 000525.07 Gear Switch Data Invalid
  • 000604.06 FNR Supply Out of Range High
  • 000736.06 Y3 Solenoid Short to Ground
  • 000736.12 Y3 Solenoid Open or Short to Power
  • 000737.06 Y4 Solenoid Short to Ground
  • 000737.12 Y4 Solenoid Open or Short to Power
  • 000738.06 Y5 Solenoid Short to Ground
  • 000738.12 Y5 Solenoid Open or Short to Power
  • 000767.02 Reverse Switch Data Invalid
  • 000767.05 Reverse Switch Data Out of Range Low
  • 000880.05 Service Brake Lights Open Circuit
  • 000903.02 Forward Switch Data Invalid
  • 000903.05 Forward Switch Data Out of Range Low
  • 000920.03 Audible Alarm Open or Short to Power
  • 000920.04 Audible Alarm Short to Ground
  • 001713.00 Hydraulic Oil Filter Restricted
  • 298816.14 Park Brake Data Invalid
  • 522379.03 Park Brake Solenoid Short to Power
  • 522379.05 Park Brake Solenoid Open Circuit
  • 522379.06 Park Brake Solenoid Short to Ground
  • 522398.14 Park Brake Data Invalid
  • 522405.03 Park Brake Pressure Switch Short to Power
  • 522411.02 FNR Data Invalid
  • 522411.03 FNR Short to Power
  • 522411.05 FNR Open Circuit
  • 522411.06 FNR Short to Ground
  • 523702.02 Flex Power ECU Watchdog Error
  • 523702.07 Flex Power Authentication Error
  • 523702.08 Flex Power Inactive
  • 523702.09 Flex Power Status Message Not Received
  • 523702.10 Flex Power Timeout With ECU
  • 524172.00 Clutch Disconnect Switch Data Above Normal
  • 524172.03 Clutch Disconnect Switch Out of Range High
  • 524172.04 Clutch Disconnect Switch Short to Ground

FLC
  • 002000.09 CAN Communication Lost with ECU
Назад к содержимому
