Полные описания Backhoe Loaders JCB

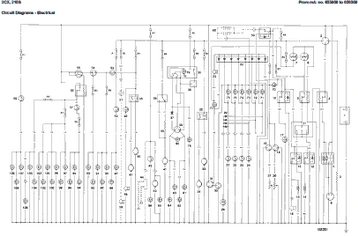

Электрика
- 2CX, 210S from m/c no. 655000 to 656500

  • 1 Battery
  • 2 Starter Switch
  • 3 Thermostart
  • 4 Neutral Start Relay
  • 5 Starter Solenoid
  • 6 Starter Motor
  • 7 Loader Dump Switch
  • 8 Gear Lever Dump Switch
  • 9 Dump Relay
  • 10 Parking Brake Relay
  • 11 Forward/Reverse Switch
  • 12 Forward Relay
  • 13 Reverse Relay
  • 14 Forward Solenoid
  • 15 Reverse Solenoid
  • 16 Reverse Alarm (Option)
  • 17 Parking Brake Switch
  • 18 Water Temperature Gauge
  • 19 Fuel Gauge
  • 20 Water Temperature Gauge Sender
  • 21 Fuel Gauge Sender
  • 22 Diodes
  • 23 Buzzer
  • 24 Transmission Oil Temperature Switch
  • 25 Engine Oil Pressure Switch
  • 26 Transmission Oil Pressure Switch
  • 27 Air Filter Switch
  • 28 Warning Lights Test Switch
  • 29 Diodes
  • 30 Speedo/Tachometer
  • 31 Alternator
  • 32 Rear Wash/Wipe Switch
  • 33 Rear Washer
  • 34 Rear Wiper
  • 35 Hazard Switch
  • 36 Flash Unit
  • 37 Diode
  • 38 Direction Indicator Switch
  • 39 Heater Switch
  • 40 Resistor
  • 41 Heater
  • 42 Beacon
  • 43 Interior Light Switch
  • 44 Radio (Option)
  • 45 Front Wash/Wipe Switch
  • 46 Front Washer
  • 47 Front Wiper
  • 48 Horn
  • 49 Horn Push
  • 50 Rear Horn (Option)
  • 51 Rear Horn Push (Option)
  • 52 Brake Lights Switch
  • 53 Headlight Flash Switch
  • 54 Dip Switch
  • 55 Road Light Switch
  • 56 Road Light Relay
  • 57 Front Work Lights Switch
  • 58 Rear Work Lights Switch
  • 59 Stabiliser Leg/Neutral Start Interlock Relay
  • 60 Stabiliser Leg/Neutral Start Interlock Solenoid

Fuses
  • A1 - A9
  • B1 - B9
  • C1 - C9

Lights
  • 70 Parking Brake
  • 71 Engine Oil Temperature Warning (Option)
  • 72 Engine Coolant Temperature Warning (Option)
  • 73 Transmission Oil Temperature Warning
  • 74 Engine Oil Pressure Warning
  • 75 Transmission Oil Pressure Warning
  • 76 Blocked Air Filter Warning
  • 77 No Charge Warning
  • 78 Hazard Warning
  • 79 Hazard Warning Switch Repeater
  • 80 Direction Indicator Switch
  • 81 Right Hand Indicator
  • 82 Right Hand Indicator
  • 83 Left Hand Indicator
  • 84 Left Hand Indicator
  • 85 Beacon
  • 86 Interior
  • 87 Brake
  • 88 Brake
  • 89 Main Beam
  • 90 Main Beam
  • 91 Main Beam Warning
  • 92 Dip Beam
  • 93 Dip Beam
  • 94 Front Work
  • 95 Front Work
  • 96 Front Work Warning
  • 97 Left Hand Tail
  • 98 Left Hand Side
  • 99 Water Temperature Gauge
  • 100 Fuel Gauge
  • 101 Speedo/Tachometer Gauge
  • 102 Number Plate
  • 103 Number Plate
  • 104 Right Hand Tail
  • 105 Right Hand Side
  • 106 Dipper
  • 107 Rear Work
  • 108 Rear Work
  • 109 Rear Work Warning

Cable Colour Code
  • B Black
  • G Green
  • K Pink
  • LG Light Green
  • N Brown
  • O Orange
  • P Purple
  • R Red
  • S Slate
  • U Blue
  • W White
  • Y Yellow

Все следующие электро и гидравлические схемы
доступны только пользователям
"Большой энциклопедии для автоэлектриков и диагностов"

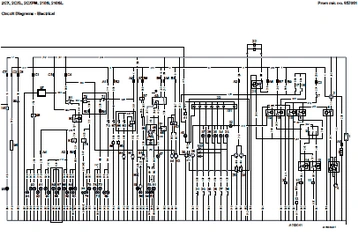

- 2CX, 2CXL, 2CXFM, 210S, 210SL from m/c no. 657001
- 2DX from m/c no. 659249 to760840
- 2CX from m/c no. 659599 to 760840
- 2CXAM to m/c no. 658332
- 2CXAM from m/c no. 658333 to 659598
- 2CXAM from m/c no. 659599
- 2CX, 2DX, 210S, 212S from m/c no. 760841
- 2CXU, 212SU (N,America only) from m/c no. 657001
- 2CX, 2DX, 212SU from m/c no. 489724
- Electrical Circuit Options and Variations
- Electrical Pick-up Hitch
- 2CX, 2DX, 212SU - Worklights Circuit, German/Italian Builds
- 2CX, 2DX, 212SU - Heater Circuit, Heater/Air Conditioning Circuit
- Later Machines - Compressor Circuit, Radio Circuit
- Later Machines - Hammer Circuit, Hand Held Hydraulic Tools Circuit, Hydraclamp Circuit
- 3CX, 4CX, and Variants from m/c no.460001
- 214e Series 4 only
- Autoshift Transmission - 2WS only
- Autoshift Transmission - AWS only
- Powershift Transmission (PS750) and Steer Circuit - AWS
- Powershift Transmission (PS750) - 2WS
- Steer Circuit - 3CX 4x4x4 only
- Auxiliary Options
- Servo Machines
- 3CX, 4CX and Variants from m/c no. 495455
- Basic Machine
- Transmission and Steering
- Options
- Autoshift Transmission
- Servo Command Pilot Circuit
  • - Machines from 400001 to 430000
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Steer Circuit (AWS Machines Only)
- Powershift Transmission
- 2/4 Wheel Drive (to m/c. no. 409434)
- Transmission Dump (to m/c. no. 413772)
- Instrument Lights Test Button (to m/c. no. 404502)
- Hydraulic Speed Control (to m/c. no. 406613)
  • - Machines from 430001
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Powershift & Steer Circuit (AWS Machines Only)
- Powershift Transmission (2WS Machines Only) and Steer Circuit for 3CX 4x4x4x Machines
- 3CX, 4CX and Variants from m/c no. 460001
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Powershift Transmission (PS700) and Steer Circuit-AWS
- Powershift Transmission (PS700) - 2WS
- Steer Circuit - 3CX 4x4x4 Machines only
- 3CXE (214 Series 3) only

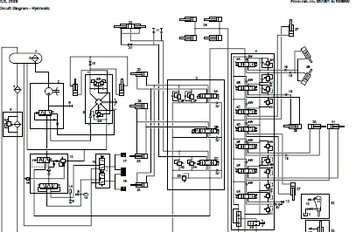

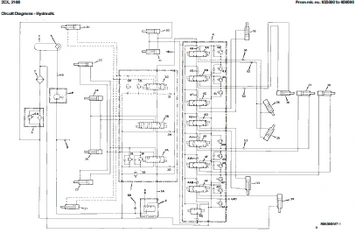

Гидравлика
- 2CX, 210S from m/c no. 655000 to 656500

  • T Tank
  • S Suction Line
  • P Pump
  • 1A
  • 1B
  • Neutral Circuit Lines
  • 2 Priority Valve
  • X To Steering Circuit
  • 3 Loader Valve Block
  • 3A Loader Shovel Ram Spool
  • 3B Loader Lift Ram Spool
  • 3C Auxiliary Ram Spool
  • 3D Main Relief Valve
  • 3E Shovel Ram Head Side A.R.V.
  • 3F Shovel Ram Rod Side A.R.V.
  • 3G
  • 3H Load Hold Check Valves
  • 3J
  • 3K Auxiliary Ram Head Side A.R.V.
  • 3L Auxiliary Ram Rod Side A.R.V.
  • 4 Excavator Valve Block
  • 4A Slew Spool
  • 4B Boom Spool
  • 4C Stabiliser Spool
  • 4D Stabiliser Spool
  • 4E Dipper Spool
  • 4F Bucket Spool
  • 4G Hydraclamp Valve
  • 4H Slew A.R.V.
  • 4J Slew A.R.V.
  • 4K Boom Ram Head Side A.R.V.
  • 4L Boom Ram Rod Side A.R.V.
  • 4M Dipper Ram Rod Side A.R.V.
  • 4N Dipper Ram Head Side A.R.V.
  • 4P Bucket Ram Head Side A.R.V.
  • 4R
  • 4S
  • 4T
  • 4U Load Hold Check Valves
  • 4V
  • 4W
  • 4X Bucket Ram Rod Side A.R.V.
  • 4Y Breaker Spool
  • 4Z Breaker Ram Head Side A.R.V.
  • 4AA Auxiliary Ram A.R.V. (Not used with Rock Breaker)
  • 4AB Load Hold Check Valve
  • 4AD Blanking Plug
  • 5 Suction Strainer
  • 6 Filter
  • 6A Filter By-pass Valve
  • 7 Cooler
  • 8 Pressure Test Connector (prior to Machine No. 655604
  • 8A Pressure Test Connector (from Machine No. 655604
  • 20 Auxiliary Ram R.H.
  • 21 Auxiliary Ram L.H.
  • 22 Shovel Ram R.H.
  • 23 Shovel Ram L.H.
  • 24 Lift Ram R.H.
  • 25 Lift Ram L.H.
  • 30 Hydraclamp
  • 31 Hydraclamp
  • 32 Stabiliser Ram
  • 33 Stabiliser Ram
  • 34 Slew Ram
  • 35 Slew Ram
  • 36 Boom Ram
  • 37 Dipper Ram
  • 38 Bucket Ram
  • 39 Breaker Ram
  • 50 Bi-Restrictor
  • 51 Bi-Restrictor
  • 52 Bi-Restrictor
  • 53 Bi-Restrictor
- 2CX, 210S from m/c no. 657001 to 658960
- 2CX, 2CXL, 210S, 210SL - Auxiliary Hand Held Tools
- 2CX, 2DX from m/c no. 658961
- 2CXL, 210SL, 2CXFM from m/c no. 657001
- 2CX, 212SU (N.America only) from m/c no. 657001
- Steering
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no.
- 3CX, 4CX Basic Machine from m/c no. 402174
- Circuit Variations from m/c no. 400001
- Steer Hydraulics (AWS from m/c no 400001)
- Steer Hydraulics (2WS from m/c no. 400001)
- Steer Hydraulics (4WS from m/c no. 460001)
- Steer Hydraulics (4WS from m/c no. 460001)

Вся доступная информация по Backhoe Loaders JCB
-Lubricants and Capacities
- 2CX from m/c no 655000 to 656500
- 210S from m/c no 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no. 657001
- 2DX from m/c no. 659249
- 2CX from m/c no. 659598
- 2CX, 2DX from m/c no. 659599 (N. America to m/c no 659599)
- 210S, 212S from m/c no. 762080
-Statics Dimensions and Weight
- 2CX, 210S from m/c no 655000 to 656500
- 2CX, 210S from m/c no. 657001
- 2CX, 210S with Extending Dipper from m/c no. 657001
- 2CX, 210SL from m/c no. 657001
- 2CX Airmaster from m/c no. 657001
- 2CX Farm Master from m/c no. 657001
- 2CXU, 210SU from m/c no. 657001
- 2DX, 212SU from m/c no. 659249
- 2DX, 212S with Extending Dipper from m/c no. 659249
Data - Electrical
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no. 657001
- 2DX from m/c no. 659249
- 2CX, 2DX, 210S and Variants from m/c no. 657001
- 2CX from m/c no. 655030 to 656999
- 2DX from m/c no. 657001
- 2CX from m/c no. 659600 to 761891
- 2CX, 2DX, 210S, 212S from m/c no. 760841
- 212SU (N. Am) from m/c no. 657001
Data - Hydraulics
-Machine Hydraulics
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no. 657001 to 658960
- 2CX, 2DX from m/c no. 658961
-Steer Hydraulics
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no. 657001 to 658960
- 2CX, 2CXL, 2DX, 210S, 210SL from m/c 658961
Data - Transmission
- Front and Rear Axles
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 210S from m/c no. 657001
- 2CXAM, 2CXL, 210FM, 210SL, 2DX from m/c no. 657001
- Syncro Shuttle
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 2CXAM, 2CXFM, 2DX, 210S, 210SL from m/c no. 657001
- 2CXAM from m/c no. 657001
- Tyre Sizes and Pressures
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 2CXAM, 2CXFM, 2DX, 210S, 210SL from m/c no. 657001
Data - Brakes
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 2CXAM, 2CXFM, 2DX, 210S, 210SL from m/c no. 657001
Data Engine
- 2CX, 210S from m/c no. 655000 to 656500
- 2DX Range from m/c no. 659249 (including 212S to m/c no. 762079)
Data - Pneumatics
- 2CXAM from m/c no. 657001
Fault Finding
- Syncro Shuttle - Mechanical
- 2CX, 2DX, 210S, 212S from m/c no. 655000
- Syncro Shuttle - Hydraulics
- 2CX, 210S from m/c no. 655000
- Parking Brake
- 2CX, 2CXL, 2CXAM, 2CXFM, 2DX, 210S, 210SL from m/c no. 657001
- Pneumatics
- 2CXAM from m/c no. 657001
- Air Conditioning
- 2CX, 2DX, 210S, 212S
Circuit Diagrams - Electrical
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 2CXFM, 210S, 210SL from m/c no. 657001
- 2DX from m/c no. 659249 to760840
- 2CX from m/c no. 659599 to 760840
- 2CXAM to m/c no. 658332
- 2CXAM from m/c no. 658333 to 659598
- 2CXAM from m/c no. 659599
- 2CX, 2DX, 210S, 212S from m/c no. 760841
- 2CXU, 212SU (N,America only) from m/c no. 657001
- 2CX, 2DX, 212SU from m/c no. 489724
- Electrical Circuit Options and Variations
- Electrical Pick-up Hitch
- 2CX, 2DX, 212SU - Worklights Circuit, German/Italian Builds
- 2CX, 2DX, 212SU - Heater Circuit, Heater/Air Conditioning Circuit
- Later Machines - Compressor Circuit, Radio Circuit
- Later Machines - Hammer Circuit, Hand Held Hydraulic Tools Circuit, Hydraclamp Circuit
Circuit Diagrams - Hydraulics
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 210S from m/c no. 657001 to 658960
- 2CX, 2CXL, 210S, 210SL - Auxiliary Hand Held Tools
- 2CX, 2DX from m/c no. 658961
- 2CXL, 210SL, 2CXFM from m/c no. 657001
- 2CX, 212SU (N.America only) from m/c no. 657001
- Steering
- 2CX, 210S from m/c no. 655000 to 656500
- 2CX, 2CXL, 210S, 210SL from m/c no.
- Pneumatics
- 2CXAM from m/c no. 657001
Static Dimensions - from m/c no. 400001
- 3CX (214) 4x4 (Sideshift)
- 3CX (214) 4x4 (Centremount)
- 4C (215) 4x4
- 4CN (216) 4x4
- 3CX (214) 4x4 Sitemaster (Sideshift)
- 3CX (214) 4x4 Sitemaster (Centremount)
- Hammermaster 4x4
- 217
- 4CX (214S) 4x4x4 (Sideshift)
- 4CX (214S) 4x4x4 (Centremount)
- 4C (215S) 4x4x4
- 4CN 4x4x4
- 4CX (214S) 4x4x4 Sitemaster (Sideshift)
- 4CX (214S) 4x4x4 Sitemaster (Centremount)
- 217S
- 3CX Super 4x4x4 (from m/c. no. 430001)
- 4CX Super 4x4x4 (from m/c. no. 430001)
- 3CXE (214E)
Static Dimensions - from m/c no. 460001
- 3CX Sideshift
- 4CX Sideshift
- 3CX Super
- 3CX Centremount
- 4CX Centremount
- 4C, 4CN
Data
-Electrical (3CX, 4CX - 200 Series)
- General (from m/c no. 400001)
- Circuit Protection (from m/c no. 400001 to 430000)
- Circuit Protection (from m/c. no. 430001)
- Relay Identification - Syncro Shuttle m/c's (from m/c. no. 400001 to 430000)
- Relay Identification - Powershift m/c's (from m/c. no. 400001 to 430000)
- Relay Identification - All Machine Models (from m/c. no. 430001)
-Electrical (2DX, 212 Servo Machines and Variants (except 2CX) from m/c no. 400001
- General
- Fuses
- Bulbs
- Relay Identification
- Pin Identification
- Logic Box
- RH Joystick
- LH Joystick
- Harness Identification
-Electrical (3CX, 4CX and Variants from m/c no. 460001)
- General
- Fuse Identification
- Link Box Fuses
- Bulbs
- Relay Identification
- Harness Identification
-Hydraulic (3CX, 4CX Standard Machines)
- Machine Hydraulics (from m/c no. 400001)
- Steer Hydraulics (AWS) (from m/c no. 400001)
- Steer Hydraulics (2WS) (from m/c no. 400001)
-Hydraulic (3CXE (214E) Machines)
- Machine Hydraulics
-Hydraulic 2DX, 212 Servo Machines and Variants (except 2CX) from m/c no. 400001)
- Machine Hydraulics
-Hydraulic Pumps (3CX, 4CX and Variants from m/c no. 460001)
-Loader Valve (3CX, 4CX and Variants from m/c no. 460001)
-Backhoe Valve (3CX, 4CX and Variants from m/c no. 460001)
-Transmission
- Front Axle (2DX, 212 and Variants (except 2CX ) from m/c no. 400001)
- Rear Axle (3CX, 4CX and Variants from m/c no. 460001)
- Tyre Sizes and Pressures (3CX, 4CX from m/c no. 400001)
- Tyre Sizes and Pressures (3CX, 4CX and Variants from m/c no. 460001)
- Syncro Shuttle (3CX, 4CX from m/c no. 400001)
- Powershift (3CX, 4CX from m/c no. 400001)
- Syncro Shuttle (3CX, 4CX and Variants from m/c no. 460001)
- Stall Figures - (3CX, 4CX AWS Machines from m/c no. 400001)
- Stall Figures - (3CX, 4CX 2WS Machines from m/c no. 400001)
- Stall Figures (3CX, 4CX and Variants from m/c no. 460001)
-Brakes
- Standard Machines (All Models (except 2CX) from m/c no. 400001)
- Servo Machines (All Models (except 2CX) from m/c no 400001)
- 3CX, 4CX and Variants from m/c no. 460001
-Engine
- All Models (except 2CX) from m/c no. 400001
- 3CX, 4CX and Variants from m/c no. 460001
Fault Finding
-Electrical (3CX, 4CX and Variants from m/c no. 460001)
-Hydraulic (Standard Machines) (All Models (except 2CX) from m/c no. 400001)
- Introduction
- Diagnosis
-Hydraulic (Servo Machines) (All Models (except 2CX) from m/c no. 400001)
-Variable Flow Hydraulics (All Models (except 2CX) from m/c no. 460001)
-Syncro Shuttle (All Models (except 2CX) from m/c no. 400001)
- Gearbox
- 2/4 Wheel Drive Clutch - 'Spring-on to 4WD' (3CX, 4CX from m/c. no. 400077 to 415011)
- 2/4 Wheel Drive Clutch - 'Pressure-on to 4WD' (3CX, 4CX from m/c. no. 415012)
- 2/4 Wheel Drive Clutch (3CX, 4CX and Variants from m/c no. 460001)
-Powershift Gearbox (All Models (except 2CX) from m/c no. 400001
- Introduction and Index
- Diagnosis
- Powershift Transmission (3CX, 4CX and Variants from m/c no. 460001)
- Introduction and Index
- Diagnosis
-Brakes All Models (except 2CX) from m/c no. 400001)
-Steering (3CX, 4CX and Variarts from m/c no. 460001)
Circuit Diagrams - Electrical
-Machines from 400001 to 430000
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Steer Circuit (AWS Machines Only)
- Powershift Transmission
- 2/4 Wheel Drive (to m/c. no. 409434)
- Transmission Dump (to m/c. no. 413772)
- Instrument Lights Test Button (to m/c. no. 404502)
- Hydraulic Speed Control (to m/c. no. 406613)
-Machines from 430001
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Powershift & Steer Circuit (AWS Machines Only)
- Powershift Transmission (2WS Machines Only) and Steer Circuit for 3CX 4x4x4x Machines
- 3CX, 4CX and Variants from m/c no. 460001
- Basic Machines (3CX 2WS with Syncro Shuttle)
- Powershift Transmission (PS700) and Steer Circuit-AWS
- Powershift Transmission (PS700) - 2WS
- Steer Circuit - 3CX 4x4x4 Machines only
- 3CXE (214 Series 3) only
Circuit Diagrams - Electrical (continued)
- 3CX, 4CX, and Variants from m/c no.460001 (cont’d)
- 214e Series 4 only
- Autoshift Transmission - 2WS only
- Autoshift Transmission - AWS only
- Powershift Transmission (PS750) and Steer Circuit - AWS
- Powershift Transmission (PS750) - 2WS
- Steer Circuit - 3CX 4x4x4 only
- Auxiliary Options
- Servo Machines
- 3CX, 4CX and Variants from m/c no. 495455
- Basic Machine
- Transmission and Steering
- Options
- Autoshift Transmission
- Servo Command Pilot Circuit
Circuit Diagrams - Hydraulic
-Standard Machine
- 3CX, 4CX Basic Machine from m/c no. 402174
- Circuit Variations from m/c no. 400001
- Steer Hydraulics (AWS from m/c no 400001)
- Steer Hydraulics (2WS from m/c no. 400001)
- Steer Hydraulics (4WS from m/c no. 460001)
- Steer Hydraulics (4WS from m/c no. 460001)
-Servo Machines (All Models except 2CX)
- from machine no. 400001 to 420485
- from machine no. 420486
3CX, 4CX, 214, 215, 217 & ‘S’ Series Machines from m/c no. 460001
3CX, (214E Series 3) Machines only
214e (Series 4) only (from m/c no. 460001)
214Se (Series 4) Only
3CX ‘S’ Series Options (from m/c no. 460001)
4CX Gear Pump Option (from m/c no. 460001)
Variable Flow Hydraulics (from m/c no. 460001)
- 7-Spool with High Flow Options
- 6-Spool with High/Low Flow Options
- 4CXE, 4CX Super-Hand Held Tools Option
- Brakes (All Models (except 2CX) from m/c no. 400001)
- Standard Machines
- Servo Machines
Назад к содержимому
