Электросхемы TATA DAEWOO
(NOVUS DE/DW euro 1-2)

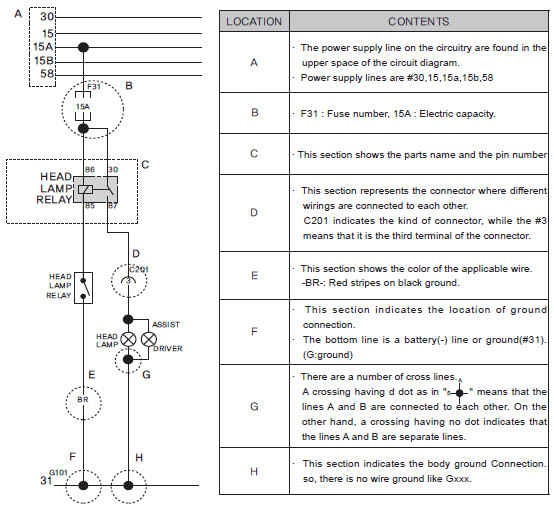

ELECTRIC CIRCUIT DIAGRAM

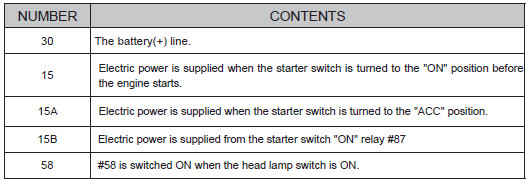

POWER SUPPLY NUMBER

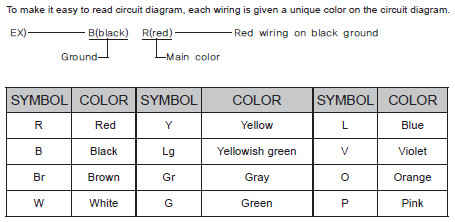

COLOR SYMBOLS FOR WIRING

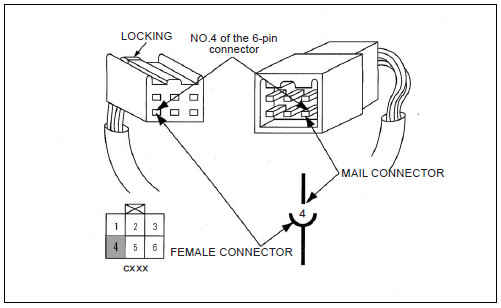

HOW TO KNOW CONNECTOR PIN NUMBER

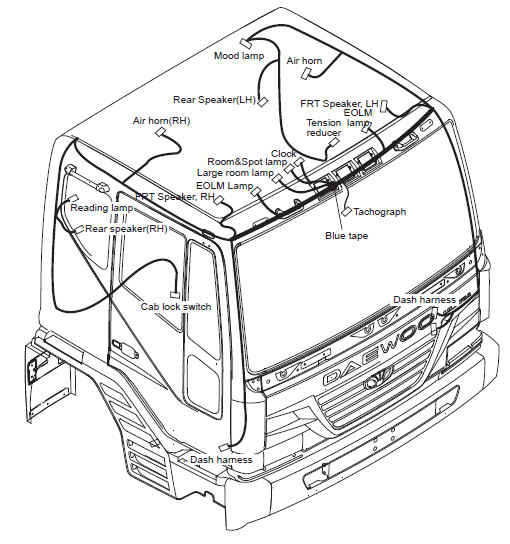

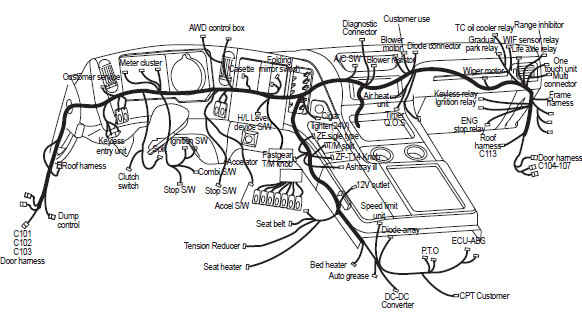

LOCATIONS OF ELECTRICAL HARNESS




CIRCUIT DIAGRAM BY SYSTEMS
1. STARTER MOTOR AND STARTER SWITCH "ACC" CIRCUIT DIAGRAM
2. CHARGING AND STARTER SWITCH "ON" /ENGINE STOP MOTOR CIRCUIT DIAGRAM3. LIGHT CIRCUIT DIAGRAM
4. HEATING SYSTEM CIRCUIT DIAGRAM
5.12V CONVERTER, CIGAR LIGHTER, BED HEATER, SEAT HEATER CIRCUIT DIAGRAM
6. BACK UP LAMP CIRCUIT DIAGRAM
7. CAB TILT (MECHANIC), DIODE ARRAY CIRCUIT DIAGRAM
8. CAB TILT (HYDRAULIC), DIODE ARRAY CIRCUIT DIAGRAM
9. P.T.O, FOG LAMP CIRCUIT DIAGRAM
10.STOP LAMP, GRADUAL PARKING LAMP CIRCUIT DIAGRAM
11. PARKING LAMP CIRCUIT DIAGRAM
12. CLEARANCE, LICENSE PLATE, ASHTRAY, AIR HORN LAMP CIRCUIT DIAGRAM
13.SEAT BELT TENSION REDUCER, STEP LAMP, LARGE ROOM LAMP, READING/MOOD LAMP CIRCUIT DIAGRAM
14. KEY HOLE ILLUMINATION LAMP, ROOM & SPOT LAMP CIRCUIT DIAGRAM
15. TURN SIGNAL LAMP, HAZARD WARNING LAMP CIRCUIT DIAGRAM
16. CORNERING LAMP, AUTO GREASE CIRCUIT DIAGRAM
17. CASSETTE, DIGITAL CLOCK CIRCUIT DIAGRAM
18. DOOR LOCKING DEVICE, HORN CIRCUIT DIAGRAM
19. KEYLESS ENTRY SYSTEM CIRCUIT DIAGRAM
20. EXHAUST BRAKE, DBR CIRCUIT DIAGRAM
21.SPLIT SYSTEM(ZF T/M, T-14 T/M) CIRCUIT DIAGRAM
22. POWER WINDOW CIRCUIT DIAGRAM
23. WIPER CIRCUIT DIAGRAM
24. AUTO MIRROR AND MIRROR HEATER CIRCUIT DIAGRAM
25. TACHOGRAPH CIRCUIT DIAGRAM
26. HEATER, AIR CONDITIONER CIRCUIT DIAGRAM
27.SPEED LIMITER CIRCUIT DIAGRAM
28. LOCK BRAKE, DIFFERENTIAL LOCK CIRCUIT DIAGRAM (EXCEPT HUB REDUCTION)
29. DIFFERENTIAL LOCK CONTROLLER CIRCUIT DIAGRAM
30. WATER PUMP-MIXER DRUM CIRCUIT DIAGRAM
31. WORKING LAMP, AIR DRYER HEATER CIRCUIT DIAGRAM
32. TRAILER CONNECTOR CIRCUIT DIAGRAM
33. LIFT AXLE CIRCUIT DIAGRAM
34. ABS/ASR ELECTRIC CIRCUIT DIAGRAM
34-1. ABS/ASR PRESSURE CONTROL VALVE, WHEEL SPEED SENSOR CIRCUIT DIAGRAM (4 SENSOR / 4 CHANNEL)
35. TRAILER ABS CIRCUIT DIAGRAM
36. ABS BLINKCODE DESCRIPTION
37. WIF SENSOR, SERVICE ELECTRIC EQUIPMENTS FOR USER CIRCUIT DIAGRAM
38.INSTRUMENT SYSTEM CIRCUIT DIAGRAM(1)
39.INSTRUMENT SYSTEM CIRCUIT DIAGRAM(2)
40. ENGINE SPEED CONTROL SYSTEM (ESCS)
40-1. ENGINE SPEED CONTROL SYSTEM(ESCS)
41. RANGE INHIBITOR CIRCUIT DIAGRAM
42. AWD CONTROL BOX(1)
43. AWD CONTROL BOX(2)
44. TRANSFER CASE OIL COOLER CIRCUIT DIAGRAM

STARTER MOTOR AND STARTER SWITCH "ACC"CIRCUIT DIAGRAM


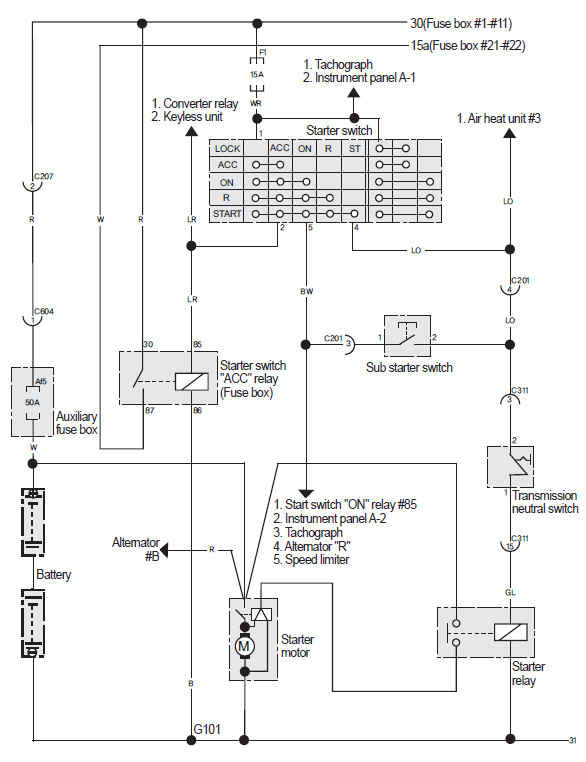

CHARGING AND STARTER SWITCH "ON"/ENGINE STOP MOTOR CIRCUIT DIAGRAM
