Схемы TATA Daewoo NOVUS DX12E E5

CIRCUIT DIAGRAM BY SYSTEMS
1. STARTER SWITCH "ACC", "ON" CIRCUIT DIAGRAM
2. CHARGING AND STARTER MOTOR CIRCUIT DIAGRAM
3. LIGHT, CORNERING LAMP CIRCUIT DIAGRAM
4. HEAD LAMP LEVEL DEVICE, BEACON LAMP CIRCUIT DIAGRAM
5. TURN SIGNAL LAMP, HAZARD WARNING LAMP CIRCUIT DIAGRAM
6. CLEARANCE, LICENSE LAMP, FOG LAMP, CUSTOMER SERVICE CIRCUIT DIAGRAM
7. WORKING LAMP CIRCUIT DIAGRAM
8. STOP LAMP, PARKING LAMP CIRCUIT DIAGRAM
9. BACK UP LAMP, HORN CIRCUIT DIAGRAM
10. SEAT BELT, STEP LAMP, LARGE ROOM/READING/MOOD LAMP CIRCUIT DIAGRAM
11. KEYLESS ENTRY SYSTEM CIRCUIT DIAGRAM
12. 12V CONNERTER, CIGAR LIGHTER, BED/SEAT HEATER CIRCUIT DIAGRAM
13. CASSETTE CIRCUIT DIAGRAM
14. RUSSIA E-CALL SYSTEM CIRCUIT DIAGRAM
15. WIPER CIRCUIT DIAGRAM
16. AUTO MIRROR, MIRROR HEATER, FUEL HEATER CIRCUIT DIAGRAM
17. HEATER & AIR CONDITIONER CIRCUIT DIAGRAM
18. FULL AUTO AIR CONDITIONER CIRCUIT DIAGRAM
19. CAB TILT SYSTEM CIRCUIT DIAGRAM
20. AUTO GREASE, AUX-HEATER CIRCUIT DIAGRAM
21. DIAGNOSIS CONNECTOR CIRCUIT DIAGRAM
22. TACHOGRAPH & DIGITAL CLOCK CIRCUIT DIAGRAM
23. AIR DRYER CIRCUIT DIAGRAM
24. P.T.O, TOWING HOOK SWITCH CIRCUIT DIAGRAM
25. SPLIT SYSTEM CIRCUIT DIAGRAM
26. DIFFERENTIAL LOCK CONTROLLER CIRCUIT DIAGRAM
27. ABS/ASR ELECTRIC CIRCUIT DIAGRAM
28. ABS/ASR PRESSURE CONTROL VALVE, WHEEL SPEED SENSOR CIRCUIT DIAGRAM
29. ABS BLINK CODE DESCRIPTION
30. AUXILIARY FUSE BOX CIRCUIT DIAGRAM
31. BODY CONTROL MODULE(DIODE)
32. B.C.M(WIPER, DOOR LOCK, TURN SIGNAL, WARNING LAMP)
33. B.C.M(MIRROR HEATER, POWER WINDOW)
34. B.C.M(T/M BLOCK CONTROL)
35. INSTRUMENT SYSTEM CIRCUIT DIAGRAM(1)
36. INSTRUMENT SYSTEM CIRCUIT DIAGRAM(2)
37. ZF TRAXON CIRCUIT DIAGRAM(TCU)
38. ZF TRAXON CIRCUIT DIAGRAM(SHIFT LEVER)
39. ZF INTARDER CIRCUIT DIAGRAM
40. DRL(DAYTIME RUNNING LAMP) CONTROL UNIT
41. DX12 ENGINE(1)
42. DX12 ENGINE(2)
43. DX12 ENGINE(3)
44. INTER CONNECTOR CIRCUIT DIAGRAM
45. CAN MODULER CIRCUIT DIAGRAM

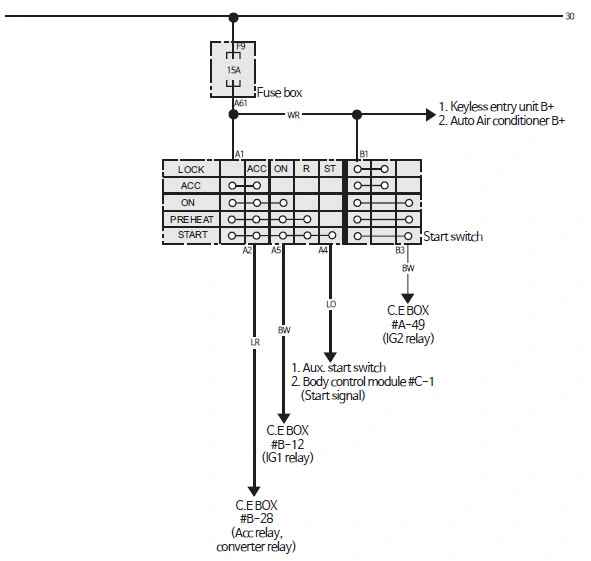

1. STARTER SWITCH "ACC", "ON" CIRCUIT DIAGRAM

1) CONNECTOR AND PIN NUMBER

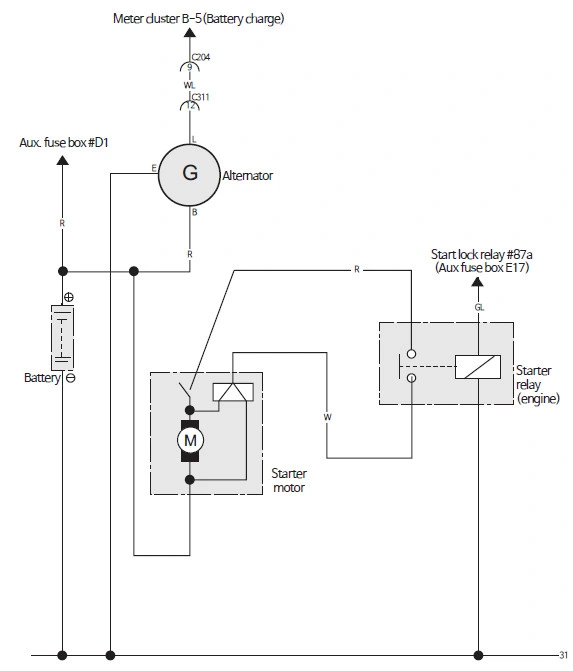

2. CHARGING AND STARTER MOTOR CIRCUIT DIAGRAM

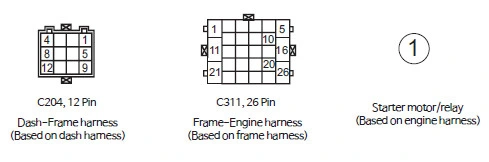

1) CONNECTOR AND PIN NUMBER

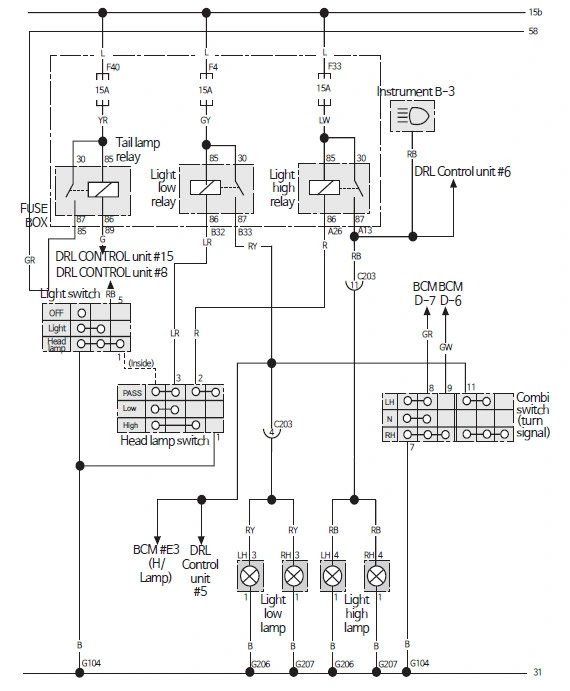

3. LIGHT CIRCUIT DIAGRAM

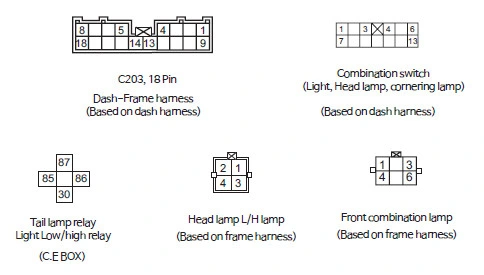

1) CONNECTOR AND PIN NUMBER

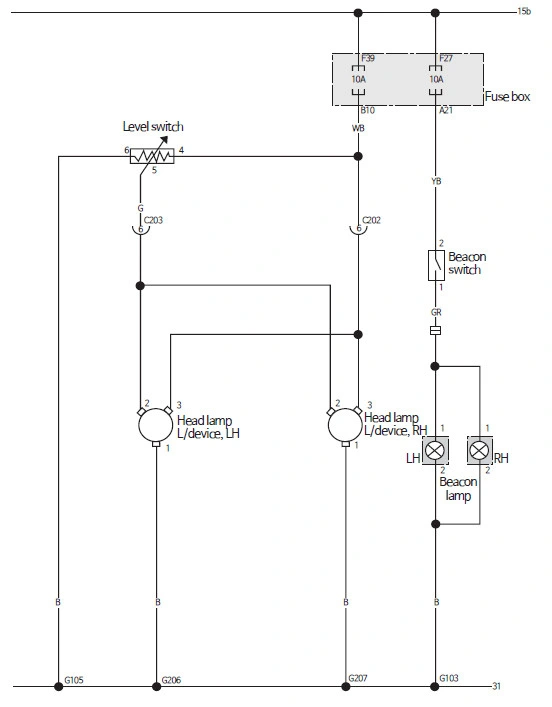

4. HEAD LAMP LEVEL DEVICE, BEACON LAMP CIRCUIT DIAGRAM

1) CONNECTOR AND PIN NUMBER
