Какправильно читать схемы автобусов TEMSA
(в помощь мастерской)

Wiring Diagram Definitions

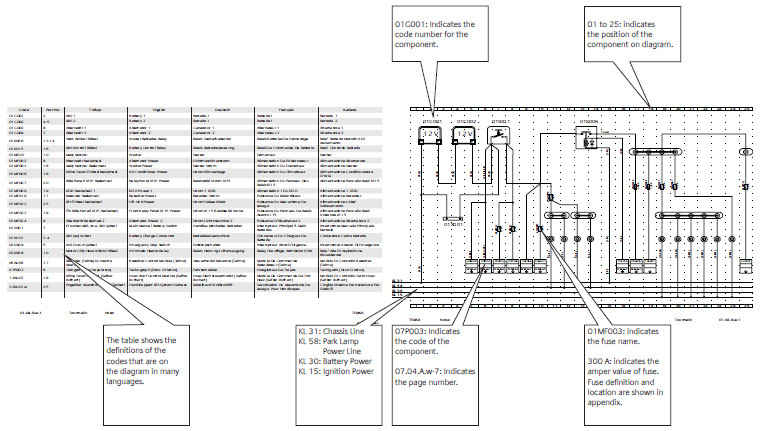

While looking to the wiring diagram on manual, you will see two pages. On the right hand side you will see electrical wiring diagram. Some symbols and codes exsits on the diagram. On the left hand side you will see the explanations of the codes on the table, By looking to the part no, you can easily find the component code and definitions.


Wire Code Definitions
Wire characteristic as illustrated in Figure A.
• Background: White
• 25-01 : Wire Code
• 2,5 : Wire Size 2,5 mm2
If there is not any number in parenthesis, wire size is 1mm2.

Wire characteristic as illustrated in Figure B
Wire size is indicated with the cross sectional area of conductor.
2.5RW
2,5: Cross sectional area of conductor is 2,5 mm².
RW: Background colour is RED, Stripe colour is
WHITE
No wire size is shown for a shielding wire but is
Shield wires are indicated as shown bellow (Figure C) to distinguish them from other wires.
Wire colours are shown with the capital letter of each colour.
When the capital letters of the colours are the same, they will be identified as follows:
R Red
L Blue
Br Brown
Where a stripe is added to the wire colour, a combination of two capital letters is used.e.g. :
RY (Yellow stripe on red background)
WB (Black stripe on white background)


Wire Definitions
