Расположение компонентов RENAULT T
(euro 5, 6)

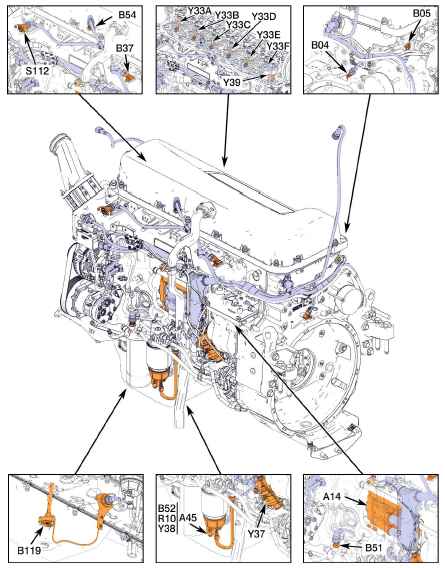

Electronic management of 11-litre engine (1/2) - Euro V

Code    Title of the function    Diagram page No.
  • A14 Engine electronic control unit (EECU) C1F/C1W
  • A45 Fuel heating unit C1F
  • B04 Engine speed sensor on engine flywheel C1W
  • B05 Engine speed sensor on camshaft C1W
  • B37 Turbocharging circuit air pressure and temperature sensors assembly C1W
  • B51 Engine boost pressure sensor C1F
  • B52 Water in fuel sensor C1F
  • B54 Pressure sensor inside engine block C1F
  • B119 Engine oil level and temperature sensor assembly C1W
  • R10 Fuel heater resistor no. 2 C1F
  • S112 Engine shut down control C1W
  • Y33A No. 1 cylinder injector solenoid valve C1W
  • Y33B No. 2 cylinder injector solenoid valve C1W
  • Y33C No. 3 cylinder injector solenoid valve C1W
  • Y33D No. 4 cylinder injector solenoid valve C1W
  • Y33E No. 5 cylinder injector solenoid valve C1W
  • Y33F No. 6 cylinder injector solenoid valve C1W
  • Y37 Exhaust brake solenoid valve unit C1F
  • Y38 Dryer bleed solenoid valve C1F
  • Y39 VTC engine brake solenoid valve C1F

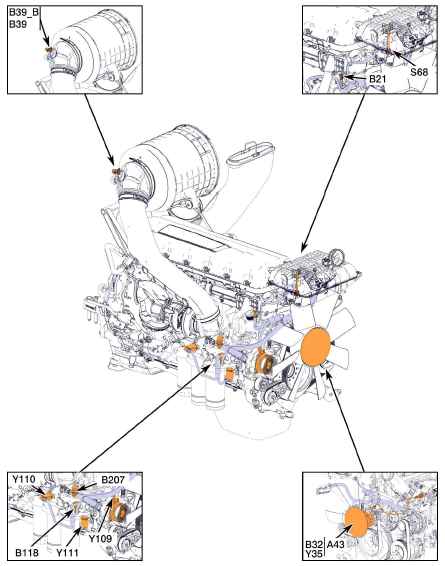

Electronic management of 11-litre engine (2/2) - Euro V

Code    Title of the function    Diagram page No.
A43 Engine fan speed regulator unit C1W
B21 Engine coolant circuit temperature sensor C1F
B32 Engine cooling fan speed sensor C1W
B39 Air filter pressure and temperature sensor C1W
B39_B Air filter pressure sensor C1W
B118 Engine oil pressure sensor C1F
B207 Piston cooling oil pressure sensor C1F
S68 Engine coolant level sensor C1F
Y35 Engine cooling fan speed regulation solenoid valve C1W
Y109 Water pump electromagnetic clutch C1W
Y110 Oil cooling solenoid valve C1F
Y111 Piston cooling solenoid valve C1F

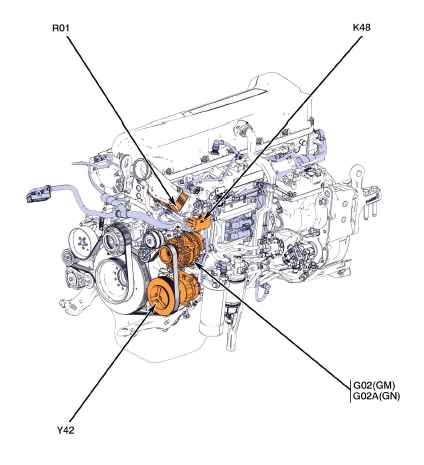

Layout of equipment on the 11-litre engine (1/2) - Euro V

Code    Title of the function    Diagram page No.
  • G02 Alternator BA2
  • G02A Alternator BA2
  • K48 Intake air preheating power supply relay CCT
  • R01 Intake air preheating resistor CCT
  • Y42 Air conditioning compressor electric clutch GBP

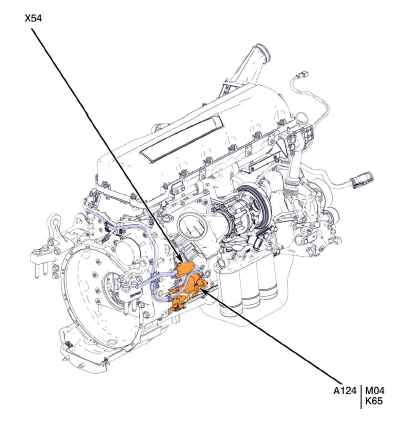

Layout of equipment on the 11-litre engine (2/2) - Euro V

Code    Title of the function    Diagram page No.
  • A124 Starter motor assembly BA2
  • K65 Starter motor relay BA2
  • M04 Starter BA2
  • X54 Starter power supply lead intermediate connector BA2

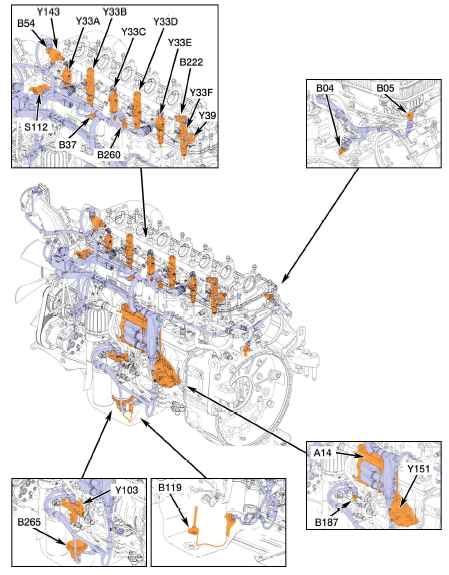

Electronic management of 11-litre engine (1/2) - Euro VI

Code    Title of the function    Diagram page No.
  • A14 Engine electronic control unit (EECU) C1C/C1T
  • B04 Engine speed sensor on engine flywheel C1T
  • B05 Engine speed sensor on camshaft C1T
  • B37 Turbocharging circuit air pressure and temperature sensors assembly C1T
  • B54 Pressure sensor inside engine block C1C
  • B119 Engine oil level and temperature sensor assembly C1C
  • B187 Diesel fuel pressure sensor for exhaust injector C1T
  • B260 Exhaust back-pressure sensor C1C
  • B265 Fuel heating unit C1T
  • S112 Engine shut down control C1T
  • Y33A No. 1 cylinder injector solenoid valve C1T
  • Y33B No. 2 cylinder injector solenoid valve C1T
  • Y33C No. 3 cylinder injector solenoid valve C1T
  • Y33D No. 4 cylinder injector solenoid valve C1T
  • Y33E No. 5 cylinder injector solenoid valve C1T
  • Y33F No. 6 cylinder injector solenoid valve C1T
  • Y39 VTC engine brake solenoid valve C1C
  • Y103 Exhaust injector solenoid valve C1C
  • Y143 Rail high pressure regulation solenoid valve C1T
  • Y151 Exhaust brake solenoid valve unit C1C

Electronic management of 11-litre engine (2/2) - Euro VI

Code    Title of the function    Diagram page No.
  • A43 Engine fan speed regulator unit C1T
  • B32 Engine cooling fan speed sensor C1T
  • B39 Air filter pressure and temperature sensor C1T
  • B39_B Air filter pressure sensor C1T
  • B54 Pressure sensor inside engine block C1C
  • B102 Oil temperature sensor on oil filter holder C1C
  • B118 Engine oil pressure sensor C1C
  • B207 Piston cooling oil pressure sensor C1C
  • B231 Engine coolant circuit temperature sensor C1C
  • S68 Engine coolant level sensor C1C
  • Y35 Engine cooling fan speed regulation solenoid valve C1T
  • Y109 Water pump electromagnetic clutch C1T
  • Y110 Oil cooling solenoid valve C1C
  • Y111 Piston cooling solenoid valve C1C
  • Y148 Exhaust gas recirculation solenoid valve C1C

Layout of equipment on the 11-litre engine (1/2) - Euro VI

Code    Title of the function    Diagram page No.
  • G02 Alternator BA2
  • G02A Alternator BA2
  • K48 Intake air preheating power supply relay CCT
  • R01 Intake air preheating resistor CCT
  • Y42 Air conditioning compressor electric clutch GBP
  • Y114 Air flow regulation solenoid valve C1C

Layout of equipment on the 11-litre engine (2/2) - Euro VI

Code    Title of the function    Diagram page No.
  • A124 Starter motor assembly BA2
  • K65 Starter motor relay BA2
  • M04 Starter BA2
  • X54 Starter power supply lead intermediate connector BA2

Electronic management of 13-litre engine (1/2) - Euro V

Code    Title of the function    Diagram page No.
  • A14 Engine electronic control unit (EECU) C1E/C1V
  • A45 Fuel heating unit C1V
  • B04 Engine speed sensor on engine flywheel C1V
  • B05 Engine speed sensor on camshaft C1V
  • B37 Turbocharging circuit air pressure and temperature sensors assembly C1E
  • B51 Engine boost pressure sensor C1E
  • B52 Water in fuel sensor C1V
  • B54 Pressure sensor inside engine block C1E
  • B118 Engine oil pressure sensor C1E
  • B119 Engine oil level and temperature sensor assembly C1E
  • R10 Fuel heater resistor no. 2 C1V
  • S112 Engine shut down control C1E
  • Y33A No. 1 cylinder injector solenoid valve C1V
  • Y33B No. 2 cylinder injector solenoid valve C1V
  • Y33C No. 3 cylinder injector solenoid valve C1V
  • Y33D No. 4 cylinder injector solenoid valve C1V
  • Y33E No. 5 cylinder injector solenoid valve C1V
  • Y33F No. 6 cylinder injector solenoid valve C1V
  • Y37 Exhaust brake solenoid valve unit C1V
  • Y38 Dryer bleed solenoid valve C1V
  • Y39 VTC engine brake solenoid valve C1V

Electronic management of 13-litre engine (2/2) - Euro V

Code    Title of the function    Diagram page No.
  • A43 Engine fan speed regulator unit C1E
  • B21 Engine coolant circuit temperature sensor C1E
  • B32 Engine cooling fan speed sensor C1E
  • B39 Air filter pressure and temperature sensor C1E
  • B39_B Air filter pressure sensor C1E
  • B207 Piston cooling oil pressure sensor C1E
  • S68 Engine coolant level sensor C1V
  • Y35 Engine cooling fan speed regulation solenoid valve C1E
  • Y109 Water pump electromagnetic clutch C1V
  • Y110 Oil cooling solenoid valve C1V
  • Y111 Piston cooling solenoid valve C1V

Layout of equipment on the 13-litre engine (1/2) - Euro V

Code    Title of the function    Diagram page No.
  • G02 Alternator BA2
  • G02A Alternator BA2
  • K48 Intake air preheating power supply relay CCT
  • R01 Intake air preheating resistor CCT
  • Y42 Air conditioning compressor electric clutch GBP

Layout of equipment on the 13-litre engine (2/2) - Euro V

Code    Title of the function    Diagram page No.
  • A124 Starter motor assembly BA2
  • K65 Starter motor relay BA2
  • M04 Starter BA2
  • X54 Starter power supply lead intermediate connector BA2
