DAF Система EAS-3

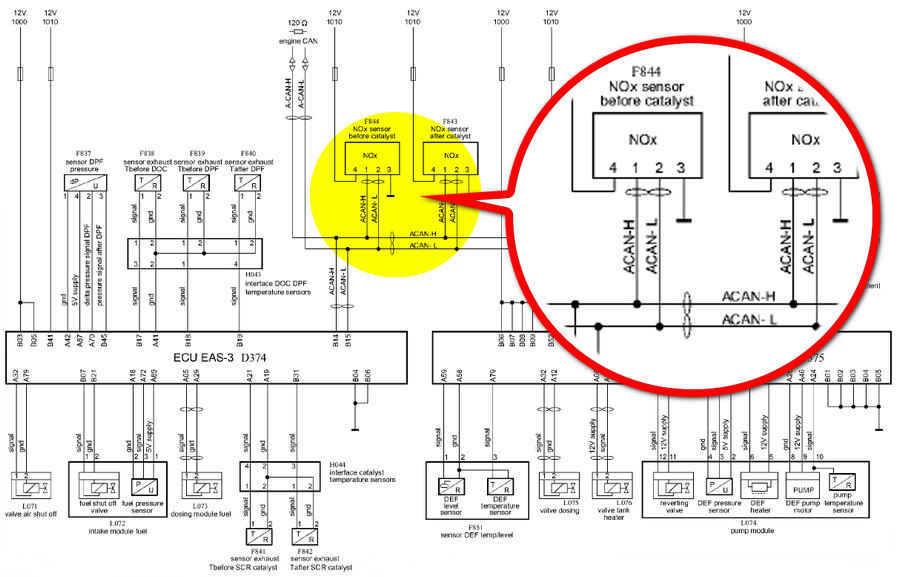

(схема)

D374 ECU, EAS-3
D375 ECU, EAS-3 actuator

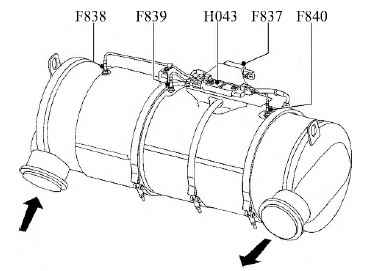

F837 Sensor, DPF pressure
F838 Sensor, exhaust temp. before DOC
F839 Sensor, exhaust temp. before DPF
F840 Sensor, exhaust temp. after DPF

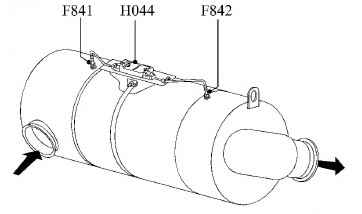

F841 Sensor, exhaust temp. before the SCR catalyst
F842 Sensor, exhaust temp. after SCR catalyst

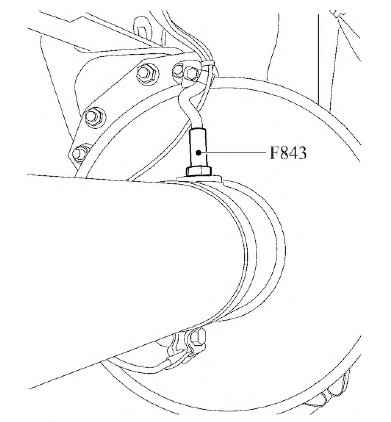

F843 Sensor, NOx after catalyst

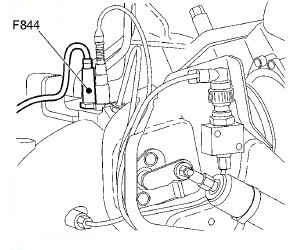

F844 Sensor, NOx before catalyst
F851 Sensor, DEF temperature/level
H043 Interface, DOC/DPF temperature sensors
H044 Interface, catalyst temperature sensors

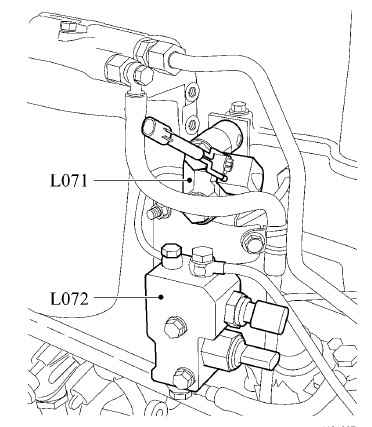

L071 Valve, air shutoff
L072 Intake module, fuel

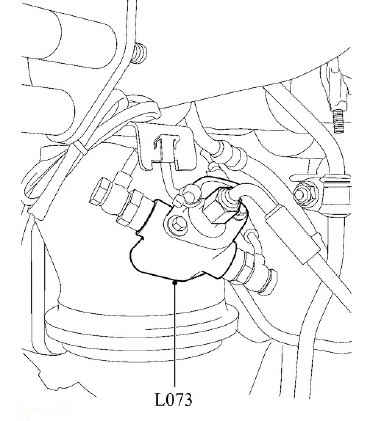

L073 Dosing module, fuel
L074 Pump module

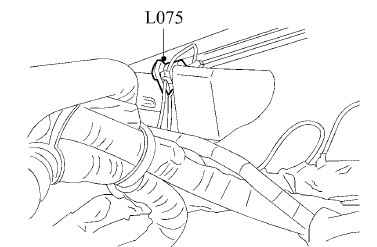

L075 Valve, dosing
L076 Valve, tank heater
