Описание топливной системы двигателя DV11
(BOSCH / DOOSAN)

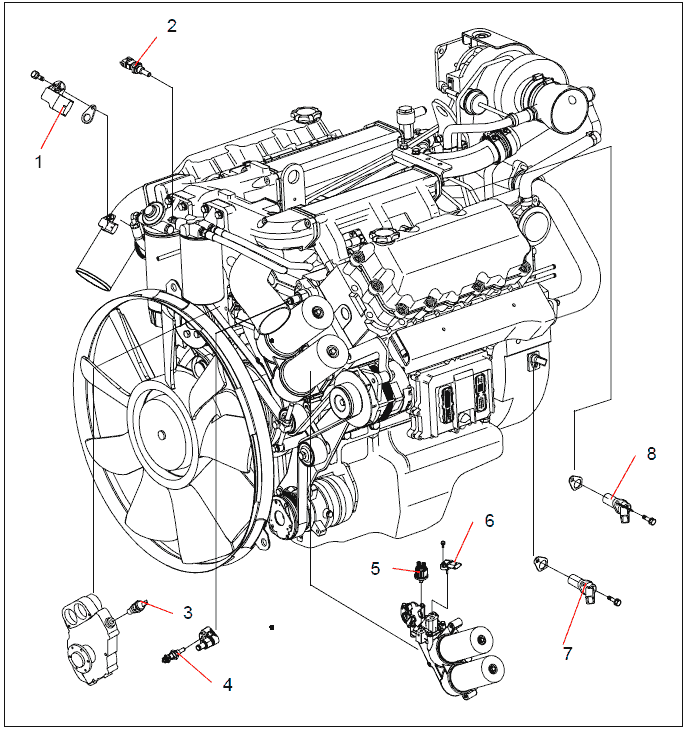

Electrical parts – Truck

1 Boost pressure & temperature sensor
2 Fuel temperature sensor
3 Coolant temperature sensor (for gauge unit)
4 Coolant temperature sensor
5 Oil pressure sensor (for gauge unit)
6 Engine oil pressure & temperature sensor
7 Crankshaft speed sensor
8 Camshaft speed sensor

Electrical parts - Bus

1 Fuel temperature sensor
2 Boost pressure & temperature sensor
3 Coolant temperature sensor
4 Oil pressure sensor (for gauge unit)
5 Engine oil pressure & temperature sensor
6 Camshaft speed sensor
7 Crankshaft speed sensor

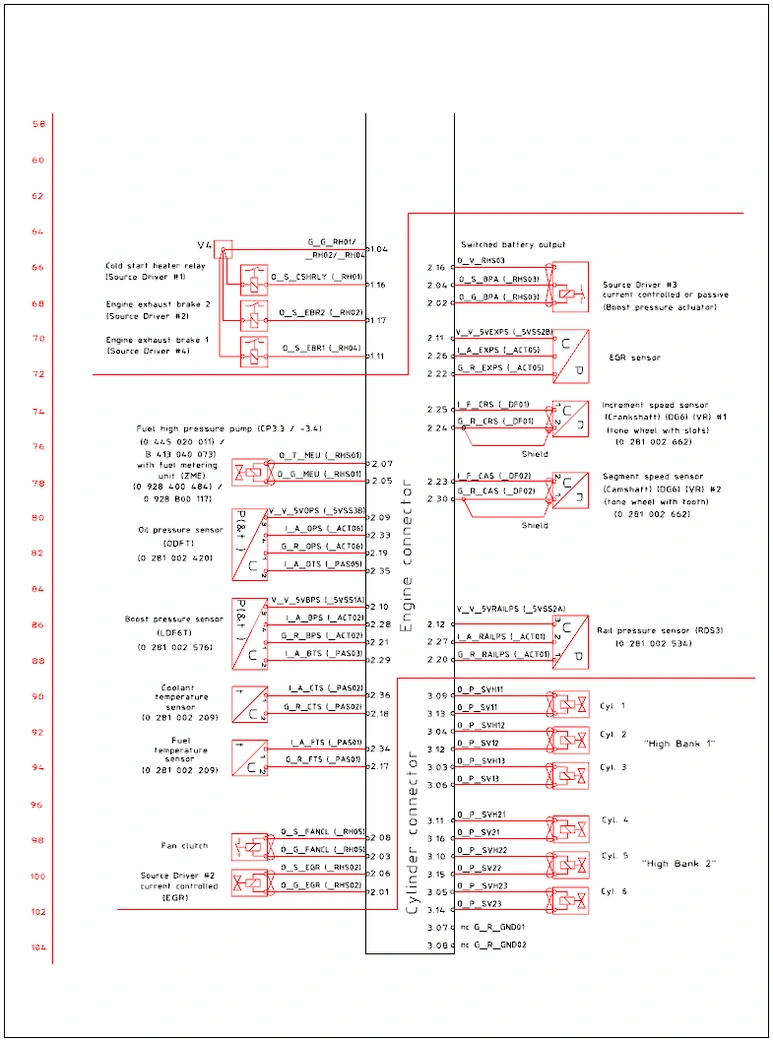

Harness of electrical control unit - A


Harness of electrical control unit - B

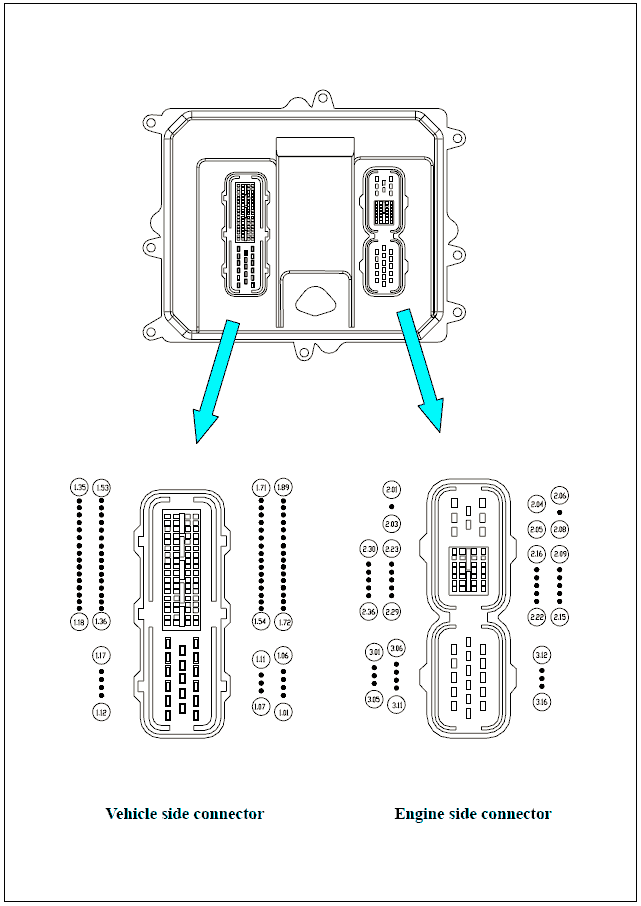

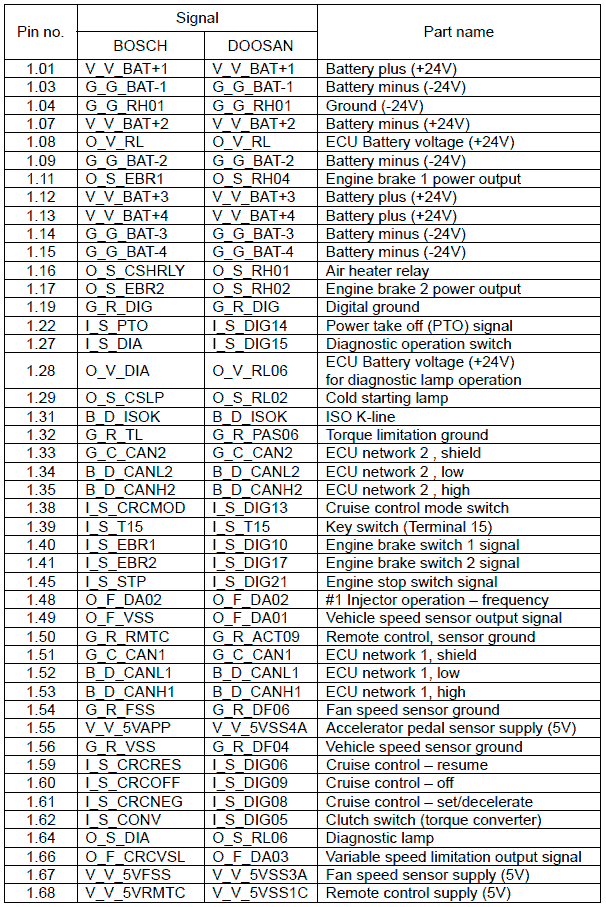

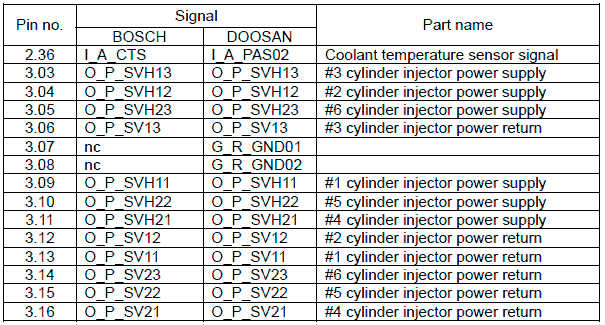

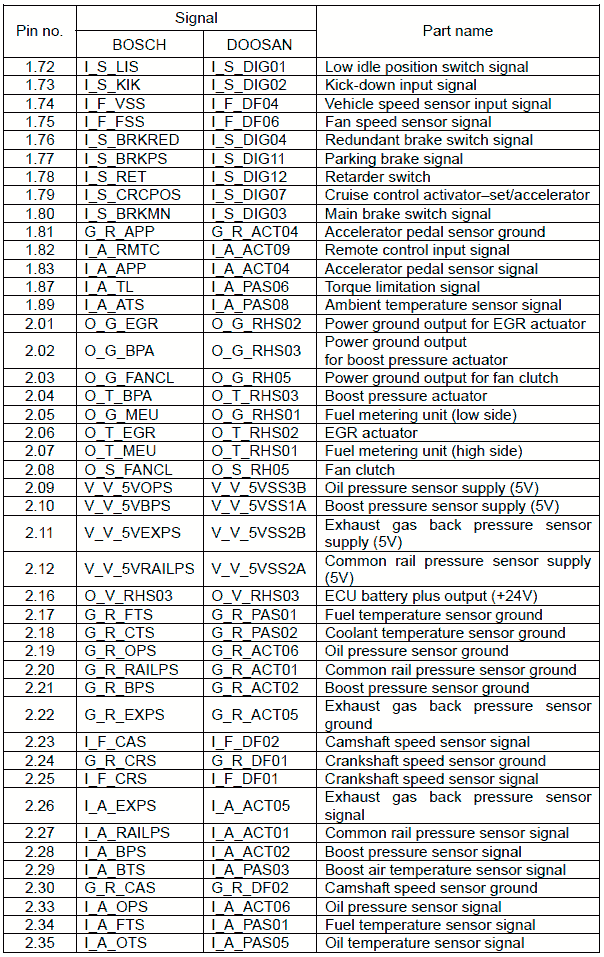

Connector of electrical control unit (ECU)







nc = not connected
