Type of service brake Drum-shoe type wheel brake activated by compressed air.

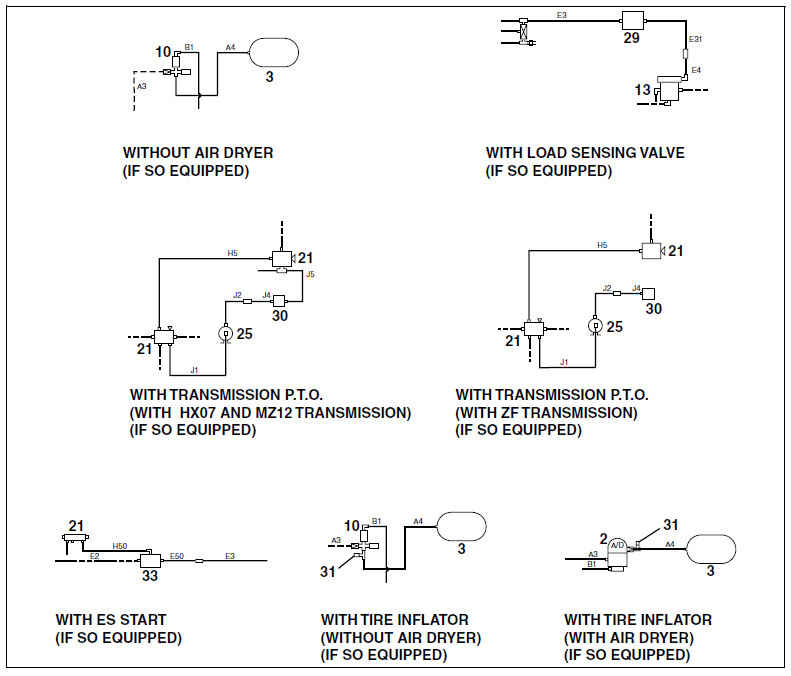

Air charging system Air charging is from piston type air compressor and air flow is directed and controlled by a pressure regulator, the necessary valves, and lines as required.

Pressure sensor and air pressure warning switch are used for indicating the pressure level in the system.

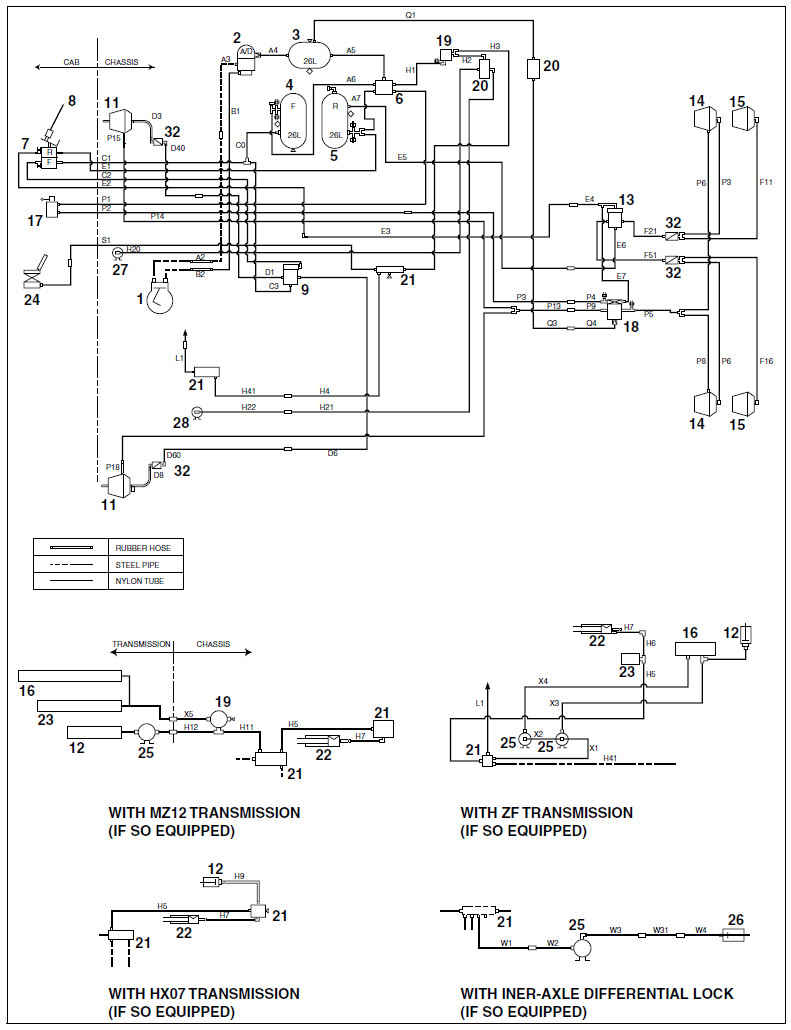

Service brake control system Two independent lines for front and rear wheels with air flow controlled by a brake valve, and each line comprises a group of valve and brake chambers (one/ wheel).

Stop lamp switch is used to operate the stop lamps.

Spring brake control system Single line for all spring brake chambers.

The line comprises a control valve which controls air flow, the other necessary valve and spring brake chambers.

A stop lamp switch is used to turn on the stop lamps.

A parking brake switch is used to turn off the warning buzzer and to turn on the parking brake warning lamp.

Wheel brake Drum brake with internally expanding, leading-trailing shoes are operated by slack adjuster and cam shaft or expander in all wheels.

MODELS: FS (DUMP, MIXER AND CARGO TRUCK), ZS (DUMP AND CARGO TRUCK) (For GENERAL COUNTRIES, CHILE, CHINA, G.C.C. COUNTRIES, HONG KONG, IRELAND, SOUTH AFRICA, TAIWAN)
