MITSUBISHI CANTER ECO HYBRID Series truck
(electrical)
CONTENT
- GENERAL
- SPECIFICATIONS
- STRUCTURE AND OPERATION
- TROUBLESHOOTING
- POWER, CHARGE AND GROUND CIRCUIT
- ENGINE STARTING, STOPPING AND PREHEATING CIRCUIT
- LIGHTING CIRCUIT
- METER CIRCUIT
- INDICATOR AND WARNING LAMP CIRCUIT
- CAB SIDE ELECTRICAL CIRCUIT
- CHASSIS SIDE ELECTRICAL CIRCUIT
- OTHER CIRCUIT
- ELECTRICAL EQUIPMENT INSTALLATION POSITIONS
- INSPECTION OF ELECTRICAL EQUIPMENT
- STARTER AND ALTERNATOR
- ON-VEHICLE INSPECTION AND ADJUSTMENT
- CONNECTOR CONFIGURATION CHART
OTHER CIRCUIT

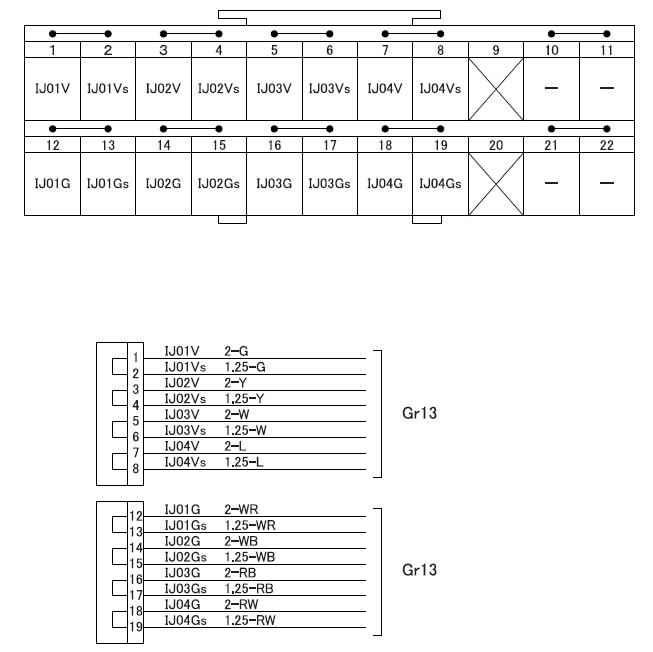

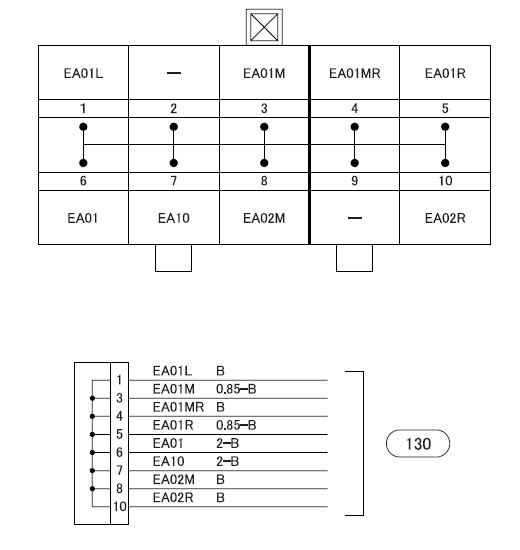

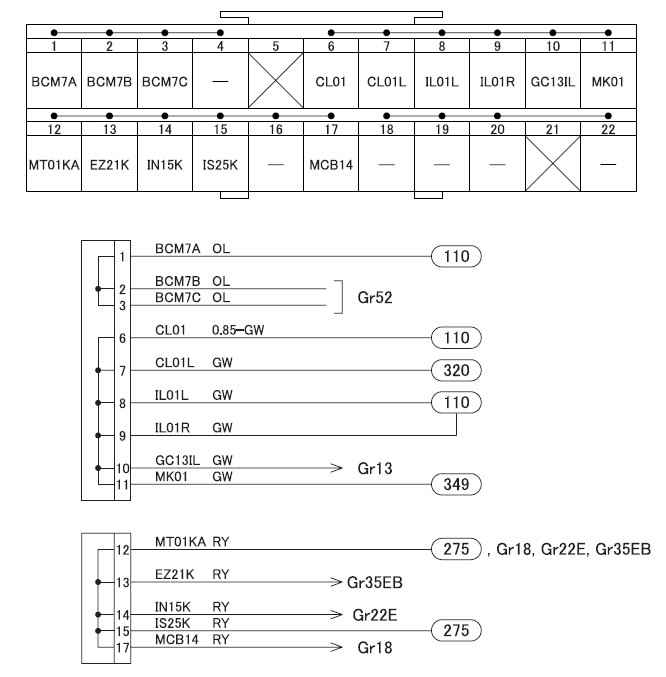

JOINT CONNECTOR (J/C)
ELECTRICAL EQUIPMENT INSTALLATION POSITIONS
A01 Hazard switch
A02 Fluorescent lamp switch
A04 ISS main switch
A07 Hill start main switch
A13 DPF cleaning switch
A14 Brake fluid level switch
Al5 Headlamp leveling switch
A17 Idling speed adjustment potentiometer
A19 Stop lamp switch
A23 Diagnosis switch <ISS>
A24 Memory clear switch <ISS>
A27 Combination switch
A28 Starter switch
A29 Diagnosis switch < Motor ECU>
A30 Memory clear switch < Motor ECU >
A33 Diagnosis switch <INOMAT-II >
A34 Memory clear switch <INOMAT-H >

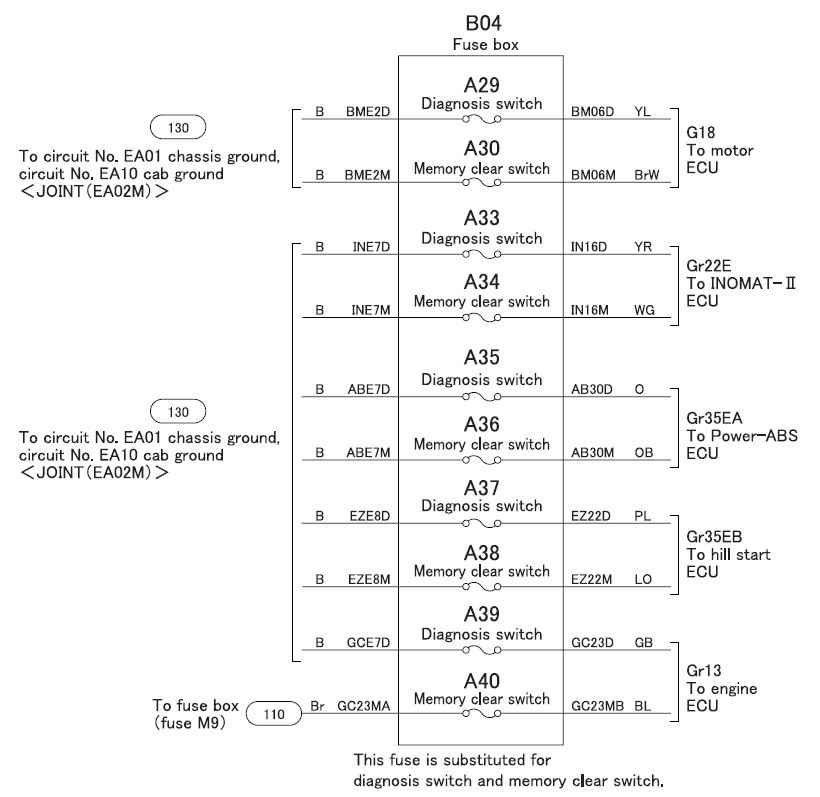

A35 Diagnosis switch <Power—ABS>
A36 Memory clear switch <Power—ABS>
A37 Diagnosis switch <Hill start assist systcm>
A38 Memory clear switch < Hill start assist system>
A39 Diagnosis switch < Engine ECU>
A40 Memory clear switch <Engine ECU>
- ISS : Idling stop and start system
- DPF : Diesel particulate filter
- ECU : Electronic control unit
- INOMAT-II : Intelligent and innovative mechanical automatic transmission- II
- Power-ABS : Power antiHock brake system
