FORD CARGO H566/H476 On Board Diagnostics
Colour Legend
RD RED
BU BLUE
YE YELLOW
GN GREEN
GY GREY
BN BROWN
VT PURPLE
WH WHITE
BK BLACK
OG ORANGE

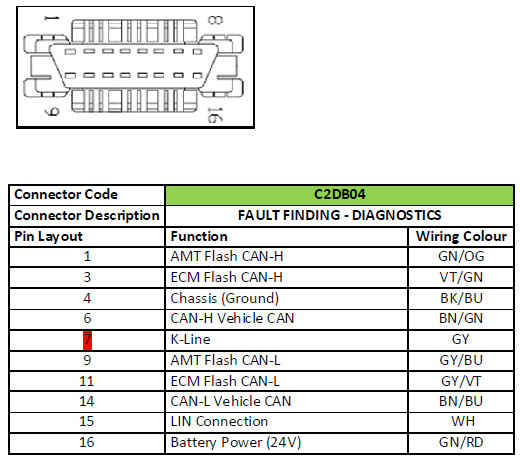

CAN line control:
Voltage when the ignition is on -> between pins no. 4 and 16: 24 V

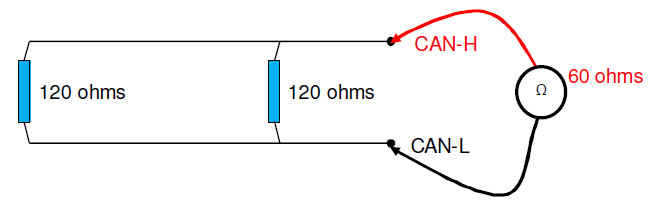

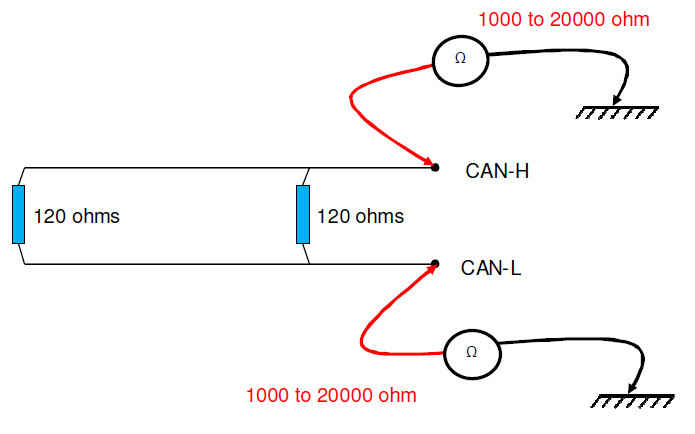

Resistance when the ignition is off -> between pins no. 6 and 14: 60 Ω

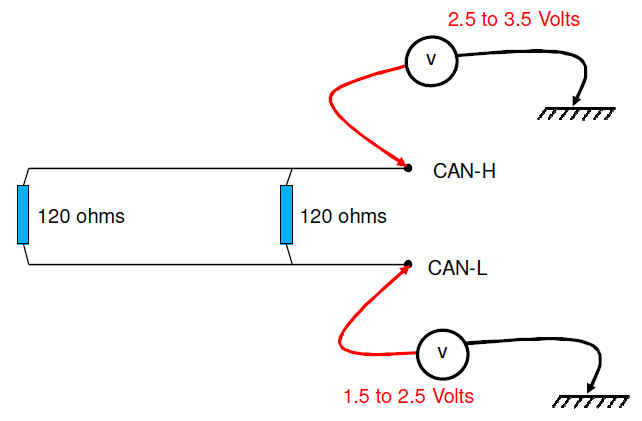

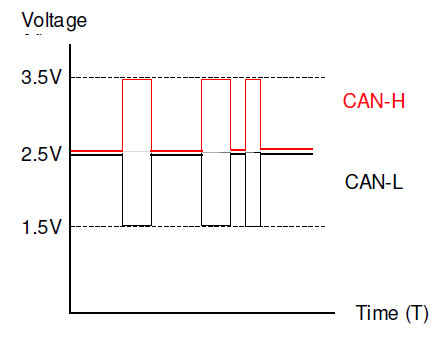

Voltage when the ignition is on -> between pins no. 6 and 4: 2,5,-3.5 V
Voltage when the ignition is on -> between pins no. 14 and 4: 1,5,-2.5 V

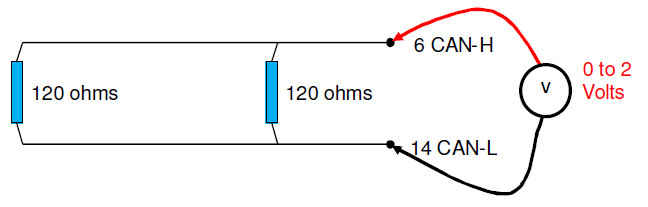

Voltage when the ignition is on -> between pins no. 6 and 14: 0,-2 V
