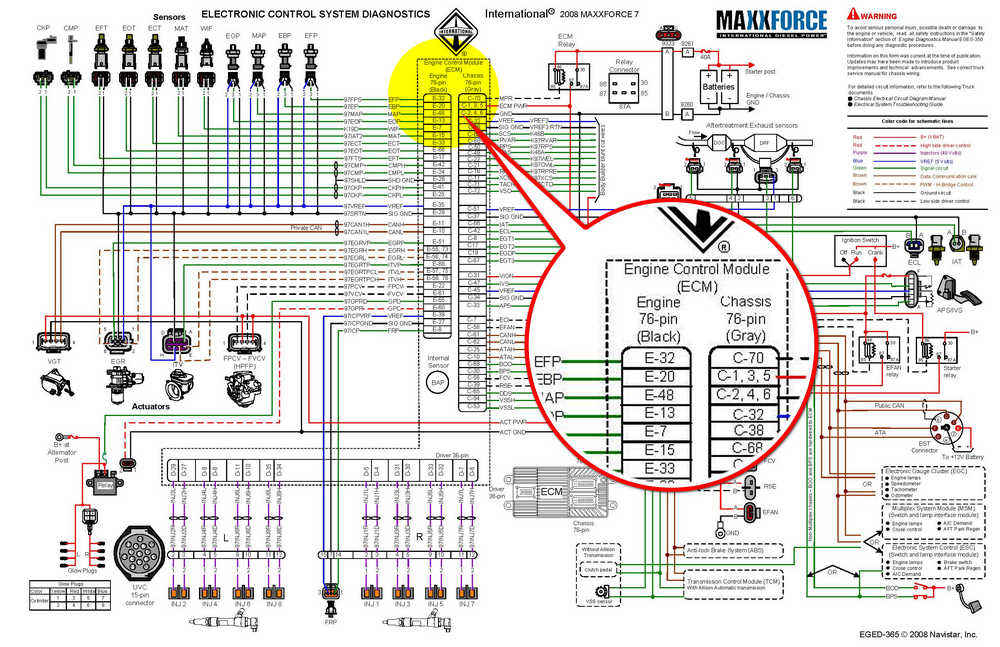

INTERNATIONAL MAXXFORCE 7
электрическая схема
Red - B+ (Battery Voltage)
Purple - Injectors (48 Volts)
Blue - VREF (5 Volts)
Green - Signal
Green - PWM - Signal
Red - High side driver control
Black - GND (Ground)
Black - Low side driver control
Brown - Data Communication
