Читаем схемы HINO
(FC6J, FC9J, FD8J, GD8J, FG8J, GH8J, FL8J, FM8J, FM1A, FM2P, FT8J, GT8J, SG8J series)
тренинг персонала
DIAGRAM
- HOW TO USE THIS CHAPTER
- CONTENTS AND QUICK REFERENCE
- WIRING DIAGRAM

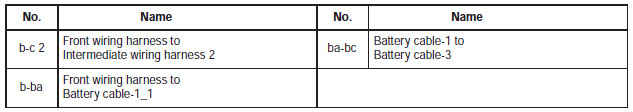

- WIRE TO WIRE CONNECTOR
- JUNCITON CONNECTOR
- CONNECTOR LOCATION
- RELAY LOCATION
- FUSE AND RELAY BLOCK
- FUSIBLE LINK BLOCK
- WIRE TO WIRE BOX
- CONNECTOR INDEX
DIAGRAM
HOW TO USE THIS CHAPTER

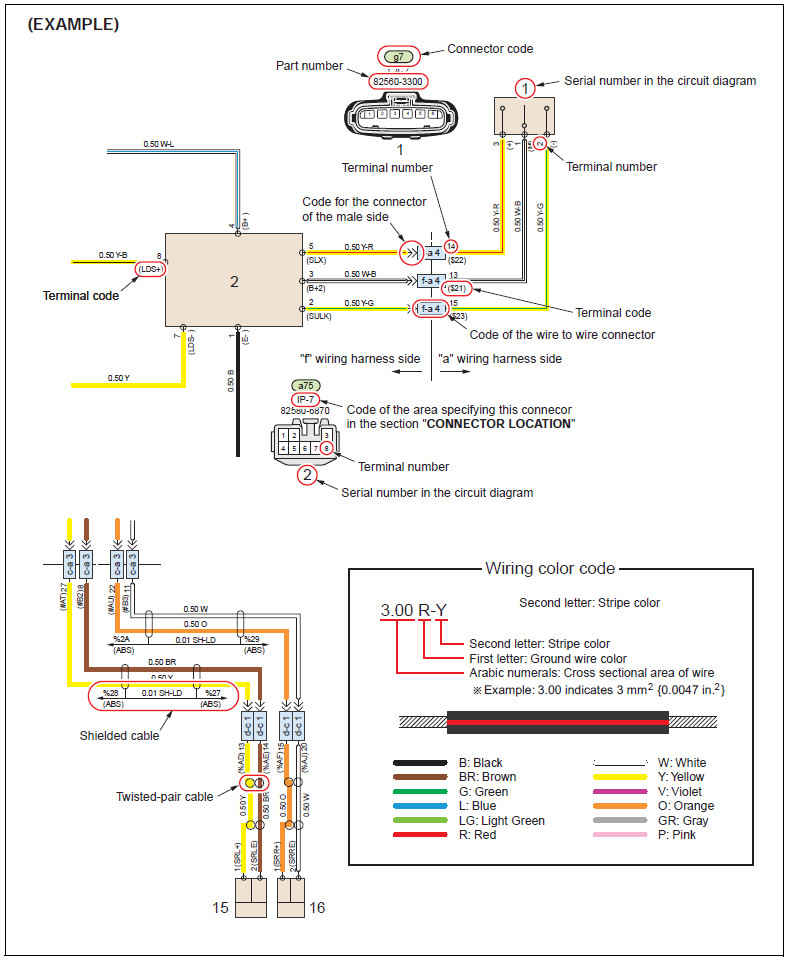

1. WIRING DIAGRAM

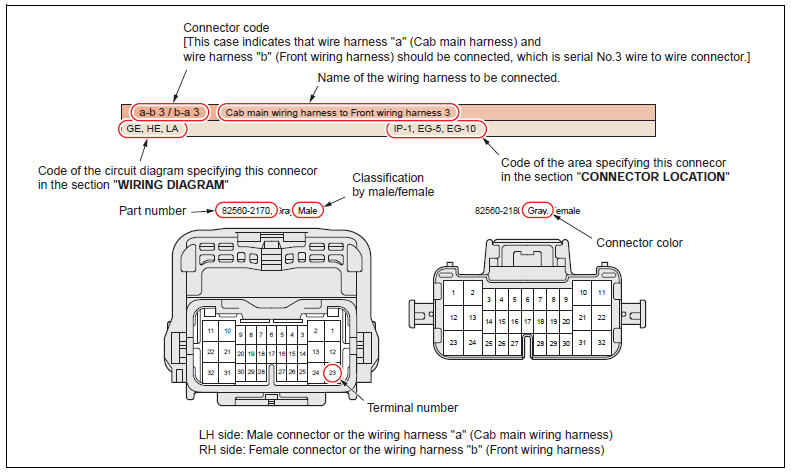

2. WIRE TO WIRE CONNECTOR

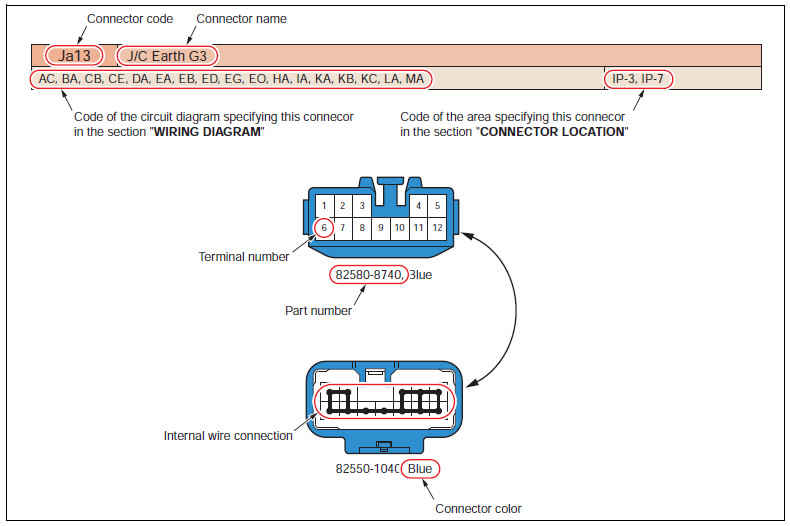

3. JUNCTION CONNECTOR

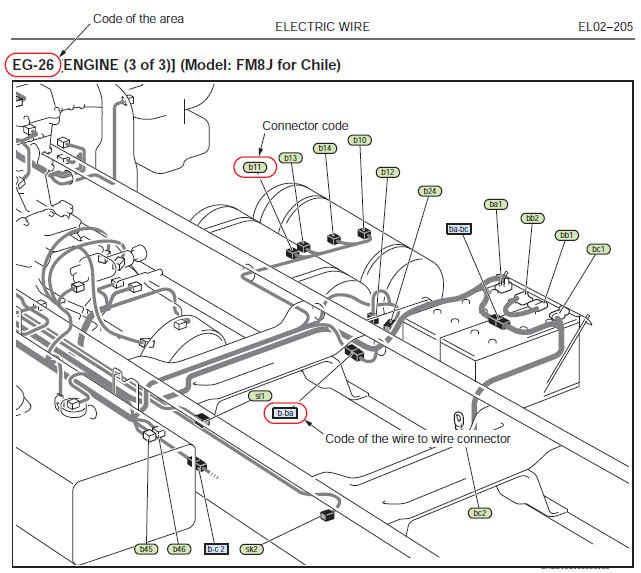

4. CONNECTOR LOCATION
ELECTRICAL EQUIPMENT CONNECTOR AND JUNCTION CONNECTOR

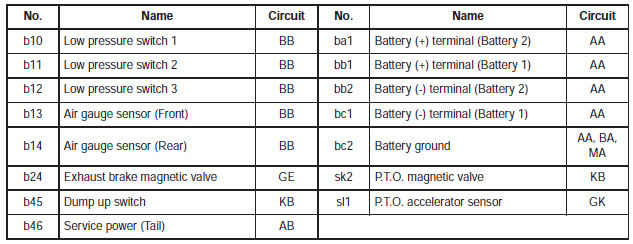

WIRE TO WIRE CONNECTOR

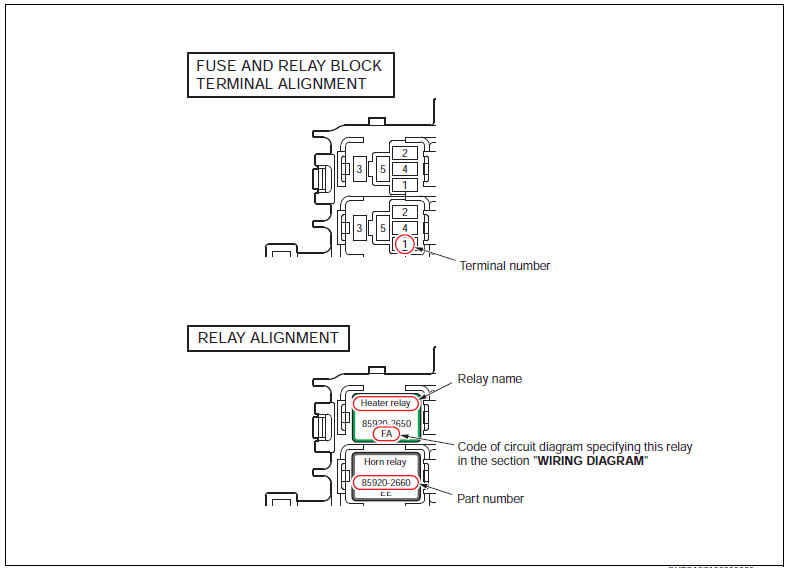

5. FUSE AND RELAY BLOCK

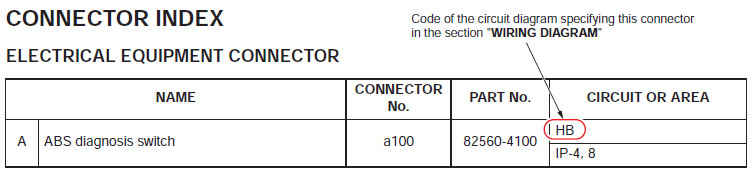

6. CONNECTOR INDEX
