DOOSAN DX12E EURO 5
Electronic Control Unit (ECU)

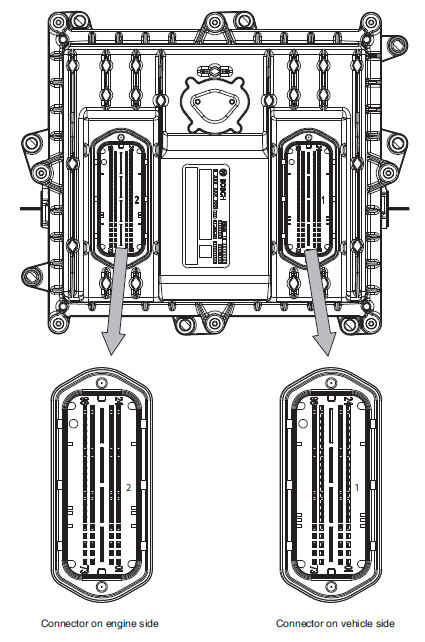

Engine Control Unit (ECU) Engine Connectors

Pin      Abbrev.      Function
101 V_V_BAT4 Battery plus 4
103 G_G_BAT1 Battery minus 1
104 N_X_DNC Do not connect, function not classified (function reserved)
105 G_G_BAT4 Battery minus 4
106 N_X_DNC Do not connect, function not classified (function reserved)
108 N_X_DNC Do not connect, function not classified (function reserved)
110 G_C_GND Ground shield
111 I_S_STP Engine stop switch signal
112 I_S_BRKRED Redundant brake switch signal
113 N_X_DNC Do not connect, function not classified (function reserved)
114 N_X_DNC Do not connect, function not classified (function reserved)
115 N_X_DNC Do not connect, function not classified (function reserved)
119 O_S_STRLORLYH Starter lockout relay high
120 N_X_DNC Do not connect, function not classified (function reserved)
121 N_X_DNC Do not connect, function not classified (function reserved)
122 N_X_DNC Do not connect, function not classified (function reserved)
124 N_X_DNC Do not connect, function not classified (function reserved)
125 V_V_BAT3 Battery plus 3
126 V_V_BAT5 Battery plus 5
127 N_X_DNC Do not connect, function not classified (function reserved)
128 G_G_BAT2 Battery minus 2
129 G_G_RL11 Ground for low side power stage 11
130 N_X_DNC Do not connect, function not classified (function reserved)
131 N_X_DNC Do not connect, function not classified (function reserved)
133 N_X_DNC Do not connect, function not classified (function reserved)
134 O_F_ENGN Engine speed output signal
135 I_S_CONV Do not connect, function not classified (function reserved)
136 N_X_DNC Do not connect, function not classified (function reserved)
137 N_X_DNC Do not connect, function not classified (function reserved)
140 N_X_DNC Do not connect, function not classified (function reserved)
141 N_X_DNC Do not connect, function not classified (function reserved)
142 N_X_DNC Do not connect, function not classified (function reserved)
143 G_R_AN14 Ground analog input 14
144 N_X_DNC Do not connect, function not classified (function reserved)
145 N_X_DNC Do not connect, function not classified (function reserved)
146 B_D_CANH0 Controller area network 0 (high)
147 B_D_CANL0 Controller area network 0 (low)
148 N_X_DNC Do not connect, function not classified (function reserved)
149 V_V_BAT2 Battery plus 2
151 N_X_DNC Do not connect, function not classified (function reserved)
152 G_G_BAT5 Battery minus 5
153 N_X_DNC Do not connect, function not classified (function reserved)
154 N_X_DNC Do not connect, function not classified (function reserved)
156 N_X_DNC Do not connect, function not classified (function reserved)
157 N_X_DNC Do not connect, function not classified (function reserved)
158 N_X_DNC Do not connect, function not classified (function reserved)
160 I_S_LIS Low idle position switch input signal
161 O_S_FHRLY Fuel filter heating relay
163 I_S_T50 Start switch term. 50 input signal
166 O_V_5VAPP1 APP sensor supply
169 I_S_T15 Terminal 15 (switched BAT+)
170 N_X_DNC Do not connect, function not classified (function reserved)
171 B_D_CANH1 Controller area network 1 (high)
172 N_X_DNC Do not connect, function not classified (function reserved)
173 V_V_BAT1 Battery plus 1
174 O_V_RH21 Battery plus output 21 (high side driver)
175 G_G_BAT3 Battery minus 3
176 G_G_RL14 Ground for low side power stage 14
177 N_X_DNC Do not connect, function not classified (function reserved)
178 N_X_DNC Do not connect, function not classified (function reserved)
179 I_A_APP1 Accelerator pedal position sensor 1 signal
180 G_R_APP1 Accelerator pedal position sensor 1 ground
181 N_X_DNC Do not connect, function not classified (function reserved)
182 I_S_BRKMN Brake main switch signal
183 N_X_DNC Do not connect, function not classified (function reserved)
186 N_X_DNC Do not connect, function not classified (function reserved)
187 O_T_FAN1 Fan relay
188 O_S_STRLORLYL Starter lockout relay Low
191 N_X_DNC Do not connect, function not classified (function reserved)
192 N_X_DNC Do not connect, function not classified (function reserved)
194 N_X_DNC Do not connect, function not classified (function reserved)
195 B_D_CANL1 Controller area network 1 (low)
201 O_P_SVL21 Injector 1 "low" bank 2
202 O_P_SVL22 Injector 2 "low" bank 2
203 O_P_SVL23 Injector 3 "low" bank 2
204 N_X_DNC Do not connect, function not classified (function reserved)
205 O_T_TVAPOS TVA motor positive
206 G_R_OPS Oil pressure sensor ground
207 O_V_5VBPS Boost pressure sensor supply
208 N_X_DNC Do not connect, function not classified (function reserved)
209 N_X_DNC Do not connect, function not classified (function reserved)
210 N_X_DNC Do not connect, function not classified (function reserved)
211 O_V_5VSS3B Rail pressure sensor supply
212 I_A_FTS Fuel temperature sensor signal
213 I_A_OTS Oil temperature sensor signal
214 N_X_DNC Do not connect, function not classified (function reserved)
215 I_A_TPPOS Throttle plate position feedback sensor signal
216 N_X_DNC Do not connect, function not classified (function reserved)
217 B_D_CANH2 Controller area network 2 (high)
218 B_D_CANL2 Controller area network 2 (low)
219 G_C_GND Ground shield
220 N_X_DNC Do not connect, function not classified (function reserved)
221 N_X_DNC Do not connect, function not classified (function reserved)
222 N_X_DNC Do not connect, function not classified (function reserved)
223 N_X_DNC Do not connect, function not classified (function reserved)
225 O_P_SVH21 Injector 1 "high" bank 2
226 O_P_SVH22 Injector 2 "high" bank 2
227 O_P_SVH23 Injector 3 "high" bank 2
228 N_X_DNC Do not connect, function not classified (function reserved)
229 O_T_TVANEG TVA motor negative
230 N_X_DNC Do not connect, function not classified (function reserved)
231 O_V_5VSS1F Oil pressure sensor supply
232 N_X_DNC Do not connect, function not classified (function reserved)
233 N_X_DNC Do not connect, function not classified (function reserved)
234 N_X_DNC Do not connect, function not classified (function reserved)
235 I_A_OPS Oil pressure sensor input signal
236 I_A_RAILPS Rail pressure sensor signal
237 I_A_BTS Boost pressure temperature sensor signal
238 N_X_DNC Do not connect, function not classified (function reserved)
239 I_A_CTS Coolant temperature sensor signal
240 G_R_TPPOS Throttle plate position sensor ground
241 N_X_DNC Do not connect, function not classified (function reserved)
242 N_X_DNC Do not connect, function not classified (function reserved)
243 N_X_DNC Do not connect, function not classified (function reserved)
244 N_X_DNC Do not connect, function not classified (function reserved)
245 N_X_DNC Do not connect, function not classified (function reserved)
248 N_X_DNC Do not connect, function not classified (function reserved)
249 O_P_SVH11 Injector 1 "high" bank 1
250 O_P_SVH12 Injector 2 "high" bank 1
251 O_P_SVH13 Injector 3 "high" bank 1
252 N_X_DNC Do not connect, function not classified (function reserved)
253 N_X_DNC Do not connect, function not classified (function reserved)
254 N_X_DNC Do not connect, function not classified (function reserved)
255 N_X_DNC Do not connect, function not classified (function reserved)
256 N_X_DNC Do not connect, function not classified (function reserved)
257 N_X_DNC Do not connect, function not classified (function reserved)
258 O_V_MEU Fuel metering unit supply (BAT+)
259 G_R_AN18 Ground analog input 18
260 G_R_RAILPS Rail pressure sensor ground
261 I_A_WFS Water in fuel sensor signal
262 N_X_DNC Do not connect, function not classified (function reserved)
263 N_X_DNC Do not connect, function not classified (function reserved)
264 N_X_DNC Do not connect, function not classified (function reserved)
265 I_F_CRSNEG Crankshaft speed sensor signal minus
266 I_F_CRSPOS Crankshaft speed sensor signal plus
267 I_F_CASNEG Segment (camshaft) speed sensor signal minus
268 I_F_CASPOS Segment (camshaft) speed sensor signal plus
269 G_C_GND Ground shield
270 N_X_DNC Do not connect, function not classified (function reserved)
271 N_X_DNC Do not connect, function not classified (function reserved)
272 N_X_DNC Do not connect, function not classified (function reserved)
273 O_P_SVL11 Injector 1 "low" bank 1
274 O_P_SVL12 Injector 2 "low" bank 1
275 O_P_SVL13 Injector 3 "low" bank 1
276 N_X_DNC Do not connect, function not classified (function reserved)
277 N_X_DNC Do not connect, function not classified (function reserved)
278 N_X_DNC Do not connect, function not classified (function reserved)
279 N_X_DNC Do not connect, function not classified (function reserved)
280 N_X_DNC Do not connect, function not classified (function reserved)
281 N_X_DNC Do not connect, function not classified (function reserved)
282 N_X_DNC Do not connect, function not classified (function reserved)
283 O_T_MEU Fuel metering unit
284 N_X_DNC Do not connect, function not classified (function reserved)
285 I_A_ATS Ambient temperature sensor signal
286 I_A_BPS Boost pressure sensor signal
287 N_X_DNC Do not connect, function not classified (function reserved)
288 N_X_DNC Do not connect, function not classified (function reserved)
289 G_R_WFS Water in fuel sensor ground
290 G_R_BPS Boost pressure sensor ground
291 N_X_DNC Do not connect, function not classified (function reserved)
292 N_X_DNC Do not connect, function not classified (function reserved)
293 N_X_DNC Do not connect, function not classified (function reserved)
294 N_X_DNC Do not connect, function not classified (function reserved)
295 N_X_DNC Do not connect, function not classified (function reserved)
296 O_V_RH22 Battery plus output 22 (high side driver)
