• Before measuring voltage, check the battery for charged condition and specific gravity. If system inspection is performed with the battery uncharged or reduced in specific gravity, accurate measurements cannot be achieved.

• Before disconnecting battery cables, harnesses and connectors, set the starter switch to LOCK or OFF, then allow at least 20 seconds.

• To avoid having electrical parts damaged, set the starter switch and lighting switch to LOCK or OFF before reconnecting battery cables, harnesses and connectors.

• When performing measurement with the tester, handle the test bar carefully so that it does not damage internal circuit and other electrical parts of the electronic control unit to result in a short-circuit failure between terminals in connector or between connector and car body.

• Resistance is affected by temperature. Determine the necessity of resistance measurement following given temperature specification as a guide. Otherwise, use normal temperature (10 to 35°C) as the measuring condition.

P1702: ABS Error Detection (gear shift indicator: 02)

P1703: CCU Fluid Volume Lowering (gear shift indicator: 03)

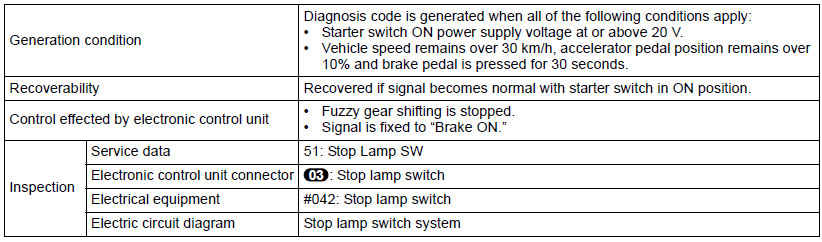

P1704: Brake Signal [ON] Fixation (gear shift indicator: 04)

P1705: ABS Message [Operating] Fixation (gear shift indicator: 05)

P1706: Drive Unit Main Power Abnormal (gear shift indicator: 06)

P1707: Drive Unit Sub Power Abnormal (gear shift indicator: 07)
