Расположение и обозначение предохранителей и реле JAC HFC1042KN

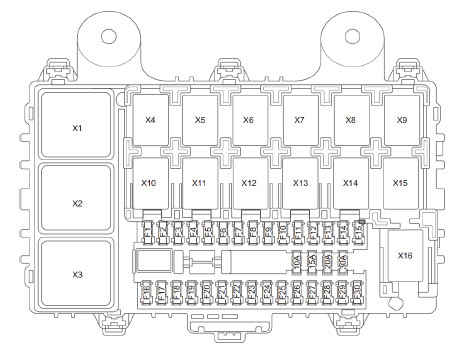

Cab Electrical Box

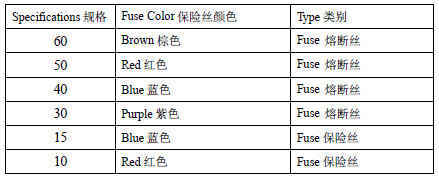

Fuse Type
Relay Type

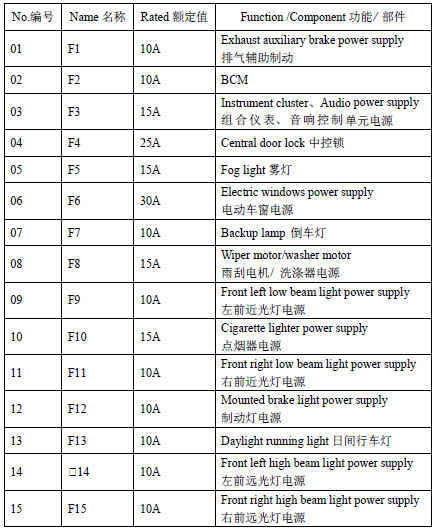

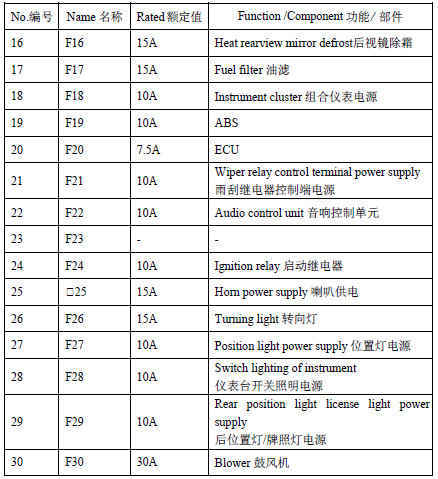

Fuse function/component

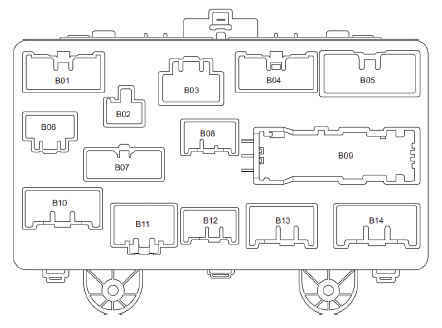

Distribution of Cab Electrical Box Plug

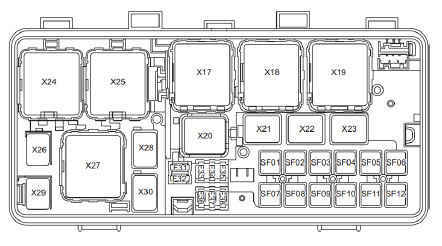

Chassis Electrical Box
Fuse Type

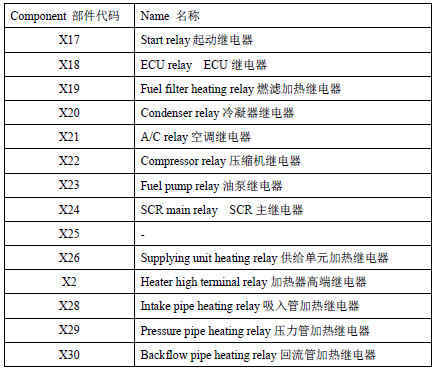

Relay Type

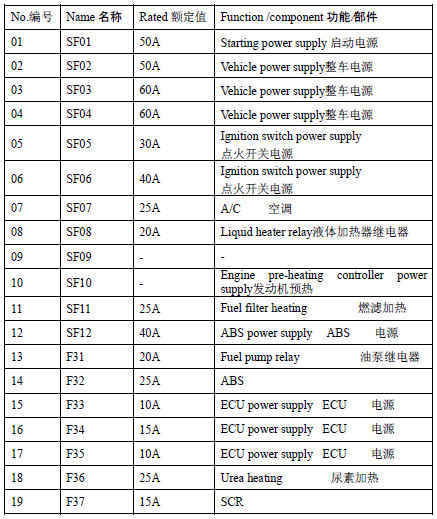

Fuse Function/Component
Electrical Box and Power Supply Locations
1-Chassis electrical box
2-Cab electrical box
3-Battery
