Version without retarder:

This handle has the following functions:

Cruise control, increase speed, reduce speed and intarder functions.

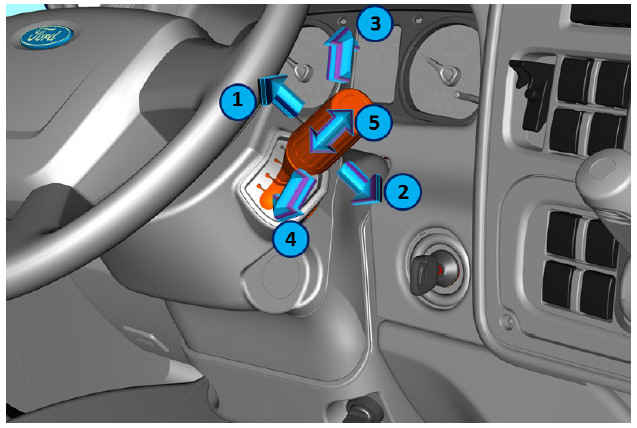

1-Activation of the cruise control and increasing the speed

2-Decreasing the speed

3-Deactivation of the cruise control

4-Activation of the engine brake

5-Resuming cruise control

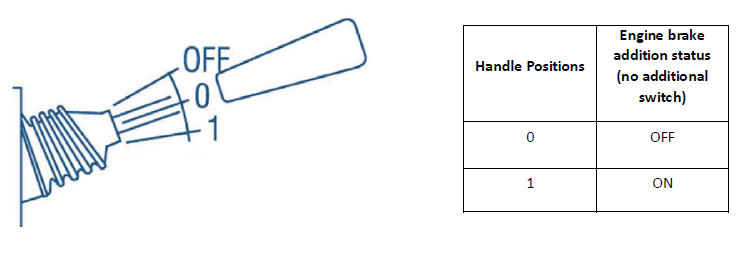

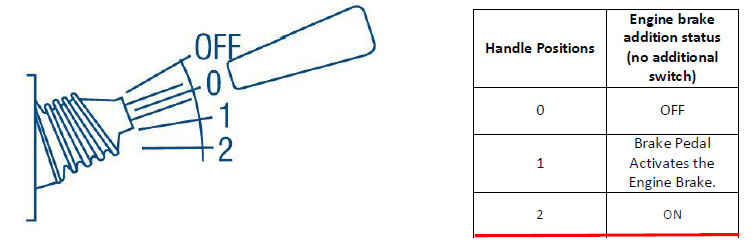

On vehicles without Intarder and with EBS

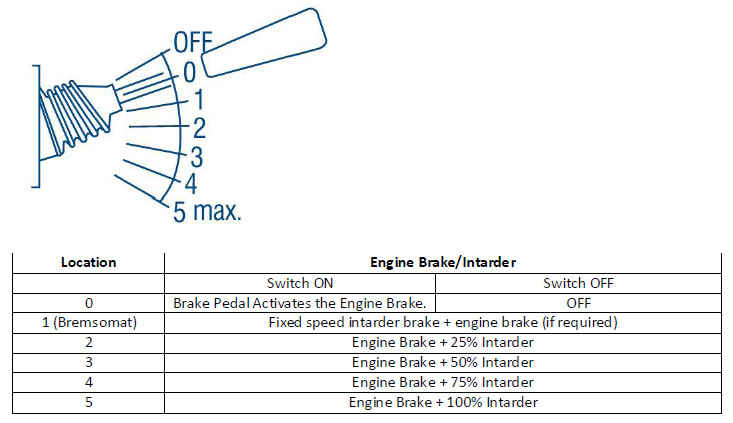

Vehicles with Intarder

Intarder is a special brake system for decelerating the vehicle and maintaining the speed in downhill travels, and also known in the market as "drive shaft brake". Intarder provided in your vehicle has a hydrodynamic braking system also known in the market as fluid type.

• Braking Moment: 3,500 Nm

• Braking Power: 600 kW

• Weight: 70 kg .

• Operating principle: Hydrodynamic braking

• Fully compliant with ABS-EBS system

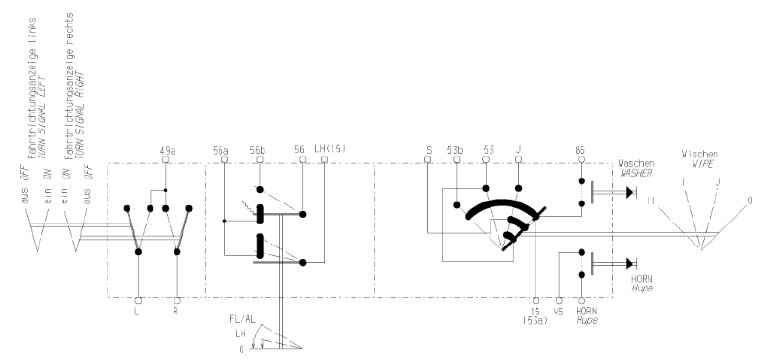

Multi-functional Lever-Left Connectors and Pin Layout

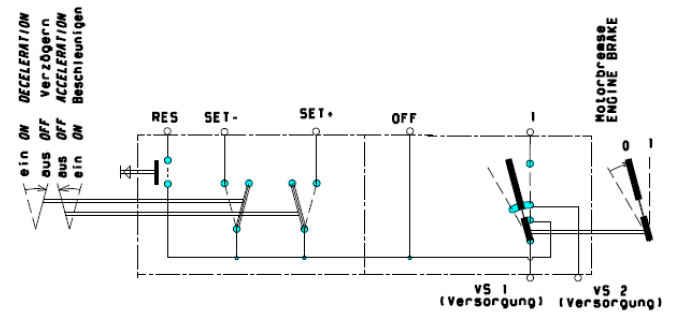

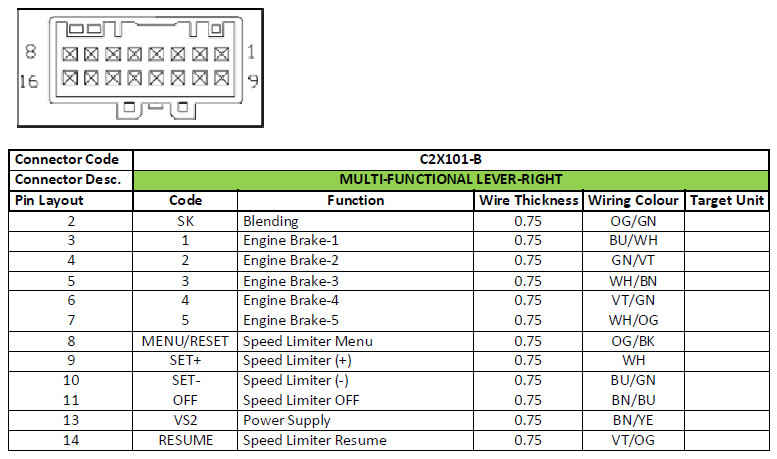

Multi-functional Lever-Right Connectors and Pin Layout
