Читаем схемы TATA Daewoo
(на примере NOVUS DX12E EURO 5)

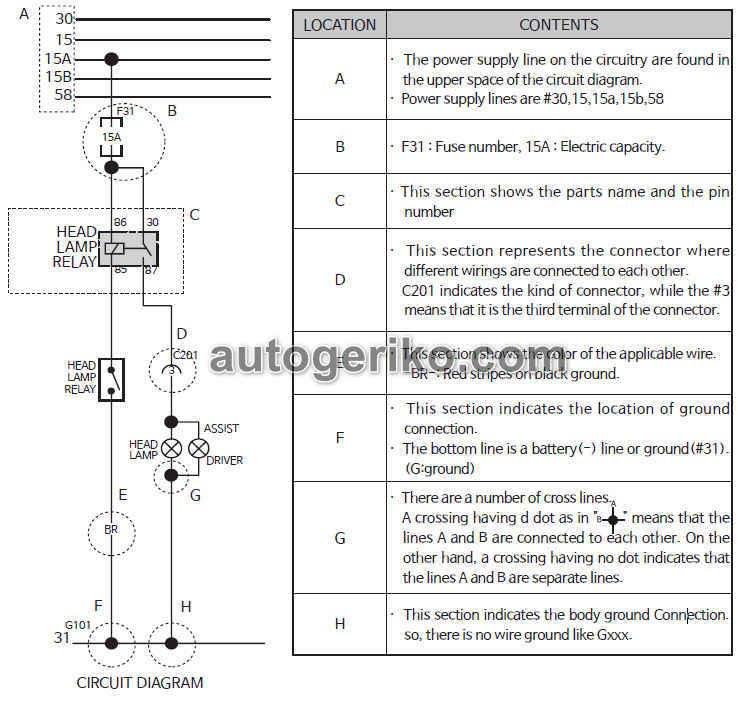

HOW TO USE CIRCUIT DIAGRAM

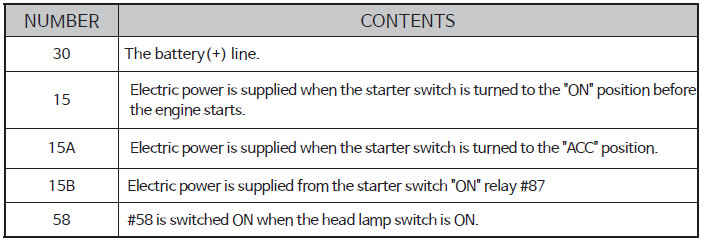

POWER SUPPLY NUMBER
COLOR SYMBOLS FOR WIRING
HOW TO KNOW CONNECTOR PIN NUMBER
1) CONNECTOR PIN FIGURE
Connector pin figure is the total hole number of the connector
2) CONNECTOR PIN NUMBER

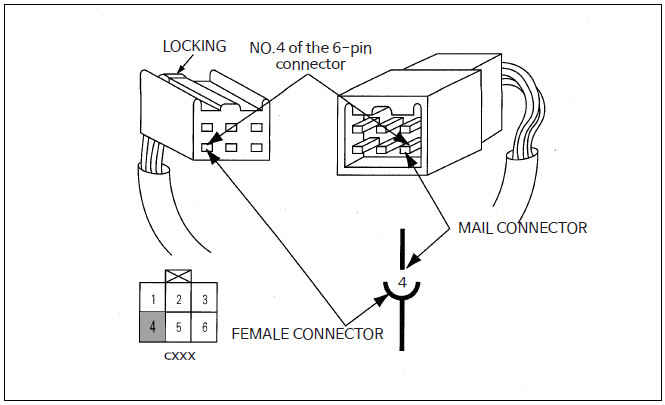

EX) NO.4 of the 6 pin connector

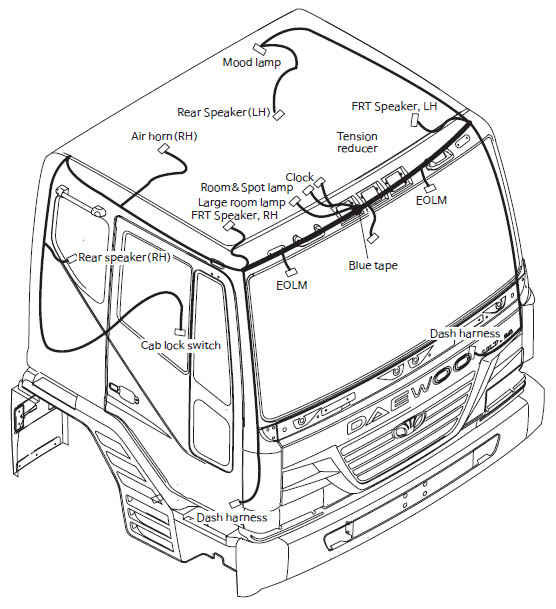

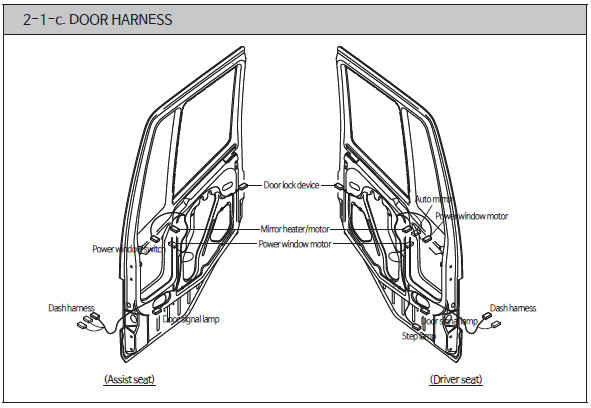

ROOF HARNESS/DASH HARNESS/DOOR HARNESS

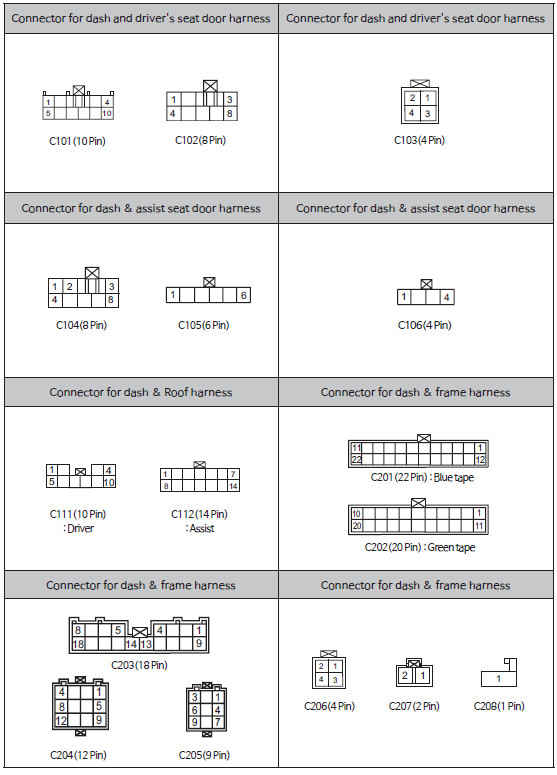

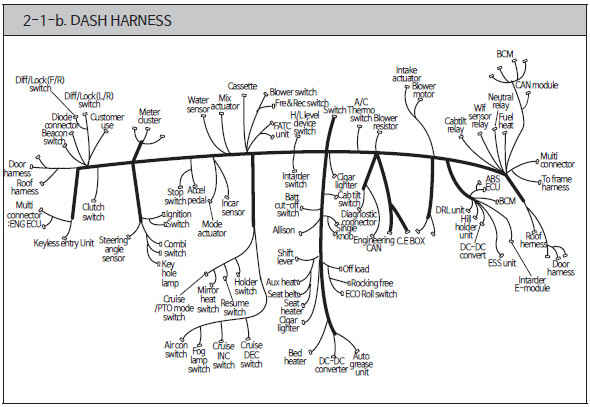

DASH HARNESS CONNECTOR
