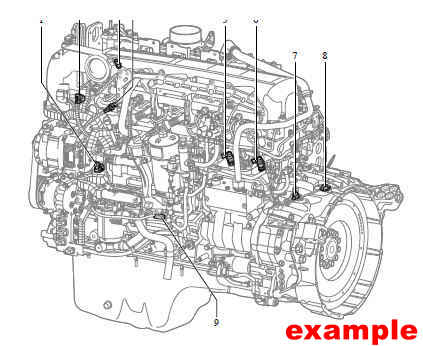

Oil pressure sensor (1)    30 Nm [266 lb-in](2)

Inlet air boost pressure sensor (2)    30 Nm [266 lb-in](2)

Intercooler air temperature sensor (3) attachment bolt    10 Nm [89 lb-in](1)(2)

Boost air temperature sensor (4) attachment bolt    10 Nm [89 lb-in](1)(2)

Fuel temperature sensor (5)    30 Nm [266 lb-in]

Fuel pressure sensor (6)    30 Nm [266 lb-in]

Camshaft sensor (7) attachment bolt    10 Nm [89 lb-in](3)

Crankshaft sensor (8) attachment bolt    10 Nm [89 lb-in](3)

Crankcase pressure sensor (9) attachment bolts    6 Nm [53 lb-in]

(1) Do not touch other objects with the tip of the sensor.

(2) Always use a new sealing ring.

(3) Always use a new O-ring.
