FORD F MAX CARGO GC46
Электрические схемы
Index Diagram
1 7XC000 INDEX PAGE:A Diagram 1

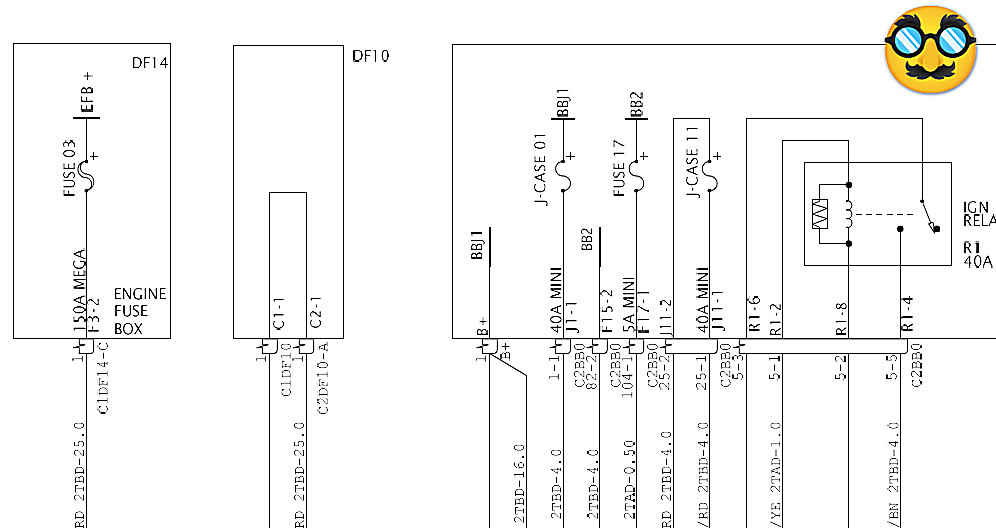

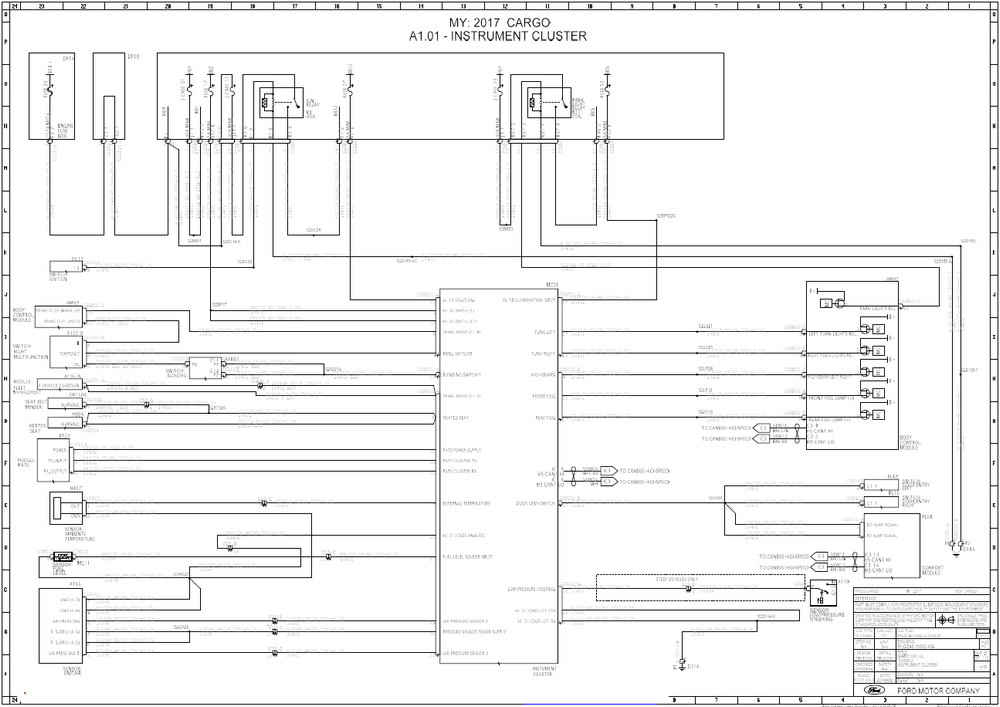

2 70A000 INSTRUMENT CLUSTER:A-Diagram 1
3 70A000 INSTRUMENT CLUSTER A Diagram 2
4 70A102 AUDIO:A Diagram 1
5 70A104 ERA GLONASS: A-Diagram 1
6 70B023 AUTOMATIC TRANSMISSIONS Diagram 1
7 70B024 POWER 1 AKE OFFS Diagram 1
8 7 0 80 2 4 REAR AXLE DIFFERENTIAL LOCKOUTA-Diagram 1
9 708042 ENGINE CONTROL:A-Diagram 1
10 70B042 ENGINE CON FROLS Diagram 2
11 708042 ENGINE CONTROLS-Diagram 3
12 708042 ENGINE CONTROLS-Diagram 4
13 70B200 ENGINE BRAKES Diagram 1
14 70B200 INTARDERS-Diagram 1
15 70B200 SELECTIVE CATALYTIC REDUCTIONS Diagram 1
16 70B200 SELECTIVE CA I ALY TIC REDUCT IONS Diagram 2
17 708201 DIESEL PARTICULATE FILTERS-Diagram 1
18 70C000 POWER DISTRIBUTION A Diagram 1
19 70C000 POWER DISTRIBUTIONS Diagram 2
20 70C000 POWER DISTRIBUTIONS-Diagram 3
21 70C000 POWER DISTRIBUTIONS Diagram 4
22 70C000 POWER DISTRIBUTIONS Diagram 5
23 70C000 POWER DISTRIBUTIONS-Diagram 6
24 70C000 POWER DISTRIBUTIONS Diagram 7
25 70C000 POWER DISTRIBUTIONS-Diagram 8
26 70C000 POWER DISTRIBUTIONS-Diagram 9
27 70C001 BODY CONTROL MODULES Diagram 1
28 70C001 BODY CONTROL MODULES-Diagram 2
29 70C001 BODY CON I ROL MODULES-Diagram 3
30 70C001 BODY CONTROL MODULES-Diagram 4
31 70C001 BODY CONTROL MODULES-Diagram 5
32 70C001 BODY CONTROL MODULES Diagram 6
33 70C001 BODY CONTROL MODULES-Diagram 7
34 70C001 BODY CONTROL MODULES-Diagram 8
35 70C004 BATTERY MASTER SWITCHS Diagram 1
36 70C020 GROUNDINGS Diagram 1
37 70C020 GROUNDINGS-Diagram 2
38 70C020 GROUNDINGS Diagram 3
39 70C020 GROUNDINGS Diagram 4
40 70C020 GROUNDINGS-Diagram 5
41 70C030 HSCAN 1 S Diagram 1
42 70C030 HS CAN IS Diagram 2
43 70C030 HS-CAN 2 (AUTOMATIC TRANSMISSION FLASH CAN)S-Diagram...
44 70C030 HS CAN 3 (ENGINE CAN)S Diagram 1
45 70C030 l-CAN (FLEET MANAGMENT AND AFTERMARKET CAN)S-Diagram...
46 70C030 MS-CAN (ENGINE FLASH CAN):A-Diagram 1
47 70C031 DIAGNOSTICS Diagram 1
48 70C040 STARTING/ CHARGINGS-Diagram 1
49 7OCO51 LIN & K-LINS-Diagram 1
50 70C070 HORNS Diagram 1
51 70C07I ABSS Diagram 1
52 70C071 ABSS Diagram 2
53 70C072 EBS/ ESP:A Diaqram 1
54 70C072 EBS/ ESP:A-Diagram 2
55 70C072 EBS/ ESPS Diagram 3
56 70C072 EBS/ ESPS Diagram 4
57 70C072 EBS/ ESP:A-Diagram 5
58 70C072 EBS/ ESP:A Diagram 6
59 70C075 TRAILER BRAKES Diagram 1
60 70C076 ACTIVE SUSPENSION CONTROL:A Diagram 1
61 70C076 ACTIVE SUSPENSION CON I ROLS Diagram 2
62 700 21 HEATER / A/C CONTROL:A Diaqram 1
63 70C1 24 FUEL FIRED HEATER (EBERSPAECHER):A-Diagram 1
64 70C140 COURTESY LIGHTING (H/L ROOF)S Diagram 1
65 70C140 COURTESY LIGHTING (X-HICH ROOF)S-Diagram 1
66 70CI40 IP & SWITCH ILLUMINATIONS-Diagram 1
68 70C160 FOG LIGHTING:A Diagram 1
69 70C160 HEAD LICHTINGS-Diagram 1
70 70C160 TURN AND HAZARD LIGHTINGS Diagram 1
71 70C160 TURN AND HAZARD LIGHTING:A-Diagram 2
72 70C162 BRAKE LIGHTINGS-Diagram 1
73 700163 BACKUP LIGHTING:A-Diagram 1
74 70C164 PARK LlGH r INGS Diagram 1
75 70C164 ROOF LAMPS:A-Diagram 1
76 70C165 HEAD LAMP LEVELING:A-Diagram 1
77 70C183 ADAPTIVE CRUISE CONTROL:A Diagram 1
78 70C202 POWER LOCKS:A-Diagram 1
79 70C202 POWER LOCKSS Diagram 2
80 70C240 POWER MIRRORS:A-Diagraml
81 70C243 HEATED MIRRORS:A-Diagram 1
82 70C270 HEATED SEATS/SEAT BELT MINDER:A-Diagraml
83 70C340 POWER WINDOW$:A-Diagram 1
84 70C370 POWER SUNROOF:A-Diagram 1
85 70C400 FRONT WINDOWS WIPER WASHERS Diagram 1
86 70C403 HEATED WINDSHIELD:A-Diagram 1
87 70C425 FLEET MANACEMENTS-Diagram 1
88 70C426 TRANCEIVER MODULE & STEERING COLUMN LOCKING A Diagram
89 70C427 1ACHOGRAPH A Diagraml
90 70C441 TRAILER TOW & AFTER MARKET CONNECTOR: A-Diagram 1
91 70C441 TRAILER TOW & AFTER MARKET CONNECTOR:A Diagram 2
92 70C441 TRAILER TOW & AFTER MARKET CONNECTOR:A-Diagram 3
93 70C445 AUTODROP & AXLE LIFTER VEHICLESS-Diagram 1
94 70C446 CABIN TILTINCS-Diagram 1
95 70C462 CIGAR LIGHTER - POWER POINT:A-Diagram 1
96 70C463 VOLTAGE CONVERTERS Diagram 1
97 70C481 BEACON LIGHTINGS-Diagram 1
98 70D501 FACEVIEW:A-Diagram1
99 70D501 FACEVIEWS Diagram 2
100 70D501 FACEVIEWS Diagram 3
101 70D501 FACEVIEWS-Diagram 4
102 70D501 FACEVIEWS Diagram 5
103 70D501 FACEVIEWS Diagram 6
104 70D501 FACEVIEW:A-Diagram 7
105 70D501 FACEVIEWS Diagram 8
106 70D501 FACEVIEWS Diagram 9
107 70D501 FACEVIEWS-Diagram 10
108 70D501 FACEVIEWS Diagram 11
109 70D501 FACEVIEWS-Diagram 12
110 70D501 FACEVIEWS-Diagram 13
111 70D501 FACEVIEWS-Diagram 14
112 70D501 FACEVIEWS Diagram 15
113 70D501 FACEVIEWS-Diagram 16
Все схемы в высоком качестве в
