Описание работы ABS на автобусах HYUNDAI

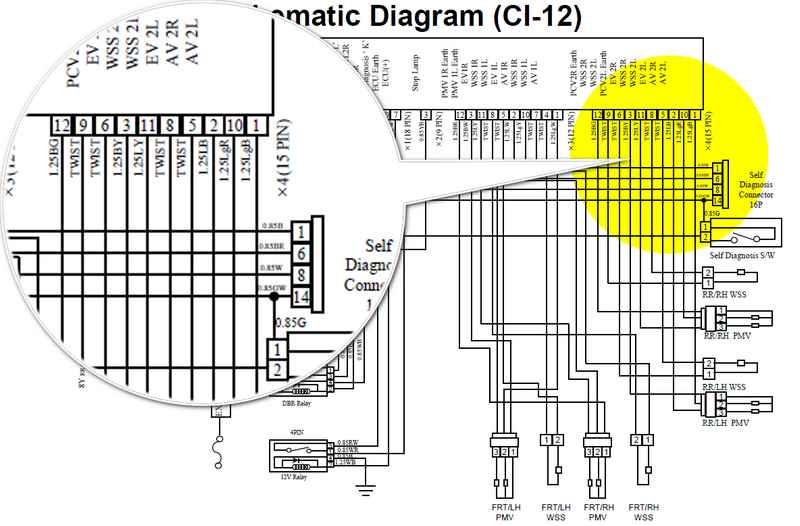

Schematic Diagram (CI-12)

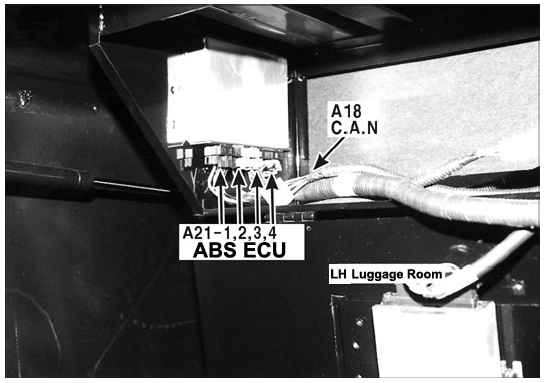

Location

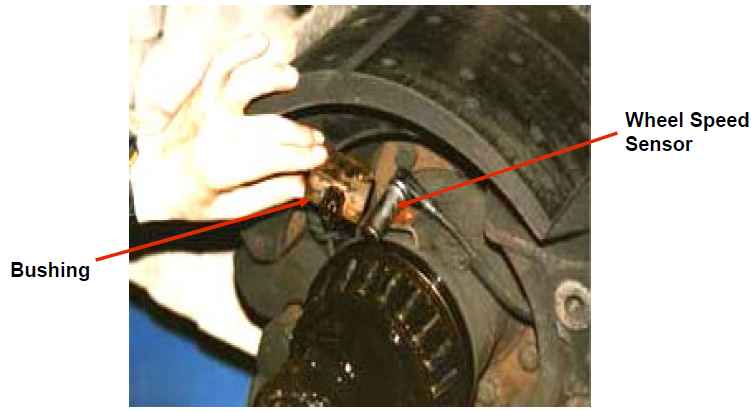

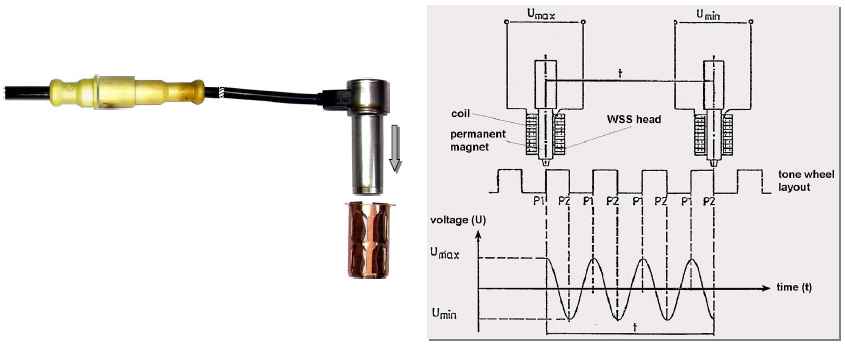

Wheel Speed Sensor
Minimum output voltage : 0.75 V
WSS: service advice

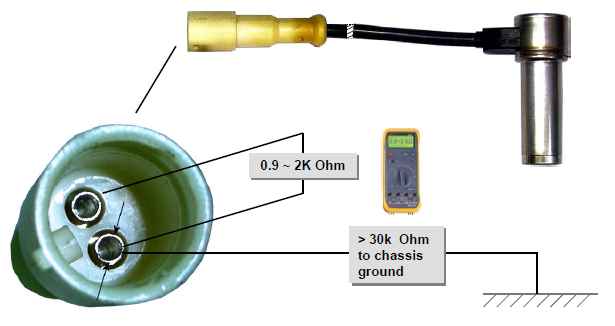

The single WSS (removed from the vehicle) can simply be tested with a multi-meter by a resistance (Ohm) measurement.

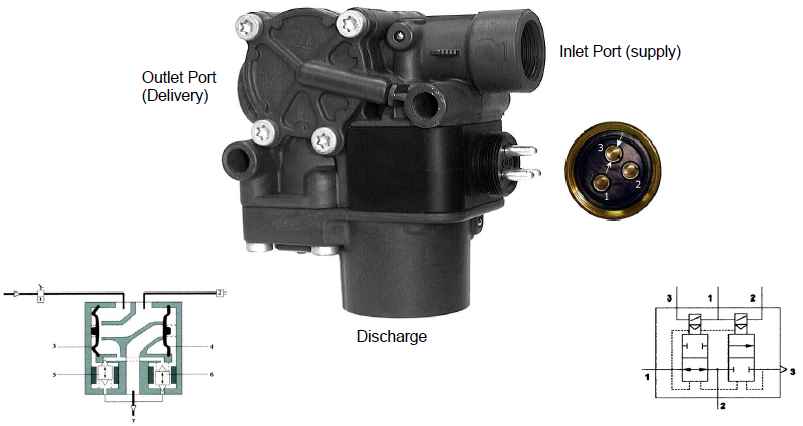

Pressure Control Module
PCM: service advice

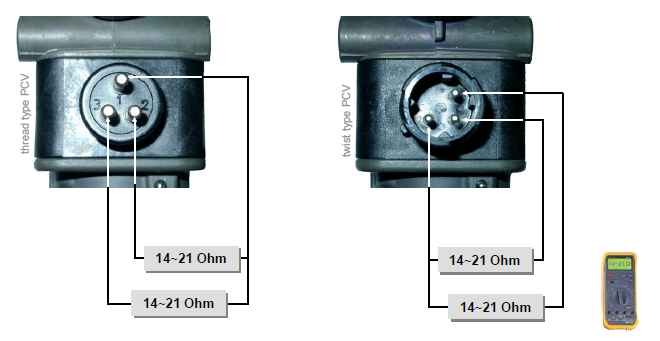

The single valve (removed from the vehicle) can simply be tested with a multi-meter by a resistance (Ohm) measurement.

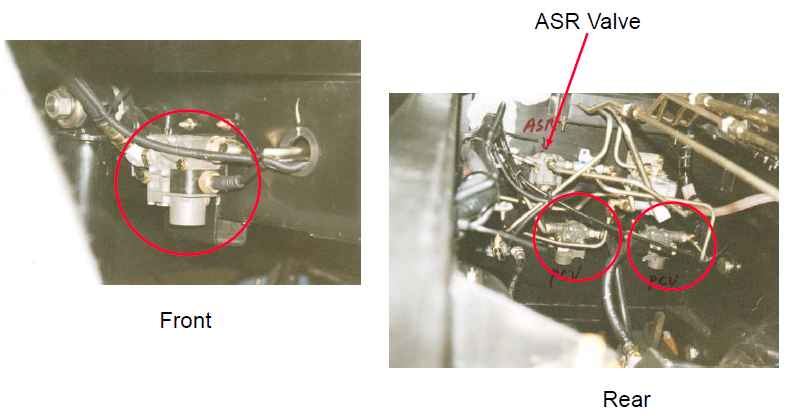

Exercise : ASR Valve
Please Describe what is ASR and its function
Function
When one side wheel is caught at slippery road or muddy surface, the slipping wheel idles, that the vehicle is hard to run power train (differential, axle shaft). In order to compensate idling for stability, the ASR, feature controls to brake the idling wheel properly and transfer the rotating force to the other wheel to enable launching.
Operational Condition
Vehicle Speed : 40 km/h or less
Speed Difference between RH and LH Wheels : 25km/h or more
Brake Pedal should not be depressed.

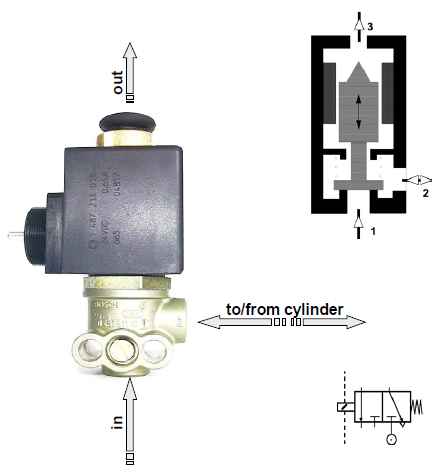

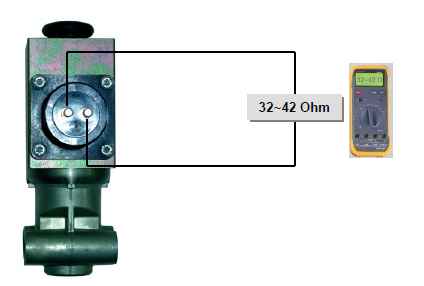

The single valve (removed from the vehicle) can simply be tested with a multi-meter by a resistance (Ohm) measurement.

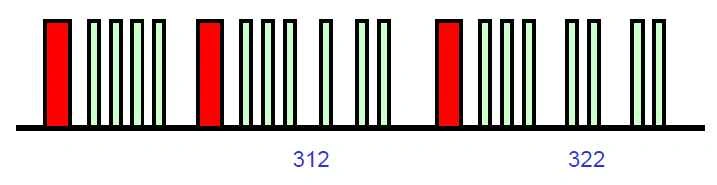

Wheel Speed Sensor Faults (312, 322)
Fault Codes
121 System OK
211 CAN: BUS off
Correctly connect CAN-Bus and terminating resistor
212 CAN: signal not plausible
Check Engine ECU
213 CAN: interruption of communications
Correctly connect CAN-Bus and terminating resistor
214 CAN: Time-out Transmission
Repair CAN-Bus between ABS/ASR and gearbox
215 CAN: Time-out Engine
Repair CAN-Bus between ABS/ASR and Engine ECU
216 CAN: Time-out Engine Brake
Check communication line between ABS/ASR and Engine ECU
217 Brake Lamp Switch
Check brake lamp switch wiring
221 ECU internal error
222
223
224
225
226
227
228 Erase fault code.
After resetting, if trouble codes appear again, replace ABS Control Module
Wrong EEPROM parameters
Load the correct set of parameters
232 Wrong tires on the axles
Fit the correct tires and the appropriate pulse rings
242 Under-voltage UB
Make correct UB-connection and ground connection
243 Open-circuit UB
Make correct UB-connection and ground connection
244 ECU internal error
Erase fault code.
After resetting, if trouble codes appear again, replace ABS Control Module
